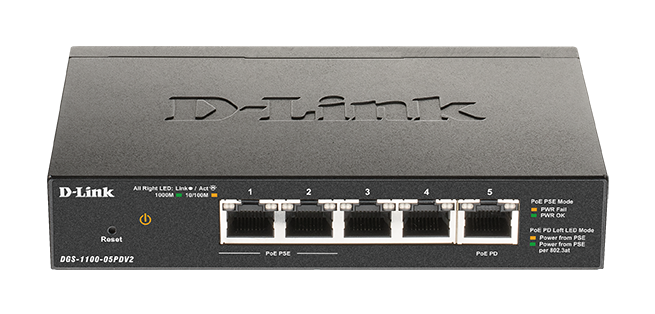

Switch EasySmart PoE Passthrough a 5 porte

DGS-1100-05PD

  • Stato del prodotto (Revision V2): Live
  • Powered by PoE, and delivers PoE
  • 2x 100/1000BaseT ports, 2x 100/1000BaseT PoE ports, 1x 100/1000BaseT PoE PD port
  • Layer 2 Management Features
  • Fanless design

Scarica la scheda tecnica

Elenco negozi

Unlock the benefits of Power over Ethernet
The 5-port DGS-1100-05PD Gigabit PoE-Powered Smart Managed Switch is powered by Power over Ethernet (PoE), making it ideal for deployment in places where no power socket is available.

With its extremely versatile PoE-passthrough feature, it can power 2 additional PoE-enabled devices with a PoE power budget of up to 18W¹.

It comes in a compact desktop-sized metal case with a fanless design for silent operation.

Advanced management features, diagnostic and troubleshooting tools, and energy efficient technologies provide a flexible solution to suit your networking requirements.

Auto Surveillance/Voice VLAN and Bandwidth Control

The DGS-1100-05PD supports Auto Surveillance VLAN (ASV) which ensures the quality of real-time video for monitoring without compromising the transmission of conventional network data.

It also supports Auto Voice VLAN, which is best suited for VoIP deployments. This enhances the VoIP service by automatically placing voice traffic from an IP phone to an assigned VLAN. With the higher priority and individual VLAN, these features guarantee the quality and security of VoIP traffic.

Bandwidth Control can reserve bandwidth on a per port basis for important functions that require a larger bandwidth or have high priority.

Advanced Features

Protect your network with its advanced security features like Static MAC, Storm Control, and IGMP Snooping.

Static MAC allows you to create a MAC whitelist for specific ports, helping you limit network access to authorised devices only.

Storm Control monitors broadcast, multicast, or unknown unicast traffic and will start blocking or discarding packets that could flood the network when the defined threshold is exceeded.

IGMP Snooping is able to reduce the loading of L3 multicast routers and save bandwidth in network throughput.


Easy Troubleshooting

Its Loopback Detection and Cable Diagnostics helps find and solve network problems quickly and easily.

Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port.

The Cable Diagnostics feature is designed to quickly examine the quality of the copper cables, recognise the cable type, and detect cable errors.



Easy to deploy

An intuitive D-Link Network Assistant Utility and a web-based management interface are included with the switch.

The D-Link Network Assistant Utility allows you to discover, and instantly access all switches in the D-Link Smart Managed Switch family within the same L2 network segment without needing to change the IP address of your PC.

The web-based management interface provides a user-friendly interface that enables you to remotely control your network down to the port level.



¹ When powered by a PoE device supporting 802.3at. PoE power budget when powered by PoE device supporting 802.3af is up to 8 W.


Prodotti correlati

Smart Switch Gigabit gestiti
DGS-1100-05V2, DGS-1100-05PDV2, DGS-1100-08V2, DGS-1100-08PV2, DGS-1100-10MPV2 (Max PoE), DGS-1100-16V2, DGS-1100-24V2, DGS-1100-24PV2, DGS-1100-26MPV2 (Max PoE)
Maggiori informazioni
Serie di Smart Switch Gigabit
DGS-1210-10, DGS-1210-10P, DGS-1210-10MP, DGS-1210-20, DGS-1210-26, DGS-1210-28, DGS-1210-28P, DGS-1210-28MP (Max PoE), DGS-1210-52, DGS-1210-52MP (Max PoE)
Maggiori informazioni
Smart Managed Gigabit Switches
DGS-1210-08P, DGS-1210-16, DGS-1210-24, DGS-1210-24P, DGS-1210-48
Maggiori informazioni
D-View 7 Network Management System
DV-700
Maggiori informazioni
Smart Switch Gigabit impilabili gestiti
DGS-1510-20, DGS-1510-28X, DGS-1510-28P, DGS-1510-28XMP, DGS-1510-52X, DGS-1510-52XMP
Maggiori informazioni

Specifiche tecniche

Type
Smart managed
Number of ports
5 to 14 ports
Layer
Layer 2
Main type of ports
1000BASE-T Gigabit Ethernet
Switching capacity
10 Gbps
Powered by PoE
Supported
PoE options
802.3af
Number of PoE ports
2
PoE power budget
See datasheet
Fanless
Supported
D-Link Green
Supported
802.3az Energy-Efficient Ethernet support
Supported
Form Factor
Desktop
Housing
Metal
Jumbo frame
Supported
Cable diagnostics
Supported
MAC address
2K
Link aggregation
Static trunk
VLAN group (max static)
32
VLAN type
Port-based
Advanced VLAN
Auto Surveillance VLAN
Voice VLAN
Number of QoS queues per port
4
Bandwidth control
8 Kbps minimum granularity
