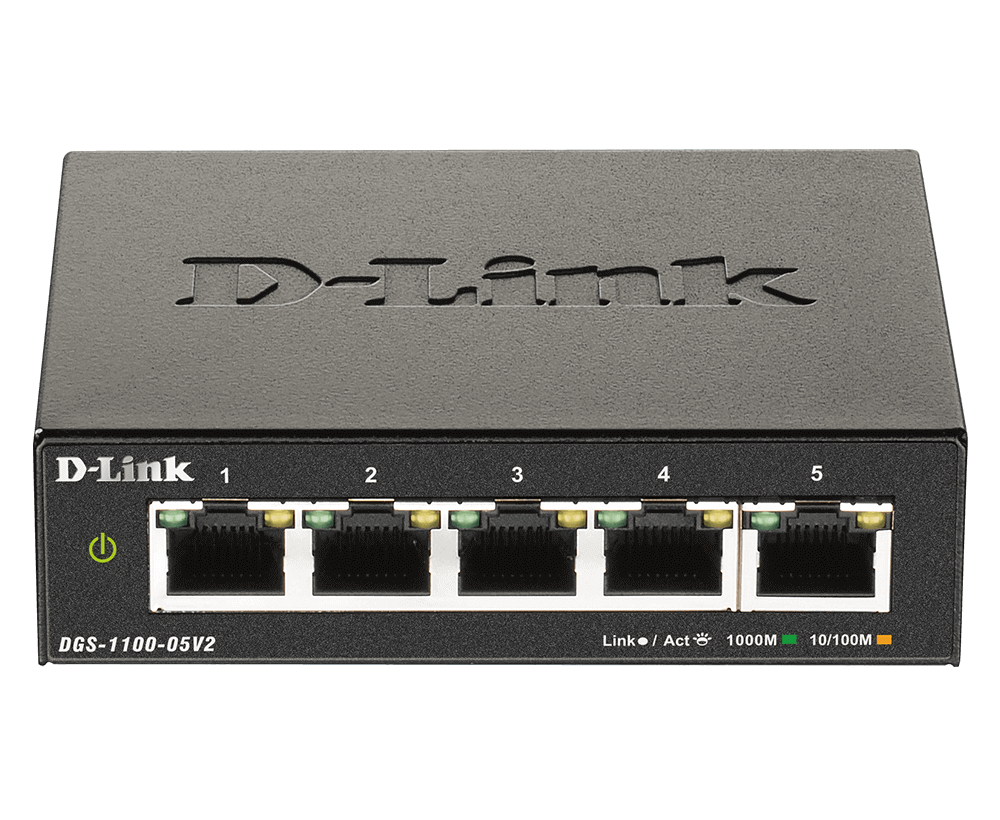

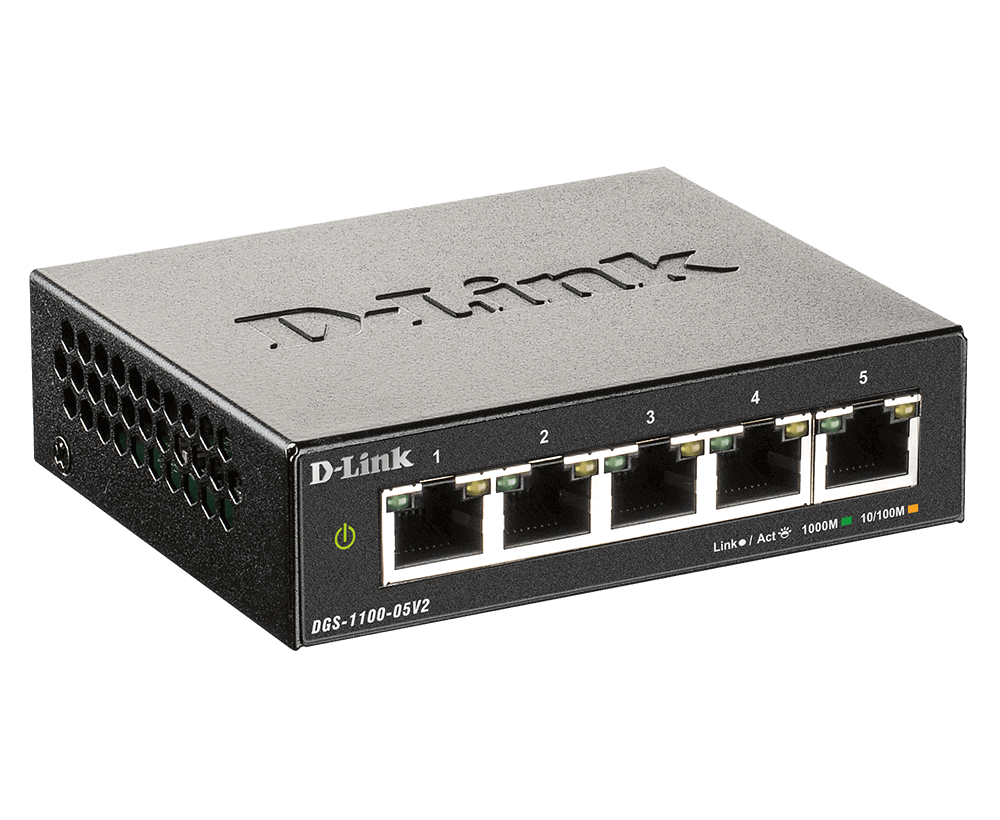

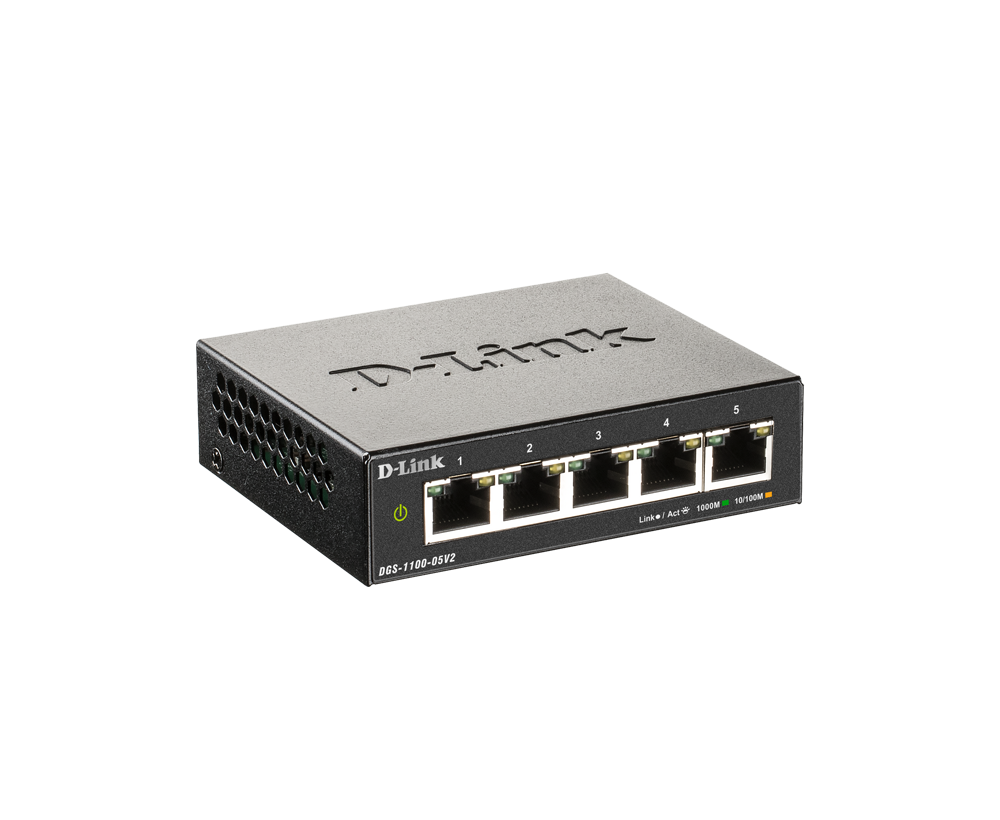

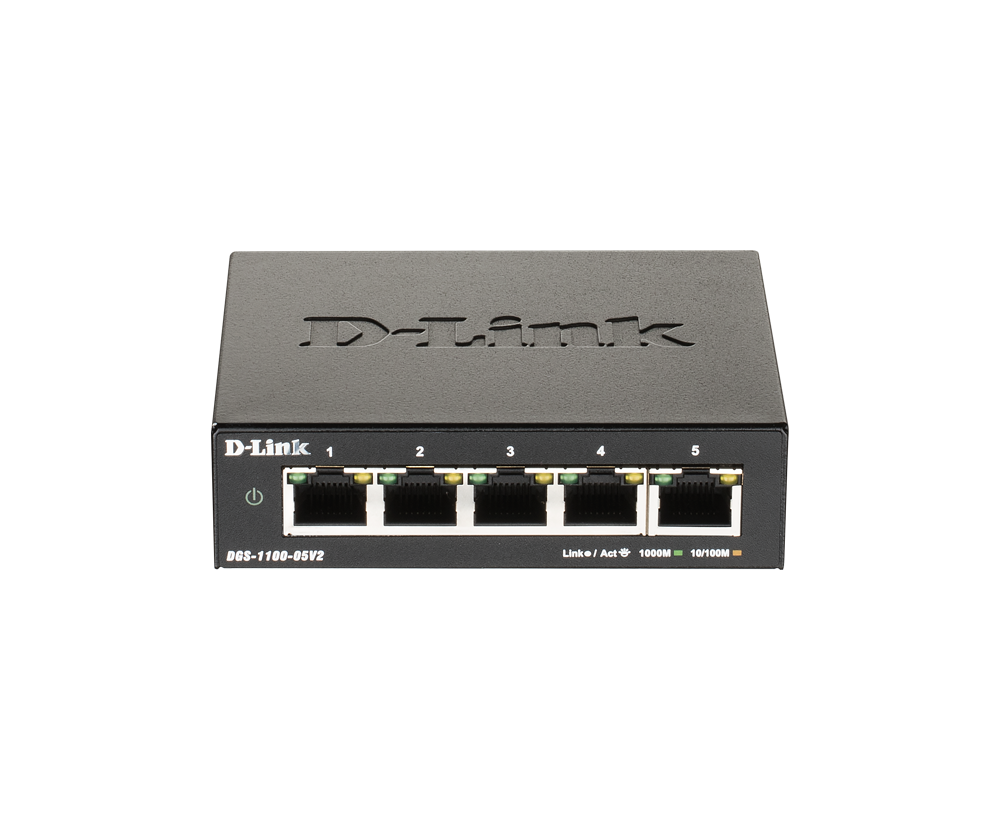

5 Port Gigabit Smart Managed Switch
DGS-1100-05V2
- Product Status (Revision REVB_v3.20_EN_US): Live
- 5 x 10/100/1000BASE-T ports
- Fanless design for silent operation
- Complete web interface for comprehensive switch management
- Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs
- Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery
- Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security
- IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic
- Innovative D-Link Green energy saving features are good for your budget, as well as the environment
- Get up and going quickly with streamlined first-time setup and ongoing management
- NDAA Compliant
- D-Link Lifetime Warranty after Registration
Where to buy
Simple. Easy. Smart.
Web UI
Easy to use web interface to access management features.
Green Technology
Innovative D-Link Green power saving features
Management Software
Supports DNA and D-View for remote setup and management
Advanced Security Features
The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation (desktop models utilize Static Trunk). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.
Simplify Network Management

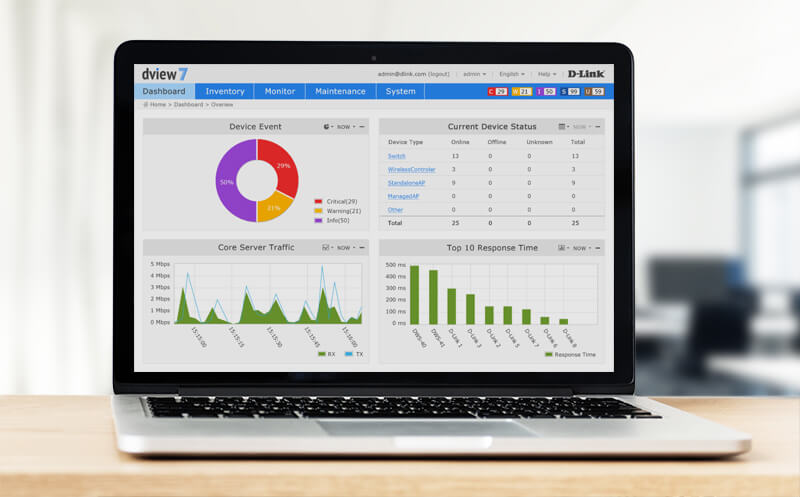

D-Link’s free Network Assistant (DNA) utility displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.
Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. The desktop models in the series utilize a fanless design, for silent and energy-efficient operation. All models are also IEEE 802.3az-compliant and feature Link Status detection.
Related Products
Specification
|
Dimensions
|
150 × 97 × 28 mm |
|---|---|
|
FAN
|
Fanless |
|
Humidity
|
Operation 0%-90% RH Storage: 0% - 95% RH |
|
Interfaces
|
2 x 1000Base-T PoE 3 x 1000Base-T Interface ( with 1 PD Port) Auto MDI/MDIX |
|
Maximum Forwarding Rate
|
7.4 Mpps |
|
Maximum Power Consumption
|
2.322W (PoE off) 23.922W (PoE on) |
|
Operating Altitude
|
2000 m |
|
Packet Buffer Size
|
1 Mbits |
|
PoE Power Budget
|
18W max with 802.3at 8W max with 802.3af input power |
|
Power Input
|
802.3af/at PoE input only |
|
Switching Capacity
|
10 Gbps |
|
Temperature
|
Operating: 0 ~ 40 °C Storage: - 40 ~ 70 °C |
|
Weight
|
0.38kg |
