5G Transit Gateway
DTM-550-G
- Produkt Status (Revision A1_v1.11): Live
- 5G SA & NSA with dual SIM slots for cellular WAN failover redundancy
- 4 x Gigabit Ethernet ports
- Wi-Fi 6 AX1800 to connect multiple on-board devices
- 1 x IGN (Ignition Sense) for power control function
- GNSS for GPS/GLONASS
- -30 to 70°C operating temperature to resist harsh environments
- Wide voltage range input: DC 12-36V
- Mounting bracket allows for optimal device placement
Bezugsquellen
User Benefits
5G SA & NSA
Nutzen Sie die flexible 4G/5G-Dual-Mode-Kompatibilität, um sich nahtlos an verschiedene Carriert Netzwerke anzupassen.
Wi-Fi 6 AX1800
Enhanced service efficiency via high-speed Wi-Fi for seamless access for passenger and connected devices.
Dual-SIM Failover
Zwei SIM-Slots mit Failover-Redundanz gewährleisten eine zuverlässige und unterbrechungsfreie Mobilfunk-WAN-Verbindung für kritische Anwendungen.
EN50155 / E-Mark Certified
Compliant with EN50155 and E-Mark certifications to ensure the reliability and safety for the smart transportation.
GPS Location
Real-time tracking enables routing services to minimize travel time and optimize fleet efficiency.
Wide Voltage Input Range
Safely accepts power input from various on-board power sources for convenient installation.
Enhanced Passenger Wi-Fi and Real-Time Telematics
The DTM-550-G 5G Transit Gateway transforms public transport experiences by providing high-speed in-vehicle Wi-Fi and real-time content updates. Passengers can enjoy seamless internet access and receive instant updates on weather and advertisements directly on digital signage, enhancing satisfaction in intelligent public transportation.
Optimize Vehicle Operation with Location-Based Services
The DTM-550-G equips fleet vehicles with precise GPS location positioning, integrating seamlessly into customer’s fleet management for real-time vehicle tracking, and optimizing route planning. This enhances operational visibility and efficiency and supports improved decision-making.
Robust Design with Vibration/Shock Resistance
Certified with EN50155 and E-Mark, the DTM-550-G design withstands vibrations, shocks, and extreme temperatures, ensuring data transmission stability even in moving vehicles. Ideal for demanding M2M applications in public transportation, it meets rigorous safety and regulatory standards for seamless automotive integration.
Weitere Produkte

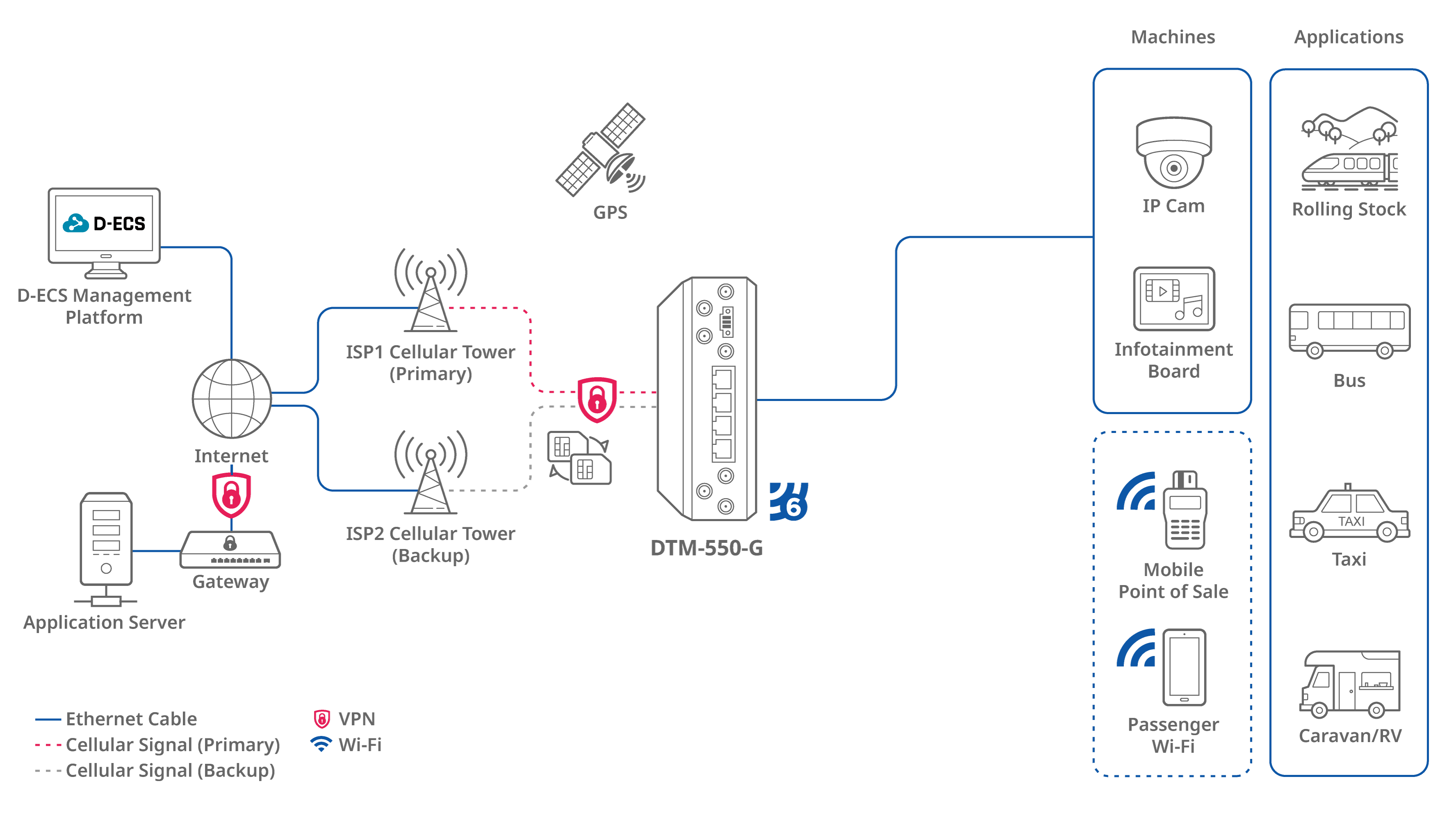

High-Speed Connectivity for Intelligent Transportation
The DTM-550-G 5G Transit Gateway enhances transportation with high-speed connectivity, featuring dual-SIM support for uninterrupted cellular service and Wi-Fi 6 for a robust passenger internet experience. Integrated GPS facilitates efficient route management through precise location-based services. This gateway is centrally managed via D-ECS, allowing for seamless remote monitoring, ideal for buses, taxis, and RVs. It supports critical applications like passenger Wi-Fi, mobile POS, IP cameras, and infotainment systems, ensuring efficient operation and seamless connectivity in dynamic environments.
The DTM-550-G 5G Transit Gateway delivers high-speed, dual-SIM cellular service and Wi-Fi 6 for robust passenger internet. Integrated GPS supports efficient route management. Managed via D-ECS for seamless remote monitoring, it’s perfect for buses, taxis, RVs and rolling stock. Supports passenger Wi-Fi, mobile POS, IP cameras, and infotainment, ensuring efficient, seamless connectivity.
Applications
Taxi
Enhanced taxi service with dynamic traffic routing, touchless payment, and Wi-Fi hotspot for a superior passenger experience.
Bus
Reliable Internet for mobile ticketing payment and passenger Wi-Fi enhance operator service efficiency and passengers journey experience.
Caravan
Uninterrupted connectivity for entertainment or mobile offices ensures secure data access anywhere, allowing for seamless remote work.
Rolling Stock
Reliable high-speed Internet for passenger Wi-Fi and mobile point-of-sale, preventing service disruptions and enhancing travel experience.
Specs
|
Antenna Connectors
|
4 x SMA for Cellular 1 x SMA for GPS 2 x RP-SMA for Wi-Fi |
|---|---|
|
Bridge Mode
|
Yes |
|
Cellular Module
|
5G NR |
|
Ethernet Interface
|
1 x WAN/LAN GE 3 x LAN GE |
|
IPv4/v6
|
Yes |
|
LAN
|
DHCP Server/Relay |
|
Local Management
|
Web UI/SSH |
|
Maximum Cellular Data Throughput
|
5G NSA : 3.4 Gbps (DL) / 550 Mbps (UL) 5G SA: 2.4 Gbps (DL) / 900 Mbps (UL) LTE: 1.6 Gbps (DL) / 200 Mbps (UL) |
|
Network Address Translation (NAT)
|
Yes |
|
VPN
|
Yes |
|
Port Forwarding
|
Yes |
|
Remote Management
|
D-ECS |
|
SIM Slot
|
2 x 4FF Nano-SIM |
|
SMS Management
|
Yes |
|
Temperature
|
Operating -30 to 70 ˚C |
|
WAN
|
Cellular/Ethernet |
|
Wi-Fi Standard
|
IEEE 802.11 ax/ac/n/g/b/a/h |
|
GNSS
|
GPS / GLONASS |
|
Power Input
|
2-pin TB for DC 12V-36V |
