New

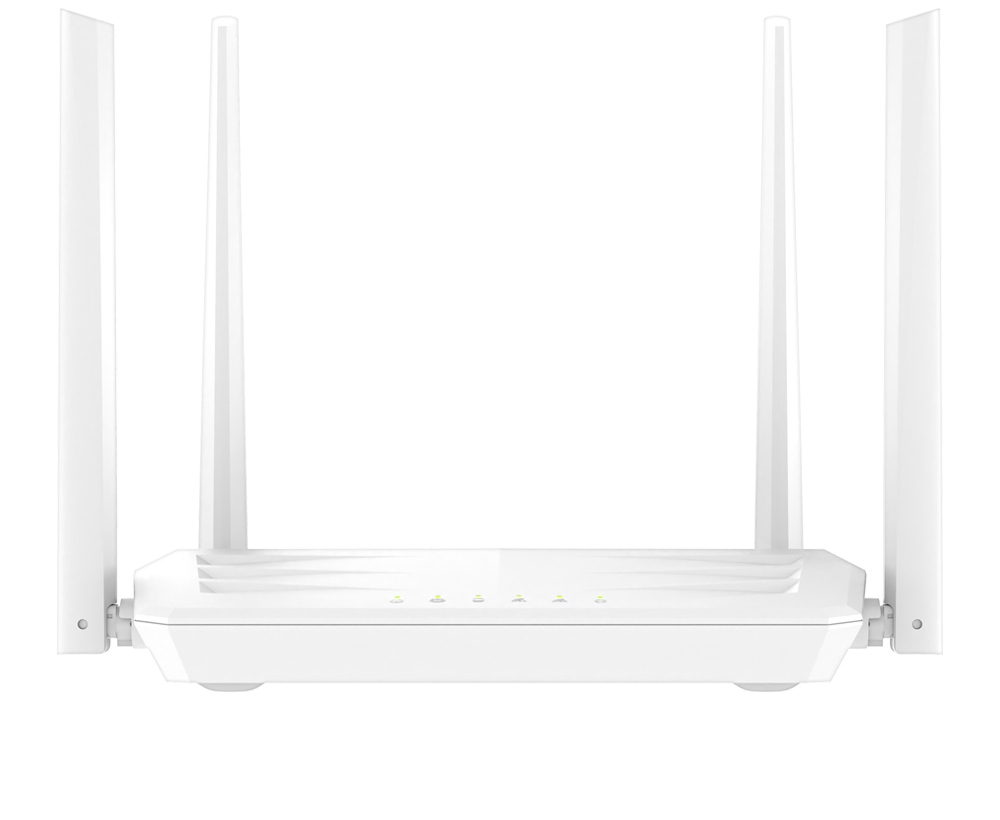

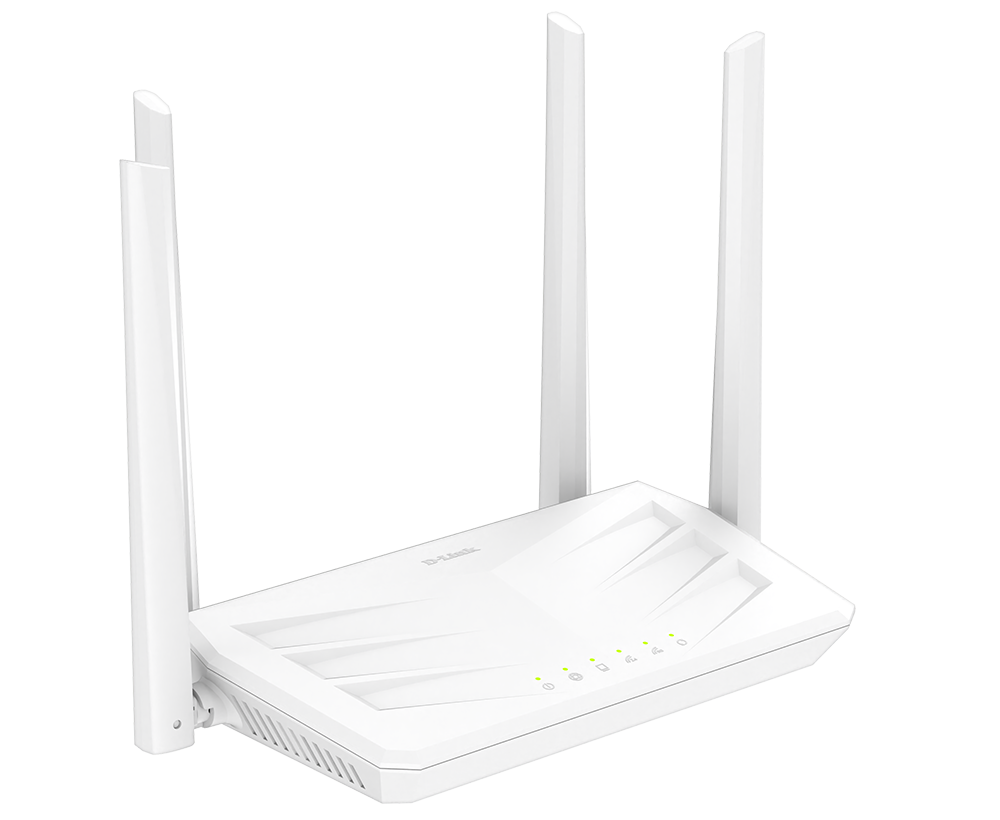

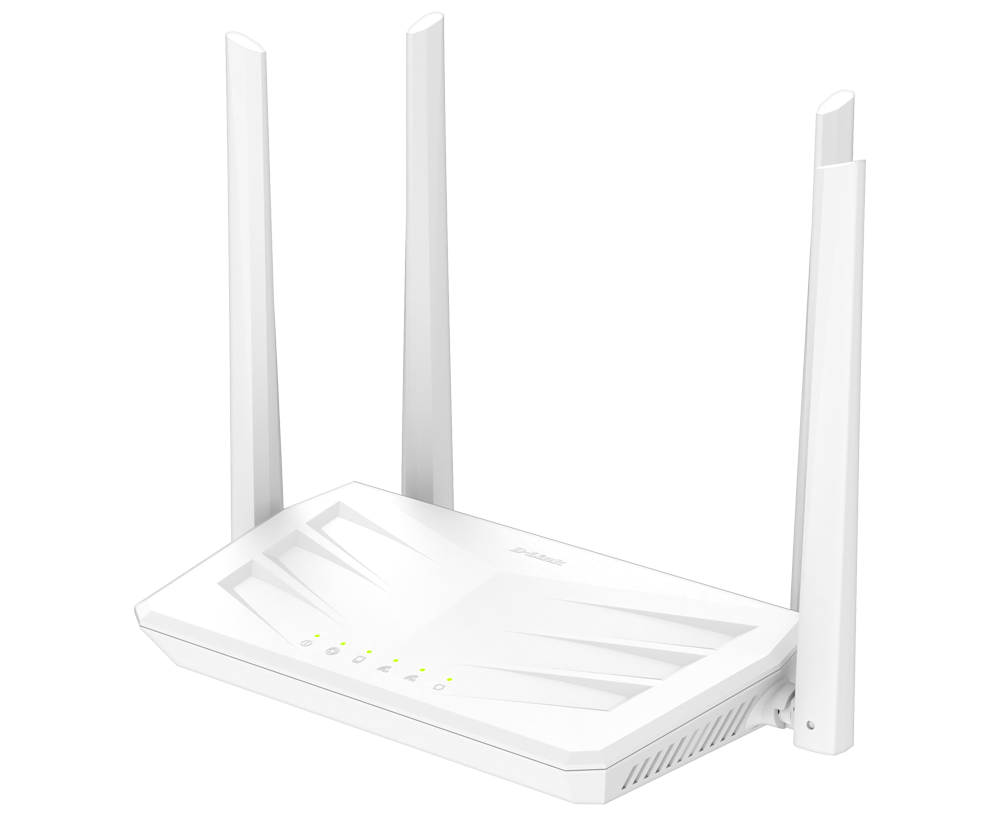

AX3000 Wi-Fi 6 Router

S30

  • Product Status (S30_A1_Datasheet_v1 03 WW): Live
  • Wi-Fi 6 Dual-Band: Delivers speeds up to 2402 Mbps (5 GHz) and 574 Mbps (2.4 GHz)³ for smoother 4K streaming and Video calls¹

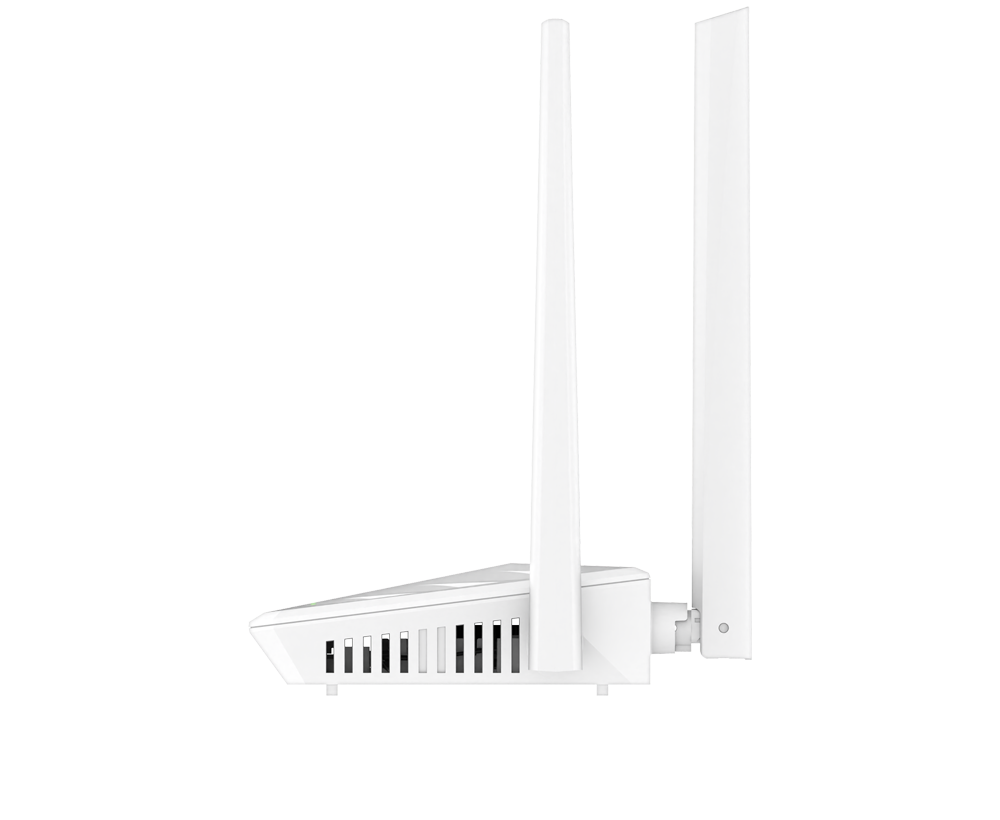

  • Optimize Coverage: Equipped with four adjustable external antennas to enhance signal reception and reduce dead zones2
  • Gigabit Connectivity: A Gigabit WAN port and 3× Gigabit LAN ports for more reliable connections to wired devices
  • Improved Efficiency: OFDMA and MU-MIMO technologies allow more devices to connect simultaneously
  • Enhanced Security: Supports WPA3 encryption,
    EN 18031 compliance, and a guest network for stronger data protection
  • Multi-Mode Networking: Supports Router, Bridge, and Repeater modes for easy network customization
  • Easy Setup: Network setup is simplified through the
    D-Link SetupGo app4

Download the datasheet.

Where to buy

The S Series | Wi-Fi Routers & Extenders

Simple Internet Access, Secured by Default.

High-Speed Performance, Affordable Choice

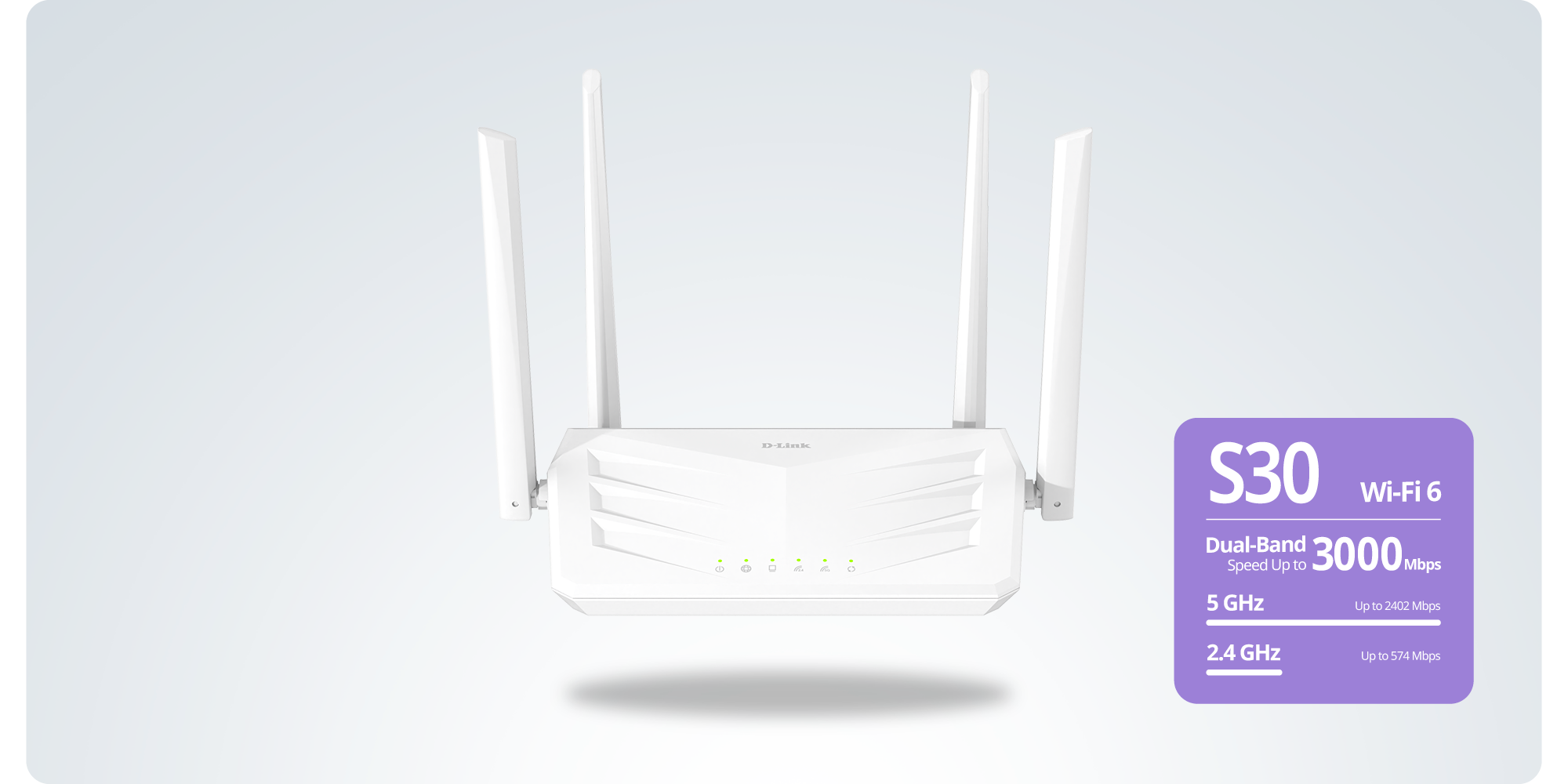

Level up your home Wi-Fi affordably with the S30 AX3000 Wi-Fi 6 Router. Enjoy faster, more stable dual-band3
speeds up to 3000 Mbps for smoother 4K streaming and video calls.1

Video Calls

4K Streaming

Live Streaming

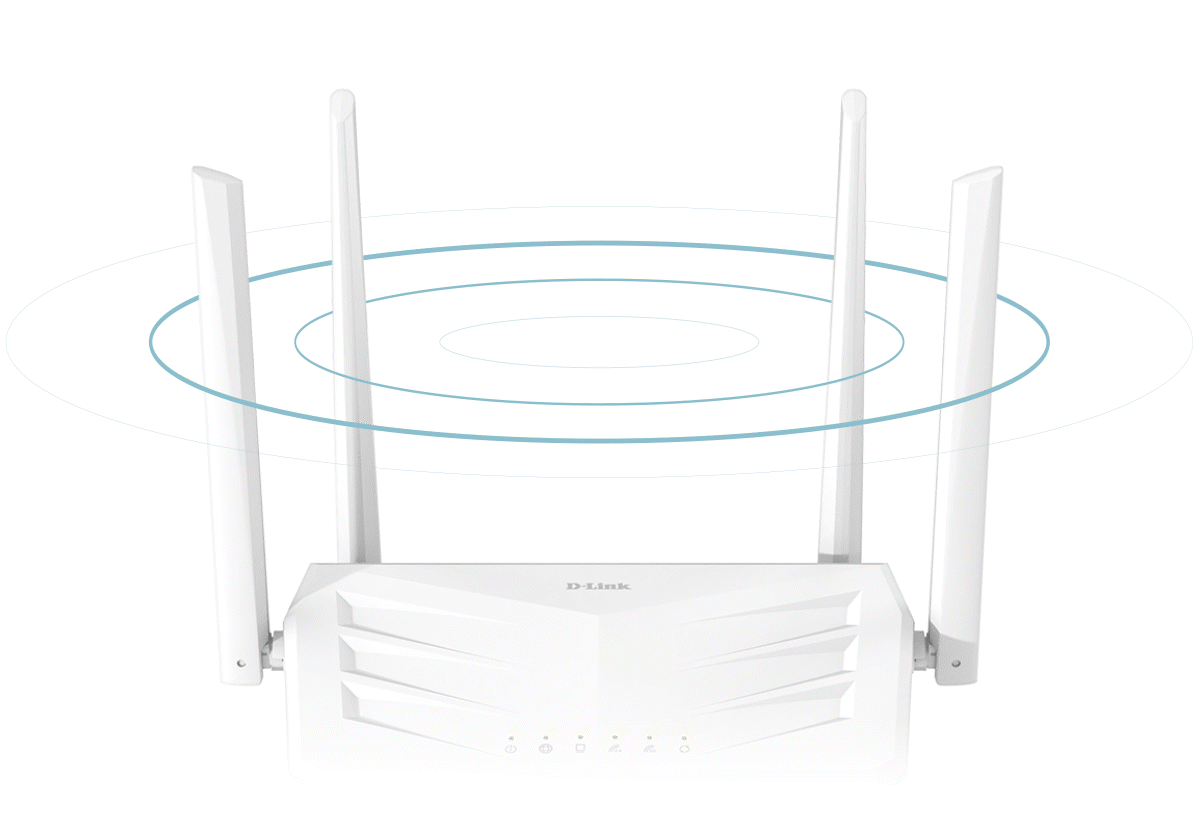

Stronger Signal,
Wider Coverage

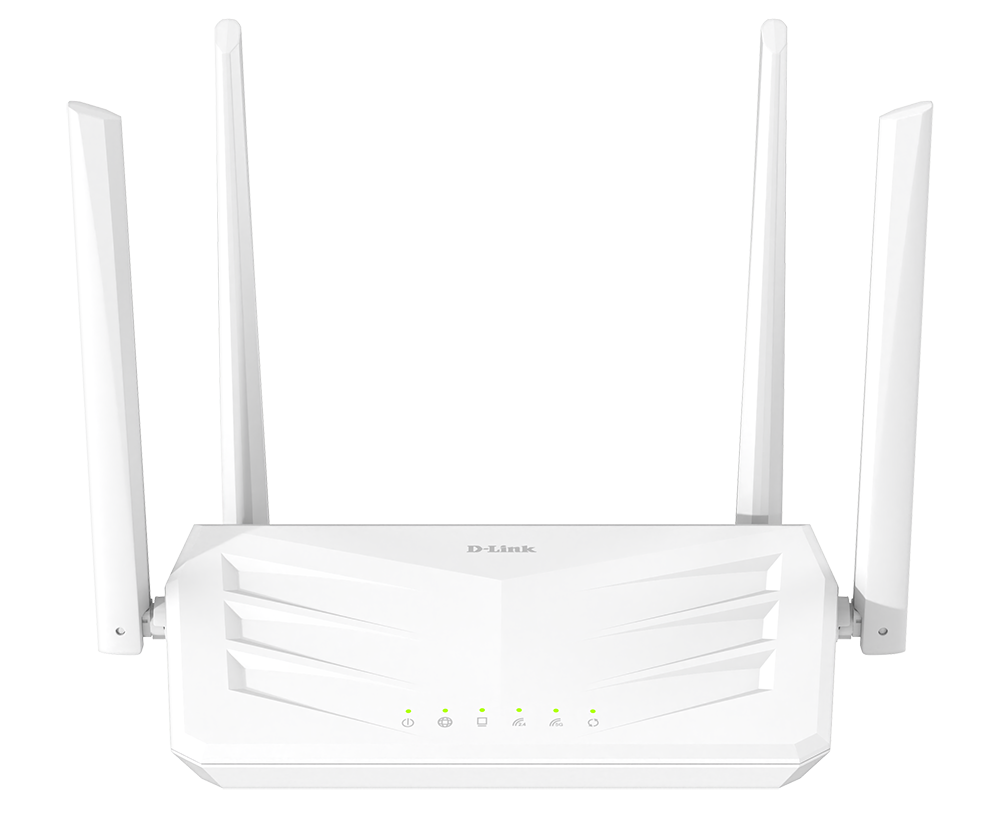

Equipped with four adjustable external high-gain antennas, the S30 helps boost Wi-Fi signal strength, expand coverage, and reduce dead zones for more consistent performance. Adjustable antenna angles let you fine-tune reception and optimize speeds across your devices.2

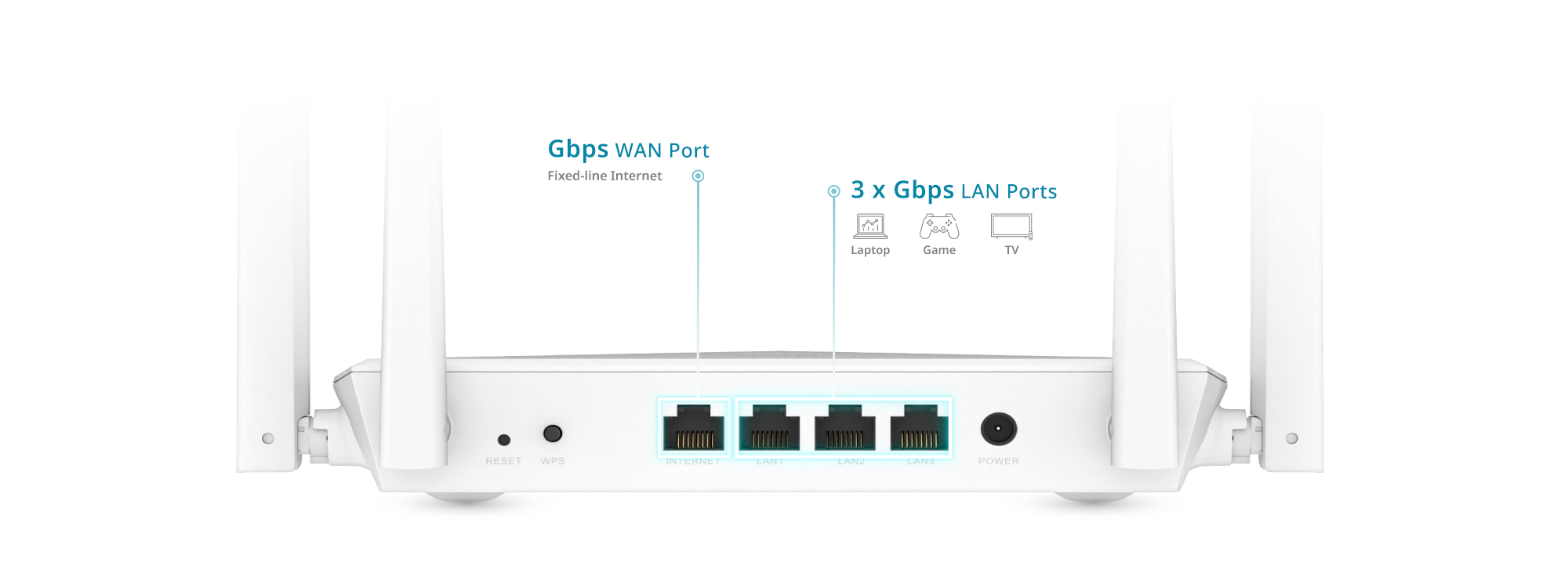

Reliable Wired Connections

With a Gigabit WAN port and 3× Gigabit LAN ports, the S30 provides fast and stable wired connections for your wired devices.

Boost Network Efficiency

Equipped with OFDMA and MU-MIMO technologies, the S30 keeps your Wi-Fi running smoothly, reducing congestion, connecting more devices at once, and boosting network efficiency.



Enhanced Network Security

The S30 provides advanced security to protect your network and personal data, featuring WPA3 encryption and EN 18031 compliance to keep your network more secure.

Multi-Mode Networking

Designed for flexible networking, it supports Router, Bridge, and Repeater modes, giving you the flexibility to customize your network setup,
expand wireless coverage, and deliver stable Wi-Fi where you need it most.

Router Mode

Connects to your modem to create and
manage your network.

Bridge Mode

Adds Wi-Fi to your wired network
as a wireless access point.

Repeater Mode

Repeats your Wi-Fi signal to expand
your wireless coverage.

Simple Setup and Management

Set up and manage your network in minutes with the D-Link SetupGo app4,
while automatic Firmware Over-The-Air (FOTA) updates keep your router

secure and up to date.



*Google, Android, Google Play and Google Home are trademarks of Google LLC.



SetupGo APP    App Store    Google Play


1.Maximum wireless signal rate derived from IEEE 802.11ax specifications. Actual data throughput may vary depending on the specific network environment and conditions. An 802.11ax client device is required to achieve maximum speeds and performance.
2.The theoretical coverage in D-Link Lab testing may vary in different environments.
3.Supported frequency bands are dependent on regional variants and may not be available in all markets.
4.All configuration tasks must be performed while connected to the S series products' local network. Remote or external Wi-Fi or internet connections cannot access the router’s admin settings.

Related Products

SE15

AX1500 Wi-Fi 6 Extender

Learn More

SE30

AX3000 Wi-Fi 6 Extender

Learn More

S03

N300 Wi-Fi Router

Learn More

S12

AC1200 Wi-Fi Router

Learn More

S15

AX1500 Wi-Fi 6 Router

Learn More

Specification

Download the datasheet.

Antenna
2 x 2.4 GHz external antennas (5 dBi)
2 x 5 GHz external antennas (5 dBi)
Certifications
CE
Device Management
D-Link SetupGo app (Local Access and Basic Control)
Web UI (Advanced Management)
Dimensions
187.4 x 104.5 x 30.8 mm (7.38 x 4.11 x 1.21 in)
Firewall
DoS
IP/MAC Address Filtering
1 x DMZ
Wi-Fi Data Rate
2.4 GHz up to 574 Mbps
5 GHz Up to 2402 Mbps
Wireless Standard
2.4 GHz: IEEE 802.11 ax/n/g/b
5 GHz: IEEE 802.11 ax/ac/n/a
Ethernet: IEEE 802.3 u/ab
Wi-Fi Management: IEEE 802.11 k/v/h

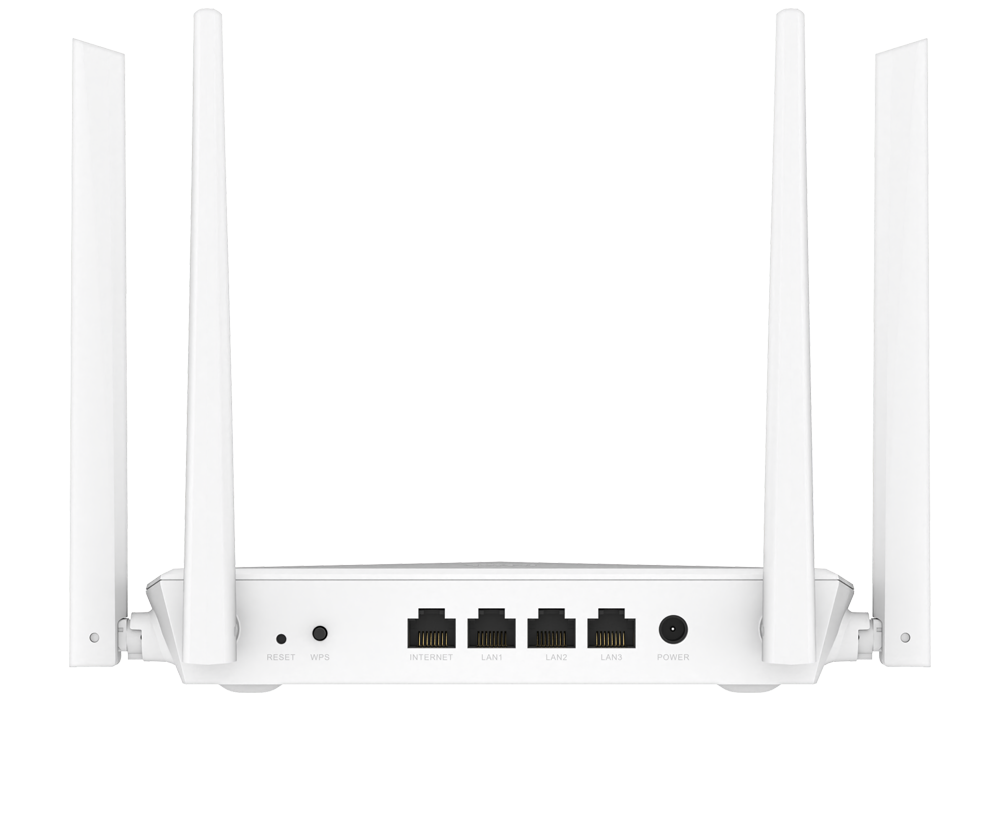

Interfaces
1 x Gigabit Ethernet WAN port
3 x Gigabit Ethernet LAN ports
1 x WPS button
1 x reset button
1 x power connector

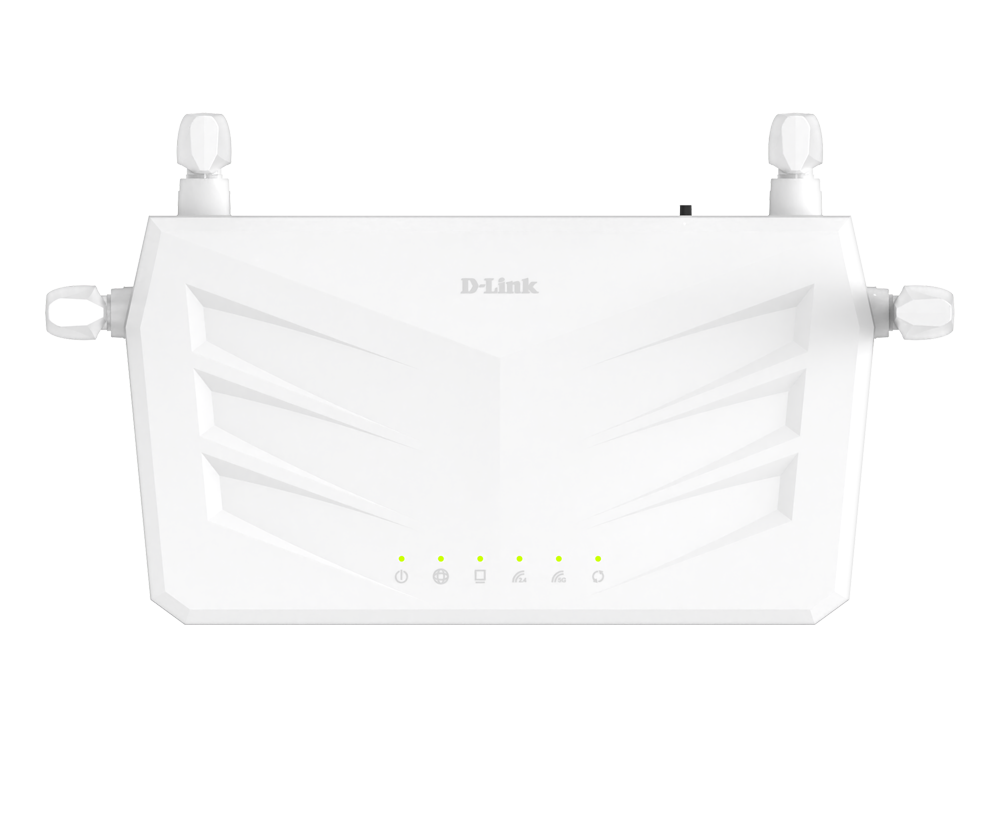

LED Status Indicators
Power, Internet status, 2.4 GHz Wi-Fi status, 5 GHz Wi-Fi status, WPS, LAN
Maximum Power Consumption
12 W
Operating Humidity
10% to 90% non-condensing
Operating Temperature
0 to 40 °C (32 to 104 °F)
Power Input
12V/1A
Security Protocol
WPA - Personal
WPA2 - Personal
WPA3 - Personal
Wi-Fi Protected Setup (WPS)
Weight
241.1 g (8.5 oz)
