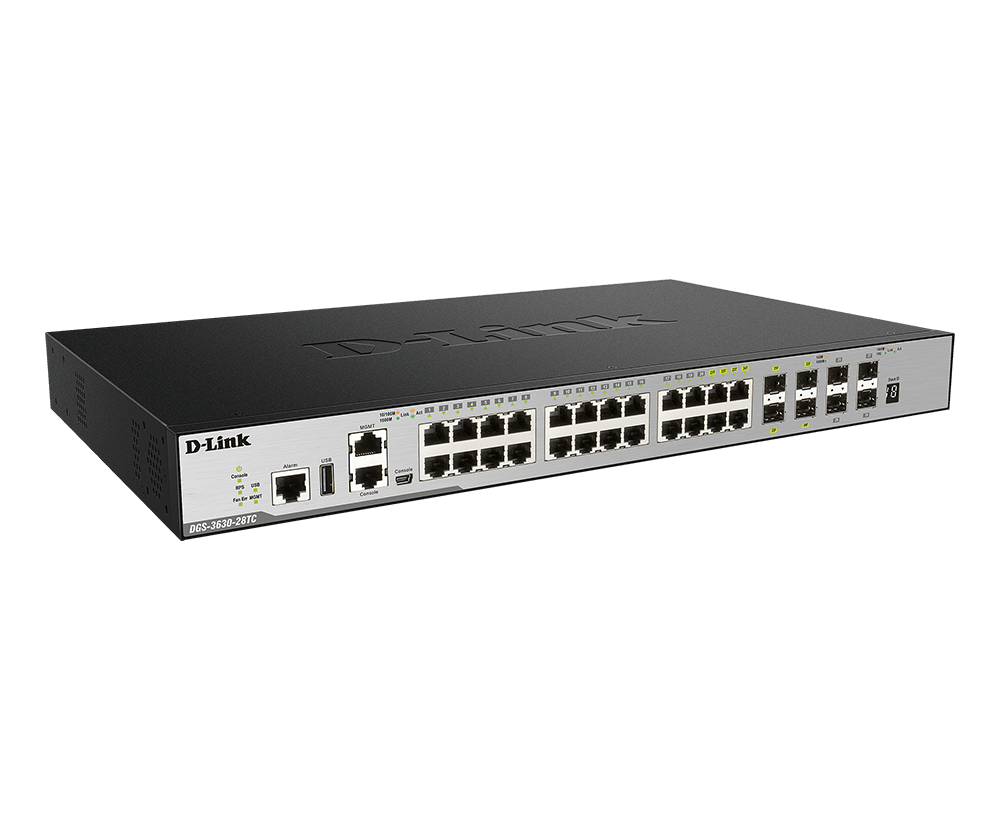

28-Port Layer 3 Stackable Managed Gigabit Switch

DGS-3630-28TC

  • Product Status (Series_v802WW): Live
  • 20 x 10/100/1000BASE-T ports
  • 4 x Combo 10/100/1000BASE-T/SFP ports
  • 4 x 10G SFP+ ports
  • 6 kV surge protection on all RJ-45 access ports
  • Switch Resource Management (SRM) for flexible management of system resources
  • Redundant Power Supply (RPS) support
  • MPLS L2VPM/L3 VPN support
  • Full L3 routing protocol support including OSPF, BGP, and ISIS for IPv4/IPv6
  • SDN-enabled switch, compatible with Openflow 1.3
  • NDAA Compliant
  • D-Link Lifetime Warranty after Registration

Download the datasheet.

Where to buy

DGS-3630 Series - Gigabit Layer 3 Stackable Managed Switches

Designed specifically for Small to Medium Businesses, Enterprises and ISPs, the DGS-3630 Series Gigabit L3 Stackable Managed Switches combine 4x embedded 10G stacking/uplink ports, built-in 6kV surge protection, Intelligent Switch Resource Management, and upgradeable software images.

Flexible Management With Multiple Software Images

The DGS-3630 Series is designed for use with three different software images: the Standard Image (SI), the Enhanced Image (EI), and the MPLS Image (MI). The Standard Image provides core SMB and SME functionality such as L2 switching, entry-level routing, L2 multicast, advanced QoS, Operations, Administration, and Maintenance (OAM), and robust security features. The Enhanced Image supports all the Standard Image features in addition to L3 routing for enterprise integration, while the MPLS Images combines the Enhanced Image feature set with VPN services for service providers.

High Availability and Flexibility

The DGS-3630 Series allows multiple switches to be combined to form a single physical or virtual stack. This increases redundancy over multiple physical units, simplifies management, and provides a single IP address to manage all members in the stack. Up to 9 switches can be combined using DACs to make up to 432 Gigabit Ethernet ports available, allowing switching capacity to be increased with demand. In addition to traditional Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), and Multiple Spanning Tree Protocol (MSTP), the DGS-3630 Series also supports advanced Ethernet failover redundancy technologies, such as ERPS and FlexLink while Ethernet Ring Protection Switching (ERPS) provides millisecond-level failover in a ring topology.

Tolly-Certified

Tolly, a leading global provider of third-party validation services for vendors of IT products and services, independently tested and verified the outstanding performance of the DGS-3630 Series.

“The D-Link Systems switch matched or exceeded the performance of the Cisco Systems Catalyst across all the performance tests. In addition, the D-Link DGS-3630 has a significantly lower purchase price and consumes much less power than the Cisco Systems Catalyst 3650-24TD-E.”

Download the full report

Security, Performance, and Availability

The DGS-3630 Series provides a complete set of security features including multi-layer Access Control Lists (ACLs) and 802.1X user authentication via TACACS+ and RADIUS. The DGS-3630 Series also offers extensive VLAN support, including GVRP and 802.1Q VLAN to enhance security and performance.

Versatile Management

The DGS-3630 Series provides the D-Link Network Assistant (DNA) utility, an industry-standard CLI, and an intuitive web-based management interface that enables administrators to set up and remotely manage their networks. Support for SNMP allows centralized management of a large number of devices and out-of-band management is available via a dedicated console port.

6 kV Surge Protection

The DGS-3630 Series features built-in 6 kV surge protection on all PoE and non-PoE Ethernet access ports, and requires no external surge protection devices. This effectively protects the switches against sudden electrical surges caused by events such as lightning strikes or unstable electrical current.

Dimensions
441mm x 259.8mm x 44mm
Humidity
Operation 10%-95% RH
Storage: 5% ~ 95% RH
Interfaces
1 x RJ-45 Alarm port
1 x RJ-45 and Mini-USB port
1 x RJ-45 Management port
1 x USB 2.0 port
20 x 10/100/1000BASE-T ports
4 x 10G SFP+ ports
4 x Combo 10/100/1000BASE-T/SFP ports
Max. Packet Forwarding Rate
95.24 Mpps
Maximum Heat Dissipation
144.58 BTU/h
Maximum Power Consumption
42.4 W
MTBF
300,190.46 hours
Operating Altitude
up to 2000M
Packet Buffer Size
4 MB
Power Input
AC:100 ~ 240 V
Standby Power Consumption
28.1 Watt
Switch Capacity
128 Gbps
Temperature
Operating: -5 to 50° C (23 to 122° F)
Storage: -40 to 70 °C (-40 to 158 °F)
Weight
3.74 kg
