30-Port Lite Layer 3 Stackable Managed PoE Switch

DGS-3130-30S

  • Product Status (Revision B_v1.21_WW): Live
  • Unified software image with powerful L2 and L3 features
  • 6x 10 Gigabit ports
  • 6kV Surge Protection for Gigabit Ethernet ports
  • Power over Ethernet (PoE) options, up to 740W with RPS
  • D-Link Safeguard Engine
  • Limited Lifetime Warranty with registration
  • NDAA Compliant
  • D-Link Lifetime Warranty after Registration

Download the datasheet.

Where to buy

Adaptable, Bottleneck-Free 10G Business Connectivity

The DGS-3130 Series is a highly versatile Lite Layer 3 stackable switch. Including powerful L2 & L3 features, as well as support for multiple software images, it is highly pliant, capable of accommodating different network deployments.

With network bottlenecks on the rise, the DGS-3130 Series's six 10 Gigabit uplink ports are an ideal solution. Business can flexibly increase their bandwidth with flexibility to incrementally meet growing bandwidth demands.

Why You Want It

2 x 10GBASE-T, 4x SFP+ 10G ports

Connect to areas of your network at 10G speeds, and reach even further distances with fibre optic cabling.

Physical Stacking

Up to 9 units per stack1, with a maximum of 324 ports, and up to 80GB of bandwidth.

Layer 2 Features

Such as flow control, link aggregation, Ethernet Ring Protection Switching (ERPS), Spanning Tree Protocols, Loopback Detection, IGMP/MLD Snooping.

Layer 3 Features

Including up to 128 IP Interfaces, IGMP Filtering, Neighbor Discovery Protocol (ND), ARP Proxy, VRRP.

Static Routing

Route Layer 3 traffic between switches, even if they're segmented in VLANs.

Industry Standard CLI

Supports a full industry standard Command-Line Interface for system management.

Dual Image

Risk-free configuration testing.

Power Even More Devices

The DGS-3130-30PS model features Power over Ethernet, which compatible devices to be powered by the switch through a standard Ethernet cable. It supports the IEEE 802.3af PoE and IEEE 802.3at PoE+ standards, providing up to 30W of power per port. PoE effectively reduces deployment time for PoE devices such as IP cameras, VoIP phones, and access points, and eliminates the cost for additional electrical cabling. The 370W PoE power budget, which can be increased to 740 W when outfitted with the DPS-700 redundant power supply, allow the switches to power even more devices. Additionally, an extended Link Layer Discovery Protocol (LLDP) automatically negotiates and manages the power feed to IEEE 802.3at PoE+ powered devices for optimal power distribution.




Weather the Storm

The DGS-3130 Series features built-in 6 kV surge protection on all PoE and non-PoE Gigabit Ethernet access ports without needing external surge protection. This effectively protects the switches against sudden electrical surges caused events such as lightning strikes or unstable electrical current. This significantly reduces the chances of equipment being damaged, effectively lowering maintenance costs by minimizing the need for expensive repairs or replacement.

High Availability. Highly Flexibility.

The D-Link DGS-3130 Lite Layer 3 Stackable Managed Switches are a Gigabit access layer solution specifically designed to connect end-users in enterprise and metro Ethernet access networks.

The switches support high bandwidth, long distance stacking, with physical stacking of up to 9 units over fiber, increasing available Gigabit ports on demand. This makes them ideal for network administrators who demand agile expansion functionality without having to sacrifice network reliability.

Comprehensive Security

The DGS-3130 Series gives your network the protection it deserves with leading-edge security features that handle threats effectively. With built-in IP-MAC-Port Binding, the switches allow administrators to enhance user access control.

Other advanced features like DHCP Snooping let the switches automatically learn and save IP/MAC pairs to the IMPB white list.

Easy Access Control policies.

They feature multiple authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC) for strict access control and an easy deployment. After authentication, individual policies such as VLAN membership, Quality of Service (QoS) policies, and ACL rules can be assigned to each host.

Support for the Microsoft® NAP policy enforcement allows you to protect network assets from compromised computers by enforcing compliance with network health policies.

Versatile traffic management.

A rich set of multi-layer QoS/CoS features ensure that critical network services such as VoIP, video conferences, IPTV, and IP surveillance are always given high priority, and 10-Gigabit ports deliver the speed you need. Traffic Shaping features guarantee bandwidth for these services even when the network is busy. L2 Multicast support enables the DGS-3130 Series to handle growing IPTV applications.

Host-based IGMP/MLD Snooping allows multiple multicast subscribers per physical interface while ISM VLAN allows the switches to send multicast streams in a multicast VLAN to save bandwidth, and to provide better security to the backbone network. The ISM VLAN profiles allow you to bind or replace the pre-defined multicast registration information to subscriber ports quickly and easily. Selective Q-in-Q enables you to be selective over VLAN traffic.

DGS-3130 Switch Series

DGS-3130-30TS

· 24 x 10/100/1000BASE-T
· 2 x 10GBASE-T
· 4 x 10G SFP+

DGS-3130-30S

· 24 x SFP
· 2 x 10GBASE-T
· 4 x 10G SFP+

DGS-3130-30PS

· 24 x 10/100/1000BASE-T PoE
· 2 x 10GBASE-T
· 4 x 10G SFP+

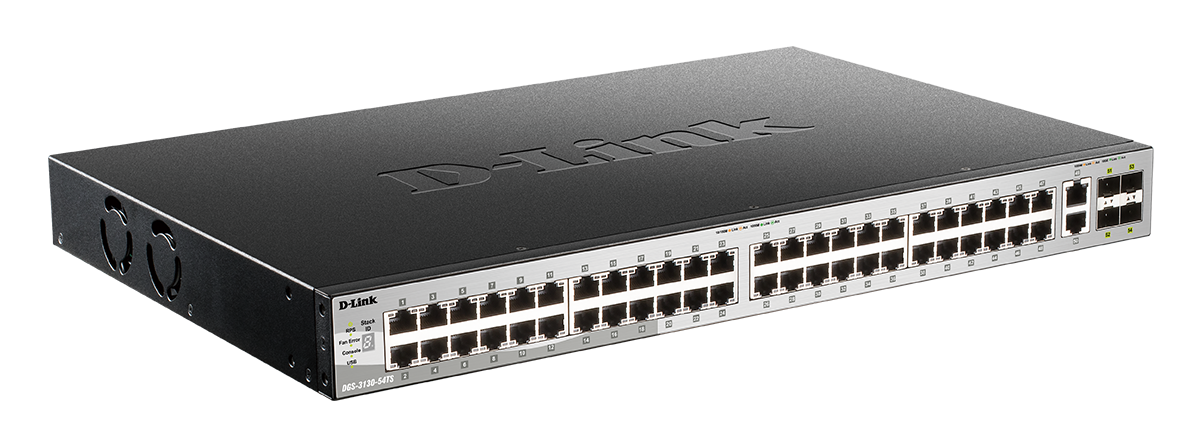

DGS-3130-54TS

· 48 x 10/100/1000BASE-T
· 2 x 10GBASE-T
· 4 x 10G SFP+

DGS-3130-54S

· 48 x SFP
· 2 x 10GBASE-T
· 4 x 10G SFP+

DGS-3130-54PS

· 48 x 10/100/1000BASE-T PoE
· 2 x 10GBASE-T
· 4 x 10G SFP+

We're here to help.

Over 35 years in the networking industry

Innovative end‑to‑end solution experts for small businesses to large corporations around the world.

Talking to us is easy

Skilled local support in 16 countries. Our support teams are ready to help you.

D-Link Limited Lifetime warranty

The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.

Related Products

Gigabit L3 Stackable Managed Switches
DGS-3630-28SC, DGS-3630-28TC, DGS-3630-28PC, DGS-3630-52TC, DGS-3630-52PC
Find out more
Stackable Smart Managed Gigabit Switches
DGS-1510-20, DGS-1510-28X, DGS-1510-28P, DGS-1510-28XMP, DGS-1510-52X, DGS-1510-52XMP
Find out more
Smart+ Managed Gigabit Switches
DGS-1210-10, DGS-1210-10P, DGS-1210-10MP, DGS-1210-20, DGS-1210-26, DGS-1210-28, DGS-1210-28P, DGS-1210-28MP (Max PoE), DGS-1210-52, DGS-1210-52MP (Max PoE)
Find out more
Top of Rack 10 Gigabit Stackable Managed Switches
DXS-3400-24TC, DXS-3400-24SC
Find out more
Type
Managed
Number of ports
16 to 30 ports
48 to 54 ports
Layer
Layer 2+
Layer 3
Stacking
Physical
Virtual
Main type of ports
1000BASE-T Gigabit Ethernet
SFP
Type of uplink ports
10GBASE-T
10GbE SFP+
Switching capacity
168 Gbps
216 Gbps
PoE options
802.3af
802.3at
Number of PoE ports
24
48
PoE power budget
See datasheet
See datasheet
802.3az Energy-Efficient Ethernet support
Supported
Form Factor
Rackmountable
Physical stacking
Up to 20 Gbps bidirectional bandwidth
Up to 9 devices
Virtual stacking (up to 32 devices)
Supported
Jumbo frame
Supported
Cable diagnostics
Supported
MAC address
16K
Spanning Tree Protocol
802.1D STP
802.1s MSTP
802.1w RSTP
Ethernet ring protection switching (ERPS)
Supported
Link aggregation
802.3ad
VLAN group (max static)
4K
VLAN type
GVRP
MAC-based
Port-based
Protocol-based
Advanced VLAN
Asymmetric VLAN
ISM VLAN
Super VLAN
Voice VLAN
IP interfaces
16
Static route for IPv4/IPv6
IPv4 - 1K
IPv6 - 512
RIP v1/v2
Supported
RIPng
Supported
Number of QoS queues per port
8
CoS based on contents
Supported
Bandwidth control
8 Kbps minimum granularity
Three colour marker
8 Kbps minimum granularity
ACL type
Egress
Ingress
VLAN-based
ACL based on packet contents
Supported
Time-based ACL
Supported
Encryption protocol supported
SSH
SSL (v1/v2/v3)
IP-MAC-port binding (IMPB) / Smart Binding
Supported
ARP spoofing
Supported
BPDU attack protection
Supported
802.1X access control
Supported
Microsoft NAP support
Supported
RADIUS/TACACS+ authentication
Supported
SNMP (v1/v2c/v3)
Supported
RMON v1/v2
Supported
sFlow
Supported
LLDP
Supported
ICMPv6
Supported
802.3ah
Supported

1 When stacking the DGS-3130-30TS/30S/30PS models, the stacking cost is 1 per unit so the maximum units per stack is 9. When stacking the DGS-3130-54TS/54S/54PS models, the stacking cost is 2 per unit so the maximum units per stack is 6. When stacking different models in the same stack, switches can be stacked up to a maximum of 12 stacking cost per stack. For example: 2 x DGS-3130-30TS (2 stacking cost) + 2 x DGS-3130-30S (2 stacking cost) + 4 x DGS-3130-54TS (8 stacking cost) consumes a total stacking cost of 12 (2+2+8).
