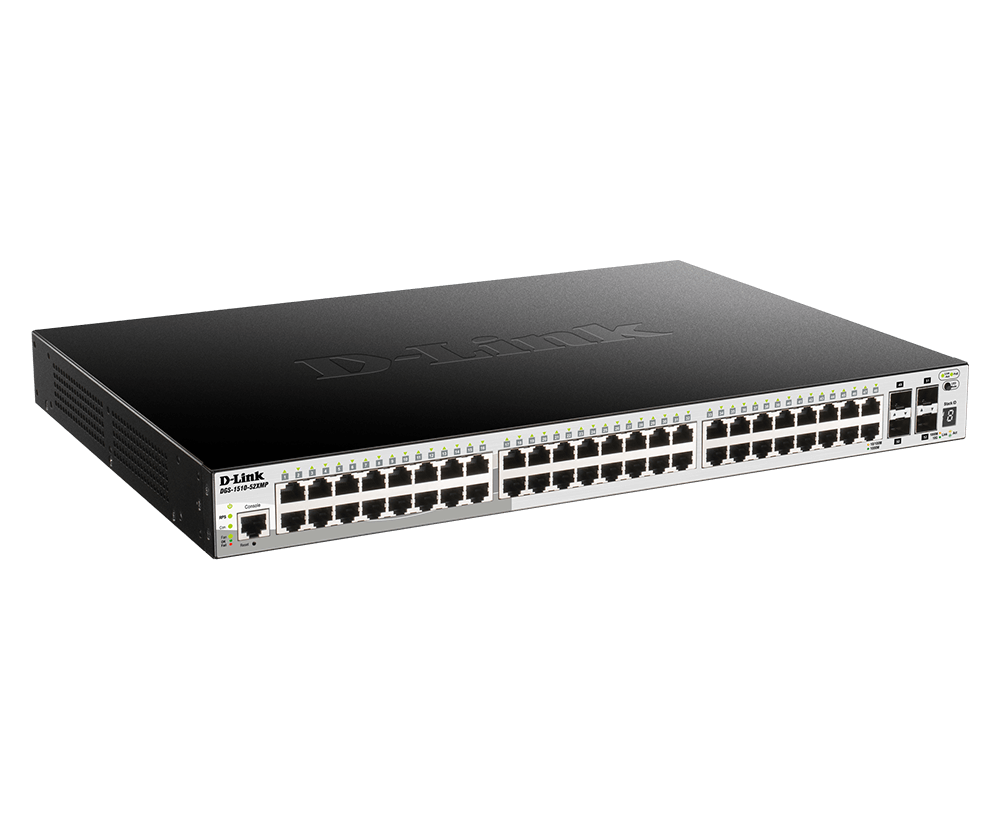

DGS-1510-52XMP
Gigabit Stackable Smart Managed Switch with 10G Uplinks
- Product Status (Revision A_v2.01_US_EN): Live
- 48 x 10/100/1000BASE-T PoE ports
- 4 x 10G SFP+ ports
- Layer 2 management and security with Layer 3 capabilities
- Static Routing and MSTP
- 370 W PoE budget (without RPS); 740 W PoE Budget (with RPS, only supports DPS-700)
- NDAA Compliant
- D-Link Lifetime Warranty after Registration
Where to buy
Industry Standard CLI with 10G SFP+ stacking
The D-Link DGS-1510 Series is the latest generation of Smart Managed switches with 10G SFP+ fibre ports for physical stacking or uplinks. The combination of high bandwidth connections, an Industry Standard CLI, and PoE options make the DGS-1510 Series ideal for Small-Medium Enterprise environments.
Fully‑Featured with Layer 3 Traffic Management
The DGS-1510 family has advanced network management options, accessible via Industry Standard CLI, Serial Port Console or the Web-based UI, that equip your business with network capabilities such as VLANs, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routing, multiple firmware images,and multiple configuration files.
10G SFP+ Stacking
Create a physical stack of up to 6 units in a fault‑tolerant ring or linear topology using Direct Attach Cables or any compatible SFP+ transceivers for a total of 288 Gigabit ports. The remaining uplink ports can be used for other functions, offering 10G connectivity to core networks and servers.1
With powerful security features like IGMP snooping, access control lists, port security, and the unique D-Link Safeguard Engine that protects your network against malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1510 family is a versatile solution for enterprise network environments.
Max PoE with budgets up to 740W2
Choose between 193W and 370W power budget options. Or utilise a total of 740W when adding a redundant power supply to the DGS-1510-52XMP.
Free Network Design and Management Software
D-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.
Smart Energy‑Saving Design
D-Link Green technology enables the DGS-1510 series to save power without sacrificing performance. The entire series of switches feature a smart fan that adjusts fan-speed and only powers on above a certain temperature. With advanced silicon technology, the DGS-1510 series saves up to 73% of energy compared to normal switches.
Related Products
Specification
1000Base-T PoE Interface | 48 |
---|---|
10G SFP+ Interface | 4 |
Auto MDI/MDIX | Yes |
Console Port | Yes |
10/100/1000BASE-T PoE ports | 48 |
10G SFP+ ports | 4 |
Switch Capacity | 176 Gbps |
Max. Packet Forwarding Rate | 130.95 Mpps |
Dimension | 440mm x 308.5mm x 44mm |
Weight | 5.41 Kg |
Operation Temperature | -5 -50°C |
Storage Temperature | -20-70°C |
Operation Humidity | 0% ~ 95% RH |
Storage Humidity | 0% ~ 95% RH |
Maximum Power Consumption | 486.9 W (PoE on)<br> 58.8 W (PoE off) |
Standby Power Consumption | 39.8W/100V, 40.1W/240V |
Maximum Heat Dissipation | 1,660.33 BTU/hr |
Acoustic | 55.4 dB(A) |
MTBF | 303,027 hours |
Power Input | 100 - 240 VAC |
CPU Speed | 400MHz |
DRAM Size | 256MB |
Flash Memory Size | 32MB |
Packet Buffer Size | 3MB |
FAN | 4 DC Fans |
Comply with RoHS 6 | Yes |
Energy Efficiency Ethernet (EEE) | Yes |
Power Saving By Link Status | Yes |
Power Saving By LED Shut-Off | Yes |
Power Saving By Port Shut-Off | Yes |
Time-based PoE | Yes |
Power Saving By System Hibernation | Yes |
PoE Budget | 370 W (without RPS); Max. 740 W (with RPS, only supports DPS-700) |
Maximum PoE Budget | 370W (w/o RPS); 740W (w/ RPS) |
PD Alive | Yes |
Physical Stacking | Yes |
Physical Stacking Bandwidth | 40 G |
Units Per Physical Stack | 6 |
D-Link Single IP Management (SIM) | Yes |
Units Per SIM Stack | 32 |
MAC Address Table Size | 16384 |
Black Hole MAC Address | Yes |
802.3x Flow Control | Yes |
Head-of-line (HOL) Blocking Prevention | Yes |
802.1D Spanning Tree (STP) | Yes |
802.1w Rapid Spanning Tree (RSTP) | Yes |
Root Restriction | Yes |
802.1s Multiple Spanning Tree (MSTP) | Yes |
G.8032 ERPS | Yes |
802.1AX Link Aggregation | Yes |
802.3ad Link Aggregation | Yes |
Link Aggregation Group Per Device | 32 |
Max Port Per Link Aggregation Group | 8 |
Port Mirroring | Yes |
Flow-based (ACL) mirroring | Yes |
Jumbo Frame | 9216 |
Loopback Detection (LBD) | Yes |
IGMP Snooping | Yes |
Max IGMP Snooping Groups | 512 |
IGMP Snooping Fast Leave | Yes |
IGMP Proxy Reporting | Yes |
MLD Snooping | Yes |
MLD Snooping Fast Leave | Yes |
MLD Proxy Reporting | Yes |
MLD Snooping Groups | Yes |
802.1Q VLAN | Yes |
VLAN Groups | 4094 |
Port-based VLAN | Yes |
802.1v Protocol-based VLAN | Yes |
MAC-based VLAN | Yes |
Voice VLAN | Yes |
Auto Surveillance VLAN | Yes, 2.1 |
GVRP | Yes |
Asymmetric VLAN | Yes |
IP Interface | Yes |
Max Number of IP Interface | 16 |
ARP | Yes |
ARP Entries | 512 |
Gratuitous ARP | Yes |
ND Entries | Yes |
UDP Helper | Yes |
Default Route | Yes |
Static Route | Yes |
Number of Queue | 8 |
Class of Service (CoS) | Yes |
Remark 802.1p priority | Yes |
Remark ToS/DSCP | Yes |
Rate Limiting | Yes |
Queue Handling | Yes |
Strict Priority Queue (SPQ) | Yes |
Weighted Round Robin (WRR) | Yes |
Deficit Round Robin (DRR) | Yes |
SPQ + WRR | Yes |
Port-based Bandwidth Control | Yes |
Max Access Control List (ACL) Entries | Yes |
MAC Access List | Yes |
IP Access List | Yes |
IPv6 Access List | Yes |
Time based ACL | Yes |
SSL | Yes |
SSH | Yes |
Broadcast/Multicast/Unicast Storm Control | Yes |
Traffic Segmentation | Yes |
Port Security | Yes |
DHCP Snooping | Yes |
IPv6 Snooping | Yes |
Dynamic ARP Inspection (DAI) | Yes |
IP Source Guard | Yes |
DHCPv6 Guard | Yes |
IPv6 Route Advertisement (RA) Guard | Yes |
Duplicate Address Detection (DAD) | Yes |
IPv6 ND Inspection | Yes |
D-Link Safeguard Engine | Yes |
ARP Spoofing Prevention | Yes |
DHCP Server Screening | Yes |
BPDU Attack Protection | Yes |
DoS Attack Prevention | Yes |
802.1X | Yes |
Port based 802.1X Authentication | Yes |
Host based 802.1X Authentication | Yes |
Identity Driven 802.1X Policy Assignment | Yes |
Web-based Access Control (WAC) | Yes |
Port based WAC Authentication | Yes |
Host based WAC Authentication | Yes |
Japanese Web-based Access Control (JWAC) | Yes |
Identity Driven WAC Policy Assignment | Yes |
Host based JWAC Authentication | Yes |
Port based JWAC Authentication | Yes |
Port based MAC Authentication | Yes |
MAC-based Access Control (MAC) | Yes |
Identity Driven JWAC Policy Assignment | Yes |
Identity Driven MAC Policy Assignment | Yes |
Compound Authentication | Yes |
Guest VLAN | Yes |
Host based MAC Authentication | Yes |
Authentication for Management Access | Yes |
Privilege Level for Management Access | 5 |
RADIUS | Yes |
RADIUS Accounting | Yes |
TACACS+ | Yes |
TACACS+ Accounting | Yes |
Cable Diagnostics | Yes |
Optical Transceiver Digital Diagnostic Monitoring (DDM) | Yes |
Network Time Protocol (NTP) | Yes |
Simple Network Time Protocol (SNTP) | Yes |
Command Line Interface (CLI) | Yes |
Web-based GUI | Yes |
SNMP | Yes |
Telnet Client | Yes |
Telnet Server | Yes |
ZModem | Yes |
System Log | Yes |
TFTP Client | Yes |
SNMP Trap | Yes |
RMONv1 | Yes |
LLDP | Yes |
LLDP-MED | Yes |
DHCP/BootP Client | Yes |
D-Link Discover Protocol (DDP) | Yes (v0.25) |
DHCP relay | Yes |
DHCP Auto-configuration | Yes |
Flash file system | Yes |
Editable Login Banner | Yes |
Multiple Configurations | Yes |
Multiple Images | Yes |
Editable System Prompt | Yes |
DNS Client | Yes |
Debug Command | Yes |
Traceroute | Yes |
Password Encryption | Yes |
Ping | Yes |
D-Link Network Assistant | Yes |
sFlow | Yes |
Smart Wizard | Yes |
SSH | Yes |
SSL | Yes |
Store-and-Forwarding | Yes |
