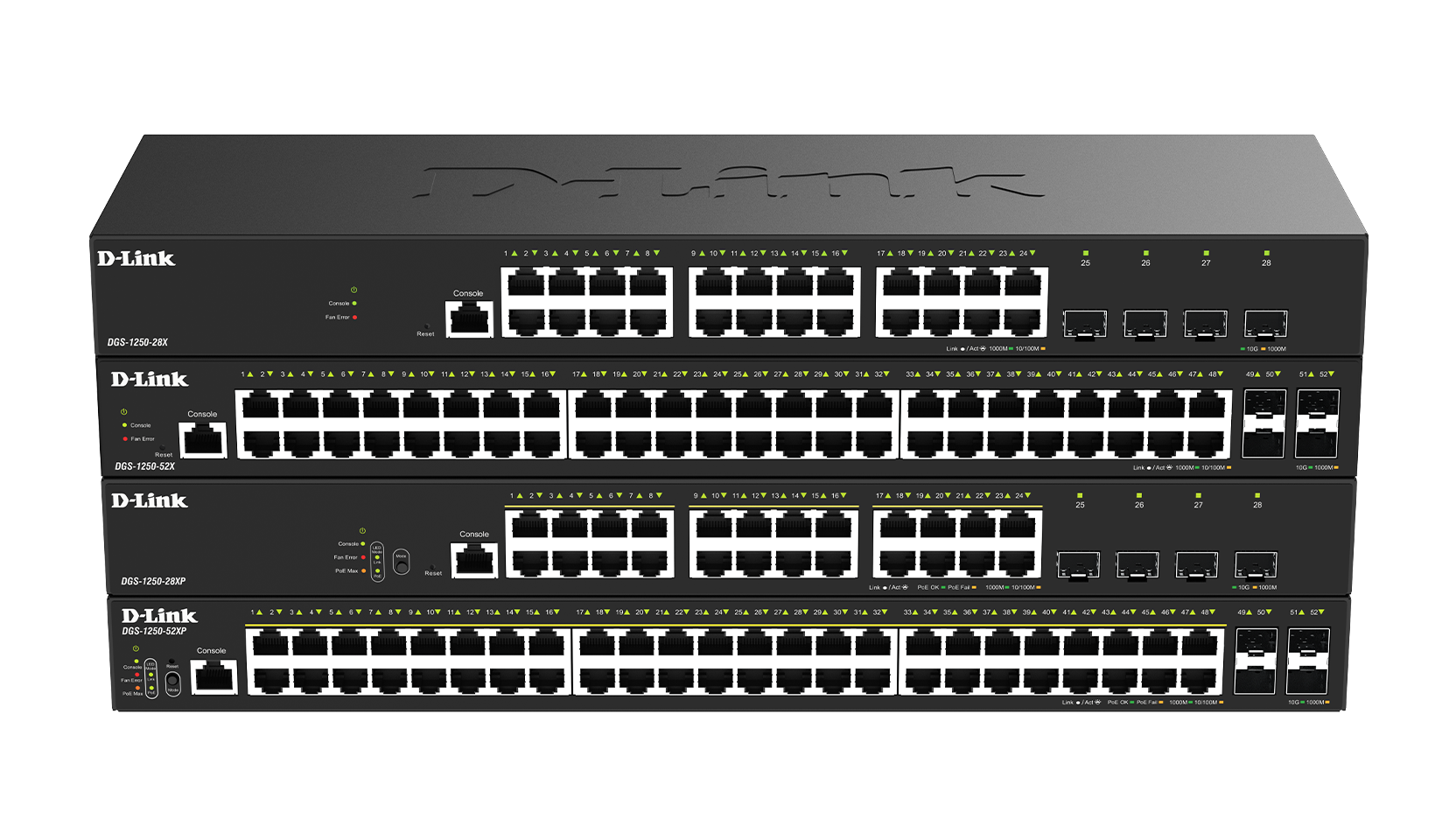

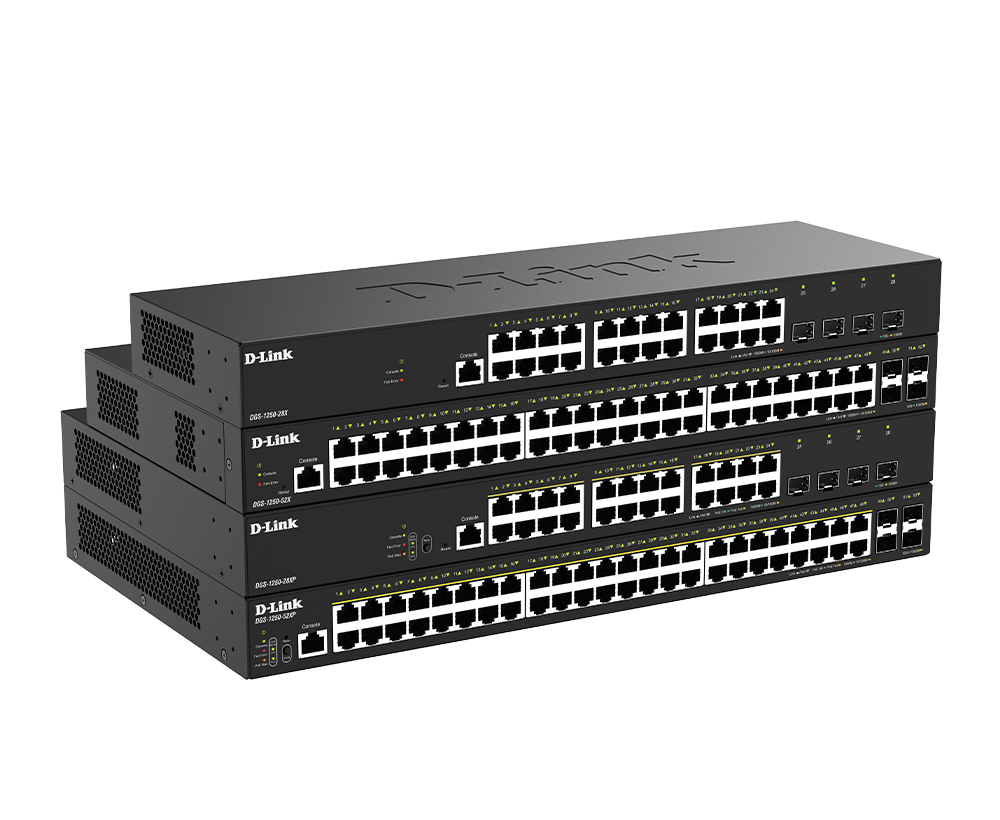

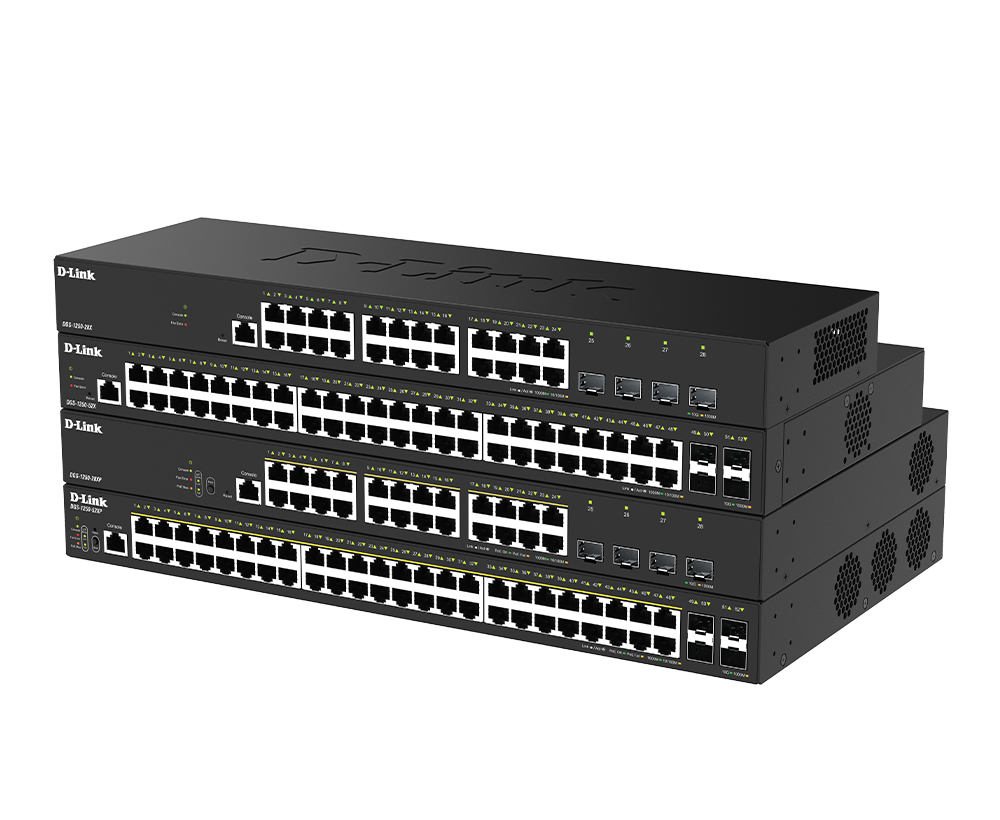

Gigabit Smart Managed Switches
DGS-1250 Series
- Product Status (A1_v100 WW): Live
- Support 1G ports for downlink
- Support 10G SFP+ ports for uplink
- Support IEEE 802.3af/at to power PoE devices
- 6kV surge protection on all Ethernet access ports
- Support 802.3ad LACP for Link Aggregation
- Support Static Routing
- Support Loopback Detection
- AAA support for RADIUS/TACACS+
- Support D-Link Safeguard Engine
- Manage through the Nuclias Network Controller
Where to buy
Gigabit Performance
Experience seamless, high-speed connectivity that supports heavy data workloads and enhances overall efficiency
10G Uplink
10G uplink ports deliver ultra-fast server connectivity, ensuring seamless scalability and optimized network performance
Management UI
Equipped with an RJ-45 console, full CLI, multilingual web GUI, and Nuclias Network Controller for efficient device management
PoE IEEE 802.3at
Delivers IEEE 802.3at per port with 375W total power, supporting demanding devices like IP camera and access point
Security Controls
D-Link’s innovative Safeguard Engine™ helps protect the switches against traffic flooding caused by malicious attacks
Advanced Networking Features
Q-in-Q VLAN extension, time-based ACLs for dynamic control, and DHCP Relay with Option 82 for flexible management
DGS-1250 Series Comparison
| Compare Products | DGS-1250-28X | DGS-1250-28XP | DGS-1250-52X | DGS-1250-52XP |
|---|---|---|---|---|
 |  |  |  | |
| Ports | 24 x 1GE | 24 x 1GE 4 x 10G SFP+ | 48 x 1GE 4 x 10G SFP+ | 48 x 1GE 4 x 10G SFP+ |
| PoE | - | PoE+, with 375W Power Budget | - | PoE+, with 375W Power Budget |
| Learn More | Learn More | Learn More | Learn More |
Related Products
DGS-1250 Series Specification
Compare Products | DGS-1250-28X | DGS-1250-28XP | DGS-1250-52X | DGS-1250-52XP |
|---|---|---|---|---|
| | | | |
| Interface | 24 x 1GE | 24 x 1GE 4 x 10G SFP+ | 48 x 1GE 4 x 10G SFP+ | 48 x 1GE 4 x 10G SFP+ |
| Performance | ||||
| Switch Capacity | 128 Gbps | 128 Gbps | 176 Gbps | 176 Gbps |
Max. Packet Forwarding Rate | 95.24 Mpps | 95.24 Mpps | 130.95 Mpps | 130.95 Mpps |
| PoE | ||||
| PoE Standard | - | IEEE 802.3af/at | - | IEEE 802.3af/at |
| PoE Ports | - | Port 1 ~ 24 | - | Port 1 ~ 48 |
| PoE Budget | - | 375W | - | 375W |
| Technical Specification | ||||
| Surge Protection | 6kV surge protection on all Gigabit Ethernet ports | |||
| Fan | 1 Smart Fan | 1 Smart Fan | 1 Smart Fan | 2 Smart Fans |
| Console Port | Yes | Yes | Yes | Yes |
| Power Supply Type | Internal | Internal | Internal | Internal |
| Learn More | Learn More | Learn More | Learn More | |
