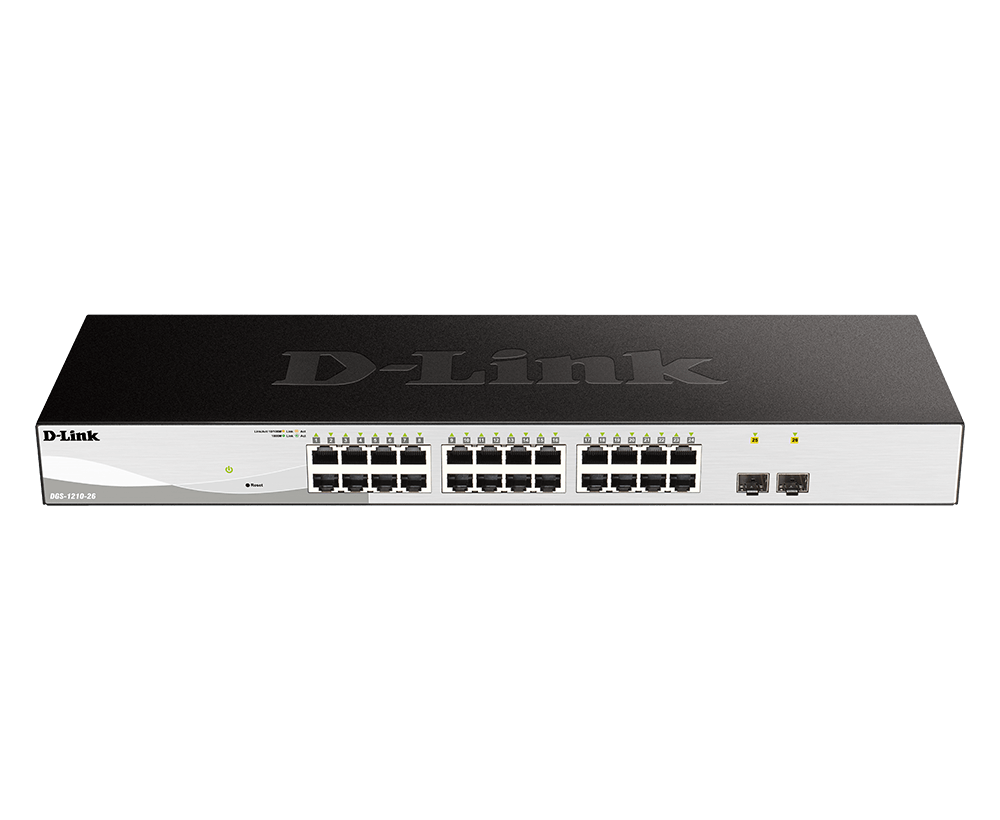

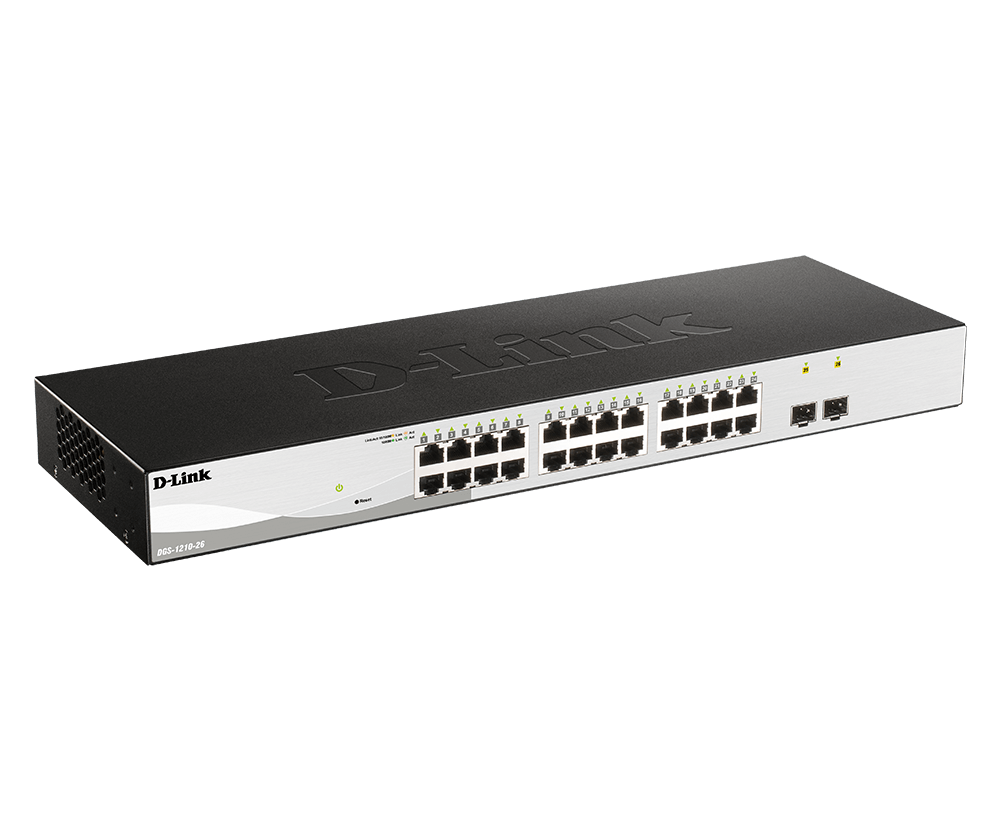

26-Port Gigabit Smart Managed Switch
DGS-1210-26
- Product Status (Revision v101): Live
- 24 x 10/100/1000BASE-T ports
- 2 x Gigabit SFP ports
- Advanced L2 switching and security features
- L2+ Static Routing
- Optional “standard mode” or “surveillance mode” management user interface
Powerful, yet Cost-Efficient
The D-Link DGS-1210 Series Smart Managed Switches are the latest generation of switches to provide increased Power over Ethernet (PoE) output, a range of physical interface types, multiple management interfaces, and advanced Layer 2 features. With all of these features combined, the DGS-1210 Series provides a cost-efficient and flexible solution for expanding any business network.
The DGS-1210 Series switches support 8, 24, or 48 10/100/1000BASE-T ports. Each switch also supports an additional 2 or 4 Gigabit SFP ports for optical connections using multimode or singlemode SFP transceivers.
PoE Support
Five of the nine models in the DGS-1210 series family support Power-over-Ethernet capabilities, simplifying deployments with IP cameras, VoIP phones, wireless access points, and other powered devices. These models include the DGS-1210-10P, DGS-1210-10MP, DGS-1210-28P, DGS-1210-28MP and DGS-1210-52MP. Using the switch’s management interface, an administrator can control various PoE functions, such as remotely rebooting cameras or access points, from anywhere on the network, including over the Internet.
They also support time-based PoE, which allows administrators to set a time window that determines when each port’s PoE power is turned on and off. All PoE models support the IEEE 802.3af and 802.3at standards, and each PoE power budget varies per model.

Automatic Configuration
The DGS-1210 Series supports Auto Voice VLAN and Surveillance Mode, which allow voice and video traffic to be automatically identified and handled differently to regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied.
Surveillance Mode detects compatible ONVIF cameras and places them in a surveillance VLAN, allowing a single switch to be used for voice, video, and data, removing the need for dedicated hardware and reducing maintenance costs. Surveillance Mode also includes its own Web UI, making surveillance features easily accessible and simplifying management of your surveillance network.

Comprehensive Security Features
D-Link's innovative Safeguard Engine helps protect switches against traffic flooding and virus attacks. 802.11X port-based authentication allows the network to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and helps to protect the internal IT network.

Extensive Management and Layer 2 Features
The DGS-1210 Series comes equipped with a complete lineup of L2 features, including IGMP snooping, port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers.
The Series also supports advanced features such as static routing, which allows for communication between different user groups in different VLAN segments in a network. The switch can directly handle inter VLAN routing using multiple interfaces, making the network run faster and more efficiently. And, because the switches can manage internal routing, the network router can be assigned to handle external traffic routing only.

Specification
Interfaces
|
24 x 1000Base-T 2 x 1000M SFP Auto MDI/MDIX 24 x 10/100/1000BASE-T ports 2 x SFP ports |
---|---|
Switching Capacity
|
52 Gbps |
Maximum Forwarding Rate
|
38.7Mpps |
Store & Forwarding Forwading
|
Yes |
Dimensions
|
440 x 140 x 44 mm |
Temperature
|
Operating: -5 to 50° C (23 to 122° F) Storage: -20 - 70 ˚C |
Weight
|
2.06 kg |
Humidity
|
Operating: 0% - 95% RH Storage: 0% - 95% RH |
Operating Altitude
|
1500 m |
Max Power Consumption
|
15.22 W/100 V 15.11 W/240 V |
Standby Power Consumption
|
5.01 W/100V 5.06 W/240V |
Maximum Heat Dissipation
|
51.93 BTU/hr (100V) 51.57 BTU/hr (240V) |
Acoustic
|
0 dB |
MTBF
|
1,082,534 hours |
CPU Speed
|
500MHz |
DRAM Size
|
DDR3 128 MB |
Flash Memory Size
|
32 MB |
Packet Buffer Size
|
4.1Mbits |
FAN
|
Fanless |
Power Input
|
100 to 240 V AC |
Comply with RoHS 6
|
Yes |
Power Saving
|
By Link Status By Cable Length By Port Shut-Off By System Hibernation |
Energy Efficiency Ethernet (EEE)
|
Yes |
MAC Address Table Size
|
8000 |
Control
|
802.3x Flow |
Head-of-line (HOL) Blocking Prevention
|
Yes |
Spanning Tree Protocol (STP)
|
IEEE 802.1s MSTP IEEE 802.1D STP IEEE 802.1w RSTP |
Aggregation
|
802.3ad Link 4 x Link Aggregation Group Per Device 8 x Max Port Per Link Aggregation Group |
Jumbo Frame
|
10,000 Bytes |
Features
|
Loopback Detection (LBD) Port Mirroring IPv6 Neighbor Discovery (ND) 128 ND Entries Default Route Static Route |
IGMP Snooping
|
IGMP Snooping Fast Leave Max 256 IGMP Snooping Groups |
MLD
|
Snooping Snooping Fast Leave Snooping Groups |
VLAN
|
802.1Q VLAN Groups Port-based VLAN Voice VLAN Auto Surveillance VLAN Asymmetric VLAN |
ARP Entries
|
ARP Entries |
QoS
|
Number of Queue Class of Service (CoS) Strict Priority Queue (SPQ) Weighted Round Robin _WRR Port-based Bandwidth Control |
Access Control List (ACL)
|
Max Access Control List (ACL) Entries MAC Access List IP Access List IPv6 Access List |
Management
|
SSH SSL (only support TLS 1.0) Trusted Host Simple Network Time Protocol (SNTP) Web_based GUI Telnet Server SNMP SNMP Trap TFTP Client System Log RMONv1 LLDP LLDP-MED D-Link Discover Protocol (DDP) DHCP Client BootP Client Dual Images Dual Configurations Debug Command Ping Smart Wizard |
D-Link Network Assistant
|
Yes |
Security
|
Port Security Broadcast/Multicast/Unicast Storm Control Traffic Segmentation Smart IP-MAC-Port Binding (Smart IMPB) D-Link Safeguard Engine DHCP Server Screening ARP Spoofing Prevention DoS Attack Prevention |
AAA
|
802.1X Port based 802_1X Authentication Authentication for Management Access RADIUS |
OAM
|
Cable Diagnostics |
