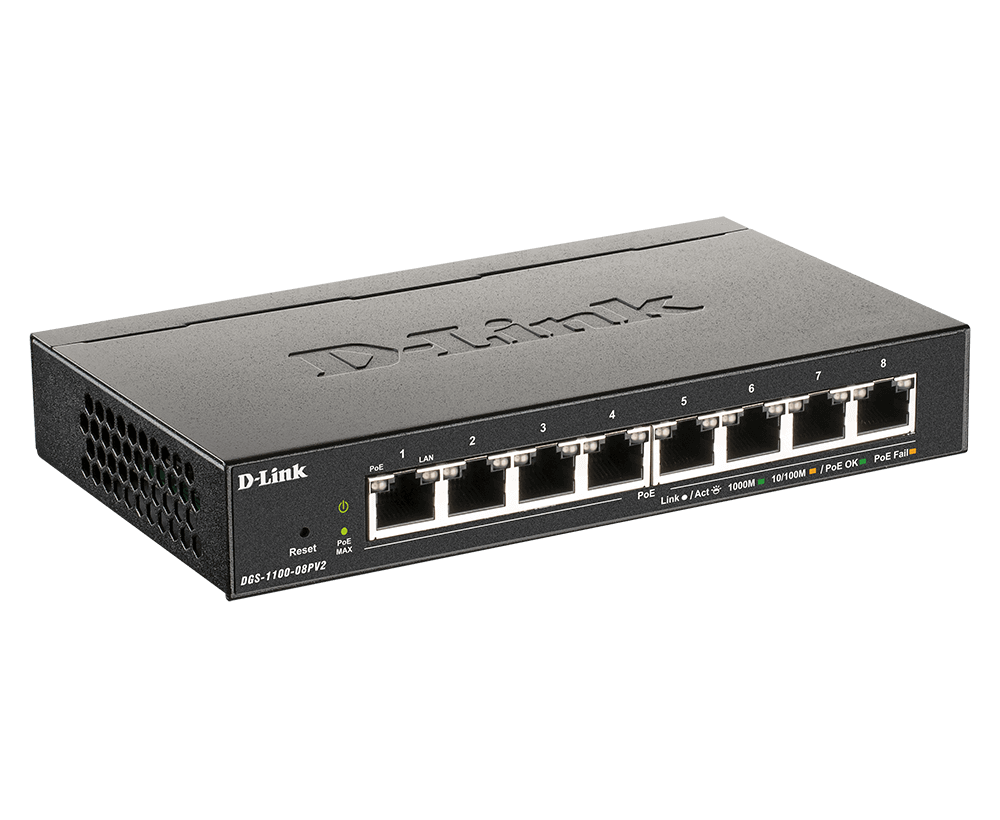

8-Port Gigabit PoE Smart Managed Switch
DGS-1100-08PV2
- Product Status (Revision REVB_v3.20_EN_US): Live
- 8 x 10/100/1000BASE-T PoE ports
- Supports IEEE 802.3at PoE
- 64W PoE power budget
- Compact design for convenient placement
- Fanless design for silent operation
- Innovative D-Link Green energy saving features
- Complete web interface for comprehensive switch management
- NDAA Compliant
- D-Link Lifetime Warranty after Registration
Where to buy
Simple. Easy. Smart.
Web UI
Easy to use web interface to access management features.
VLANs
Segment your network into VLANs.
Surveillance Mode Interface
Get a snapshot of your security topology in an instant.
Advanced Security Features
The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation(static). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.
Simplify Network Management
D-Link’s free Network Assistant (DNA) displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.
Full PoE Support
Selected models in the DGS-1100 Series support Power over Ethernet on copper access ports. Power over Ethernet greatly simplifies the installation of PoE-enabled devices such as VoIP phones and IP cameras in remote locations with no immediate access to a power outlet.
Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).
DGS-1100 Series
| Product |  DGS-1100-05V25-Port Gigabit Smart Managed Switch | DGS-1100-05PDV25-Port Gigabit PoE Smart Managed Switch and PoE Extender |  DGS-1100-08V28-Port Gigabit Smart Managed Switch |  DGS-1100-08PV28-Port Gigabit PoE Smart Managed Switch |  DGS-1100-16V216-Port Gigabit Smart Managed Switch |  DGS-1100-24V224-Port Gigabit Smart Managed Switch |  DGS-1100-24PV224-Port Gigabit PoE Smart Managed Switch |
|---|---|---|---|---|---|---|---|
| Interface |  | | | | 16 x 10/100/1000BASE-T ports | 24 x 10/100/1000BASE-T ports | 12 x 10/100/1000BASE-T PoE ports 12 x 10/100/1000BASE-T ports |
| Performance | |||||||
| Switching Capacity | | | | | | 48 Gbps | |
| Max. Packet Forwarding Rate | | | | | | 35.71 Mpps | |
| PoE | |||||||
| PoE Budget | | | | | | | 100 W (30 W max. per PoE port) |
Specification
|
Acoustic
|
0 dB |
|---|---|
|
Comply with RoHS 6
|
Yes |
|
Control
|
802.3x Flow |
|
CPU Speed
|
62.5 MHz |
|
DRAM Size
|
48K Bytes |
|
Energy Efficiency Ethernet (EEE)
|
Yes |
|
FAN
|
Fanless |
|
Flash Memory Size
|
2 MB |
|
Head-of-line (HOL) Blocking Prevention
|
Yes |
|
Humidity
|
Operation 0%-90% RH Storage: 0% - 95% RH |
|
IGMP Snooping
|
Max 128 IGMP Snooping Groups |
|
Interfaces
|
8 x 10/100/1000 Mbps PoE 8 x 1000Base-T Auto MDI/MDIX |
|
Jumbo Frame
|
9,216 Bytes |
|
MAC Address Table Size
|
4160 |
|
Maximum Forwarding Rate
|
11.9Mpps |
|
Maximum Heat Dissipation
|
265.85 BTU/hr |
|
MTBF
|
786,841 hours |
|
Operating Altitude
|
2000 m |
|
Packet Buffer Size
|
1.5Mbits |
|

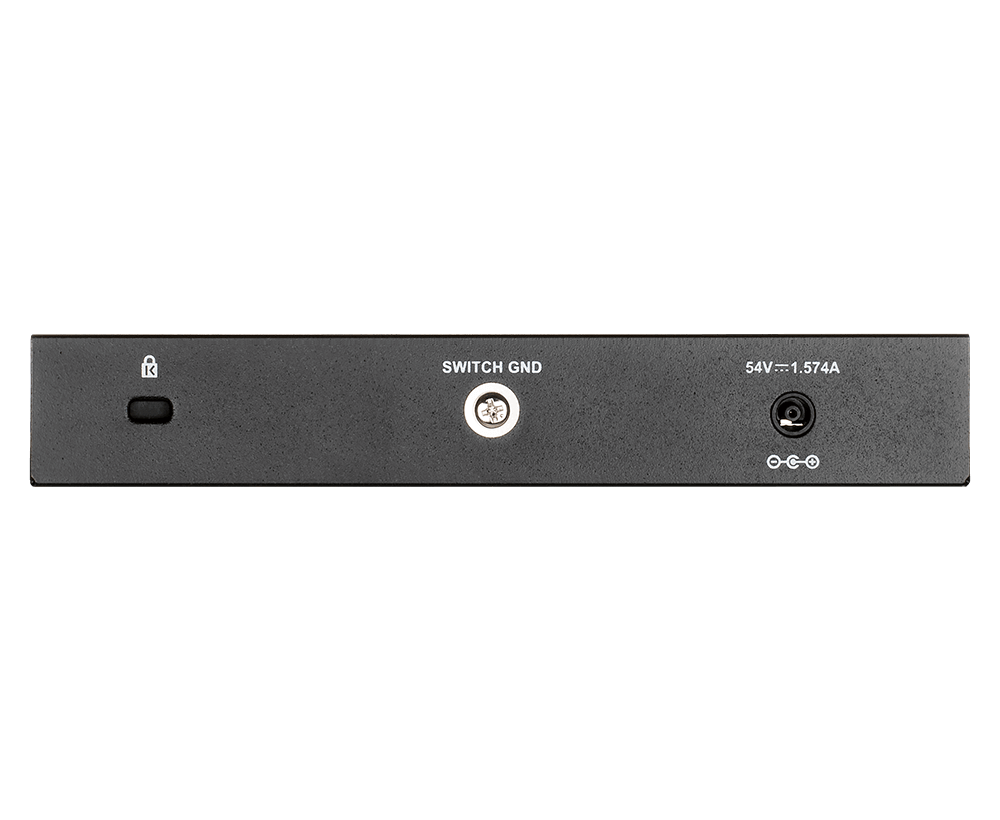

Power Input
|
AC:100 ~ 240 V |
|
Standby Power Consumption
|
2.0 W |
|
Store & Forwarding Forwading
|
Yes |
|
Temperature
|
Operating: 0 ~ 40 °C Storage: - 40 ~ 70 °C |
|
VLAN
|
802.1Q Asymmetric VLAN Port-based VLAN Surveillance VLAN VLAN Groups Voice VLAN |
