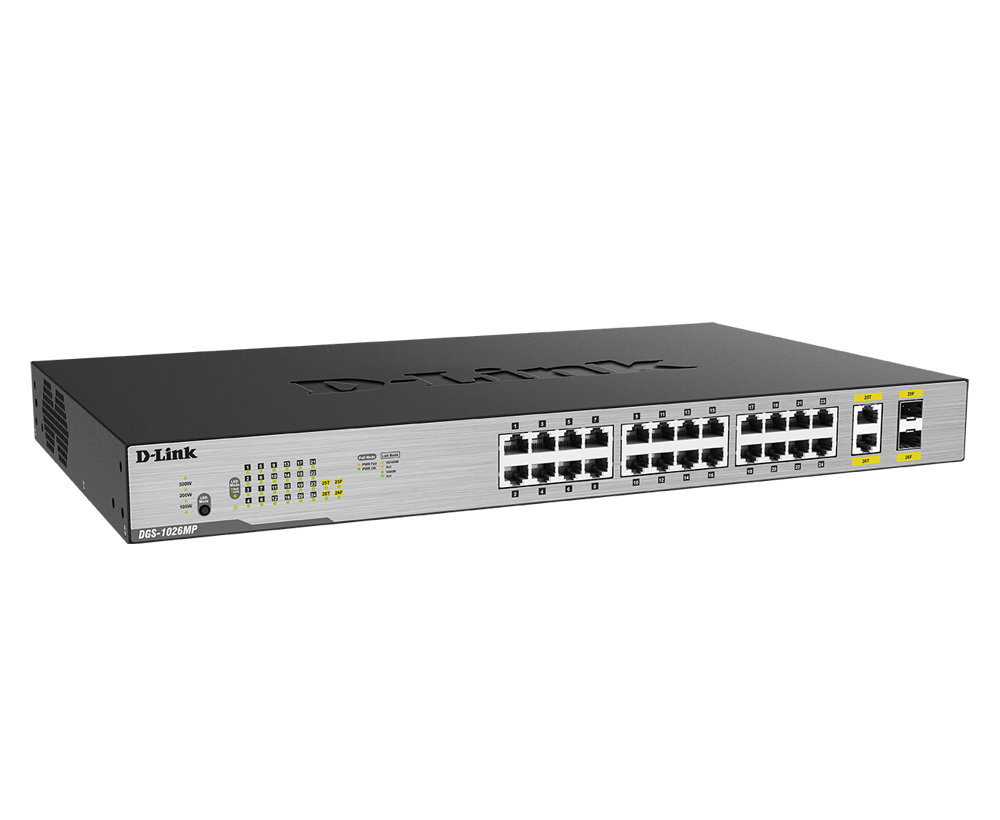

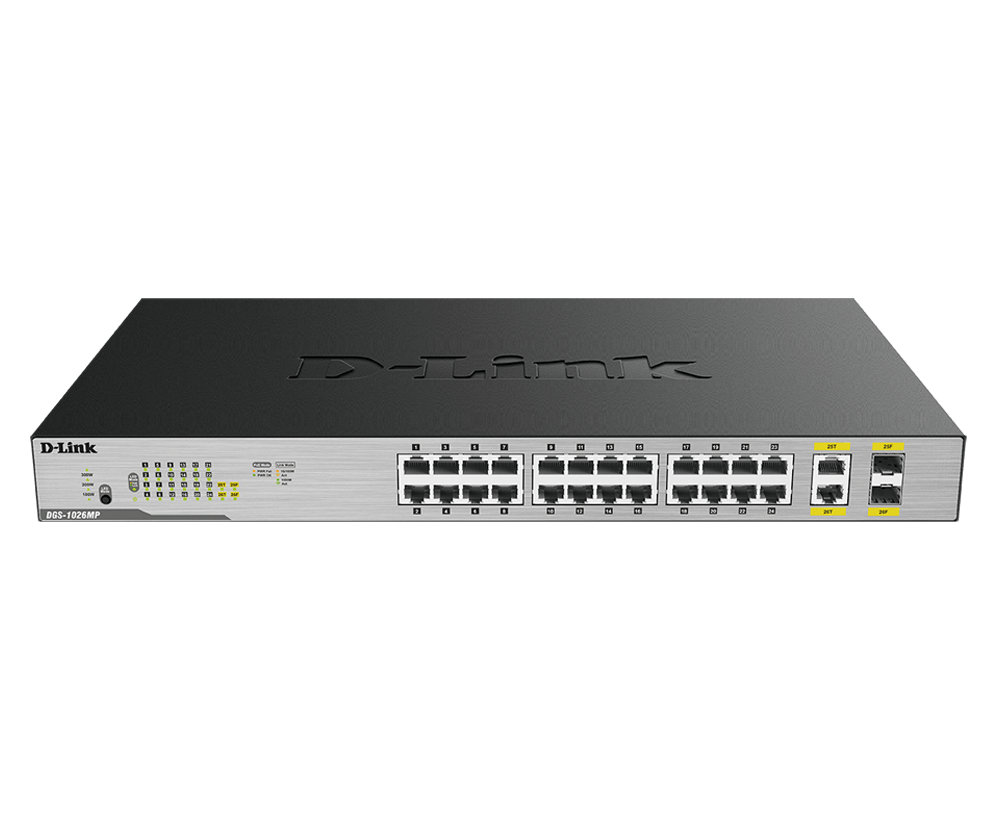

26-Port Unmanaged Rackmountable PoE Switch

DGS-1026MP

  • Product Status (Revision B1_v101): Live
  • 24 10/100/1000Mbps PoE ports
  • 2 Gigabit Combo ports - RJ45/SFP
  • Plug-and-play installation
  • Auto MDI/MDIX crossover for all ports
  • Supports IEEE 802.3af/at PoE standard
  • Each port supports up to 30 watts, with a total PoE budget of
  • 370 watts
  • Features PWM fan to adjust fan speed by system requirements
  • Better acoustic performance and less power loss
  • Real-time feedback on the power consumption of PoE-powered devices
  • NDAA Compliant
  • D-Link Limited Lifetime Warranty after Registration

Download the datasheet.

Where to buy

Reliable Yet Affordable

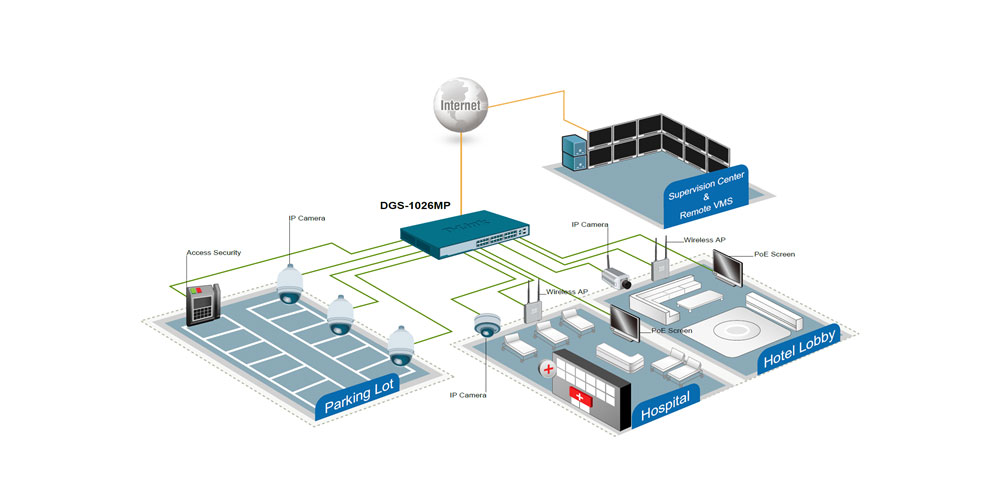

The D-Link DGS-1026MP enables users to easily connect and power PoE-capable devices such as wireless access points (APs), IP cameras, and IP phones.

Highlights

Combo Ports

2 x Gigabit Combo ports for hardware flexibility

PoE Capable

Maximum PoE budget up to 370W

Plug and Play

Seamless Setup

Fiber and Copper Uplinks

With 2 x Gigabit "combo" uplink ports, businesses have additional flexibility their network deployment, offering a choice for uplink connections via Gigabit fiber (SFP) or Gigabit copper (RJ45) interfaces.

Power over Ethernet

The DGS-1026MP features 24 x 10/100/1000BASE-T PoE ports that support the IEEE 802.3at PoE+ standard. Each of the 24 PoE ports can supply up to 30W of power to attached devices, with a total PoE budget of 370W.

The PoE usage LEDs further provide real-time feedback on the current PoE power usage on the network and help plan out the PoE network budget, preventing PoE overloading problems.

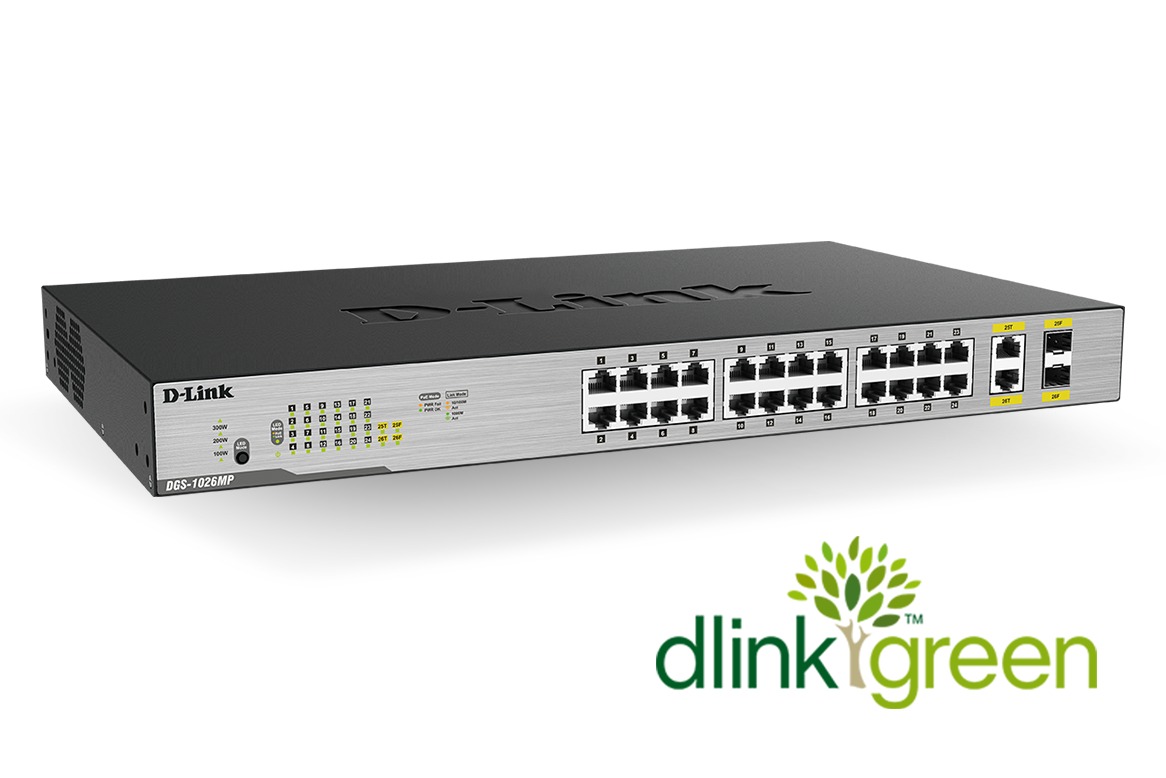

Energy Efficient

To help small businesses save on operating costs, the DGS-1026MP supports IEEE 802.3az Energy Efficient Ethernet (EEE). This feature actively monitors network traffic and automatically puts ports that are not being used into hibernation, powering them on only when they are required.

Hassle-Free Setup

The DGS-1026MP is a plug-and-play device that requires no configuration, so setup is simple and hassle-free. Simply connect the switch to the network and then connect multiple PoE compatible devices such as IP Cameras, Wi-Fi Access Points, and VoIP Phones.

Specs

Download the datasheet.

Certifications
CE

FCC

VCCI
LED
Per unit: Power Per port: Activity / Link and Speed Per PoE port: Power fail

Power OK
PoE Ports
Ports 1~24 up to 30 W per port
Safety
CB

LVD

UL
Standards
IEEE 802.3 10BASE-T Ethernet

IEEE 802.3af/at

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3x Flow Control

IEEE 802.3z
Transmission Method
Store-and-Forward
Dimensions
440 x 267 x 44 mm (17.32 x 10.51 x 1.73 inch)
Humidity
Operating : 10% to 95% RH non-condensing

Storage: 5% to 95% RH non-condensing
Interfaces
2 x 1000BASE-T/SFP combo ports

24 x 10/100/1000 PoE ports
MAC Address Table Size
8K entries
Maximum Forwarding Rate
38.69 Mpps
Maximum Heat Dissipation
1,582 BTU/h
Maximum Power Consumption
28.86 watts (PoE off)

463.76 watts (PoE on)
MTBF
495,630 hours
Packet Buffer Size
512KBytes
PoE Power Budget
370 W

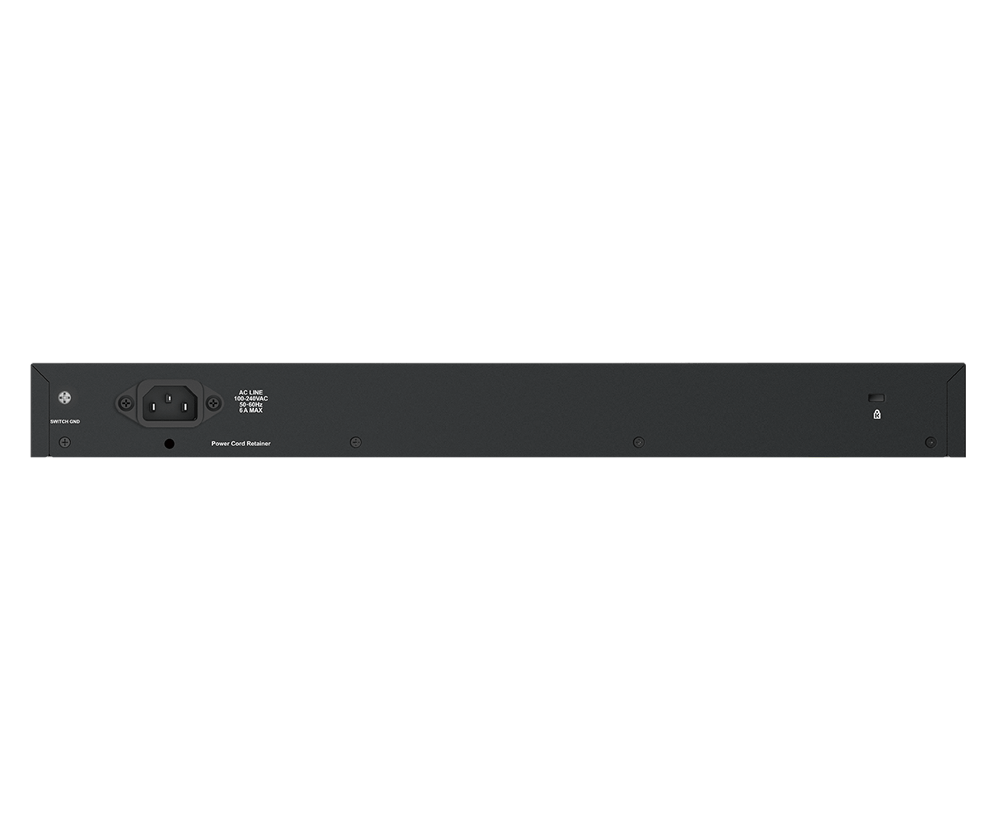

Power Input
AC:100 ~ 240 V
Standby Power Consumption
18.28 W / 240 V

18.45 W/100 V
Switching Capacity
52 Gbps
Temperature
Operating 0 to 50 ˚C (32 to 122 ˚F)

Storage: -40 to 70 °C (-40 to 158 °F)
Weight
3.95 kg (8.71 lbs)
