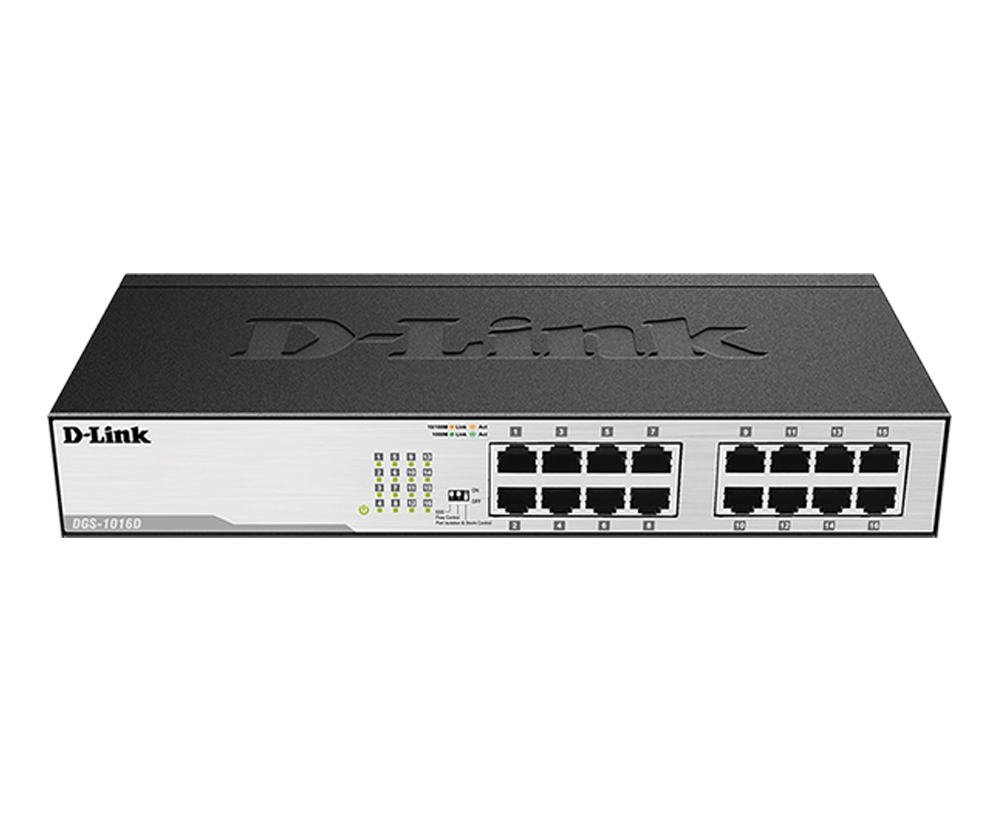

16-Port Gigabit Unmanaged Desktop Switch


  • Product Status (Revision I_v100_WW): Live
  • Cable diagnostics troubleshooting
  • 3-pin front panel DIP switch for real-time toggling Energy-efficient Ethernet (EEE), Flow Control, Port Isolation, and Storm Control
  • Compact and durable housing, high port count, and fanless design for noise-free operation
  • NDAA Compliant
  • D-Link Limited Lifetime Warranty after Registration

Download the datasheet.

Where to buy

Gigabit Ethernet Speeds for SOHOs and SMBs

The D-Link DGS-1016D 16-Port Unmanaged Gigabit Switch offers an economical way for SOHO and Small-to-Medium Businesses (SMB) to take advantage of Gigabit Ethernet speeds while reducing energy consumption and minimising noise output.

Gigabit Connectivity

The DGS-1016D brings the speed of Gigabit Ethernet to all ports for a truly high-speed network. If your network has a mix of legacy and modern connection interfaces, each port allows for standard Ethernet, Fast Ethernet, or Gigabit Ethernet connections. You have the latest technology available to every computer and device connected to your network.

Improved Network Efficiency

The DGS-1016D incorporates several advanced features to help simplify and improve network management and efficiency. Flow Control throttles connections to ensure reliability during heavy usage periods by reducing packet loss and wasteful data re-transmission. In addition, Storm Control and Port Isolation mitigate the effects of broadcast storms caused by rogue software and malware, which can propagate across the network and bring communication to a standstill.

Green Technology

The 16-Port Gigabit Unmanaged Switch helps you conserve energy automatically through several methods. Link status detection automatically powers down ports that have no link, allowing the switches to save substantial amounts of power by cutting power usage for unused ports or any ports connected to computers that have been shut down. Meanwhile, Energy-Efficient Ethernet (EEE) conserves energy by dynamically reducing power consumption when data activity is low. This environmentally friendly switch is also RoHS-compliant, uses recyclable packaging, and minimises the use of harmful substances. These green features combined, provide more energy savings and a longer product life, without sacrificing operational performance or functionality.

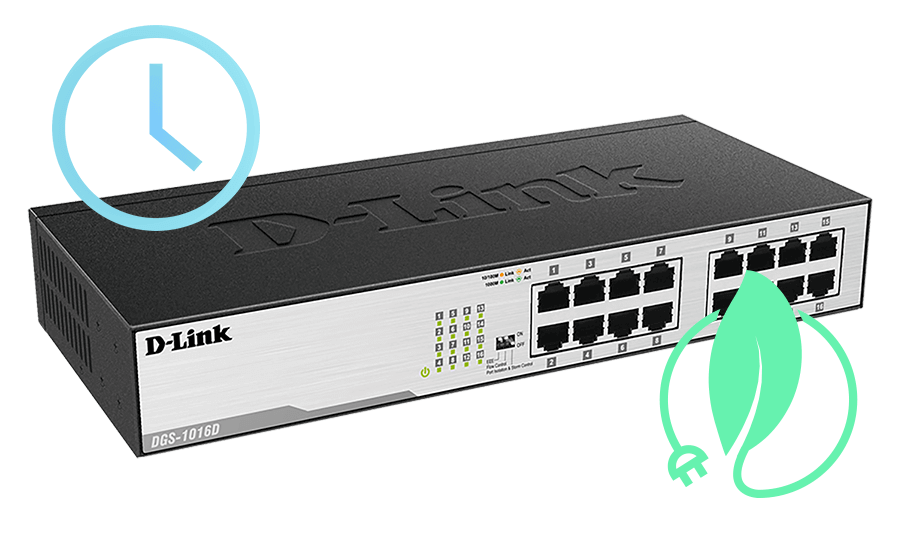

Innovative Design

The DGS-1016D features a durable, compact metal case alongside a fanless design allowing for improved heat dissipation while maintaining silent operation. The 16-Port Gigabit Unmanaged Switch is small, lightweight, wall-mountable, and ideal for any business with demanding requirements and a small budget.

Comply with RoHS 6
Air Discharge 8KV

Contact Discharge 4kV
Power Saving
By Cable Length

By Link Status
Surge/Lightning Protection (AC Power Inet) : 1kV

Surge/Lightning Protection (All Ethernet Ports) : 1kV
802.3x Flow
280 x 125 x 44 mm
Energy Efficiency Ethernet (EEE)
Head-of-line (HOL) Blocking Prevention
Operating: 0% - 95% RH

Storage: 0% - 95% RH
16 x 1000Base-T

Jumbo Frame
10,000 Bytes
MAC Address Table Size
Maximum Forwarding Rate
Maximum Heat Dissipation
34.3 BTU/h
Maximum Power Consumption
1,882,372 hours
Packet Buffer Size
Power Input
AC:100 ~ 240 V
Standby Power Consumption
Store & Forwarding Forwading
Switching Capacity
32 Gbps
Operating: 0 ~ 40 °C

Storage: -10 - 70 ˚C
1.023 kgs
