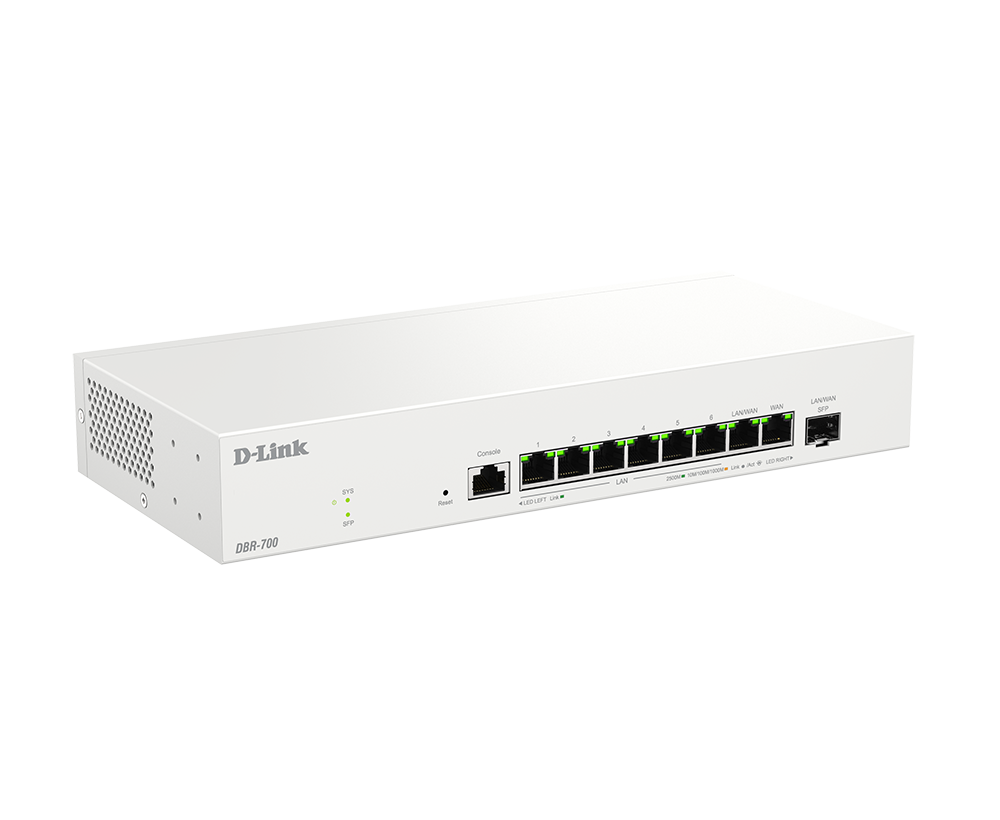

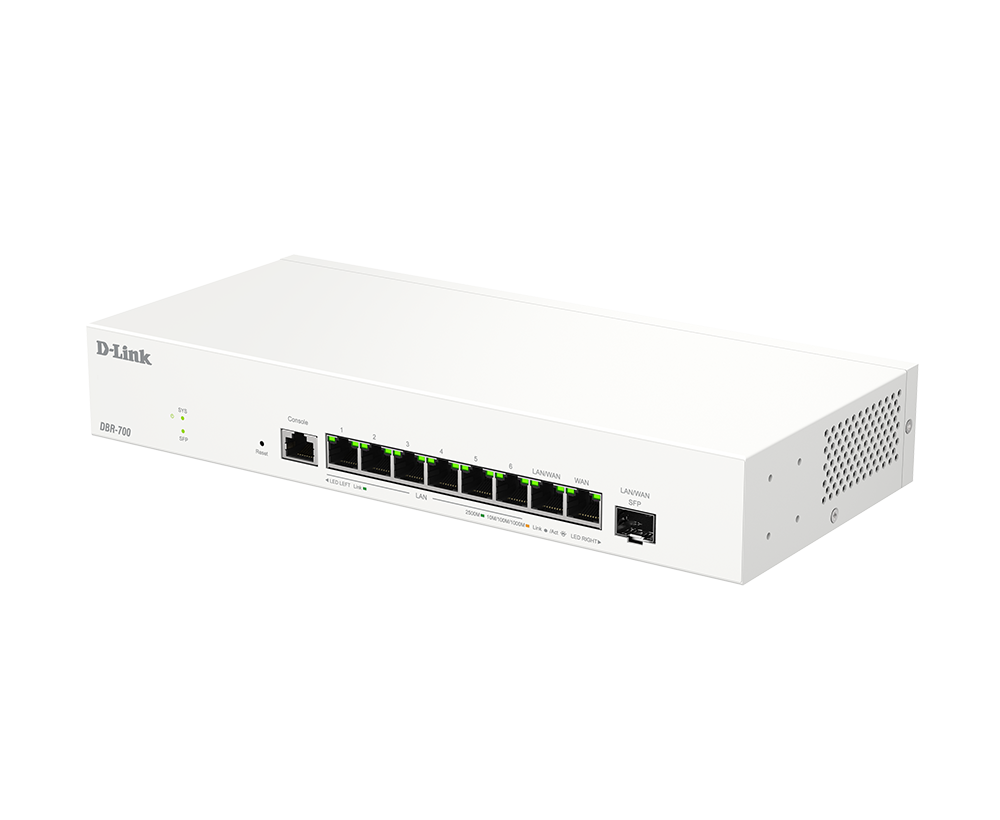

Multi-Gig Business Router with SFP
DBR-700
- Product Status: Live
Essential Network Control in a Compact Design. Plug it in, power your devices, get online - no fuss.
-
Built for Small Business, Classrooms, Supermarkets, and Boutique Villa Resorts: Replaces a separate VPN router, PoE switch, and Wi-Fi controller with one compact unit.
- Comprehensive Network Control: Offers built-in VPN, advanced security, and centralized Wi-Fi access point management to reduce complexity and support a more efficient network environment.
-
Robust VPN features: Supports up to 100 VPN tunnels (IPSec, PPTP, L2TP, OpenVPN, WireGuard) for more secure remote access and hybrid workforce flexibility.
-
Eight 2.5 GbE Ports: Deliver fast connectivity for high-bandwidth devices like servers, IP cameras, and POS systems.
-
2.5 Gbps WAN Port: Matches multi-gig fiber or cable plans, moving large uploads quickly and keeping video calls and streaming smooth.
-
2.5G SFP Port: Offers flexible fiber uplink connectivity: ideal for long-distance, high-speed transmission in expansive or multi-building environments.
-
Central Wi-Fi Management: Discover and manage up to 15 D-Link Smart Access Points (DBR-X3000-AP) from one intuitive dashboard.
-
VLAN Tagging & QoS: Enables traffic segmentation and prioritization for voice, payment, or video services, helping maintain performance during peak hours.
-
Dual-WAN Fail-over and Load Balancing: Helps ensure business continuity by automatically shifting to a backup WAN and distributing traffic evenly to maintain service stability.
-
Intuitive Web Dashboard: Makes configuration and ongoing management simple and efficient.
-
TAA / NDAA Compliant: Suitable for public-sector and security-conscious deployments.
-
Limited-Lifetime Warranty: With registration in North America.
Essential Network Control in a Compact Design: Multi-Gig Business Router with SFP
Setting up a small business network or replacing aging gear should be simple and straightforward
The DBR-700 combines essential networking in one streamlined unit for small business, supermarkets, boutique villa resorts, and classrooms: a 2.5 Gbps router; flexible 2.5G SFP uplink for long-distance fiber connections; eight multi-gig LAN ports; centralized control for up to 15 D-Link DBR-X3000-AP access points; robust VPN support with up to 100 tunnels; and dual-WAN failover with load balancing to help keep connectivity smooth and uninterrupted. Together, these features deliver high-speed wired networking, more secure remote access, and simplified Wi-Fi management without added hardware.
The DBR-700 is an all-in-one solution for building more secure, high-performance networks with minimal setup and maximum control.
Send Large Files in a Snap
Enjoy high-speed 2.5 Gbps data transfers, reducing wait times.
Reliable Multi-WAN Connectivity
up to 3 WAN ports for uninterrupted connectivity and optimized traffic
Built-in Fiber Port for Long-distance
Offers degradation-free signals for long-distance data transmission
Comprehensive and Robust VPN
Powerful VPN ensures secure access for business offices and remote workers
Access Under Protection
Firewall protection keeps your network safe from unauthorized access and cyber threats
One-stop APs Management
Effortlessly monitor and control smart access points with the built-in management platform
Intelligent Network Optimization
Prioritizing critical applications, balances traffic to avoid congestion, and efficiently use the resources
User-friendly Web UI Platform
Intuitive web UI streamlines management, enhances operational efficiency and minimizes errors

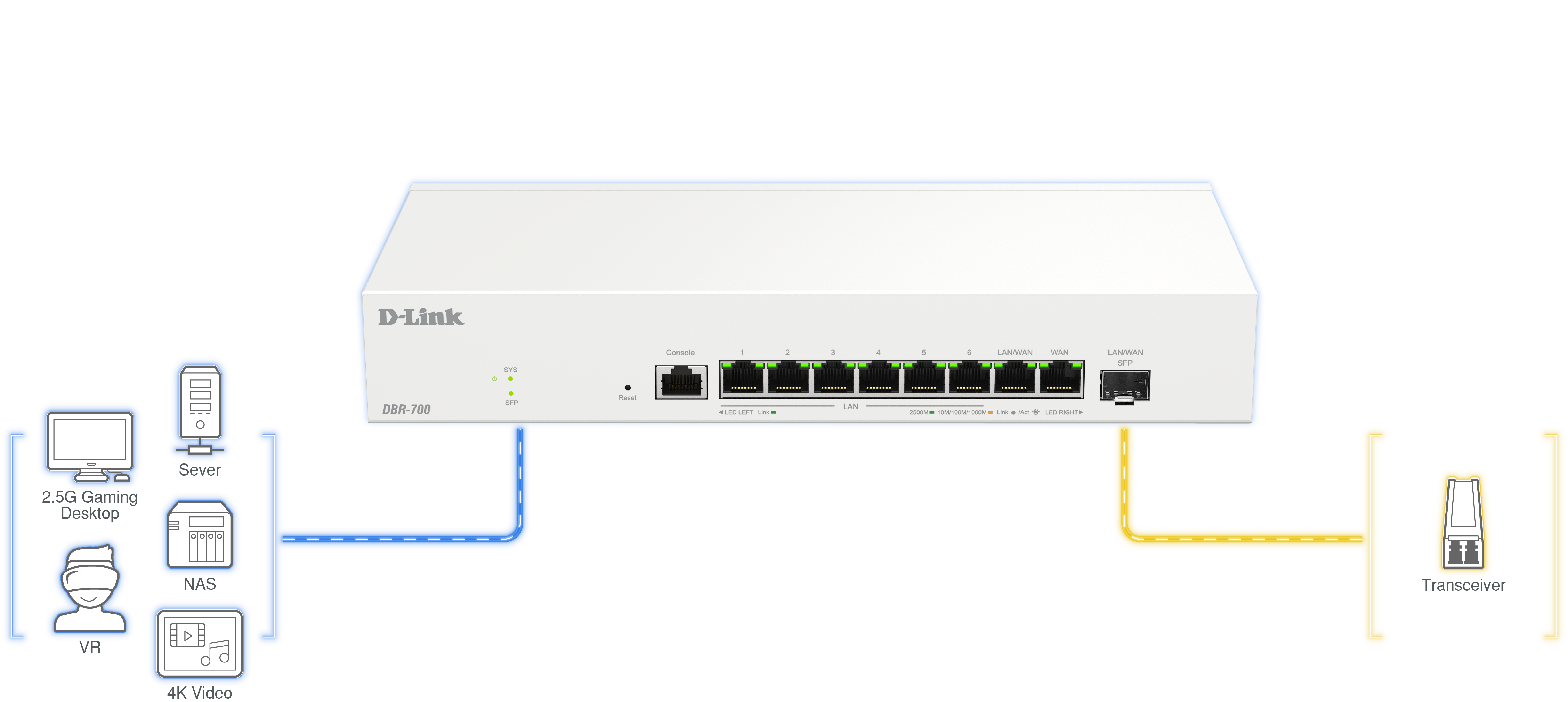

2.5G Connectivity
Maximize Efficiency and Growth with a Powerful Interface
Maximize Efficiency and Growth with a Powerful Interface
The DBR-700 features a 2.5G interface, providing higher bandwidth to support faster file transfers and lag-free, high-quality 4K/8K video streaming, enhancing daily productivity with more stable and reliable connectivity. The SFP (Small Form-Factor Pluggable) port enables long-distance data transmission, offering greater flexibility and scalability in network design. With the fiber port, businesses can easily scale their network without zone limitations.

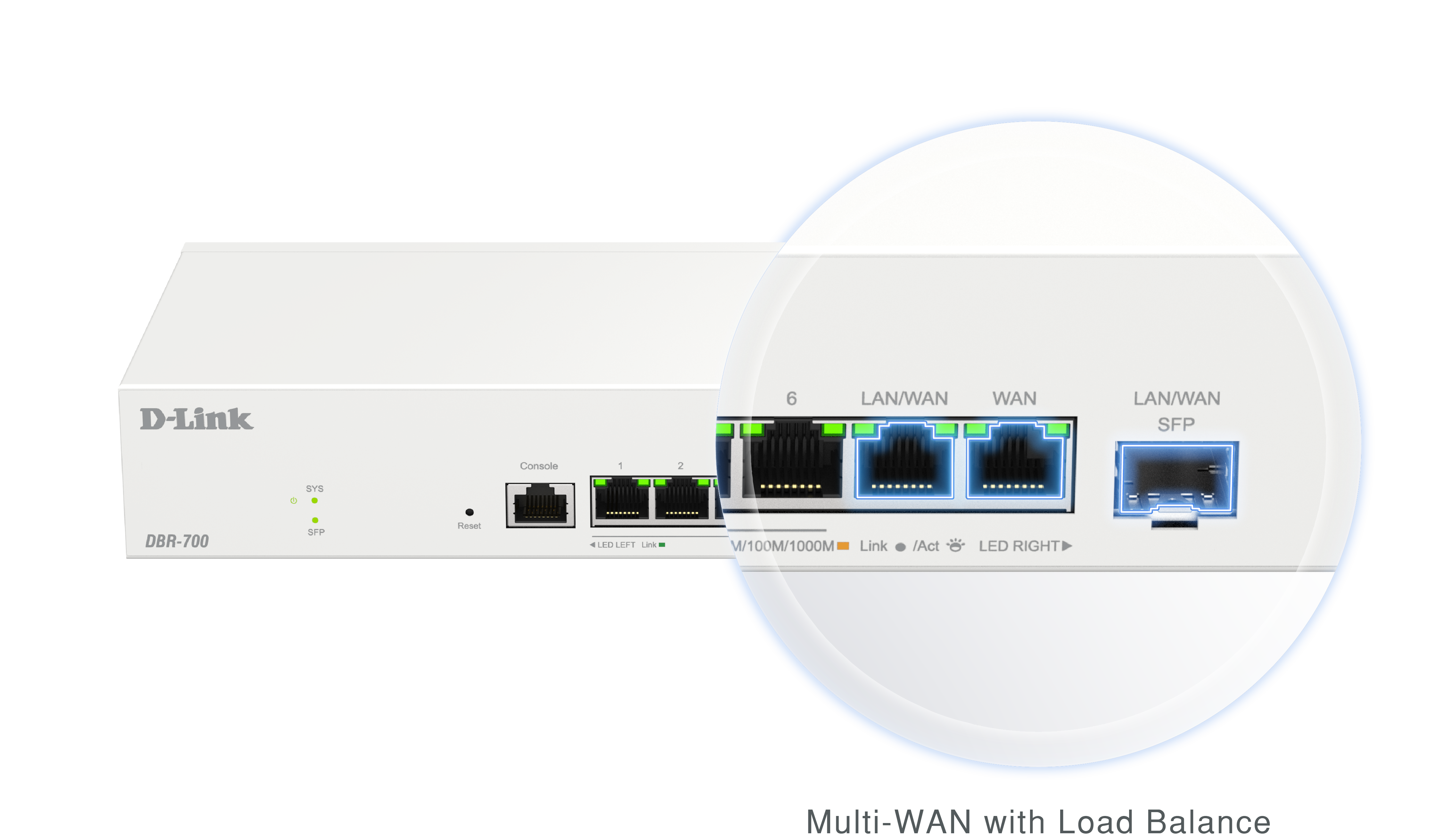

Multi-WAN
Resilient Connectivity with Flexible WAN Options
Resilient Connectivity with Flexible WAN Options
In addition to a WAN/LAN port that can be configured as a secondary WAN, the SFP port may also serve as a third WAN connection. Multi-WAN functionality is designed to enhance network reliability and maintain consistent service quality.
With up to 3 WAN ports, the DBR-700 supports traffic distribution across multiple connections through load balancing. This helps avoid congestion on a single link, better utilizes available bandwidth, and provides continuity with alternative paths during primary connection issues.

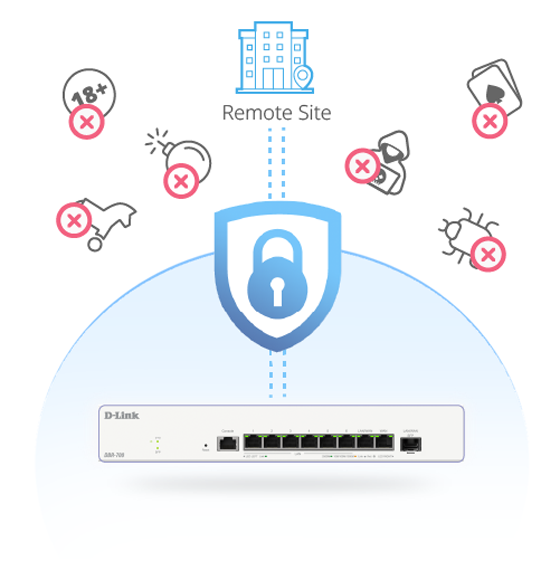

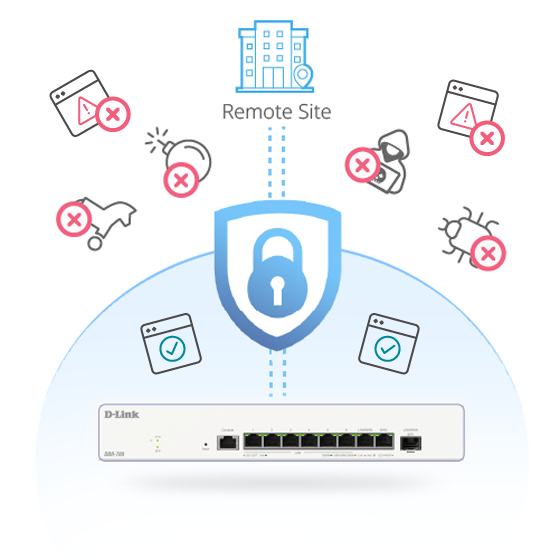

Layered Security
Comprehensive built-in advanced security features, such as a firewall, IPS and web filtering helps protect internal resources from unwanted traffic and suspicious content. Enhanced VPN interoperability and strong encryption make remote connections more secue, helping safeguard data and maintain privacy across network interactions.

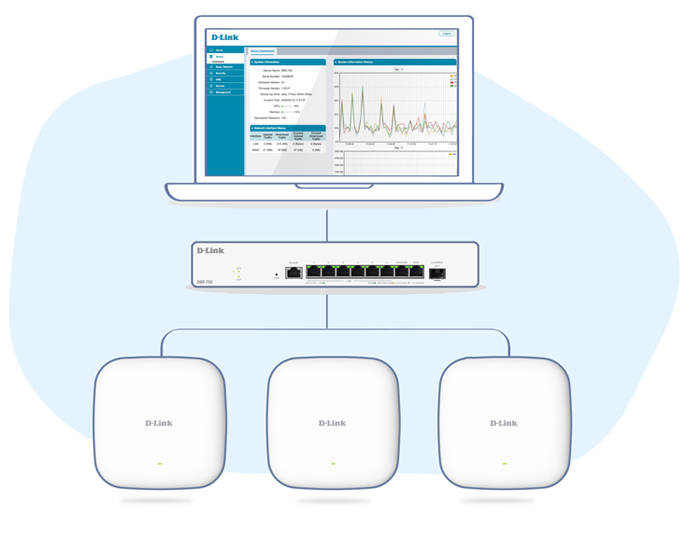

One-stop WiFi Management
Through an intuitive web UI, the DBR-700 centrally monitors the entire network status and easily manages the configuration of advanced features. Integrated wireless management supports up to 15 Smart AP(DBR-X3000-AP) devices, simplifying administrative tasks such as radio settings, client monitoring, and access control. Hassle-free management and real-time insights into network activity help small business owners enhance overall operational efficiency.
Related Products

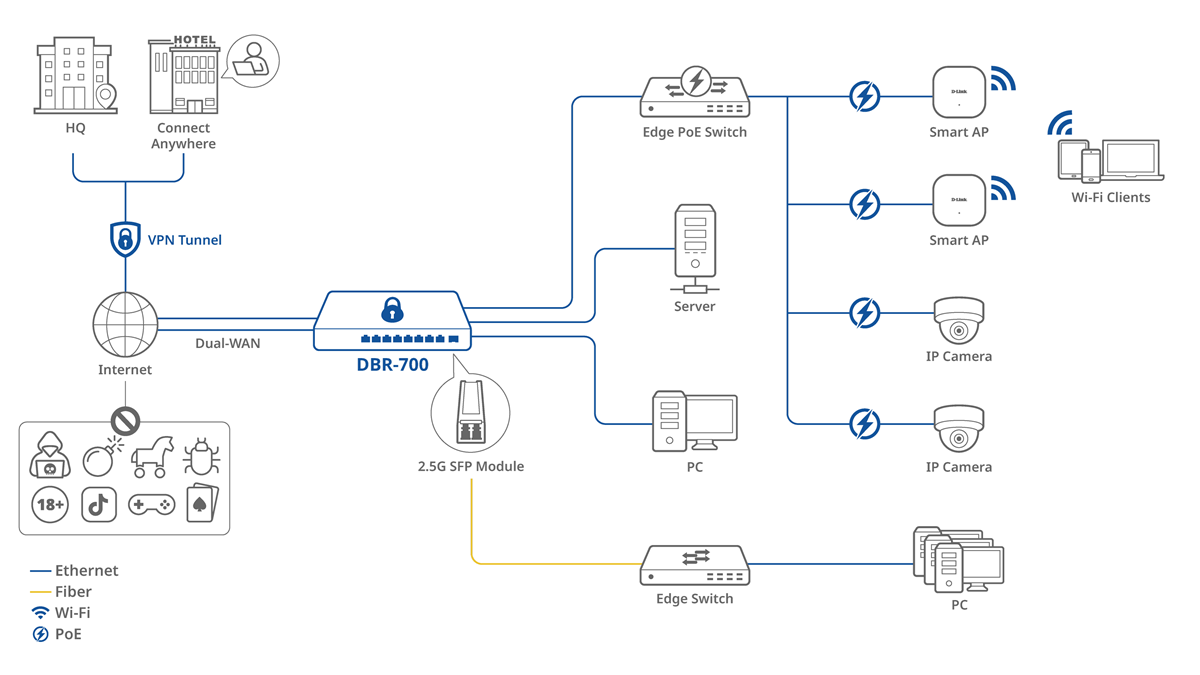

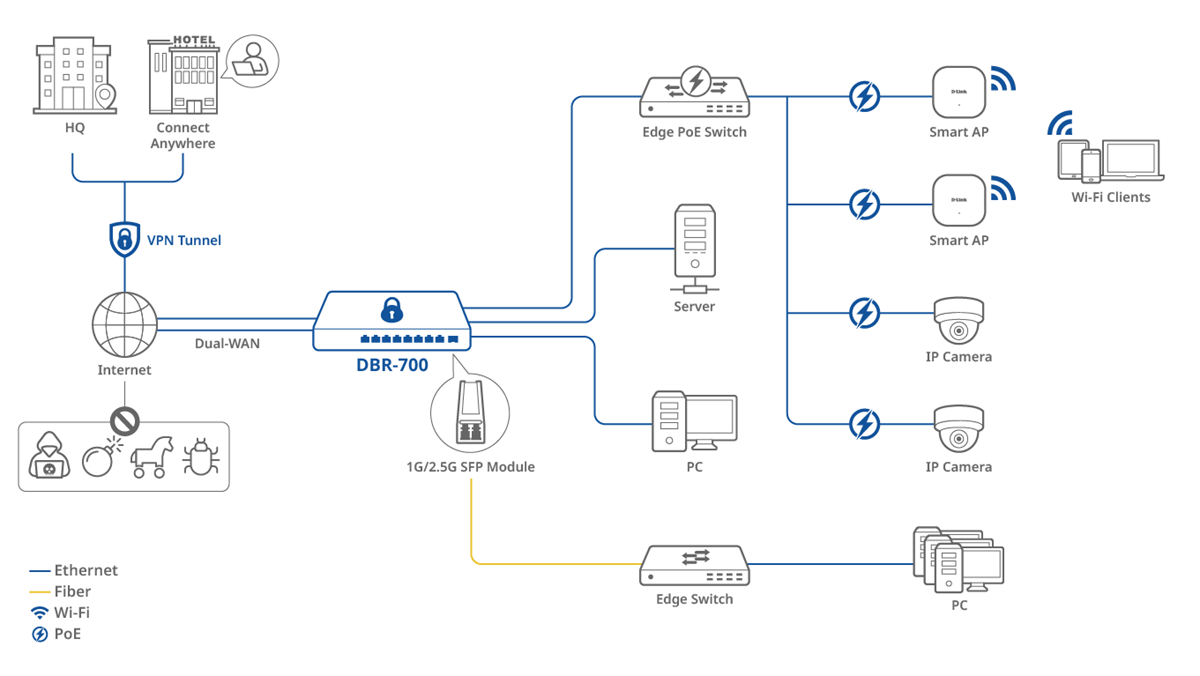

Connection Diagram
Explore the DBR-700’s Capabilities Through Our Topology Diagram
The DBR-700 enables high-performance connectivity through its 2.5G high-density ports, while the integrated SFP uplink allows for long-range and adaptable fiber network expansion. With support for multiple WANs, the device helps maintain steady internet service by balancing traffic and offering link redundancy.
For remote users, VPN tunnels provide encrypted access to office resources, supporting flexible work environments. In smaller networks, layered network management and usage restrictions may contribute to more productive and secure operations. The built-in Access Point management platform offers centralized visibility over connected clients and access point status, simplifying wireless oversight.
These combined features make the DBR-700 a smart fit for businesses aiming to strengthen and streamline their network infrastructure.

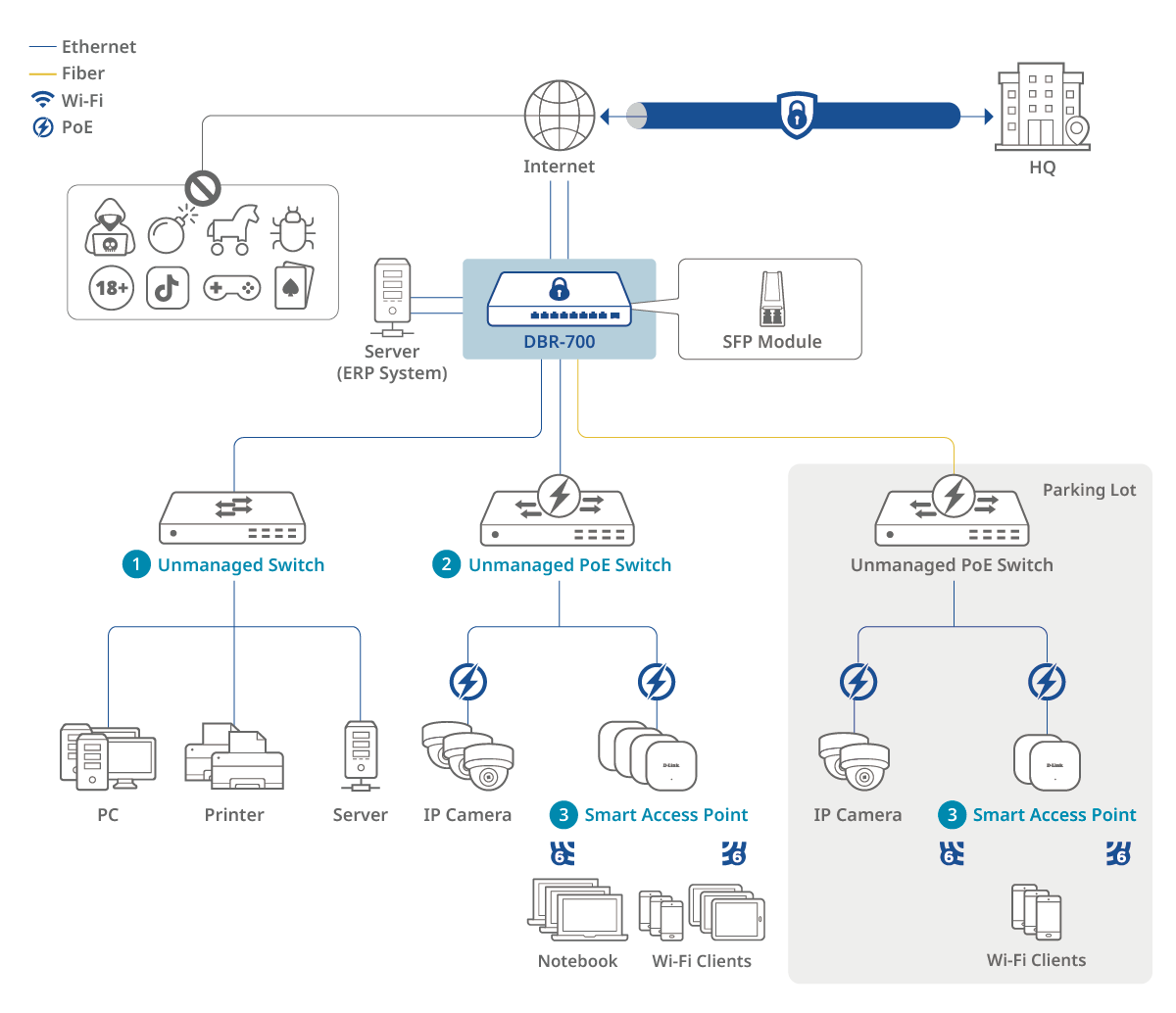

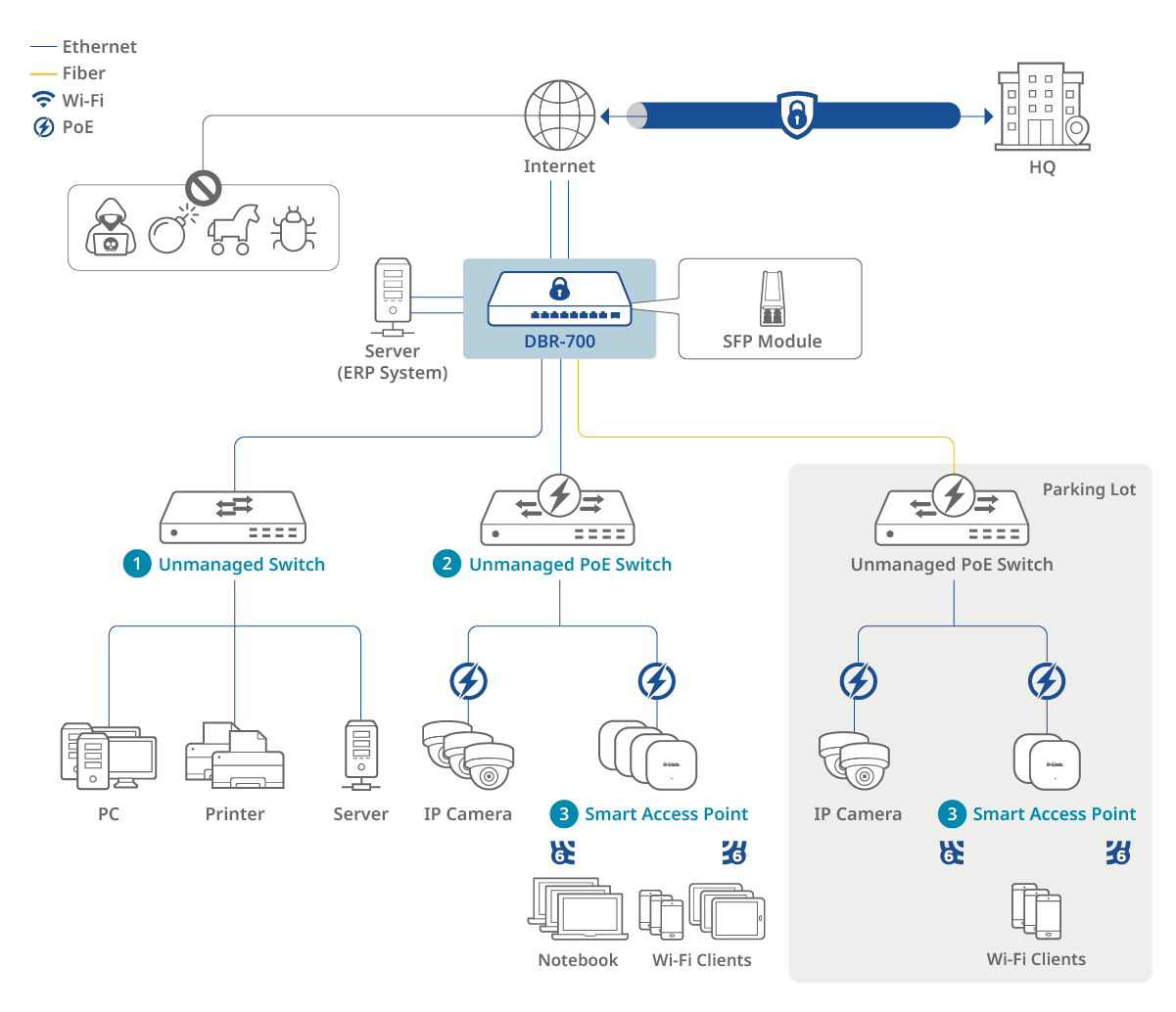

Supermarket (Business)
User benefits :
- Multi-WAN with load balancing for uninterrupted service
- More secure remote access with robust protection
- Deploy long-distance transmission networks without extra devices
- Easily manage and configure access points for the wireless service
Learn more :
- Unmanaged Switch : DMS-1024
- Unmanaged PoE Switch : DMS-108P
- Smart Access Point : DBR-X3000-AP

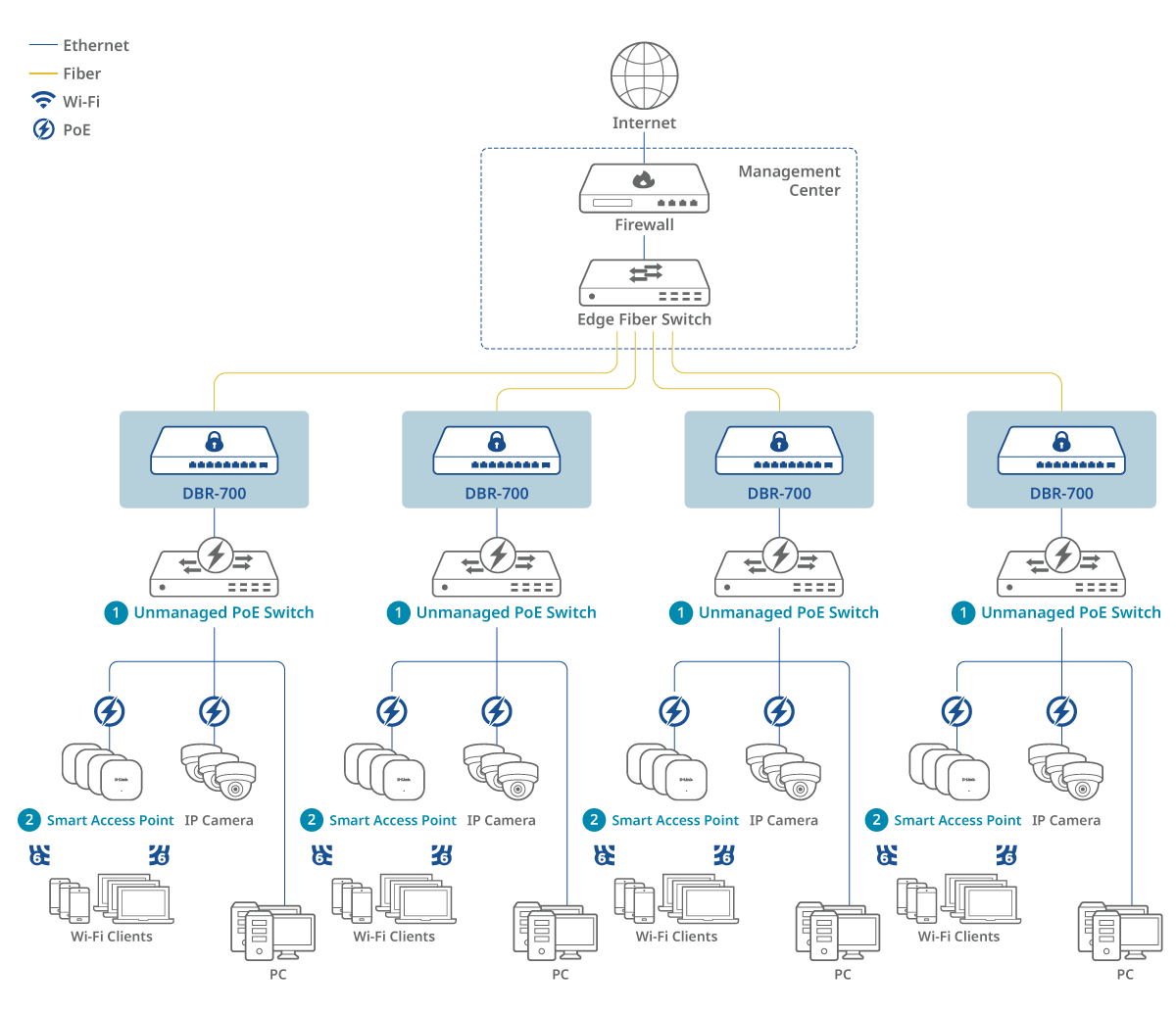

Villa Resort (Building)
User benefits :
- Extend the transmission range without requiring additional devices
- Reduce deployment costs and streamline installation with PoE switch
- Centrally control wireless devices through a unified dashboard
- Easily manage and allocate bandwidth for various network services
Learn more :
- Unmanaged PoE Switch : DMS-108P
- Smart Access Point : DBR-X3000-AP
Specification
|
Interfaces
|

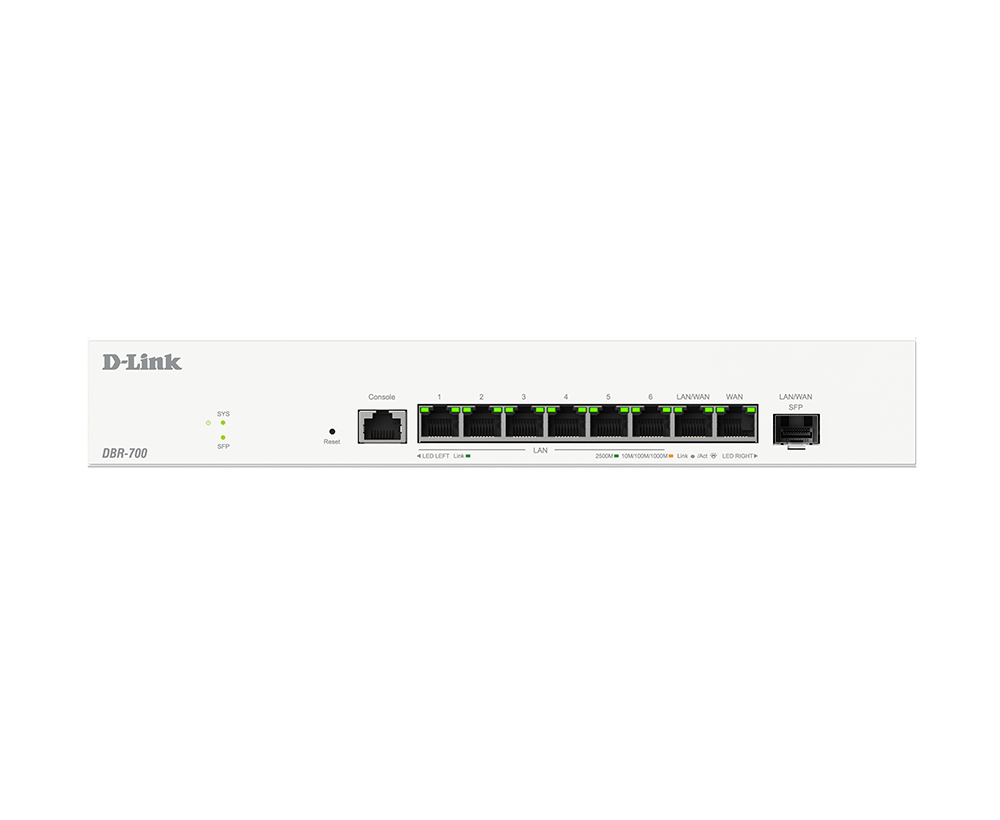

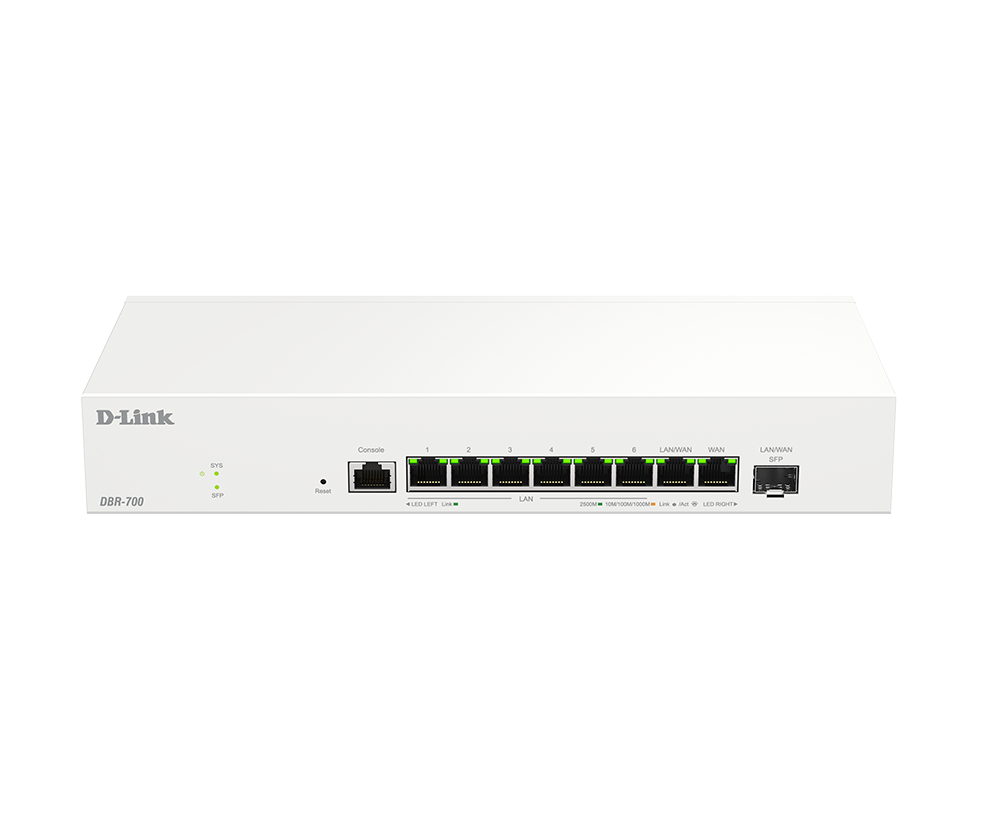

1 x 2.5GE WAN 1 x 2.5GE WAN/LAN 6 x 2.5GE LAN 1 x 2.5 Gigabit SFP WAN/LAN |
|---|---|
|
WAN load balance
|
Yes |
|
Firewall throughput
|
2Gbps |
|
IPsec Tunnel
|
100 |
|
Firewall
|
IPS/IDS SPI Firewall MAC/IP Filtering URL Blocking |
|
VPN tunnels
|
IPSec PPTP OpenVPN L2TP WireGuard |
|
IPS/DoS/DDoS
|
Yes |
|
AP Management
|
Up to 15 DBR-X3000-AP |
|
Captive Portal
|
Click Through, Local DB when managed by DBR-700 /DBR-600-P |
|
Dimensions
|
120 x 280 x 45 mm |
|
Temperature
|
Operating: 0 to 40 °C (32 to 104 °F) Storage: -20 to 70 °C (-4 to 158 °F) |
|
Humidity
|
Operating: 10% to 90% non-condensing Storage: 0% to 95% non-condensing |
