8-Port 2.5G Multi-Gigabit Unmanaged PoE Switch

DMS-108P

  • Product Status (Revision A): Live
  • 8-port 2.5GE connectivity for high performance networking
  • IEEE 802.3af/at/bt PoE (up to 90W/port), 230W power budget
  • Plug and Play simplicity for easy installation
  • Fanless design for enhanced reliability and silent performance
  • Durable metal housing enhances product durability
  • IGMP snooping for optimized bandwidth utilization
  • Auto MDI/MDI-X crossover on all ports simplifies setup
  • IEEE 802.3x flow control prevents packet loss
  • Quality of Service (QoS) ensures uninterrupted connectivity
  • IEEE 802.3az reduces power consumption and operating cost

Download the datasheet.

Where to buy

User Benefits​

Plug & Play

Não são necessárias configurações complexas para uma conectividade de rede rápida e fácil

Multi-Gigabit​

Portas multi-Gigabit para transmissão de dados a alta velocidade

Grande power budget

Power Budget total PoE de 230 W para alimentar mais dispositivos

IEEE802.3bt

Até 90 W por porta permite dispositivos de alta potência (PD)

Otimização Multicast

As características de IGMP Snooping evitam engarrafamentos na rede

Silencioso

Design sem ventoinha para um ambiente de trabalho sem ruído

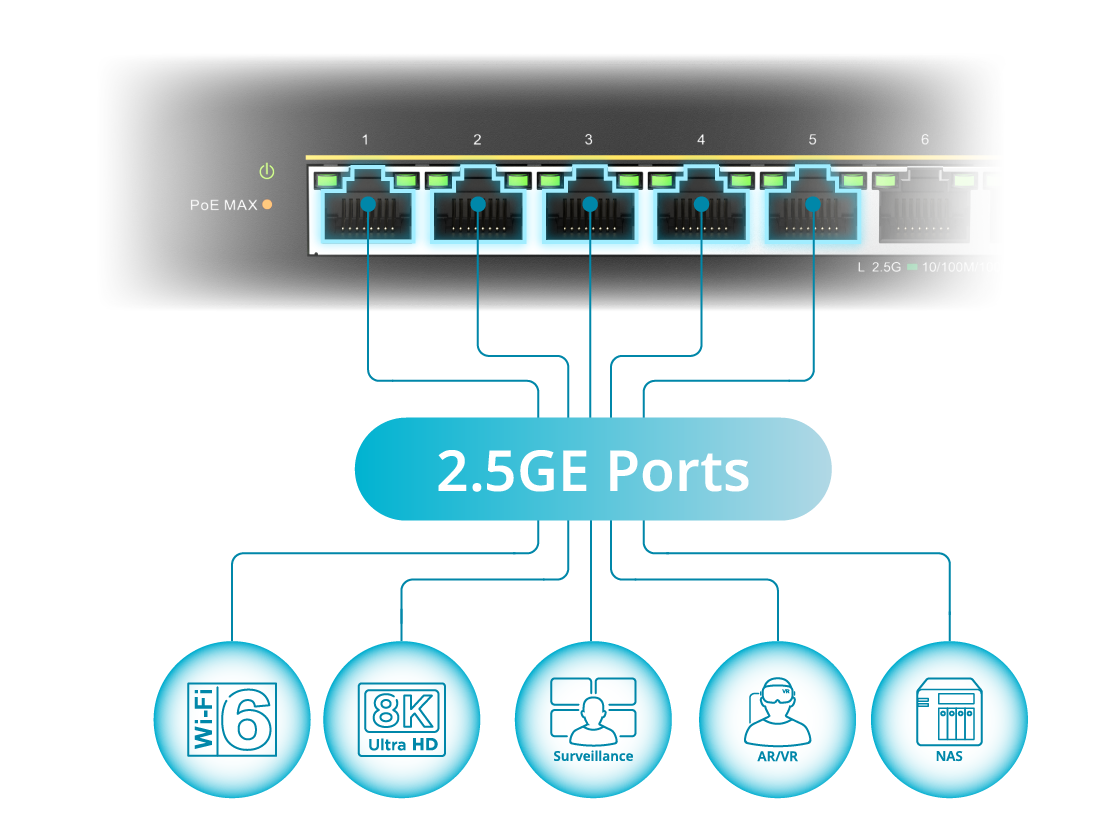

Unleash Wi-Fi 6 via 2.5G Ports

As Wi-Fi 6 (802.11ax) delivers ultra-fast speeds and low latency, standard Gigabit Ethernet can become a bottleneck. 2.5G Ethernet offers 2.5x the bandwidth without new cabling, unlocking the full potential of Wi-Fi 6 for smoother 4K/8K streaming, HD surveillance, AR/VR gaming, data transfer, and data-intensive environments. Future-proof your network and experience Wi-Fi 6 at its best—fast, reliable, and unrestricted.

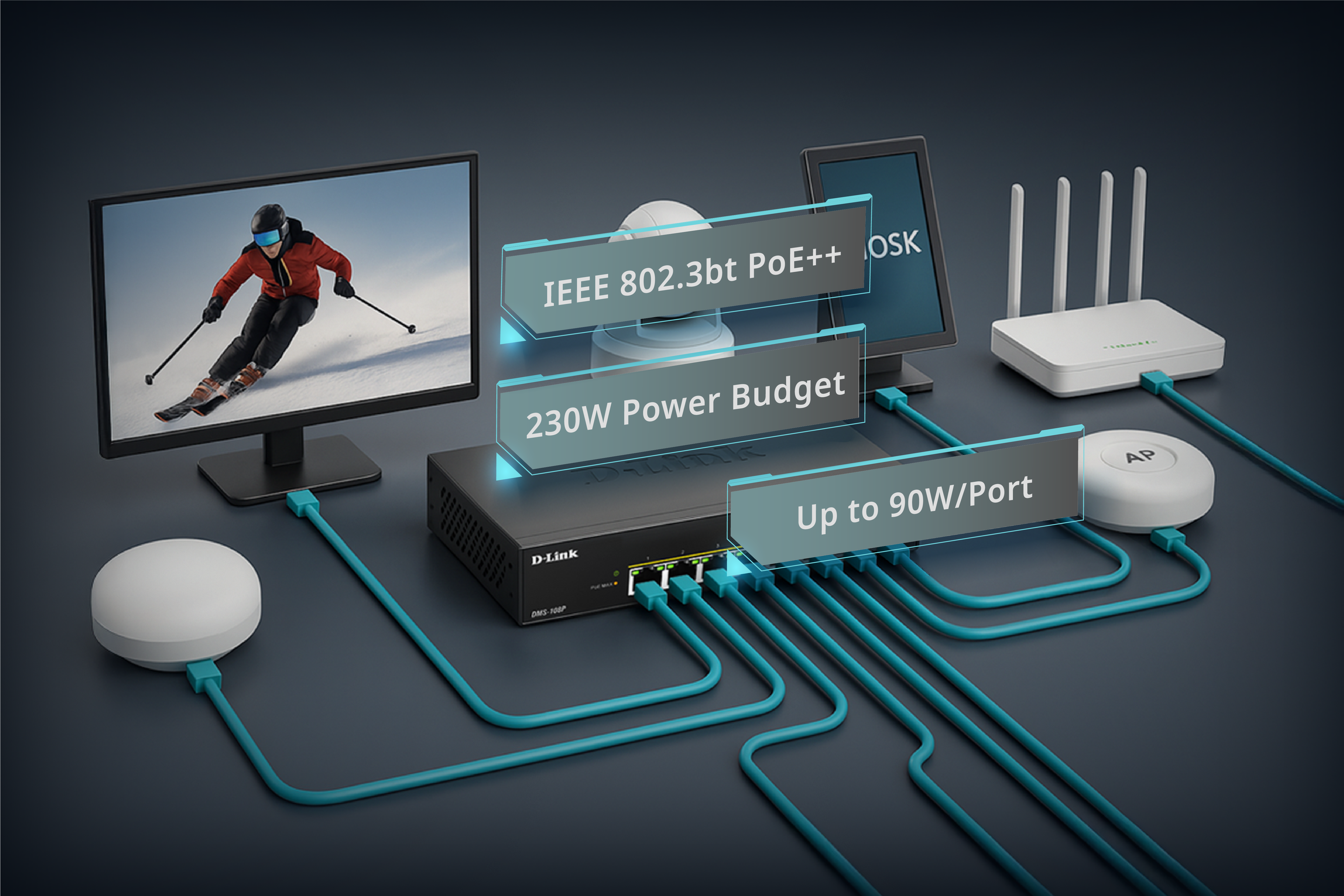

　Small Size, Big Power

The DMS-108P with IEEE 802.3bt (PoE++) delivers up to 90W per port with a 230W total power budget, enabling high-performance devices without additional power supplies. Ideal for Wi-Fi 6 access points, PTZ cameras, kiosks, smart LED lighting systems, and much more. PoE++ simplifies installation, reduces cabling costs, and enhances energy efficiency.



Smarter Multicast, Smoother Performance

The DMS-108P enables IGMP Snooping to enhance network efficiency by intelligently managing multicast traffic, ensuring data reaches only the devices that need it. This reduces bandwidth congestion, improves video streaming and VoIP performance, and optimizes IPTV, surveillance, and enterprise networks.

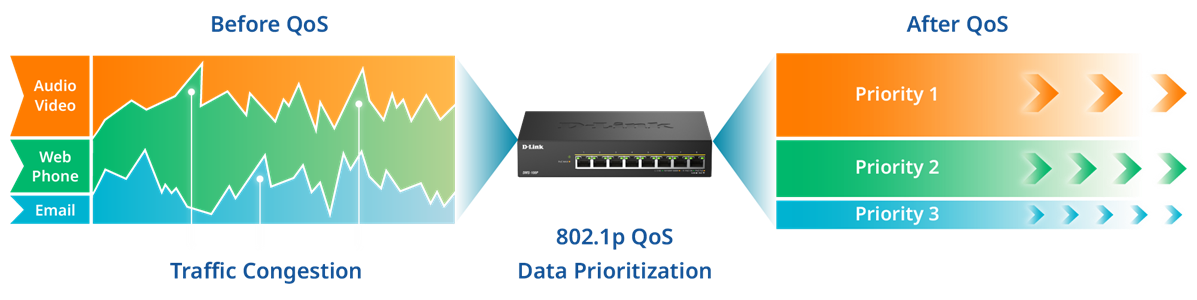

Prioritize Traffic for Optimized Performance

With the DMS-108P, you can effortlessly manage your network traffic with the 802.1p Quality of Service (QoS) feature. The switch automatically organizes and prioritizes time-sensitive and critical data for efficient delivery, enabling buffer-free video streaming as well as jitter-free video and voice calls.

Related Products

5-Port 2.5G Multi-Gigabit Desktop Switch
DMS-105
Find out more
7-Port Multi-Gigabit Unmanaged Switch
DMS-107
Find out more
8-Port 2.5G Multi-Gigabit Desktop Switch
DMS-108
Find out more
Switch Multi-Gigabit sem gestão de 24 portas 2,5G
DMS-1024
Find out more
Switch sem gestão multi-Gigabit 2,5G de 24 portas
DMS-1024
Find out more

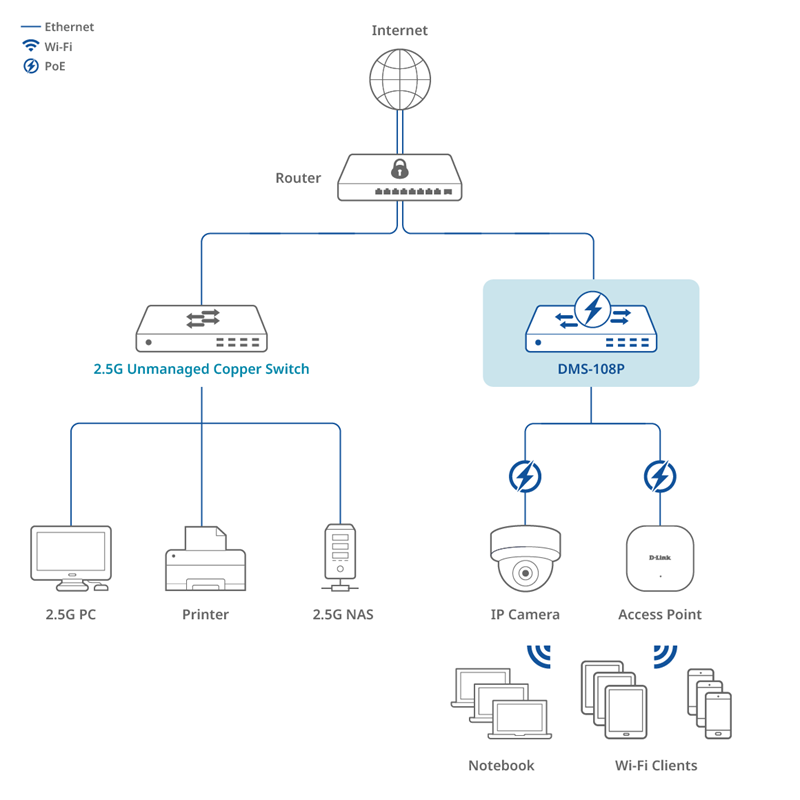

Connection Diagram

The cost-effective DMS-108P not only delivers plug-and-play 2.5G PoE connectivity for edge powered devices, it offers performance optimization to help eliminate bottlenecks for applications such as Wi-Fi 6, HD surveillance, 4K/8K streaming, and much more.

Business Router

Learn More

Access Point

Learn More

Specs

Download the datasheet.

Number of 2.5 GBASE-T ports​
8
Switching Capacity
40 Gbps
PoE Standards
802.3af, 802.3at, 802.3bt
PoE Power Budget
230W
PoE Capable Ports
Port 1-8, up to 90 W
Fanless
Supported
D-Link Green
Supported
802.3az EEE
Supported
Power Supply Type
External
MAC Address
4K
802.1p QoS​
Supported

O desempenho real pode variar devido a configurações, cablagem, temperatura, configuração de rede, interface, compatibilidade de dispositivos, condições ambientais e locais e outros fatores semelhantes. As referências à capacidade de energia, velocidade de sinal ou processamento, alcance ou distância do sinal, encriptação de dados, capacidade de armazenamento, propriedades de exibição ou outras métricas de desempenho são baseadas em condições ideais derivadas de padrões da indústria e fornecidas apenas para fins informativos. As especificações estão sujeitas a alterações sem aviso prévio.

Download the datasheet.

Support

Version Date Type File Size
v1.01 - - - Download
Version Description Date Type File Size
v1.00

Quick Start Guide

 10/09/2025 - - Download
v1.00

Quick Installation Guide

 01/09/2025 - - Download
Version Description Date
v1.00

CE Declaration of Conformity

 01/09/2025 Download
