10/100 to 100BaseFX (SC) Multimode Media Converter
DMC-300SC
- Product Status: Live
Description
The DMC-300SC by D-Link® is a media converter designed to connect 10BASE-T/100BASE-TX copper to 100Base-FX fiber media and vice versa. Based on the IEEE 802.3 and 802.3u standards, the DMC-300SC is designed for use with multimode fiber cable utilising the SC-Type connector. The DMC-300SC supports shortwave (SX) laser specifications at a full wire-speed forwarding rate. Other features of this module include the ability to be used as a standalone device (no chassis required), Auto MDI/MDI-X, Auto negotiation of speeds and duplex modes on twisted-pair port, and front panel status LEDs. The DMC-300SC will transmit at extended fiber optic distances utilising multimode fiber up to 2 kilometers.
The DMC-300SC by D-Link® is a media converter designed to connect 10BASE-T/100BASE-TX copper to 100Base-FX fiber media and vice versa. Based on the IEEE 802.3 and 802.3u standards, the DMC-300SC is designed for use with multimode fiber cable utilising the SC-Type connector. The DMC-300SC supports shortwave (SX) laser specifications at a full wire-speed forwarding rate. Other features of this module include the ability to be used as a standalone device (no chassis required), Auto MDI/MDI-X, Auto negotiation of speeds and duplex modes on twisted-pair port, and front panel status LEDs. The DMC-300SC will transmit at extended fiber optic distances utilising multimode fiber up to 2 kilometers.

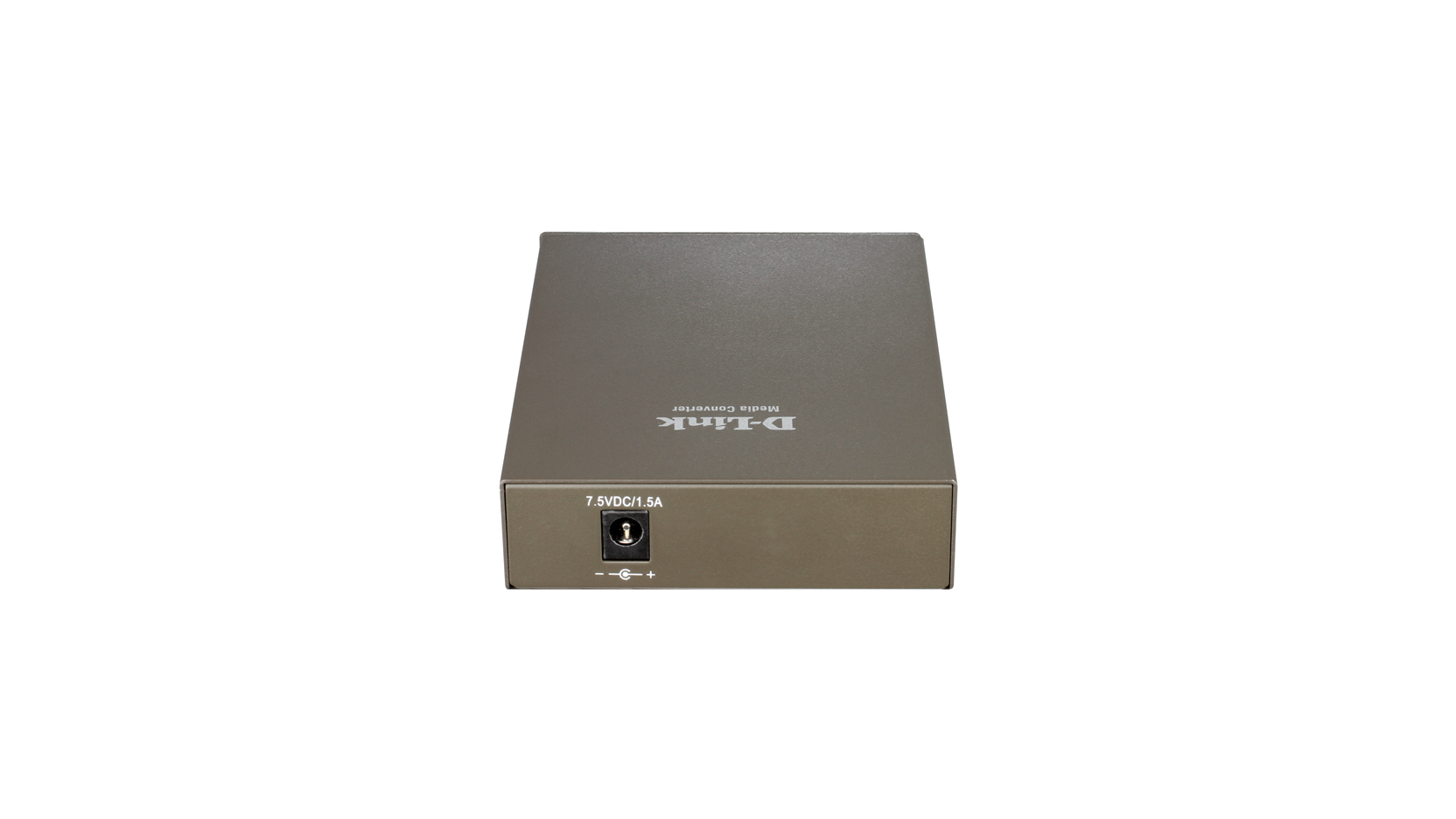

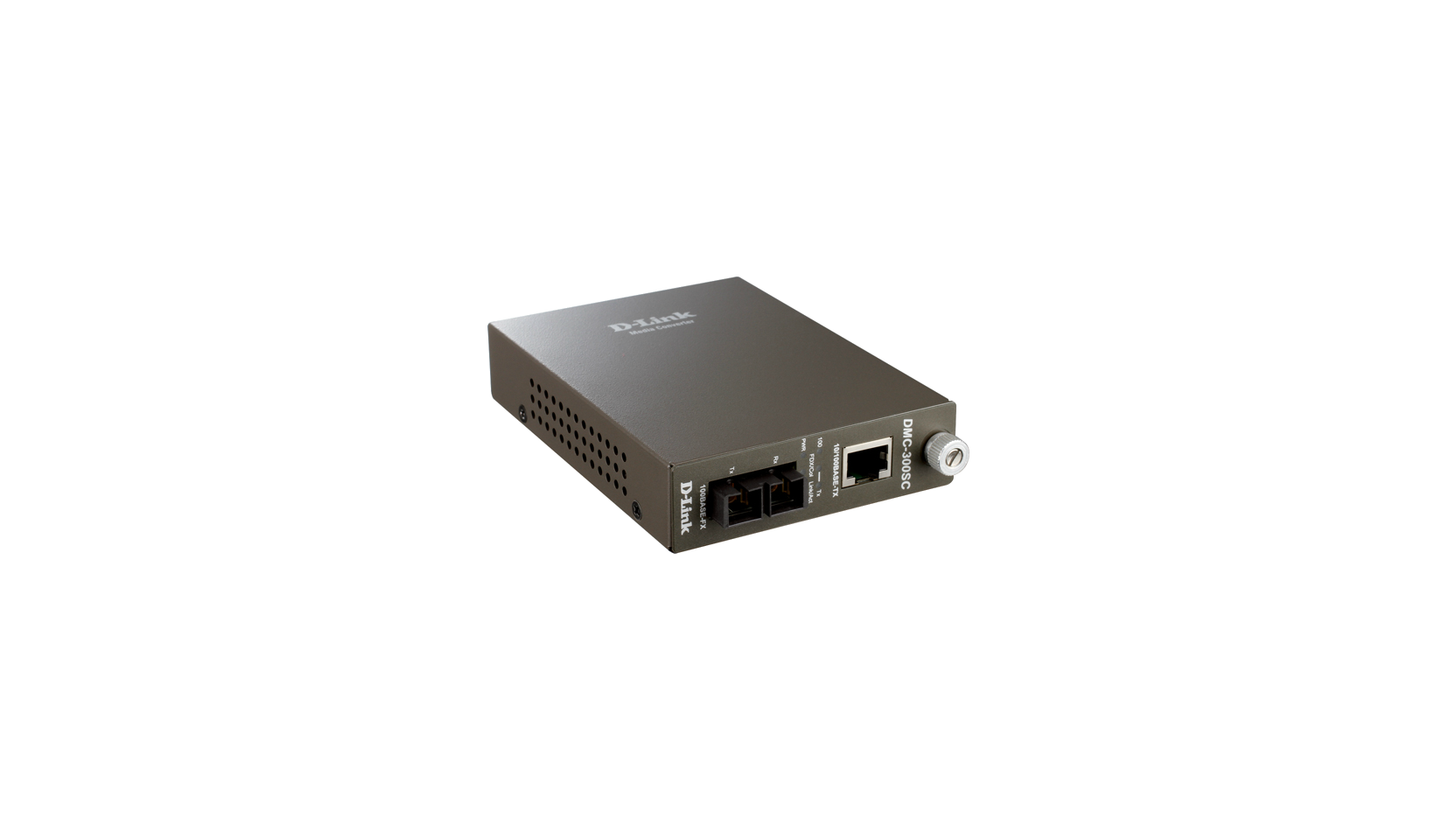

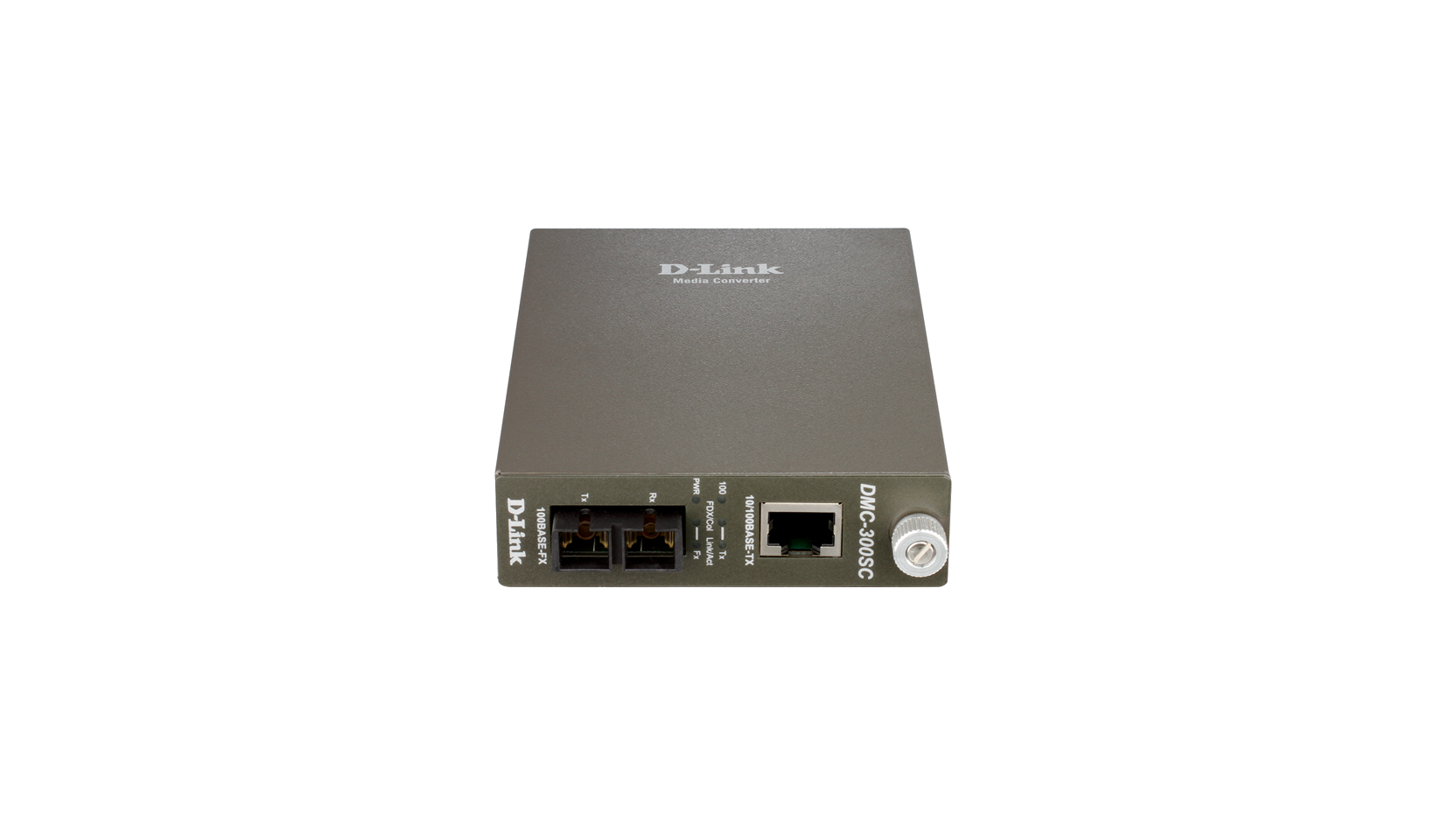

Actual product appearance may differ from the image displayed on this page
Specs
Technical Specifications
LED Indicators
Dimensions
Power Input
Operation Temperature
Storage Temperature
Humidity
Emission (EMI)
LED Indicators
- Power
- 100Mbps Speed (for twisted-pair port)
- Full Duplex/Collision (for twisted-pair and fiber ports)
- LINK/ACT (for twisted-pair port)
Dimensions
- 120 x 88 x 25 mm
Power Input
- 7.5V 1.5A
- Through external AC power adapter
Operation Temperature
- 0° - 40° C
Storage Temperature
- -25° - 70° C
Humidity
- 10 ~ 90% non-condensing
Emission (EMI)
- VCCI Class B
- CE Class B
- C-Tick
FAQ
- I lost the power supply for my media converter. How can I get a new one? Read Answer
- What type of cable should I use on the copper port? Read Answer
- Can I install this media converter by itself or do I need a chassis? Read Answer
- What does the HDX/FDX switch control on this media converter module? Read Answer
