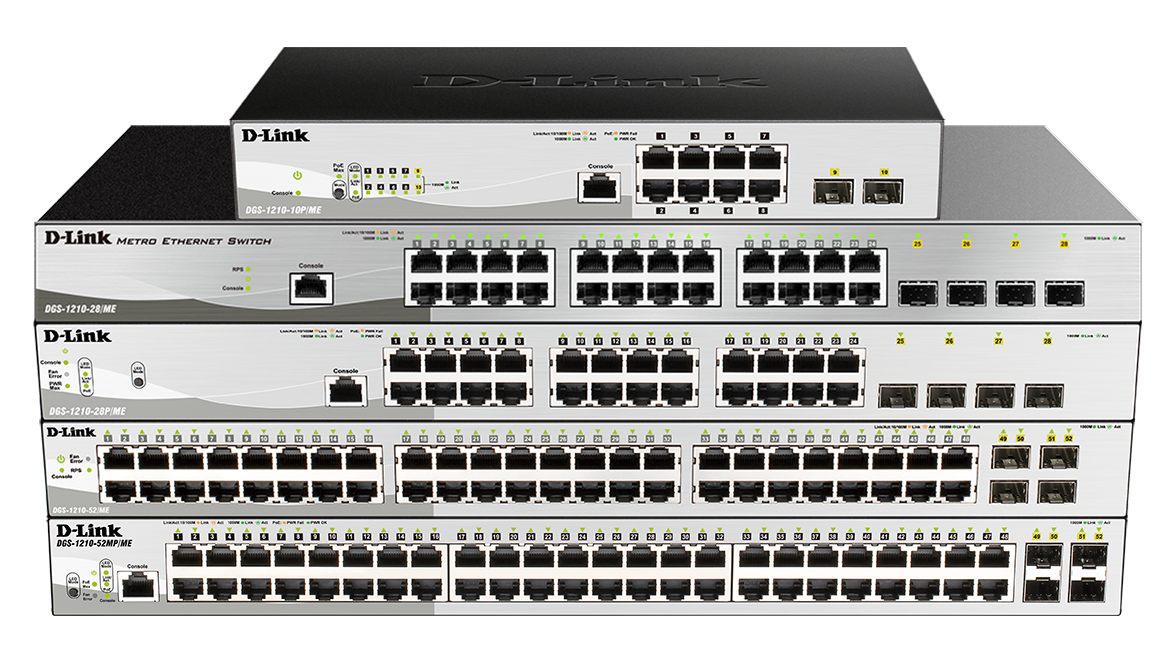

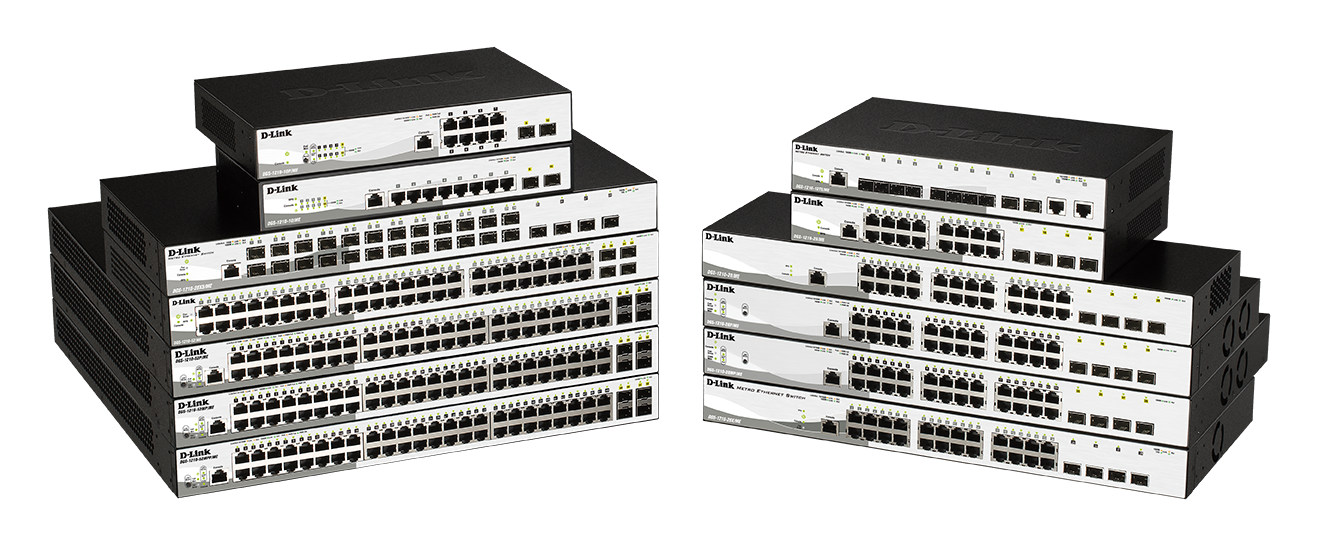

Gigabit Managed Switches
DGS-1210/ME Series
- Stato del prodotto (Hardware version: B): Live
- Wide range of port configurations
- Advanced layer 2 features with static route and IP interface support
- PoE options up to 370W power budget
- Easy management with web UI
- Available in PoE and non-PoE variations
Elenco negozi
Gigabit Managed Switches
The DGS-1210/ME Series Gigabit Managed Switches provide a diverse range of Gigabit port densities to accommodate various enterprise and public sector connectivity needs. With optional PoE to conveniently power edge devices, SFP ports to extend network connectivity, and advanced Layer 2 functionalities, the DGS-1210/ME Series is ideal for any enterprise access layer or large multi-site deployment and allows businesses to build a more secure and efficient network with advanced network security features and QoS.
![](/it/it/-/media/product-pages/dgs/1210/me/v2/dgs1210me_1_overview.jpg?h=669&w=2000&la=it-IT&hash=D9D863895AC80EB1E131AA53E31CF3F6)
![](/it/it/-/media/product-pages/dgs/2000/assets/dgs2000_02_flexible.png)
Design flessibile dell'hardware
Ampia gamma di porte e supporti, incluse le porte RJ-45 10/100/1000BASE-T, le porte combinate 100/1000 Mbps GbE/SFP e le porte SFP 100/1000 Mbps.
![](/it/it/-/media/product-pages/dgs/2000/assets/dgs2000_02_poe.png)
Elevata capacità di commutazione e budget PoE
Capacità di switching fino a 104 Gbps con un budget PoE massimo fino a 370 W
![](/it/it/-/media/product-pages/dgs/2000/assets/dgs2000_02_layer2.png)
Layer 2 con le caratteristiche del Layer 3 Lite
Dotato di una gamma completa di funzionalità L2, supporta interfacce IP, ARP, IPv6 Neighbor Discovery (ND) e routing predefinito
![](/it/it/-/media/product-pages/dgs/2000/assets/dgs2000_02_security.png)
Sicurezza di rete
L'innovativo Safeguard Engine™ protegge gli switch dalle inondazioni di traffico provocate da attacchi dannosi.
![](/it/it/-/media/product-pages/dgs/2000/assets/dgs2000_02_management.png)
Gestione semplificata
Supporta D-Link Network Assistant, utilità UI web e interfaccia riga di comando (CLI) tramite Telnet o SSH per facilità d'uso
![](/it/it/-/media/product-pages/dap/3315/assets/dap3315_08_icon_warranty.png)
Garanzia limitata a vita e Next Day Service
Registrati per usufruire dell’assistenza con garanzia limitata a vita D-Link, con incluso il servizio di sostituzione gratuito entro un giorno lavorativo.
Maggiori informazioni

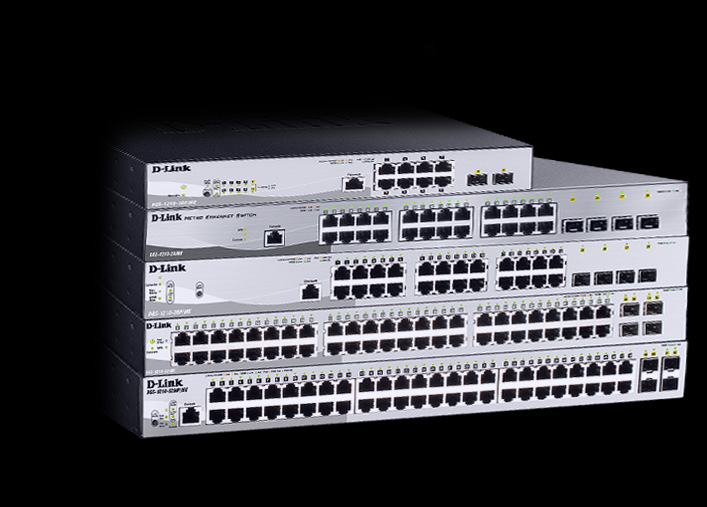

Gigabit Performance

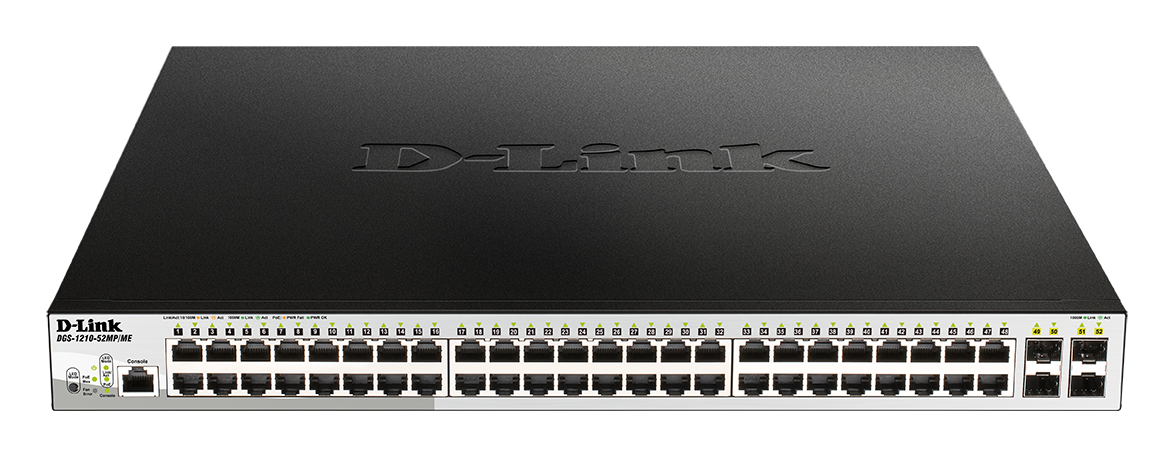

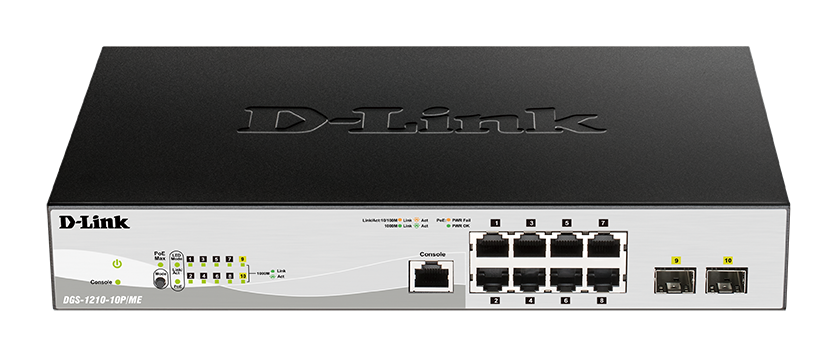

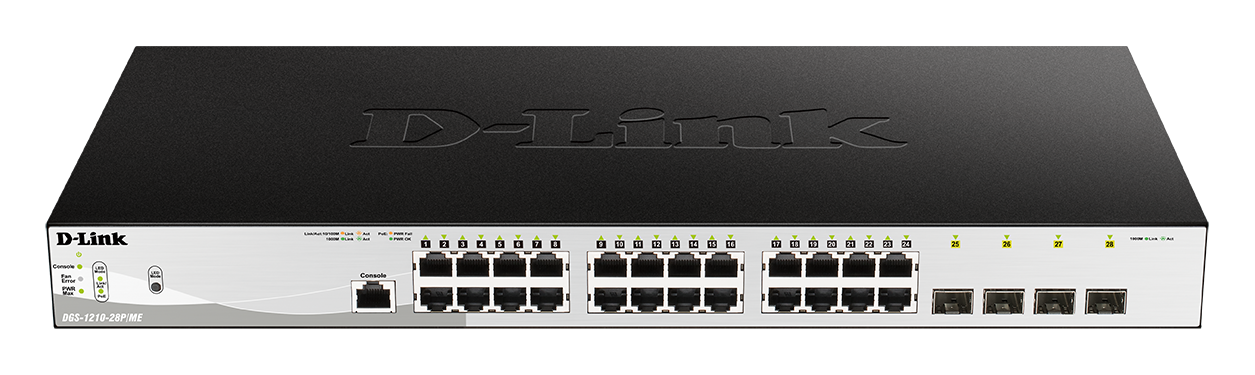

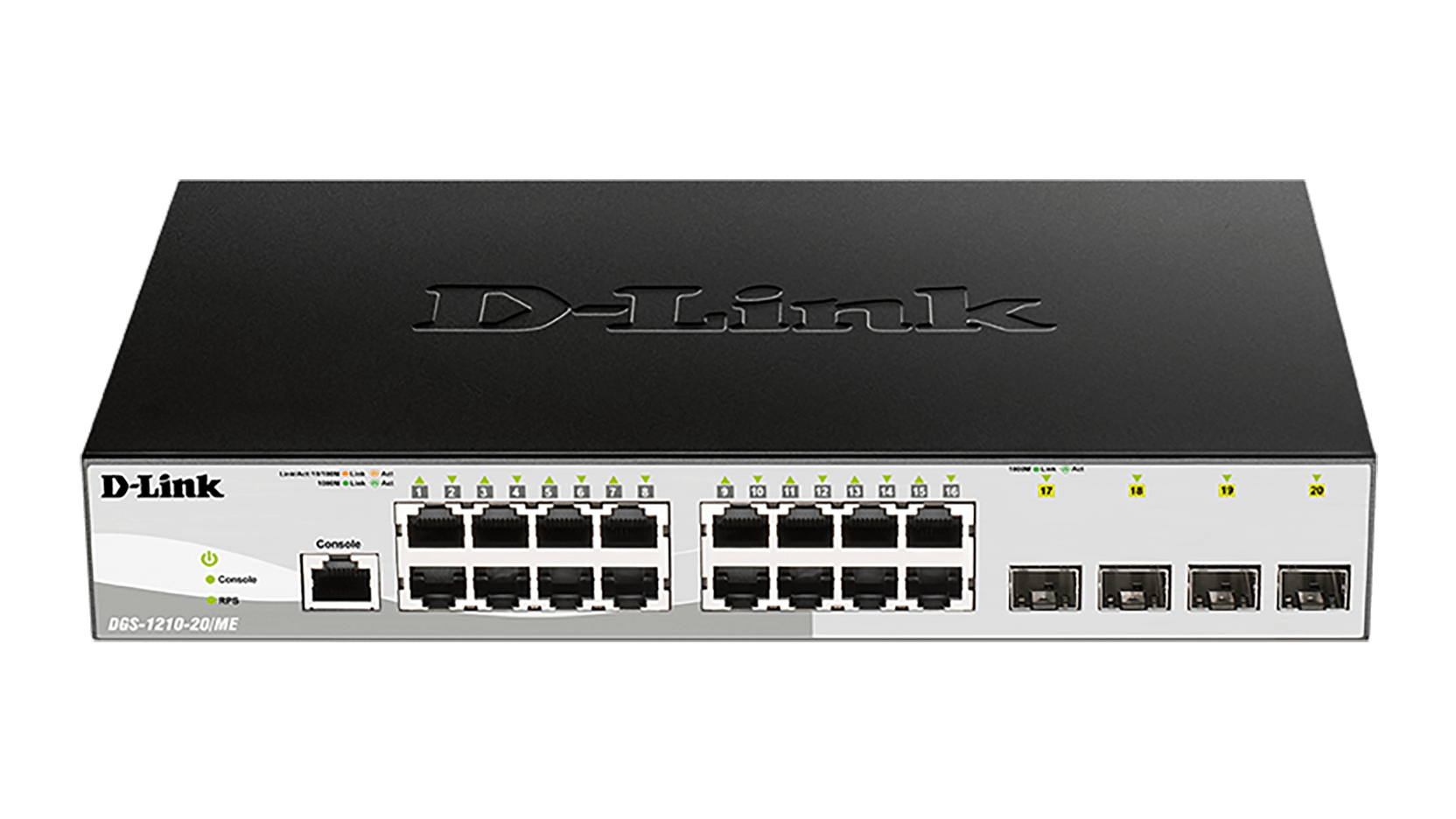

The DGS-1210/ME Series Gigabit Managed Switches come in a variety of port setups, including Gigabit Ethernet RJ-45 and SFP ports. The DGS-1210-10P/ME, DGS-1210-28P/ME and DGS-1210-52MP/ME switches feature Power over Ethernet (PoE), allowing compatible devices to be installed and powered in remote locations without immediate access to power outlets.
![](/it/it/-/media/product-pages/dgs/1210/me/v2/dgs1210megjgabit.jpg?h=507&w=707&la=it-IT&hash=C036B31D2D462E0B73451E603B8A9FC2)

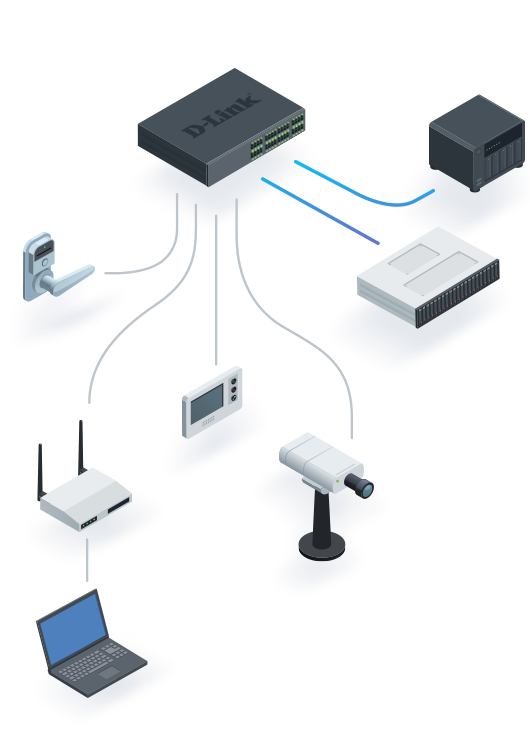

Efficient and Resilient Networking
For mission critical environments, the DGS-1210/ME Series Gigabit Managed Switches support IEEE 802.1D 2004 edition, 802.1w, and 802.1s Spanning Tree Protocols (STP). The Spanning Tree Protocol allows the switches to participate in Spanning Tree topology, providing an alternative Layer 2 path in the event of a network failover. The switches also support IEEE 802.3ad link aggregation, which enables multiple ports to be grouped to form a single virtual port, increasing bandwidth and redundancy for higher availability. This series furthermore features IEEE 802.1p Quality of Service (QoS), allowing for real-time traffic classification into Weighted Round Robin (WRR) and strict priority levels mapped to 8 queues. Advanced traffic classification parameters allow the network to be tuned for flexible configurations for specific multimedia applications such as VoIP or IPTV.
![](/it/it/-/media/product-pages/dgs/2000/assets/dgs2000_04_networking.png?h=730&w=530&la=it-IT&hash=5338EFC83FED07A1E1A5FA9C02BABE60)
Multicast Applications
The DGS-1210/ME Series features a full set of L2 multicast functions, including IGMP snooping, IGMP filtering, fast leave, and multicast traffic configuration for specific ports. With L2 multicast support, the DGS-1210/ME Series is ready and capable of handling growing IPTV applications. Host-based IGMP/MLD snooping allows for multiple multicast subscribers per physical interface, and ISM VLAN sends multicast streams in a multicast VLAN, saving bandwidth on the backbone. Additionally, ISM VLAN profiles allow users to bind or replace the predefined multicast registration information to subscriber ports quickly and easily.
![](/it/it/-/media/product-pages/dgs/1210/me/v2/dgs1210me_2_engineer.jpg?h=668&w=582&la=it-IT&hash=6F247D2707E16C5214CCB61C5F404006)
Traffic & Bandwidth Control
Integrated bandwidth control allows network administrators to define the throughput levels for ingress and egress bandwidth. It provides a minimum granularity of 64 Kbps for ingress port and flow-based bandwidth control, and a minimum granularity of 64 Kbps for egress queue bandwidth. The DGS-1210/ME Series also supports traffic control, which optimizes performance by dropping packets when exceeding a set threshold, while port mirroring helps administrators facilitate traffic diagnostics and track network performance. The DGS-1210/ME Series also provides IGMP snooping with IGMP authentication to prune multicast traffic and to optimize available bandwidth.
![](/it/it/-/media/product-pages/dgs/2000/assets/dgs2000_05_networkoptimisation.jpg?h=739&w=1400&la=it-IT&hash=28E5B559D4E4E1CE6C45400B23124C7D)
Management Capabilities
A user-friendly web interface gives administrators access to advanced management features such as DHCP auto-configuration. This enables switches to load their configuration from a TFTP server once they have been assigned an IP address, allowing central management of device configurations. The switches support Link Layer Discovery Protocol (LLDP), which advertises the device’s capabilities and identity to the local network, allowing administrators to better manage their network topology. Each port also supports cable diagnostics, which can be used to troubleshoot cable length and functionality problems remotely, resulting in lower management overheads.
![](/it/it/-/media/product-pages/dgs/1210/me/v2/dgs1210me_6_management.png?h=600&w=587&la=it-IT&hash=73FB02BF7B74D8FC1561DC9E996C5F6B)
Security & Authentication
The DGS-1210/ME Series supports IEEE 802.1X port-based/host-based access control, guest VLAN, and RADIUS/TACACS+ authentication for strict access control to the network. The IP-MAC-Port Binding (IMPB) feature allows administrators to associate a source IP address with a designated MAC address and also offers the flexibility to define the port number to enhance user access control. The built-in D-Link Safeguard Engine™ protects the CPU from broadcast, multicast, and unicast flooding by automatically trapping packets and logging events in these situations. In addition, the Access Control List (ACL) feature enhances network security and switch performance.
![](/it/it/-/media/product-pages/dgs/2000/assets/dgs2000_09_security.png?h=630&w=415&la=it-IT&hash=789D613A47CF6532EE9626C6B56CA5E5)
![](/it/it/-/media/product-pages/dgs/1210/me/v2/dgs1210me_9_dgs1210me.png?h=304&w=1600&la=it-IT&hash=1F0926B767309E42D171859DEB492A44)
Servizio gratuito Next Business Day.
Beneficia del nuovo servizio standard gratuito Next Business Day, per sostituire rapidamente i dispositivi difettosi.
Il nostro rapido supporto tecnico è pensato per garantire alle aziende il miglior servizio per le loro necessità. La nostra garanzia estesa e i diversi pacchetti di servizi disponibili consentono di incrementare la durata delle garanzie e ridurre ulteriormente i tempi di attesa. Inoltre, è disponibile il servizio Same Business Day, che garantisce la consegna del prodotto sostitutivo entro 4 ore dalla conferma del guasto del prodotto stesso.
![](/it/it/-/media/product-pages/dwl/6620aps/assets/dwl6620aps_14_assistlogo.png?h=92&w=224&la=it-IT&hash=75F42DAB0ED0EDA00553E7B5CEFBD6AE)
A disposizione per aiutare
![](/it/it/-/media/product-pages/common/callouts/icon_35years.png?h=113&w=142&la=it-IT&hash=049CE1B60575726DE8B5B317B39C8088)
Da oltre 35 anni nel settore delle reti
Esperti in soluzioni innovative end-to-end per piccole imprese ma anche grandi società in tutto il mondo.
![](/it/it/-/media/product-pages/common/callouts/icon_support.png?h=113&w=86&la=it-IT&hash=9B3A2A9C31EA5472A364DE8DE4731968)
Parlare con noi è facile
Assistenza tecnica locale a cura di esperti in 16 paesi. I nostri team addetti all'assistenza sono pronti per aiutarti.
![](/it/it/-/media/product-pages/common/callouts/icon_limitedlifetime_warranty.png?h=113&w=108&la=it-IT&hash=C45DC65C120E685C157E3AC509253E9C)
Garanzia limitata a vita D-Link
La qualità e l'affidabilità dei prodotti D-Link ci consente di fornire una garanzia limitata a vita leader del settore della durata di 5 anni con ogni registrazione.
Prodotti correlati
![](/it/it/-/media/product-pages/dem/310gt/dem-310gt-left.png?h=100&w=178&la=it-IT&hash=21F14C933A050570B2C44FE423D90EA6)
![](/it/it/-/media/product-pages/dem/311gt/dem311gtg1image-lside.png?h=100&w=178&la=it-IT&hash=5012CF574BBA9385887DF797A5ED3451)
![](/it/it/-/media/product-pages/dps/500a/dps500aa1image-lfront.png?h=100&w=178&la=it-IT&hash=E13D9587C7AB8686AFB15D1B9ED5A5FB)
![](/it/it/-/media/product-pages/dgs/1100/v2/dgs110005v205pdv208v208pv216v224v224pv2a1image-lfront.png?h=100&w=111&la=it-IT&hash=9E19B1B68F94205216F93F61C177DE19)
![](/it/it/-/media/product-pages/dgs/1210/g1/dgs121008p162424p48g1image-lfront.png?h=100&w=175&la=it-IT&hash=73C417D7F938FA6B114CCA245B26D33B)
Specifiche tecniche
Number of ports
|
16 to 30 ports 48 to 54 ports 5 to 14 ports |
---|---|
Layer
|
Layer 2+ |
Main type of ports
|
1000BASE-T Gigabit Ethernet |
Type of uplink ports
|
SFP |
Switching capacity
|
104 Gbps 20 Gbps |
PoE options
|
802.3af 802.3at |
Number of PoE ports
|
24 48 |
PoE power budget
|
See datasheet See datasheet See datasheet |
D-Link Green
|
Supported
|
802.3az Energy-Efficient Ethernet support
|
Supported
|
Form Factor
|
Rackmountable |
Housing
|
Metal |
Jumbo frame
|
Supported
|
Cable diagnostics
|
Supported
|
MAC address
|
16K |
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
Link aggregation
|
802.3ad |
VLAN group (max static)
|
4K |
VLAN type
|
GVRP MAC-based Port-based Protocol-based |
Advanced VLAN
|
Asymmetric VLAN Double VLAN (Q-in-Q) ISM VLAN |
IPv6 Ready
|
Supported
|
Number of QoS queues per port
|
8 |
CoS based on contents
|
Supported
|
Bandwidth control
|
64 Kbps minimum granularity |
ACL type
|
Ingress |
ACL based on packet contents
|
Supported
|
Time-based ACL
|
Supported
|
Encryption protocol supported
|
SSH SSL (v1/v2/v3) |
IP-MAC-port binding (IMPB) / Smart Binding
|
Supported
|
ARP spoofing
|
Supported
|
BPDU attack protection
|
Supported
|
802.1X access control
|
Supported
|
Microsoft NAP support
|
Supported
|
RADIUS/TACACS+ authentication
|
Supported
|
SNMP (v1/v2c/v3)
|
Supported
|
RMON v1/v2
|
Supported
|
LLDP
|
Supported
|
ICMPv6
|
Supported
|
