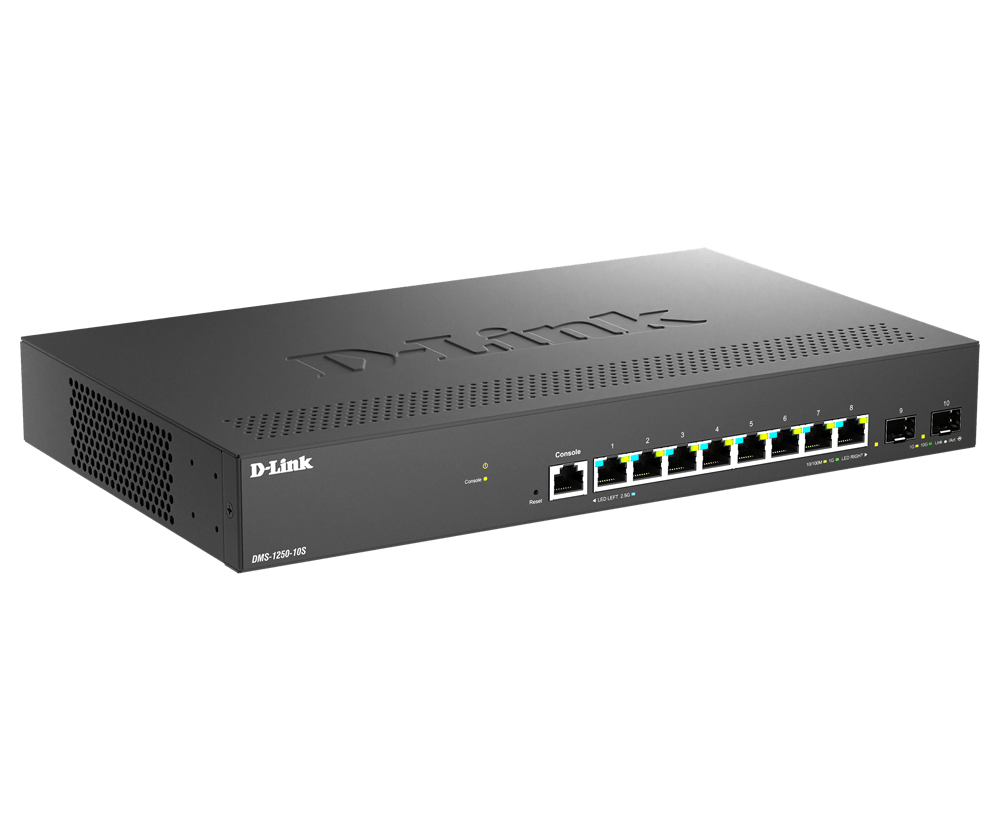

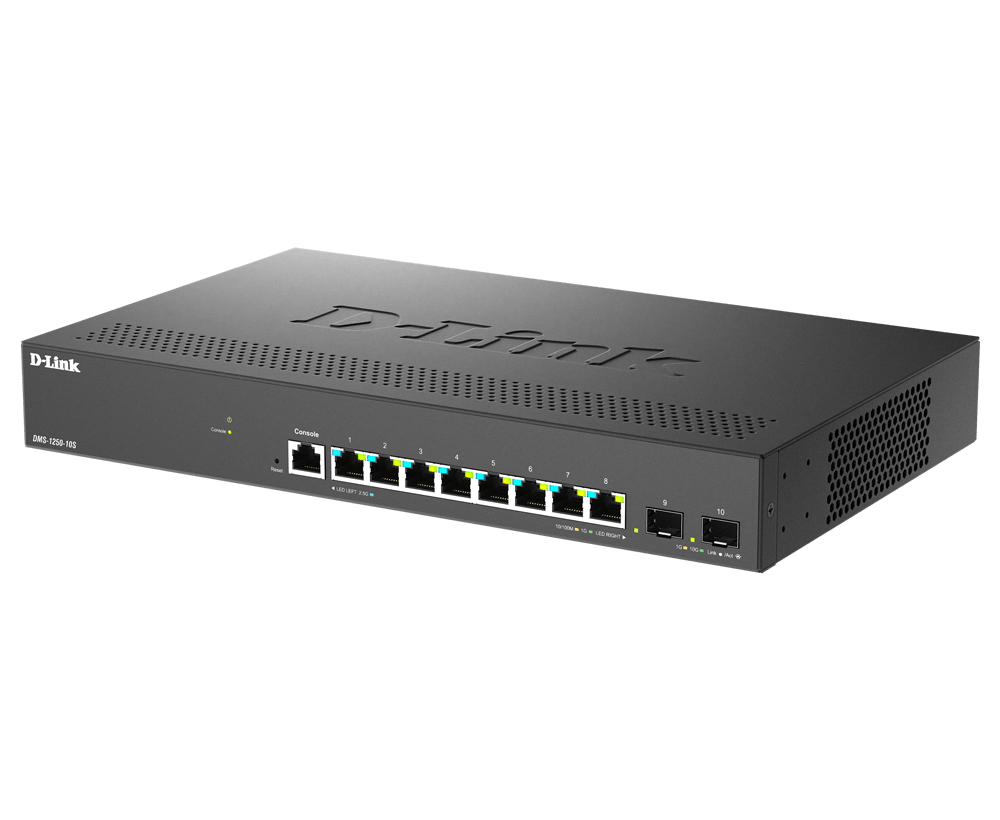

10-Port 2.5G Smart Managed Fiber Switch
DMS-1250-10S
- Estado del producto (A1 v1.06): Activo
- 8 Ports 2.5GE for downlink
- 2 Ports 10G SFP+ for uplink
- 6kV surge protection on all 2.5G ethernet ports
- Support LACP 802.3ad Link Aggregation
- Support Static Routing
- Support Loopback Detection
- Support Spanning Tree Protocol(STP/RSTP/MSTP)
- AAA support for RADIUS/TACACS+
- Support D-Link Safeguard Engine
- Manage through the Nuclias Network Controller
Lista de puntos de venta
User Benefits
Conectividad flexible
Soporta una amplia gama de interfaces físicas para conexiones de red amplias.
Control de acceso
La interfaz web fácil de usar permite un control de red eficiente y personalizado
Seguridad mejorada
Soporta funciones versátiles para aumentar la seguridad de la red
Solución rentable
Ofrece funciones avanzadas y alimentación de red a un precio asequible.
2.5G Speeds: Built for Wi-Fi 6 and Beyond
6 kV Surge Protection for All Ethernet Ports
The DMS-1250 Series switches offer enhanced 6kV surge protection on all 2.5-Gigabit Ethernet access ports, ensuring that your network remains resilient and that your devices stay safe from electrical surges.
Support L2+ Features
The DMS-1250 Series switches offer a comprehensive set of Layer 2+ capabilities, including:
- GVRP
- ISM VLAN
- VLAN Translation
- Double VLAN (Q-in-Q)
- Spanning Tree Protocol (STP/MSTP/RSTP)
- Link Aggregation Control Protocol (LACP)
- IGMP and MLD Snooping
Nuclias Network Controller
Otros usuarios también vieron
Startup Office (Enterprise)
User benefits :
- Simplify network deployment and management
- Enhances performance for Wi-Fi AP backhaul
- Enables future-proof network upgrades
- Compact and fanless design for quiet operation
Learn more :
- Business Router : DBR-700
- Standard Smart Switch : DMS-1250 Series
- Smart Access Point : DBR-X3000-AP

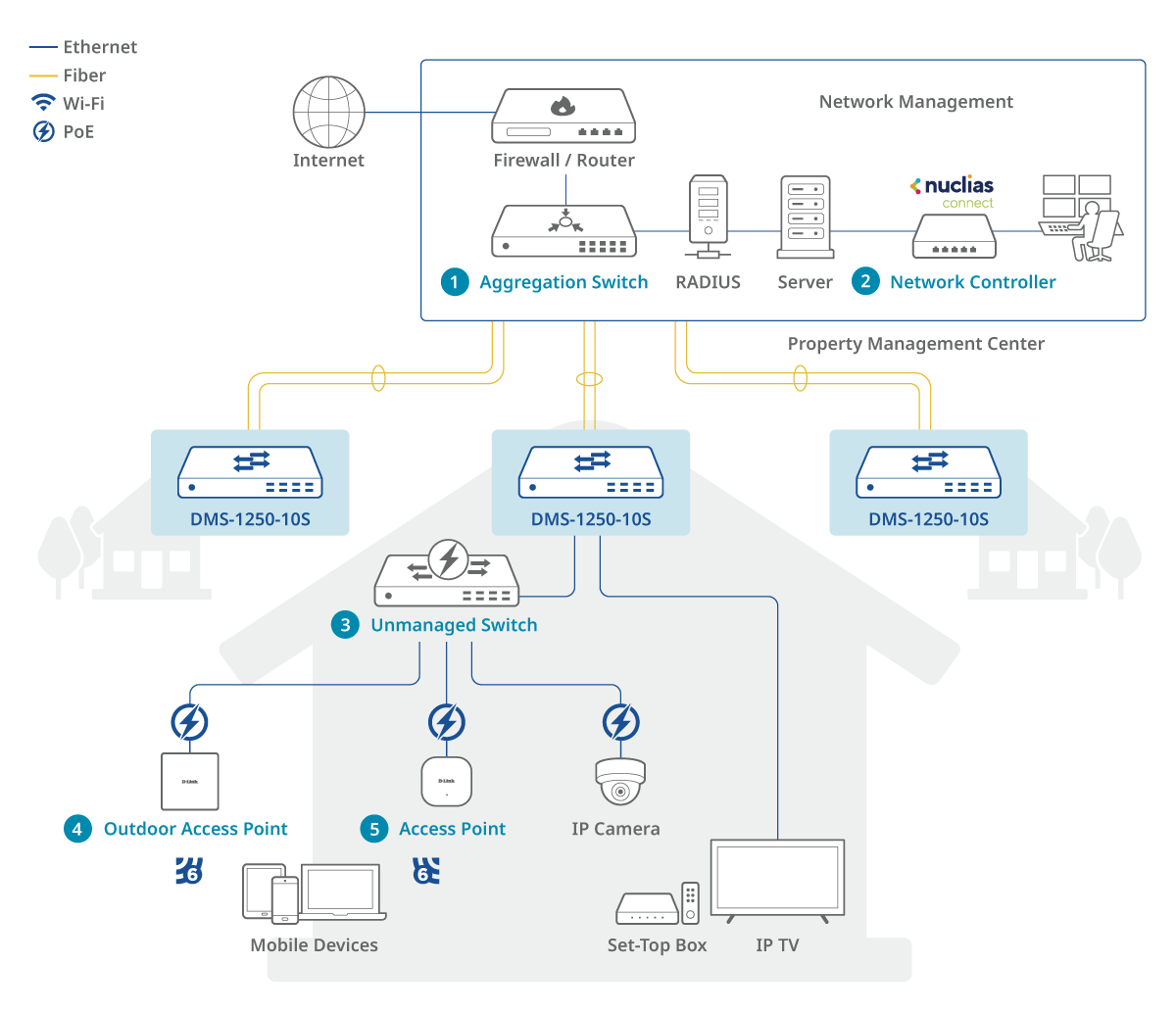

Dormitory (Building)
- Smooth 4K streaming and online gaming
- Handles high device density with ease
- Prevents network disruption with loopback detection
- Simplify network management with intuitive tools
Learn more :
- Aggregation Swtich : DXS-3130-32S ( Coming Soon )
- Network Controller : DNH-1000
- Unmanaged Switch : DMS-108P
Outdoor Access Point : DAP-X3060OU
Access Point : DAP-X3060
Transnational University (Education)
- Secure network access with 802.1X authentication
- Enhances network stability with STP and secure access via AAA
- Simplify network expansion with 10G uplinks
- Centralized management for efficient control
Learn more :
- Network Controller : DNH-3000
- Core Switch : DXS-3610-54S
- Aggregation Switch : DXS-3130-32S ( Coming Soon )
Standard Smart Switch : DMS-1250 Series
Outdoor Access Point : DAP-X3060OU
Access Point : DAP-X3060
Specs
|
Interfaces
|
8 x 2.5GE 2 x 10G SFP+ |
|---|---|
|
Switch Capacity
|
80 Gbps |
|
Max. Packet Forwarding Rate
|
59.53 Mpps |
|
Max Power Consumption
|
13.58W |
|
Dimensions
|
330 x 200 x 44 mm |
|
Weight
|
1.877 kg (4.14 lbs) |
|
Surge Protection
|
IEEE61000-4-5 surge protection compliance 6kV surge protection on all 2.5-Gigabit Ethernet ports |
|
FAN
|
Fanless |
|
Operating Temperature
|
-5 to 50°C (23 to 122°F) |
|
Storage Temperature
|
-20˚C to 70˚C (-4˚F to 158˚F) |
|
Operating Humidity
|
0% to 95% relative humidity |
|
Storage Humidity
|
0% to 95% relative humidity |
|
Console Port
|
Supported
|
|
Power Supply Type
|
Internal |
