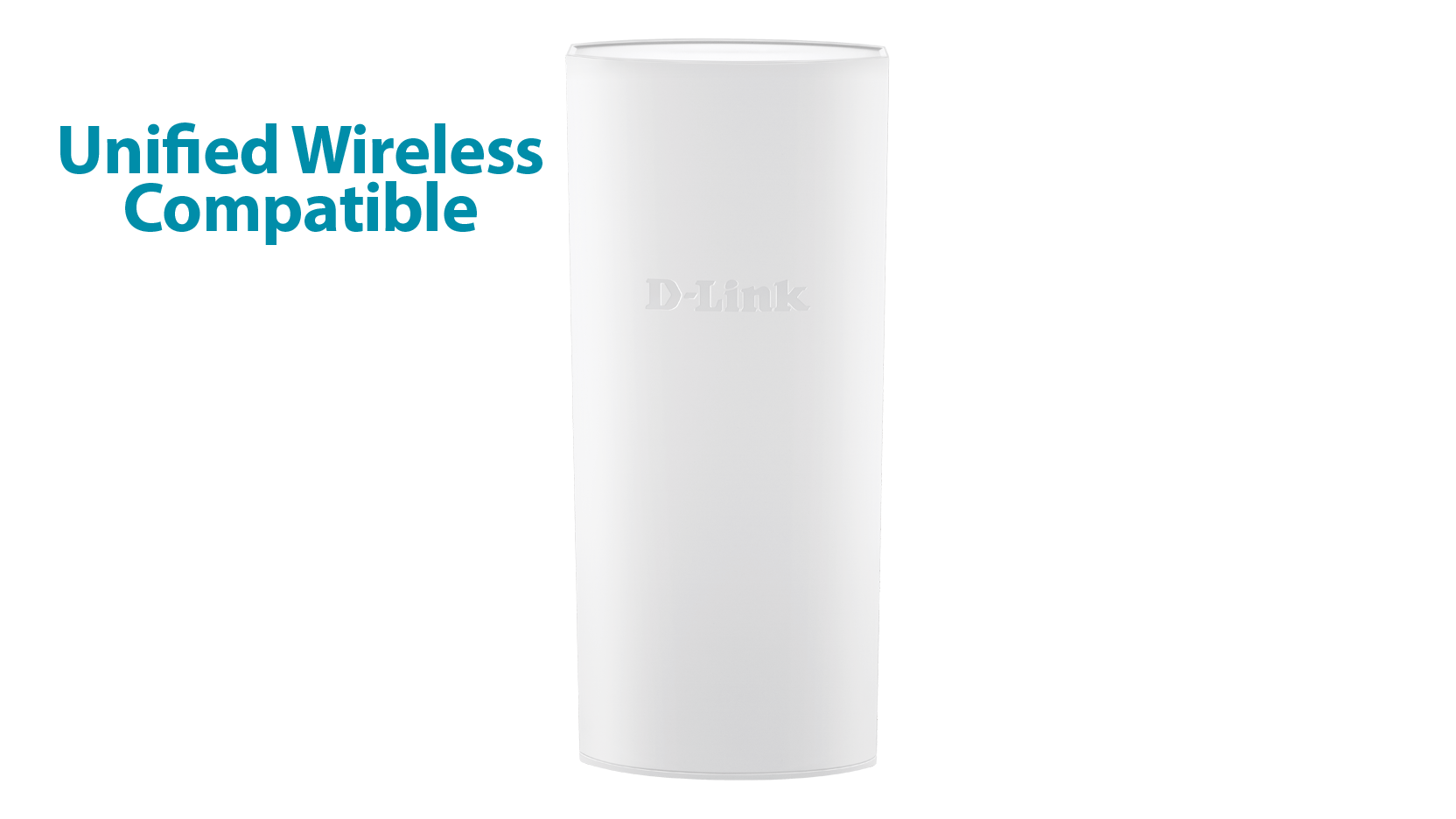

Wireless Dual-Band Outdoor Unified Access Point
DWL-6700AP
- Product Status (Revision A): End of Sale
This Wireless Dual-Band Outdoor Unified Access Point is an access point specially designed for medium distance wireless network bridging services, providing WDS/backhauling networking applications on its 5 GHz band. Featuring the 5 Ghz 8 dBi MIMO directional patch antenna, providing up to 1.5km wireless bridging distance. With WDS support, network administrators can set up multiple DWL-6700APs throughout a facility and configure them to bridge with one another using the 5 GHz band while also providing network access to individual clients on the 2.4GHz band.
Convenient Design

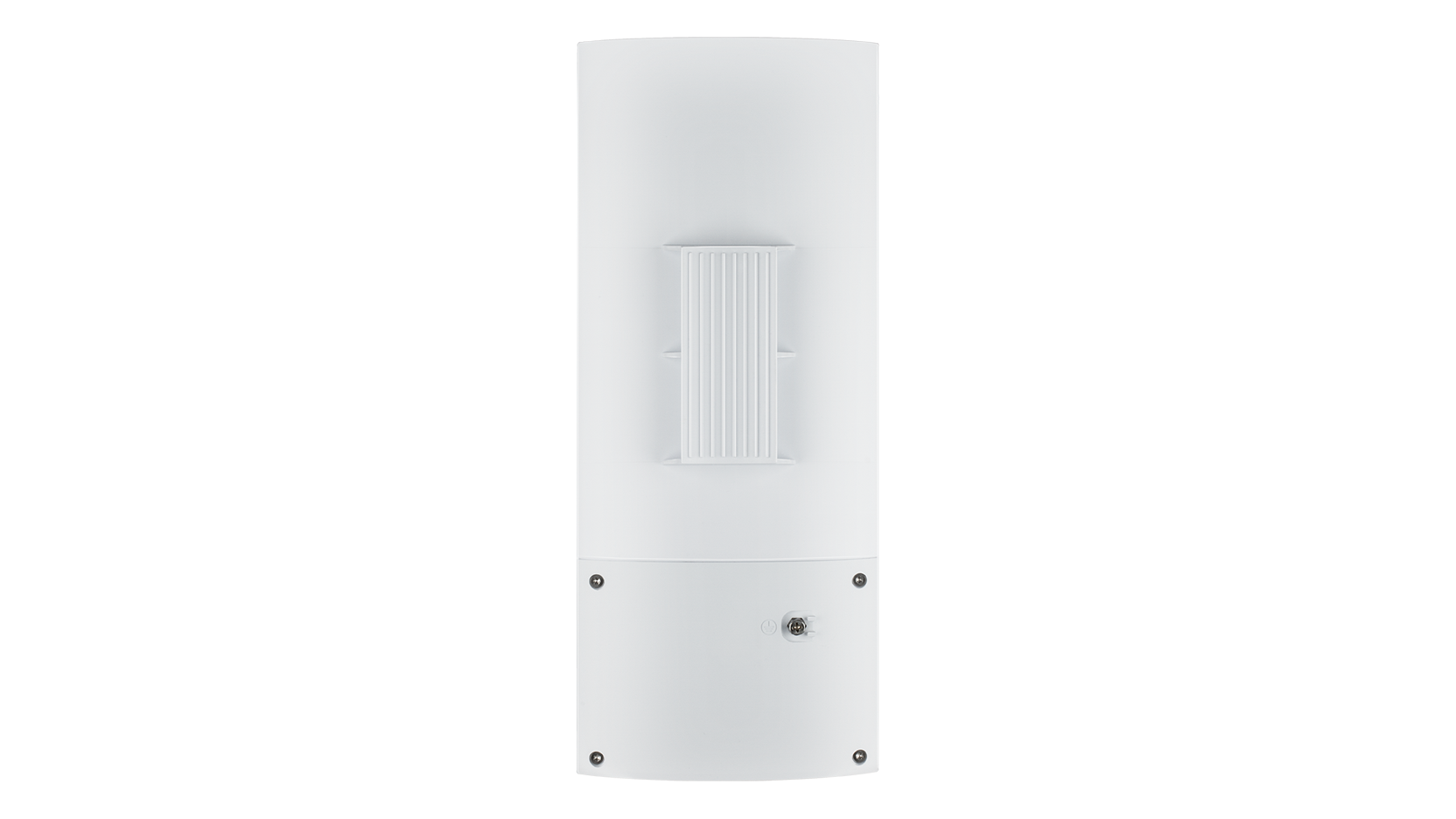

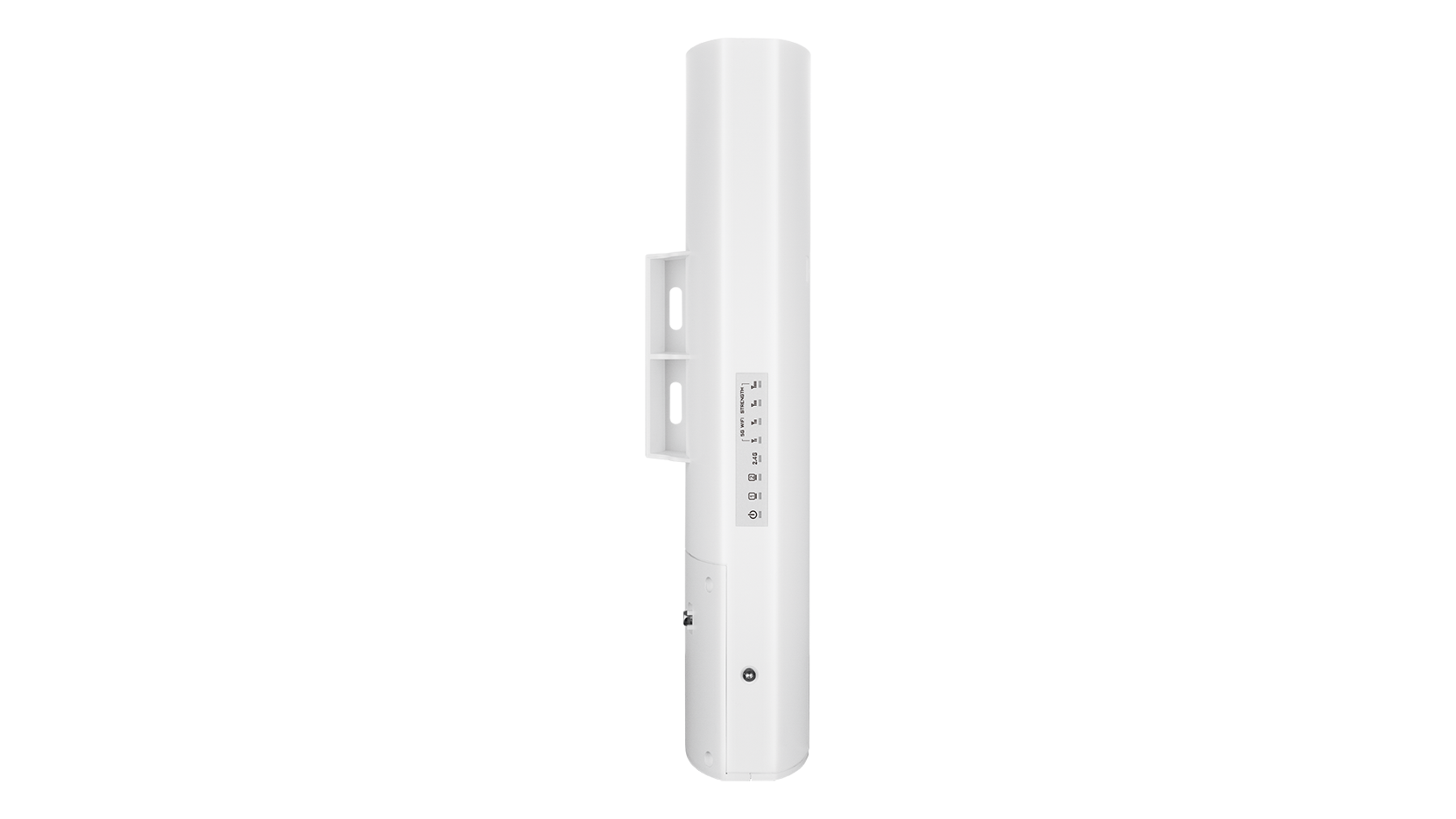

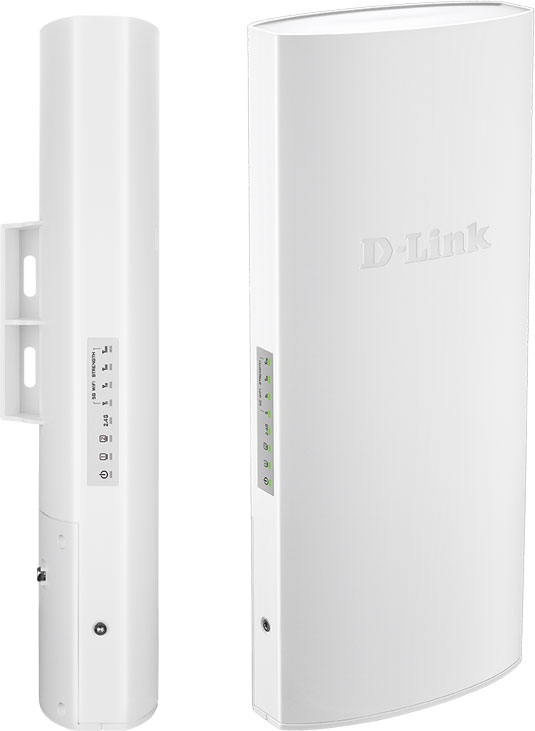

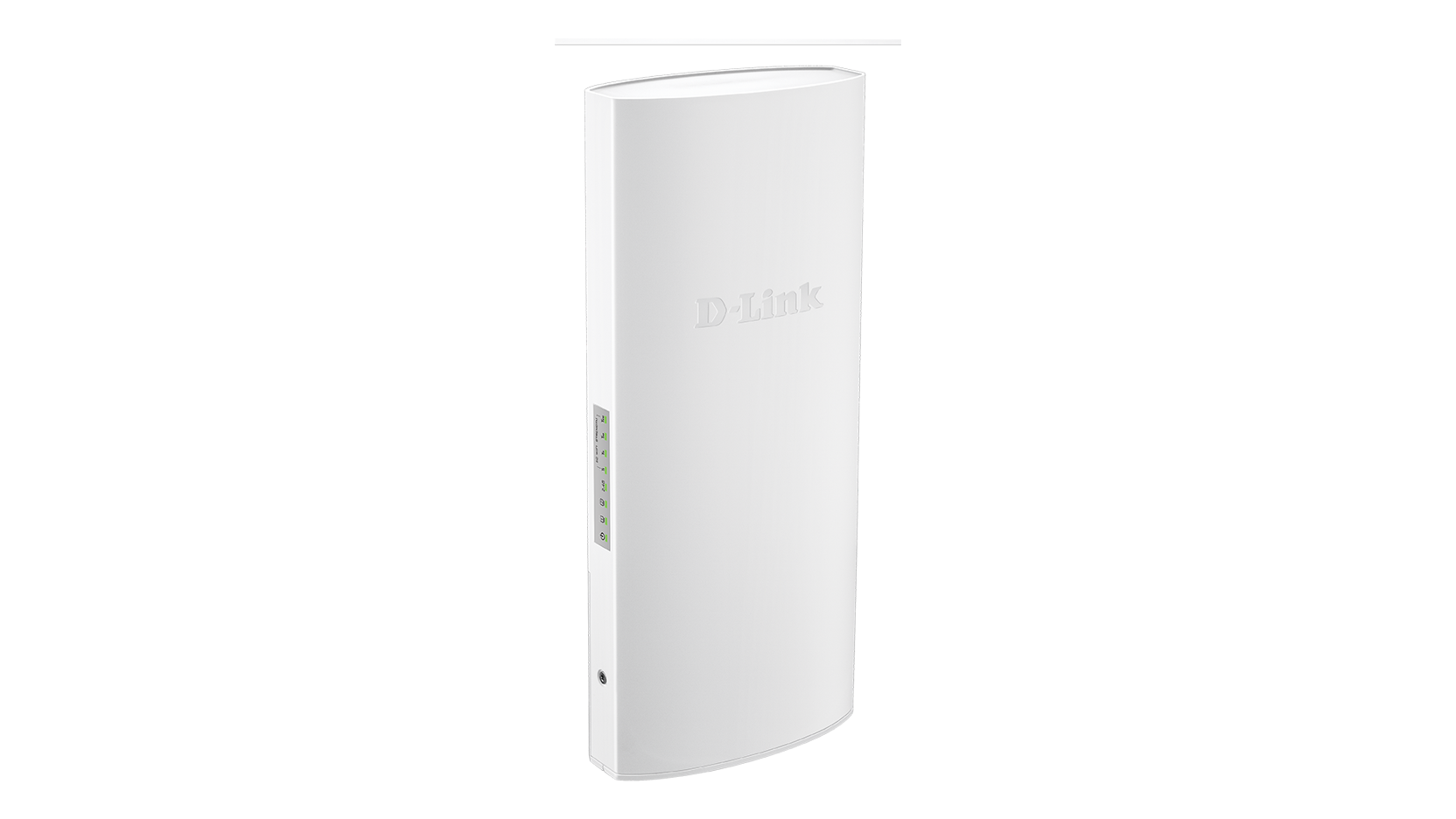

The DWL-6700AP has a sleek, weatherproof housing design with an embedded antenna so it can be easily mounted onto a pole or wall. Its ability to operate between -30°C to 50°C, protecting against exposure to heat, cold or rain makes this an ideal outdoor wireless access point.

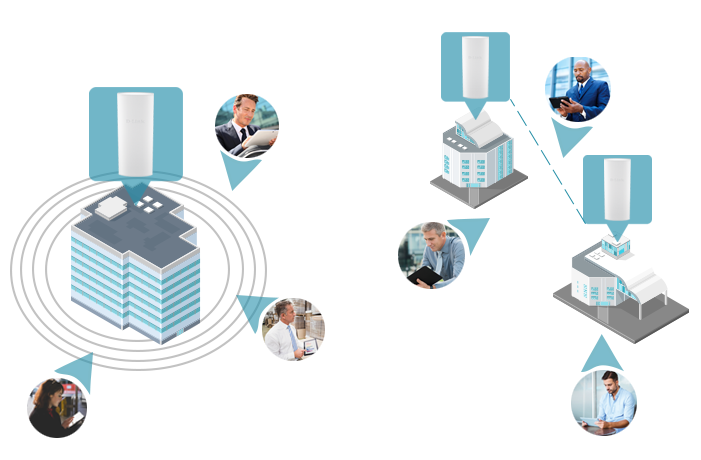

Roaming
Combining the DWL-6700AP with a Unified Wireless Switch or Controller allows you to create a wireless network that enables people to move freely around a building without losing connectivity.

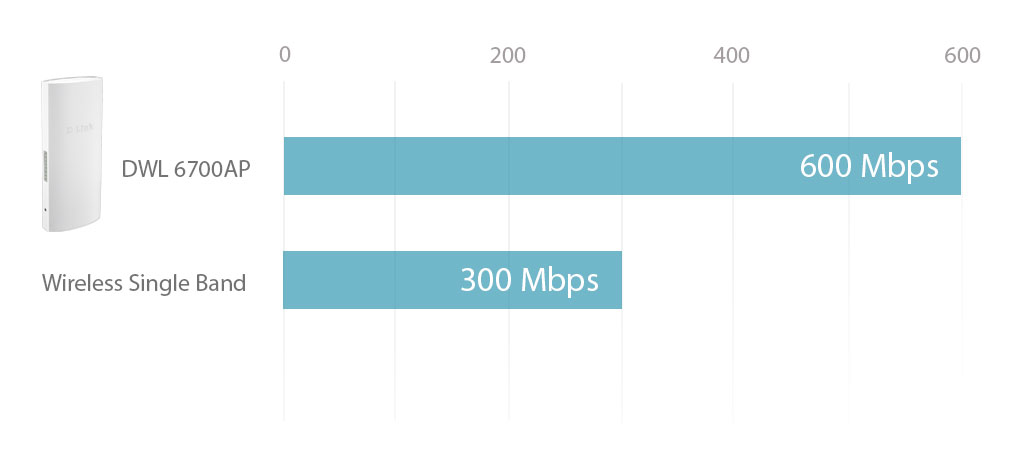

Performance without Compromise
Using the latest generation of dual-band Wireless N technology, the DWL-6700AP delivers great wireless performance and coverage of up to 1.5km in a compact design.

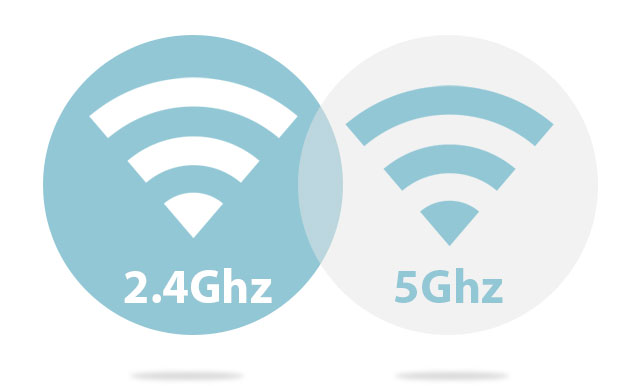

Simultaneous Dual-Band Wireless
Delivers reliable wireless performance with maximum wireless signal rates of up to 300 Mbps in both the 2.4 GHz and 5 GHz mode.

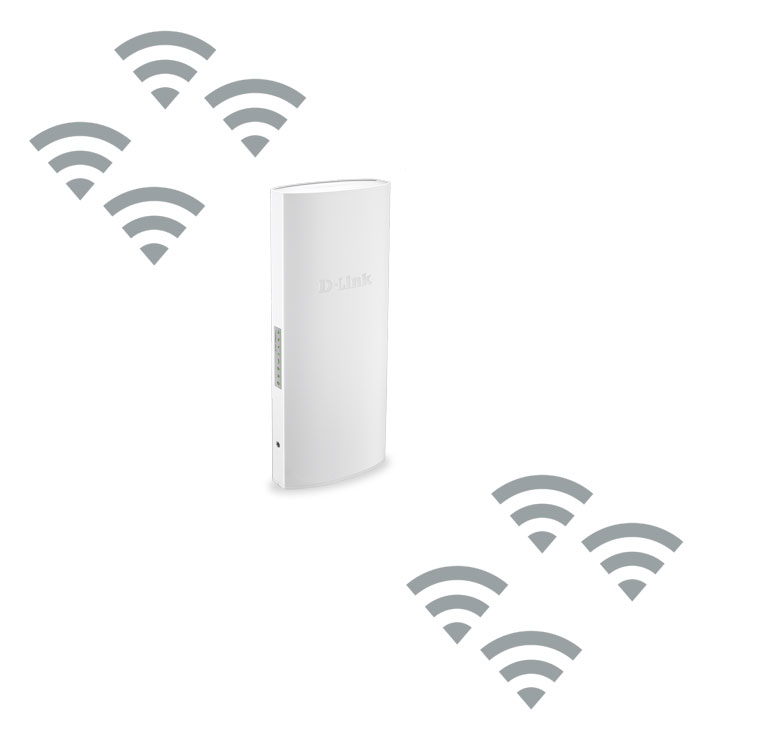

Broadcast on 8 SSIDs Simultaneously
Supports up to 8 SSIDs, 4 per radio, including Station Isolation

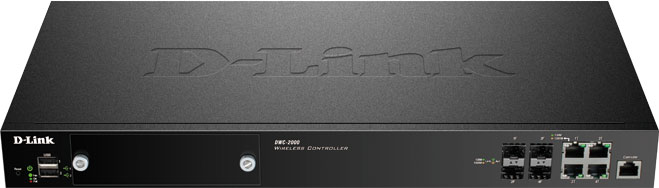

Centrally Manage your Wireless Network
Can be centrally managed. when working in conjunction with D-Link Unified Switches/Wireless Controllers, This allows a large number of APs to be deployed and managed easily and efficiently.
Product Comparison
 |
 |
 |
 |
|
|---|---|---|---|---|
| DWL-2600AP | DWL-3600AP | DWL-6700AP | DWL-8610AP | |
| Wireless Standard | B, G, N | B, G, N | B, G, N | B, G, N, AC |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz, 5GHz | 2.4GHz, 5GHz |
| 2.4GHz Throughput | 300Mbps | 300Mbps | 300Mbps | 450Mbps |
| 5GHz Throughput | - | - | 300Mbps | 1300Mbps |
| Aspect | Indoor | Indoor | Outdoor | Outdoor |
| Range* | 100m | 100m | 1.5km | 100m |
| Suggested number of users | Up to 25 users |
Up to 40 users |
Up to 75 users |
Up to 250 users |
* Range indicates the maximum distance where the highest throughput can be achieved, anything beyond this distance results in a loss of throughput.
Related Products
Specification
|
Frequency band mode
|
Dual-band simultaneous |
|---|---|
|
Wireless speed
|
300 Mbps 2.4 GHz 300 Mbps 5 GHz |
|
Type
|
Hardware-managed AP |
|
Advanced features
|
MIMO |
|
Antenna type
|
Embedded omni-directional antennas Embedded sector antenna |
|
Antenna gain
|
3 dBi for 2.4 GHz 8 dBi for 5 GHz |
|
Power-over-Ethernet
|
Yes |
|
Wired interface
|
2 x Fast Ethernet LAN |
|
Type of housing
|
Plastic |
|
IP rating
|
IP55 |
|
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP |
|
Maximum number of SSIDs
|
8 |
|
Auto channel selection
|
Supported
|
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
|
Wi-Fi scheduler
|
Supported
|
|
AP traffic load balance
|
Supported
|
|
L2 roaming
|
Supported
|
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
|
TKIP/AES encryption
|
Supported
|
|
WPA_WPA2_PSK over WDS
|
Supported
|
|
WLAN partition
|
Supported
|
|
Station isolation
|
Supported
|
|
MAC address filtering
|
Supported
|
|
802.1X authentication
|
Supported
|
|
Controller managed features
|
AP load balance Auto-channel, auto-RF management Captive portal View neighbour AP information L2/L3 fast roaming |
|
Management platform
|
Hardware controller: DWC Series |
|
WEB
|
Supported
|
|
SSH
|
Supported
|
|
Syslog
|
Supported
|
|
802.1D STP
|
Supported
|
|
Supported D-Link Wireless Controllers/Unified Switches
|
DWC-1000 DWC-2000 DWS-3160 DWS-4026 |
|
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only.Specifications may be subject to change without prior notice. |
|
