How do I mount my camera to a wall or ceiling?

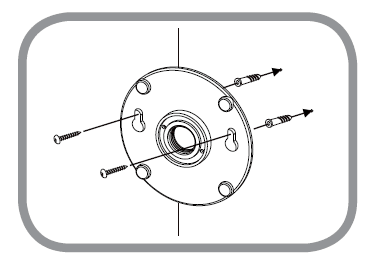

Step 1: Hold the included mounting base where you want to position the camera and use a pencil to mark the holes. Use a 6mm drill bit to drill both holes at least 30mm deep. Use a mallet to insert the wall anchors into the holes. Place the mounting base over the holes that are in the wall. Make sure to align the mounting base holes with the holes in the wall and then use the supplied screws to attach the mounting base to the wall.

Eyeon_Baby_camera_wallmount_installation

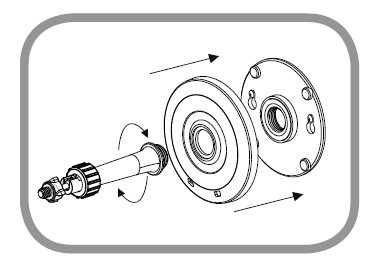

Step 2: Place the base cover over the mounting base and screw the camera stem into the mounting base.

Eyeon_Baby_camera_wallmount_installation

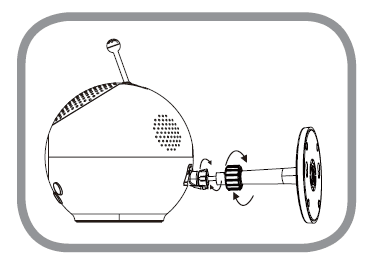

Step 3: Loosen the collar on the camera stem and then screw the camera stem into the bottom of the camera. Turn the securing wheel to ensure the connection to the camera is snug.

Eyeon_Baby_camera_wallmount_installation

Step 4: Adjust the angle of the camera as desired and then tighten the collar on the camera stem to lock it in place.

Eyeon_Baby_camera_wallmount_installation
