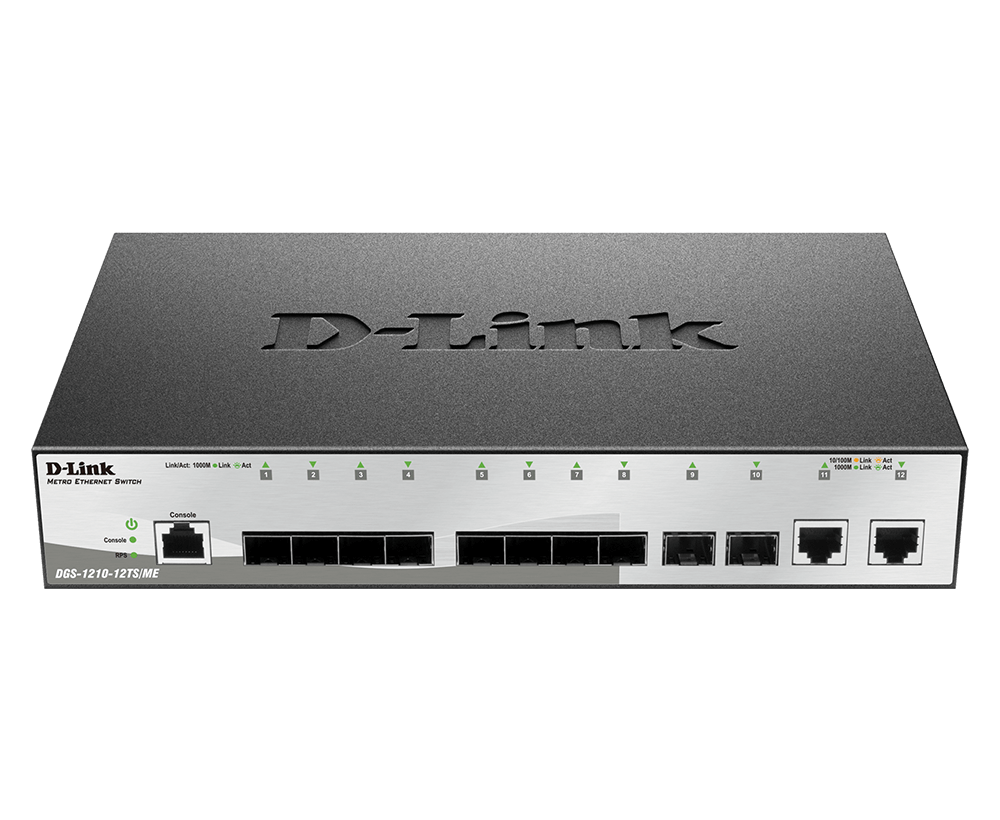

12-Port Gigabit Fiber Metro Ethernet Switch
DGS-1210-12TS/ME
Efficient and resilient Gigabit performance for Metro Ethernet applications.
- 10 x SFP ports
- 2 x 10/100/1000BASE-T ports
- Comprehensive Layer 2 features including Link Aggregation, Port-based Q-in-Q, and VLAN trunking
- Enhanced network security with IP-MAC Port-Binding (IMPB), Access Control List (ACL), and IEEE 802.1X
- Embedded 6 kV surge protection, sub-50 ms recovery ERPS, and Dying Gasp provide optimal reliability
- 10 x SFP ports
- 2 x 10/100/1000BASE-T ports
- Comprehensive Layer 2 features including Link Aggregation, Port-based Q-in-Q, and VLAN trunking
- Enhanced network security with IP-MAC Port-Binding (IMPB), Access Control List (ACL), and IEEE 802.1X
- Embedded 6 kV surge protection, sub-50 ms recovery ERPS, and Dying Gasp provide optimal reliability
Specifications
| 1000Base-T Interface | 2 |
|---|---|
| 1000M SFP Interface | 10 |
| Console Port | Yes |
| SFP ports | 10 |
| 10/100/1000BASE-T ports | 2 |
| Switch Capacity | 24 Gbps |
| Max. Packet Forwarding Rate | 17.86 Mpps |
| Store & Forwarding Forwading | Yes |
| Dimension | 280mm x 180mm x 44mm |
| Weight | 1.17 kg |
| Operation Temperature | -5 - 50°C |
| Storage Temperature | -20-70°C |
| Operation Humidity | 0% - 95% RH |
| Storage Humidity | 0% ~ 95% RH |
| Operating Altitude | 1500 meters |
| Maximum Power Consumption | 13.6 W/100 V<br> 13.85 W/240 V |
| Standby Power Consumption | 7.28 W/100V / 7.49 W/240V |
| Maximum Heat Dissipation | 47.25 BTU/hr |
| MTBF | 405,083 hours |
| Power Input | 100-240 VAC |
| CPU Speed | 400MHz |
| DRAM Size | 256MB |
| Flash Memory Size | 32MB |
| Packet Buffer Size | 1.5MB |
| FAN | Fanless |
| Comply with RoHS 6 | Yes |
| Energy Efficiency Ethernet (EEE) | Yes |
| Power Saving By Link Status | Yes |
| Power Saving By LED Shut-Off | Yes |
| Power Saving By Port Shut-Off | Yes |
| Power Saving By System Hibernation | Yes |
| MAC Address Table Size | 16K |
| 802.3x Flow Control | Yes |
| Head-of-line (HOL) Blocking Prevention | Yes |
| 802.1D Spanning Tree (STP) | Yes |
| 802.1w Rapid Spanning Tree (RSTP) | Yes |
| 802.1s Multiple Spanning Tree (MSTP) | Yes |
| BPDU Filtering | Yes |
| Root Restriction | Yes |
| G.8032 ERPS | Yes |
| 802.1AX Link Aggregation | Yes |
| 802.3ad Link Aggregation | Yes |
| Link Aggregation Group Per Device | 8 |
| Max Port Per Link Aggregation Group | 8 |
| Port Mirroring | Yes |
| Flow-based (ACL) mirroring | Yes |
| Jumbo Frame | 9,216 Bytes |
| Loopback Detection (LBD) | Yes |
| L2 Protocol Tunneling | Yes |
| IGMP Snooping | Yes |
| Max IGMP Snooping Groups | 1024 |
| IGMP Snooping Fast Leave | Yes |
| IGMP Authentication | Yes |
| IGMP Accounting | Yes |
| MLD Snooping | Yes |
| MLD Snooping Groups | Yes |
| MLD Snooping Fast Leave | Yes |
| 802.1Q VLAN | Yes |
| VLAN Groups | Yes |
| Port-based VLAN | Yes |
| 802.1v Protocol-based VLAN | Yes |
| MAC-based VLAN | Yes |
| GVRP | Yes |
| Double VLAN (Q in Q) | Yes |
| VLAN Translation | Yes |
| ISM VLAN (Multicast VLAN) | Yes |
| Asymmetric VLAN | Yes |
| Private VLAN | Yes |
| VLAN trunking | Yes |
| IP Interface | Yes |
| Max Number of IP Interface | 4 |
| ARP | Yes |
| ARP Entries | Yes |
| Gratuitous ARP | Yes |
| ARP Proxy | Yes |
| ND Entries | Yes |
| Default Route | Yes |
| Static Route | Yes |
| Limited IP Multicast (IGMP Filtering) | Yes |
| Number of Queue | Yes |
| Class of Service (CoS) | Yes |
| Two Rate Three Color Marker (trTCM) | Yes |
| Remark 802.1p priority | Yes |
| Remark ToS/DSCP | Yes |
| Rate Limiting | Yes |
| Queue Handling | Yes |
| Strict Priority Queue (SPQ) | Yes |
| Weighted Round Robin (WRR) | Yes |
| Simple Random Early Detection (SRED) | Yes |
| Port-based Bandwidth Control | Yes |
| Flow-based bandwidth Control | Yes |
| Queue-based Bandwidth Control | Yes |
| Max Access Control List (ACL) Entries | Yes |
| MAC Access List | Yes |
| IP Access List | Yes |
| IPv6 Access List | Yes |
| User-defined Access List | Yes |
| Time based ACL | Yes |
| CPU Interface Filtering | Yes |
| SSH | Yes |
| SSL | Yes |
| Port Security | Yes |
| Broadcast/Multicast/Unicast Storm Control | Yes |
| Traffic Segmentation | Yes |
| IP-MAC-Port Binding (IMPB) | Yes |
| DHCP Snooping | Yes |
| IPv6 Snooping | Yes |
| IPv6 ND Inspection | Yes |
| Duplicate Address Detection (DAD) | Yes |
| D-Link Safeguard Engine | Yes |
| DHCP Server Screening | Yes |
| DHCP Client Filtering | Yes |
| BPDU Attack Protection | Yes |
| DoS Attack Prevention | Yes |
| 802.1X | Yes |
| Port based 802.1X Authentication | Yes |
| Host based 802.1X Authentication | Yes |
| Host based WAC Authentication | Yes |
| MAC-based Access Control (MAC) | Yes |
| Host based MAC Authentication | Yes |
| Guest VLAN | Yes |
| Microsoft® NAP Support | Yes |
| Privilege Level for Management Access | Yes |
| RADIUS | Yes |
| RADIUS Accounting | Yes |
| TACACS+ | Yes |
| TACACS+ Accounting | Yes |
| Trusted Host | Yes |
| Cable Diagnostics | Yes |
| 802.3ah Ethernet Link OAM | Yes |
| D-link Unidirectional Link Detection (DULD) | Yes |
| Dying Gasp | Yes |
| 802.1ag Connectivity Fault Management (CFM) | Yes |
| Y.1731 OAM | Yes |
| Optical Transceiver Digital Diagnostic Monitoring (DDM) | CLI |
| Network Time Protocol (NTP) | Yes |
| Simple Network Time Protocol (SNTP) | Yes |
| Web-based GUI | Yes |
| Telnet Server | Yes |
| Telnet Client | Yes |
| SNMP | Yes |
| SNMP Trap | Yes |
| TFTP Client | Yes |
| FTP Client | Yes |
| System Log | Yes |
| SMTP | Yes |
| RMONv1 | Yes |
| RMONv2 | Yes |
| LLDP | Yes |
| LLDP-MED | Yes (for 28P/ME) |
| D-Link Discover Protocol (DDP) | Yes |
| DHCP/BootP Client | Yes |
| DHCP Auto-configuration | Yes |
| DHCP Auto-image | Yes |
| PPPoE Circuit-ID Tag Insertion | Yes |
| DHCP relay | Yes |
| Dual Images | Yes |
| Dual Configurations | Yes |
| Editable Login Banner | Yes |
| Editable System Prompt | Yes |
| Debug Command | Yes |
| Password Recovery | Yes |
| Password Encryption | Yes |
| Ping | Yes |
| Traceroute | Yes |
| D-Link Network Assistant | Yes |
| Surge/Lightning Protection | Yes |
| Surge/Lightning Protection (All Ethernet Ports) | Yes |
| SSH | Yes |
| SSL | Yes |
Ideal for Metro Ethernet
The DGS-1210ME Series Metro Ethernet Switches feature a variety of port configurations, including 10/100/1000BASE-T RJ-45 ports, 1G SFP ports, and 10G SFP+ ports for increased network bandwidth. Surge protection, advanced Layer 2 functions, and a suite of security and management tools make the DGS-1210ME Series Metro Ethernet Switches ideal for Metro Ethernet applications.
Efficient and Resilient
For mission critical environments, the DGS-1210ME Series Metro Ethernet Switches support IEEE 802.1D 2004 edition, 802.1w, and 802.1s Spanning Tree Protocols (STP). The switches also support IEEE 802.3ad link aggregation, increasing bandwidth and redundancy for higher availability. This series furthermore features IEEE 802.1p Quality of Service (QoS), allowing for real-time traffic classification into Weighted Round Robin (WRR) and strict priority levels mapped to 8 queues. Advanced traffic classification parameters allow the network to be tuned for flexible configurations for specific multimedia applications such as VoIP or IPTV.
Security & Authentication
The DGS-1210ME Series supports IEEE 802.1X port-based/host-based access control, guest VLAN, and RADIUS/TACACS+ authentication for strict access control to the network. The IP-MAC-Port Binding (IMPB) feature allows administrators to further enhance user access control. The built-in D-Link Safeguard Engine™ protects the CPU from broadcast, multicast, and unicast flooding. In addition, the Access Control List (ACL) feature enhances network security and switch performance.
Multicast Applications
The DGS-1210ME Series features a full set of L2 multicast functions, including IGMP snooping, IGMP filtering, fast leave, and multicast traffic configuration for specific ports. With L2 multicast support, the DGS-1210ME Series is ready and capable of handling growing IPTV applications.
Management Capabilities
A user-friendly web interface gives administrators access to advanced management features such as DHCP auto-configuration, allowing central management of device configurations. The switches support Link Layer Discovery Protocol (LLDP), which advertises the device’s capabilities and identity to the local network, allowing administrators to better manage their network topology. Each port also supports cable diagnostics to troubleshoot cable length and functionality problems remotely.
Traffic & Bandwidth Control
Integrated bandwidth control allows network administrators to define the throughput levels for ingress and egress bandwidth. It provides a minimum granularity of 64 Kbps for ingress port and flow-based bandwidth control, and a minimum granularity of 64 Kbps for egress queue bandwidth. The DGS-1210ME Series also supports traffic control, which optimizes overall performance, while port mirroring helps administrators perform traffic diagnostics and track network performance.
