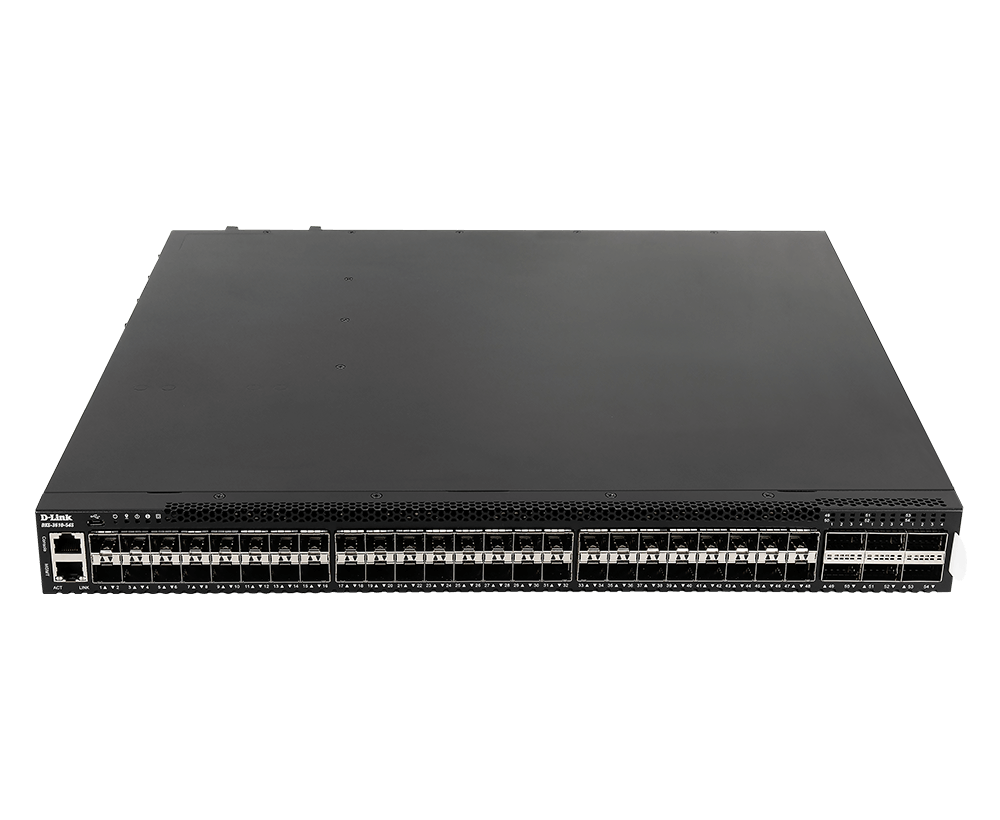

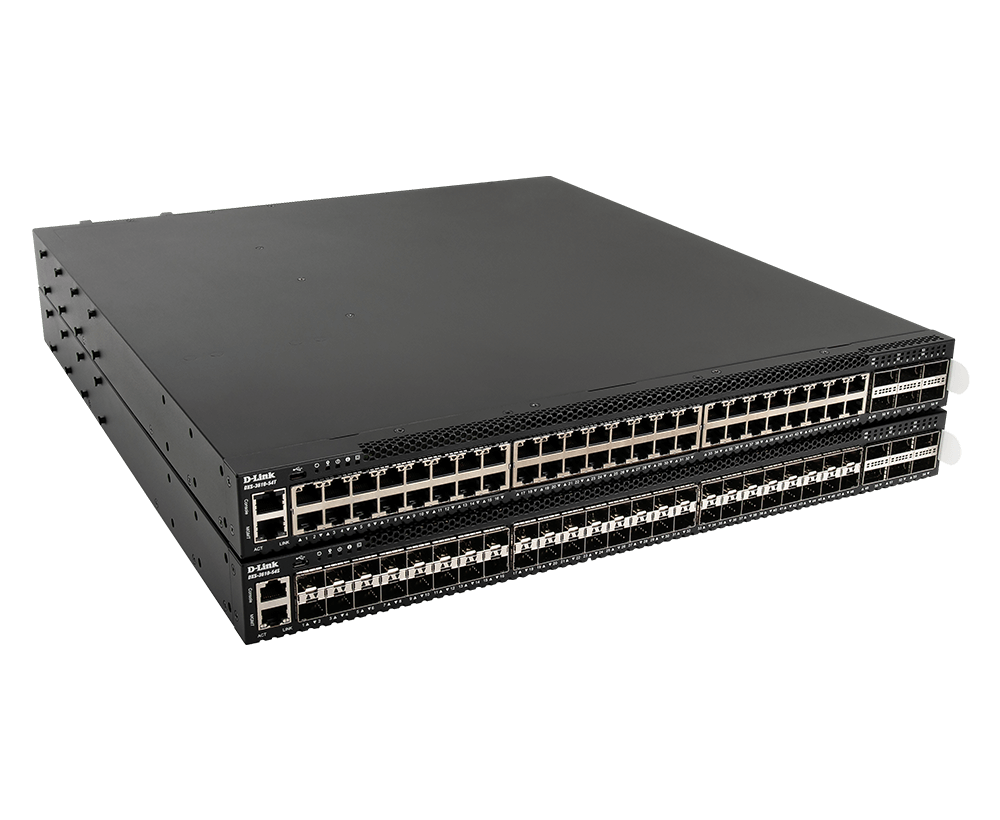

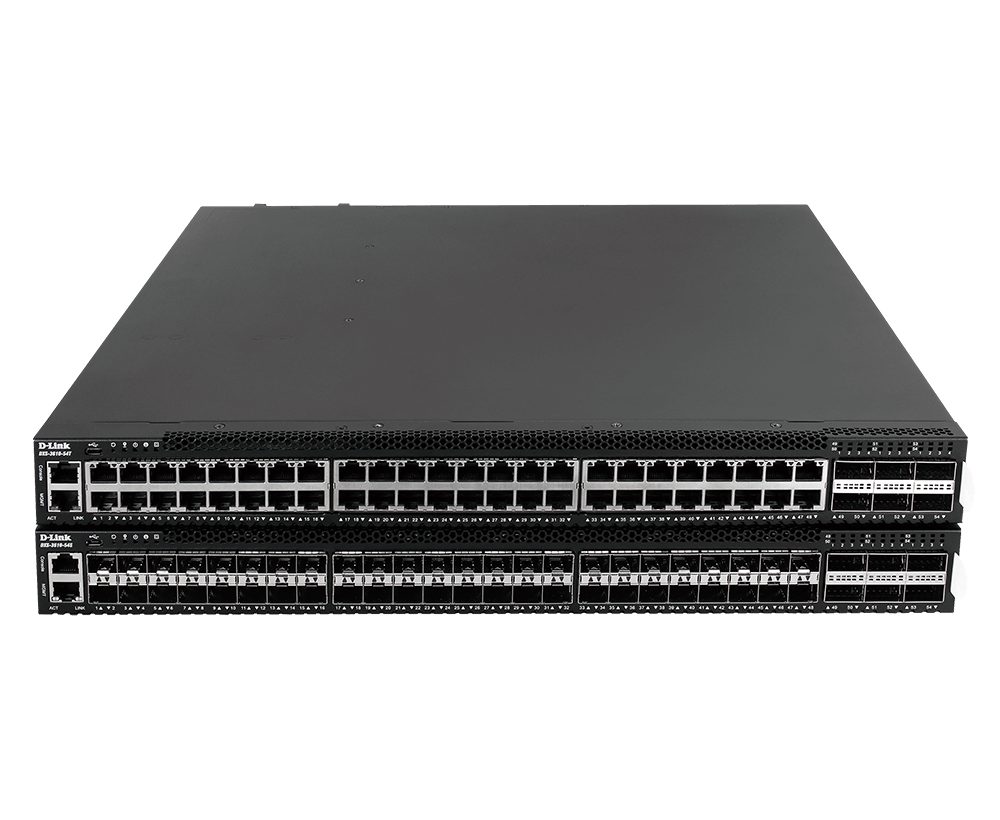

Layer 3 Stackable 10G / 100G Managed Switches
DXS-3610 Series

The DXS-3610 Series Layer 3 Stackable 10G/100G Managed Switches are ideal for core/aggregation networks in datacenters and enterprise applications.

  • High speed network infrastructure with multiple interfaces
  • Stack up to 12 switches (up to 1.2 Tbps stacking bandwidth)
  • OpenFlow 1.3 compliance for SDN-enabled network compatibility
  • Modular PSU (1+1) and fan (N+1) with load sharing capabilities
  • Switch Resource Management (SRM) for flexible system resource manageability
  • Switch locator LED and ID tag for maintenance convenience
  • Upgradable license for full L3 and MPLS applications

  • High speed network infrastructure with multiple interfaces
  • Stack up to 12 switches (up to 1.2 Tbps stacking bandwidth)
  • OpenFlow 1.3 compliance for SDN-enabled network compatibility
  • Modular PSU (1+1) and fan (N+1) with load sharing capabilities
  • Switch Resource Management (SRM) for flexible system resource manageability
  • Switch locator LED and ID tag for maintenance convenience
  • Upgradable license for full L3 and MPLS applications

Specifications

Power Input 100 to 240 V AC, 50/60 Hz
Power Supply 1 + 1 redundant power supply design
Maximum Power Consumption 320.8 W to 330.2 W
Standby Power Consumption 108.2 W to 120.6 W
Maximum Heat Dissipation 1083 to 1126 BTU/hr
Acoustics 65.3 - 79.4 dB(A) or 69.7 - 76.6 dB(A)
Fans 5 x fans
Dimensions (W x L x H) 441.0 x 487.44 x 43.5 mm (17.36 x 19.19 x 1.71 in)
Weight 9.80 kg (21.61 lbs) or 9.88 kg (21.78 lbs)
Safety CB, cUL, LVD
EMI/EMC FCC, CE, C-Tick, IC, VCCI
Switching Capacity 2.16 Tbps
Max. Forwarding Rate 1607.04 Mpps
MAC Address Table2 Up to 288K
Jumbo Frame Size 9436 bytes
Size 19-inch, 1U rack-mount
Main Interfaces 48 x 1/10GbE SFP/SFP+ or 48 x 1/10GbE Base-T ports
Uplink Interfaces 6 x 40/100GbE QSFP+/QSFP28 ports
Console Port RJ-45 console port for out-of-band management
Management Port 10/100/1000 BASE-T RJ-45 Ethernet for out-of-band remote management
Virtual Stacking/Clustering Up to 32 units
Physical Stacking Up to 1200G stacking bandwidth with up to 12 switches in a stack
Flow Control 802.3x Flow Control when using full-duplex and back Pressure when using half-duplex
Spanning Tree Protocol 802.1D STP, 802.1w RSTP, 802.1s MSTP
Link Aggregation 802.1AX, max. 32 groups per device, 12 ports per group
IGMP Snooping IGMP v1/v2/v3 Snooping
ARP 512 Static ARP
IP Interface Supports 256 interfaces
VLAN Group Max. 4K static VLAN groups, max. 4094 VIDs
VLAN 802.1Q, 802.1v Protocol-based VLAN, double VLAN (Q-in-Q) ; port-based VLAN, MAC-based VLAN, subnet-based VLAN, private VLAN
Max. ACL entries 2304 ingress ACL rules, 2K egress ACL rules, 3K VLAN Access Maps
L3 Multicasting Table Size Up to 16K
QoS 802.1p Quality of Service (QoS) with 8 queues per port

Switching that Stacks Above the Competition

The DXS-3610 Layer 3 Stackable 10G/100G Managed Switches are compatible with SDN-enabled network architecture for deployment in high-performance datacenter, enterprise, and campus applications. Hot-swappable PSU and fan modules with load sharing capabilities significantly reduce network downtime and power consumption. Stackable up to 12 units and high port density makes the DXS-3610 the ideal choice for future-proofing your aggregation/core network.

Why You Want It

HIGHLY SCALABLE Highly Scalable

License upgradable to MPLS, supports Switch Resource Management

High Performance High Performance

Powerful 100G uplink speed, 48 x 10G ports and Mac Table up to 288K

Hot-Swappable Redundancy Hot-Swappable Redundancy

Multiple Fan Modules with Load-Sharing PSUs

SDN COMPATIBLE SDN Compatible

OpenFlow v1.3 compliance for SDN environments

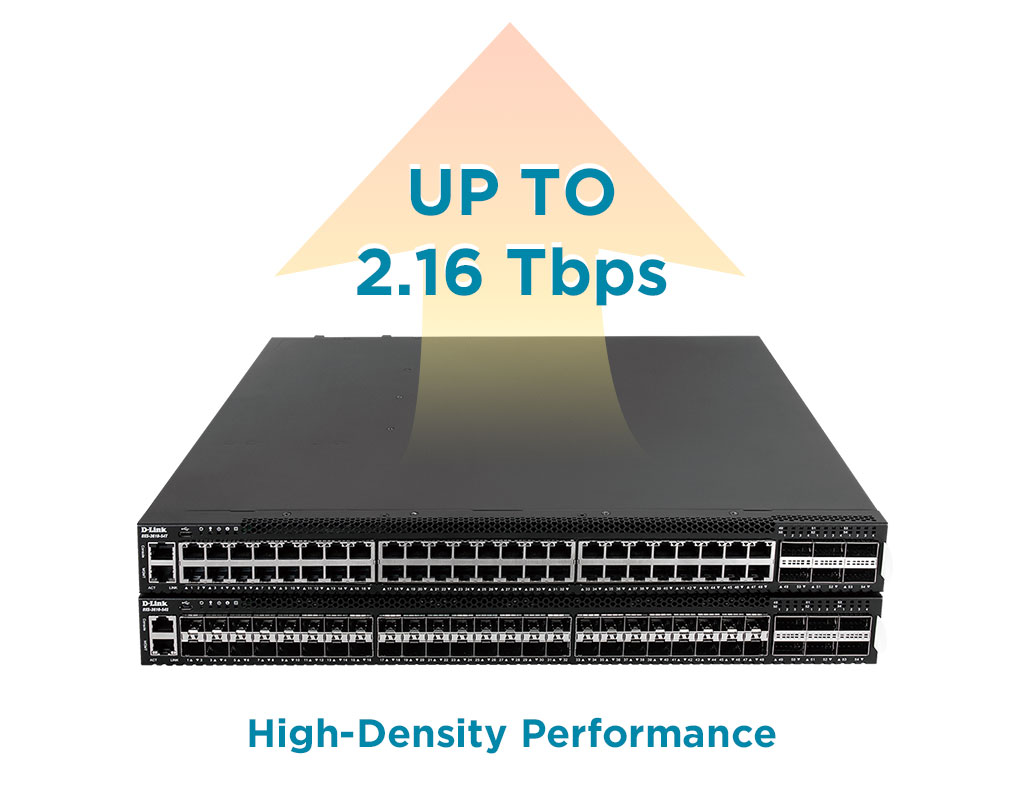

High Availability

High Availability

The DXS-3610 Series boasts high-performance 10G Ethernet switching capacity of up to 2.16 Tbps with forwarding rates of up to 1607 Mpps.

Hot-Swappable Redundancy

Hot-Swappable Redundancy

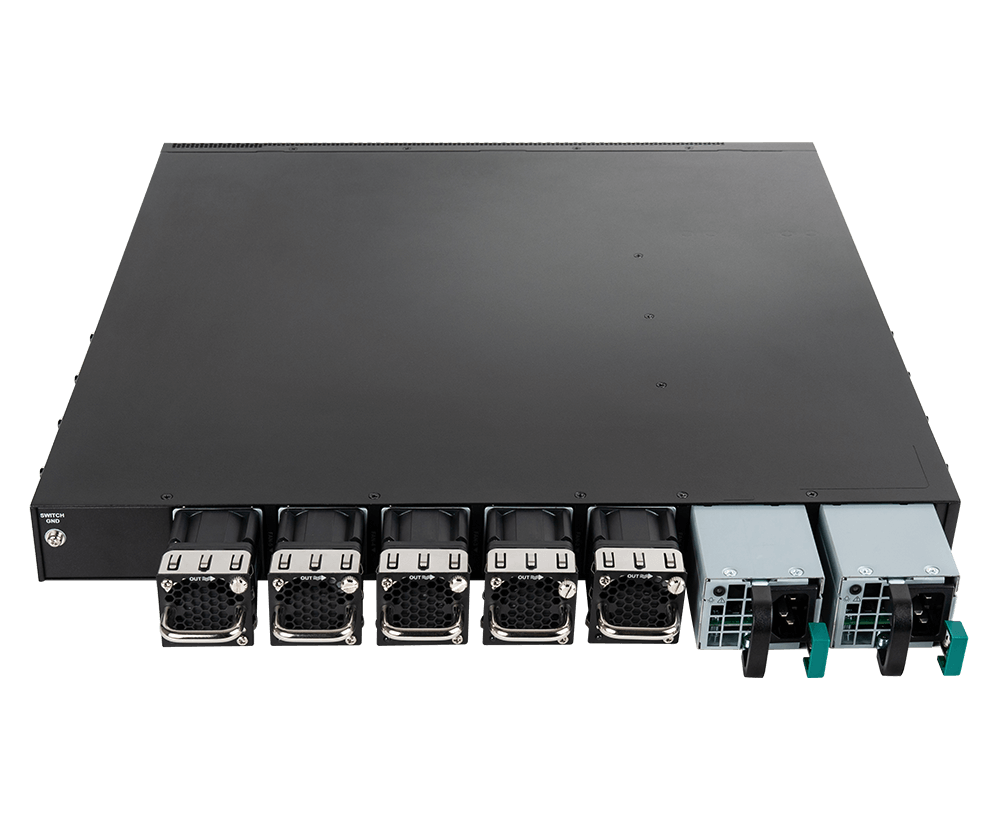

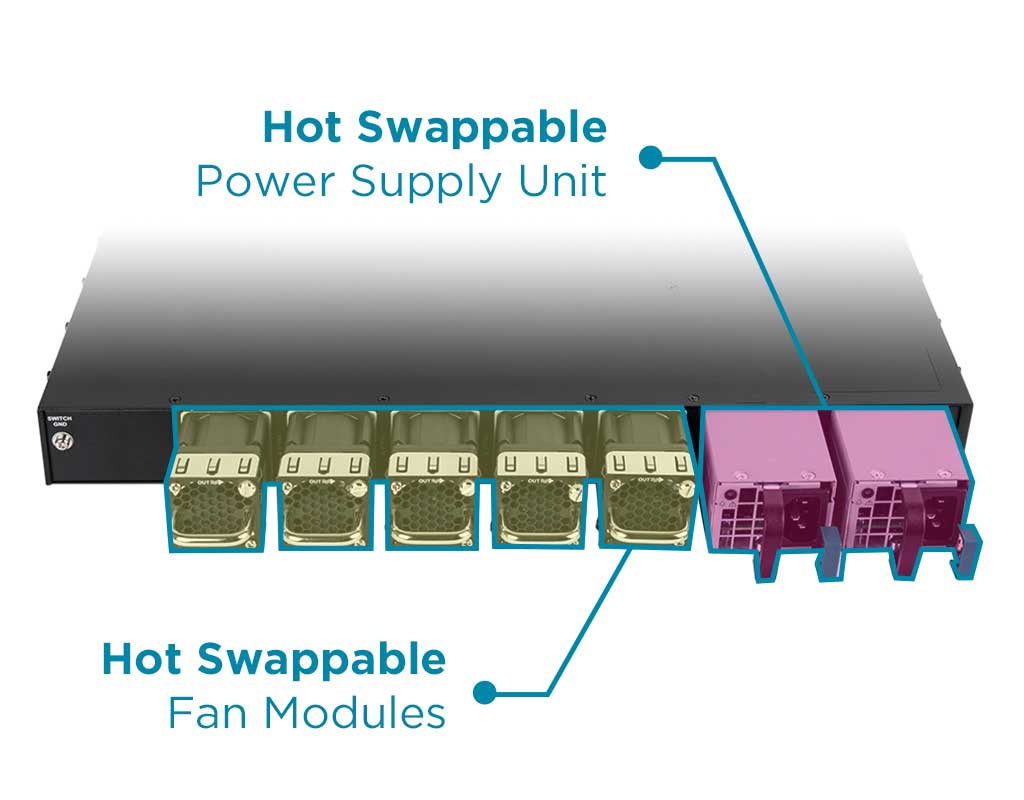

The DXS-3610 Series also features a modular fan back-up design, providing n+1 redundancy for the system. The modular power design allows either AC or DC power sources for maximum deployment flexibility. With dual power modules, the power load is distributed, extending the lifetime of the modules.

High Performance

Robust and Versatile Stacking Capability

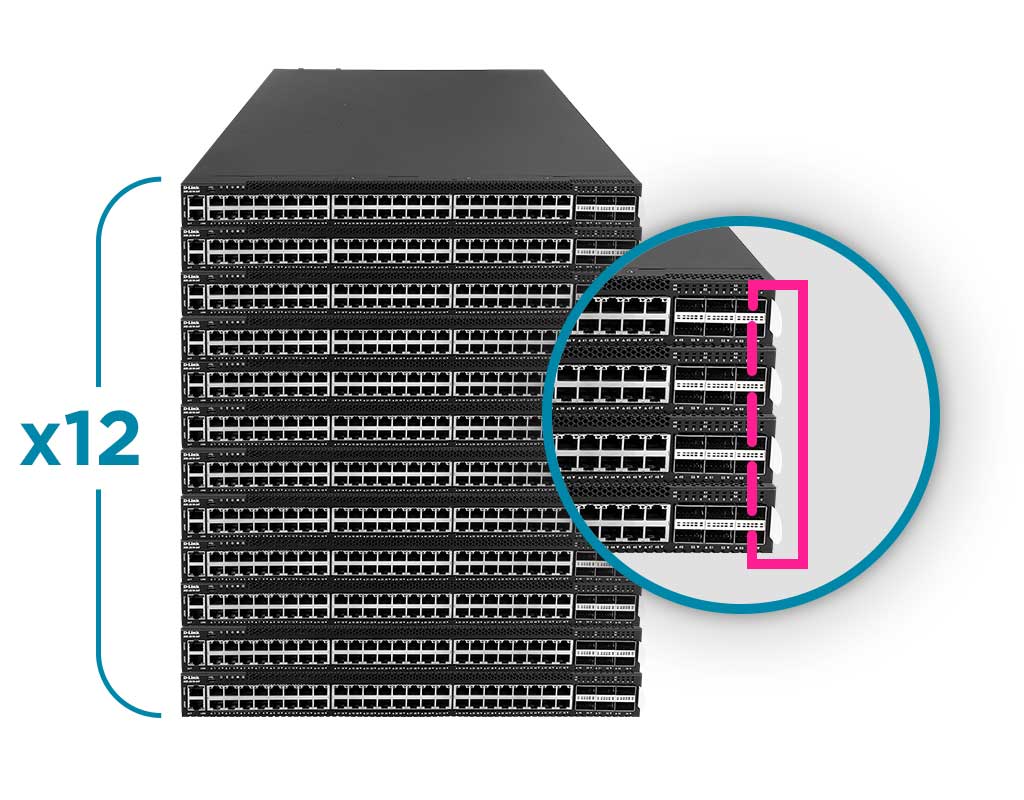

Stack up to 12 DXS-3610 switches with up to a total of 1200G (1.2T) stacking bandwidth. Perfect for small to medium-sized data centers in enterprise or campus applications using leaf-spine or top-of-rack (ToR) architecture.

Simplified Deployment

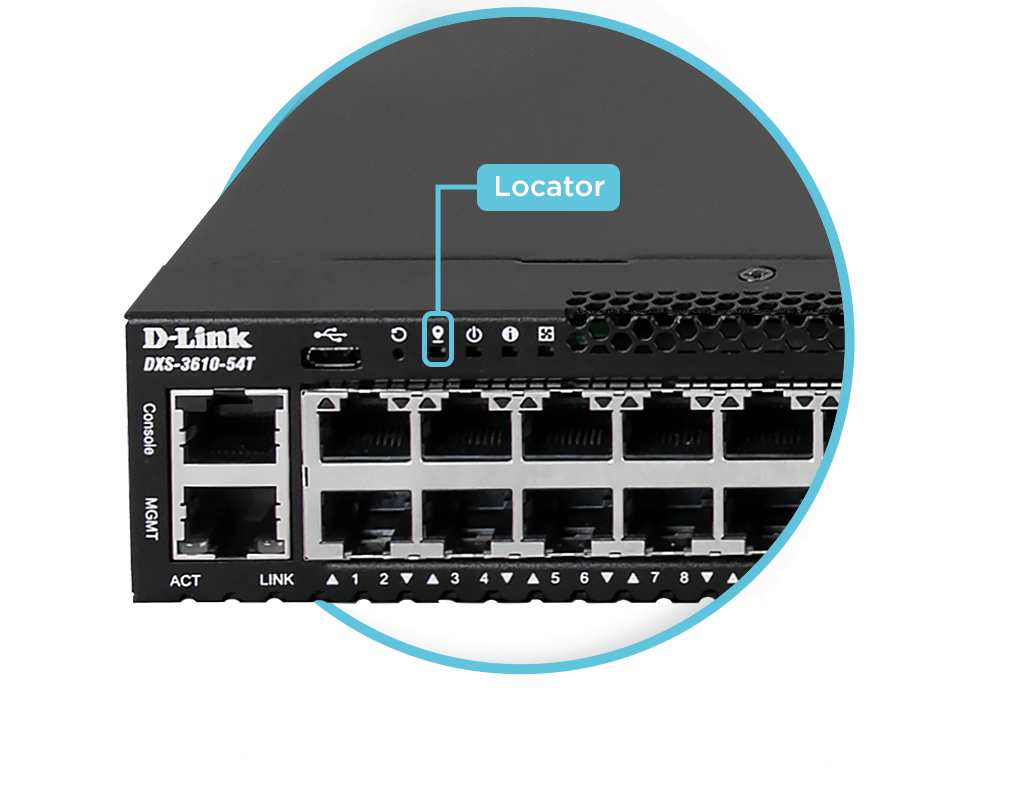

Remotely activate the front panel LED indicator to rapidly locate the DXS-3610 in your data center or server room that requires extra attention.

Simplified Deployment
D-View7

dview 7

Enhanced Manageability for Peace of Mind

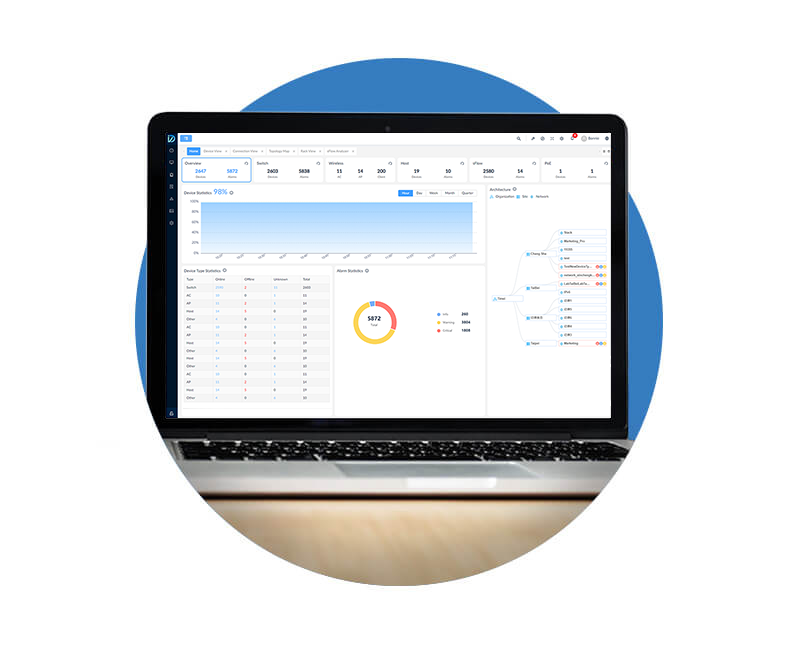

For more complex network infrastructures, D-View 7, a centralized management platform, can be installed for in-depth network management and maintenance to optimize network availability, reliability, security, and resilience.

DXS-3610 Series Comparison

Product
DXS-3610 Series
Interfaces
Switching Capacity
Forwarding Rate
SDN Availability
Packet Buffer
Physical Stackability
Powerful Routing/ MPLS by DLMS
DXS-3610 Series
  • 48 x 10Gbe SFP/SFP+
  • 6 x 40/100Gbe QSFP+ / QSFP28
  • 48 x 10G Base-T Ports
2.16Tbps
2.16Tbps
1607.04 Mpps
1607.04 Mpps
Yes
Yes
32MB
32MB
Yes(Max.12 switches)
Yes(Max.12 switches)
Yes
Yes
