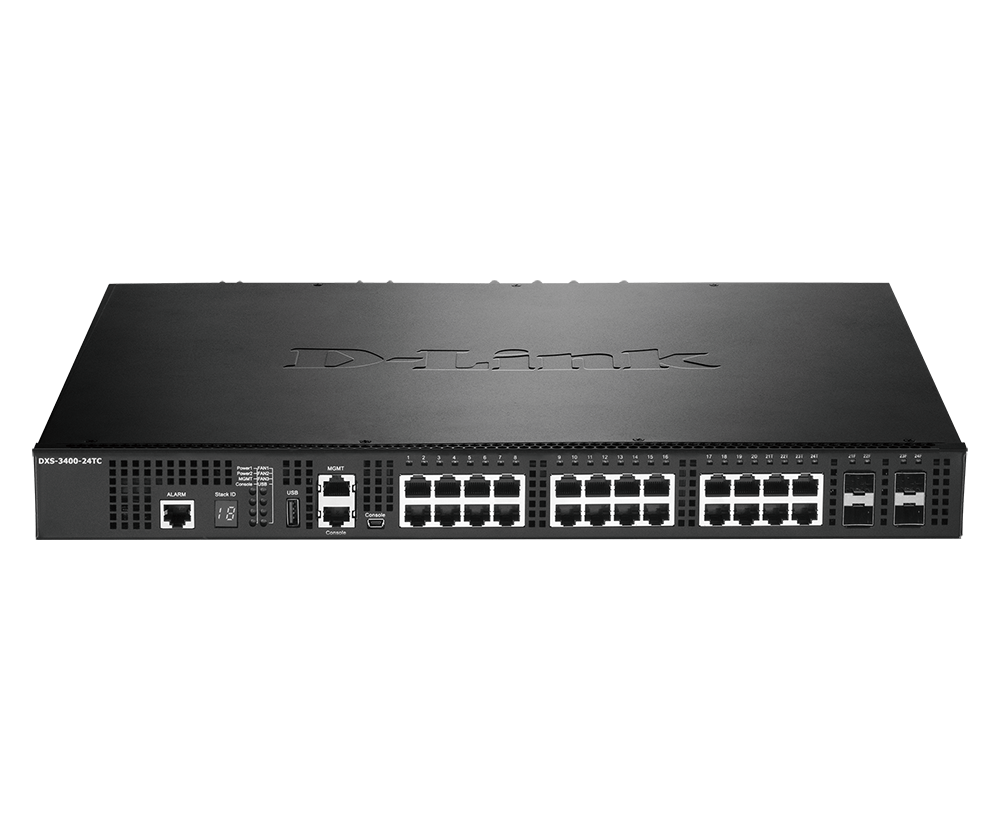

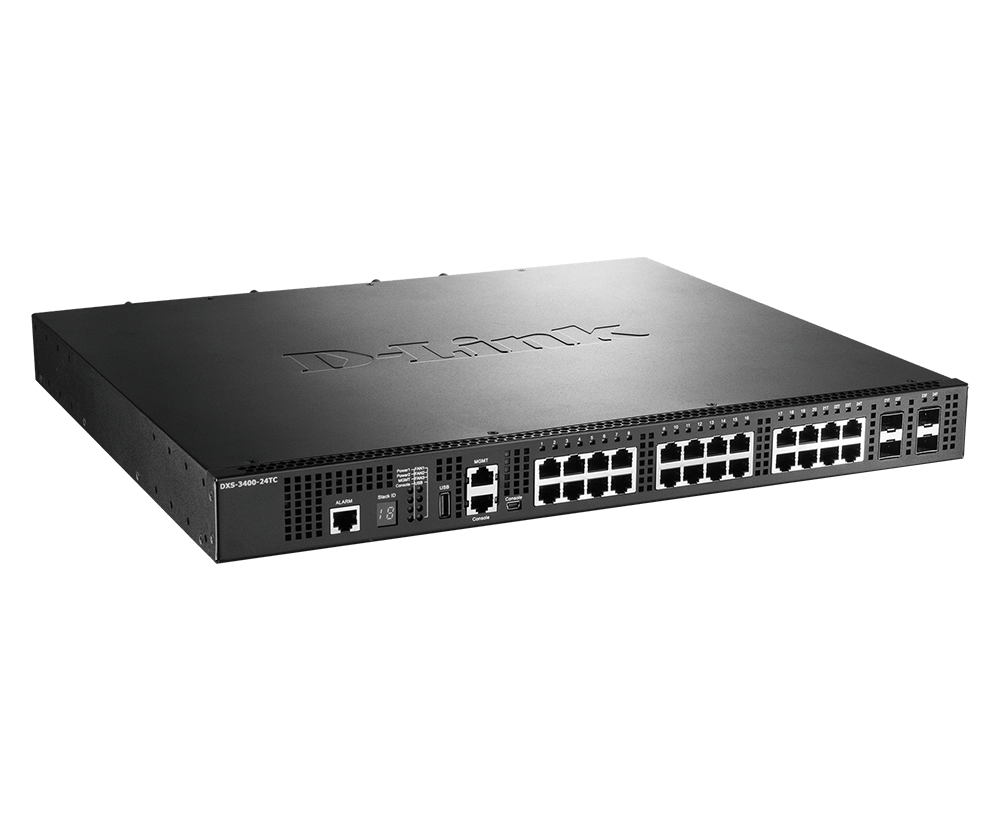

24-Port Layer 3 Stackable 10 Gigabit Managed Switch
DXS-3400-24TC

High-performance switch delivering wire-speed 10-Gigabit switching, routing, and ultra-low latency.

  • 20 x 10GBASE-T  ports
  • 4 x 10GBASE-T/SFP+ Combo ports
  • Physical stacking with up to 4 devices per stack
  • Layer 2+ static routing / RIPv1/v2/ng
  • Optional Layer 3 dynamic routing / OSPF
  • Data Center Bridging (DCB) features
  • Hot-swappable power supplies and fan modules

  • 20 x 10GBASE-T  ports
  • 4 x 10GBASE-T/SFP+ Combo ports
  • Physical stacking with up to 4 devices per stack
  • Layer 2+ static routing / RIPv1/v2/ng
  • Optional Layer 3 dynamic routing / OSPF
  • Data Center Bridging (DCB) features
  • Hot-swappable power supplies and fan modules

Specifications

IPv6 Ready Logo Yes (pre-test)
802.1X Yes
Host based 802.1X Authentication Yes
Port based 802.1X Authentication Yes
Identity Driven 802.1X Policy Assignment Yes
Port based WAC Authentication Yes
Web-based Access Control (WAC) Yes
Host based WAC Authentication Yes
Identity Driven WAC Policy Assignment Yes
MAC-based Access Control (MAC) Yes
Host based MAC Authentication Yes
Port based MAC Authentication Yes
Identity Driven MAC Policy Assignment Yes
Compound Authentication Yes
Microsoft® NAP Support Yes
Guest VLAN Yes
Authentication for Management Access Yes
Privilege Level for Management Access Yes
RADIUS Yes
RADIUS Accounting Yes
TACACS+ Yes
Authentication Database Failover Yes
TACACS+ Accounting Yes
Trusted Host Yes
MAC Access List Yes
IP Access List Yes
Time based ACL Yes
IPv6 Access List Yes
CPU Interface Filtering Yes
Port-based Bandwidth Control Yes
Flow-based bandwidth Control Yes
Queue-based Bandwidth Control Yes
Class of Service (CoS) Yes
Single Rate Three Color Marker (srTCM) Yes
Two Rate Three Color Marker (trTCM) Yes
Weighted Random Early Detection (WRED) Yes
802.1Qau Congestion Notification (QCN) Yes
802.1Qbb Priority-based Flow Control (PFC) Yes
DVMRPv3 Yes
Electrostatic Discharge Protection Yes
Air Discharge 8KV
Contact Discharge 4KV
SSH Yes
SSL Yes
G.8032 ERPS Yes
Multiple ERPS Ring Yes
802.3x Flow Control Yes
Head-of-line (HOL) Blocking Prevention Yes
Store & Forwarding Forwading Yes
Comply with RoHS 6 Yes
Energy Efficiency Ethernet (EEE) Yes
Power Saving By Link Status Yes
Power Saving By Cable Length Yes
Power Saving By LED Shut-Off Yes
Power Saving By Port Shut-Off Yes
Power Saving By System Hibernation Yes
IGMPv1 Yes
IGMPv2 Yes
IGMPv3 Yes
SSM Mapping Yes
IGMP Proxy Yes
Limited IP Multicast (IGMP Filtering) Yes
100Base-TX Interface 24
1000Base-T Interface 24
10GBase-T Interface 24
10G SFP+ Interface 4
1000M SFP Interface 4
Auto MDI/MDIX Yes
Combo 10GBase-T /SFP+ 4
Console Port Yes
RJ-45 Management Port Yes
Alarm Port Yes
USB Port Yes
10GBASE-T ports 20
10GBASE-T/SFP+ Combo ports 4
CPU Speed 1.2 GHz
DRAM Size 512 MB
Flash Memory Size 128 MB (Nand Flash)
Packet Buffer Size 4 Mbytes
FAN Yes
Jumbo Frame 12KB
Loopback Detection (LBD) Yes
L2 Protocol Tunneling Yes
iSCSI Awareness Yes
Multi-Chassis Link Aggregation Yes
MAC Address Table Size Up to 48K (SRM's LAN Mode)
Black Hole MAC Address Yes
IGMP Snooping Yes
Max IGMP Snooping Groups 512 (shared with MLD Snooping)
IGMP Snooping Fast Leave Yes
IGMP Proxy Reporting Yes
IGMP Authentication Yes
IGMP Accounting Yes
MLD Snooping Yes
MLD Snooping Groups 256
MLD Snooping Fast Leave Yes
MLD Proxy Reporting Yes
PIM Snooping Yes
IP Interface Yes
Max Number of IP Interface 256
Loopback Interface Yes
ARP Yes
ARP Entries 1K
Gratuitous ARP Yes
IPv6 Neighbor Discovery (ND) Yes
ND Entries 16128
UDP Helper Yes
IPv6 Tunneling Yes
L3 IP Multicast Entry Yes
Routing Table Entry Yes
Default Route Yes
L3 Forwarding Table Entry Yes
Static Route Yes
Policy-based Route (PBR) Yes
Null Route Yes
Route Preference Setting Yes
Route Redistribution Yes
Graceful Restart (GR) Helper Yes
Bidirectional Forwarding Detection (BFD) Yes (software-based)
802.1AX Link Aggregation Yes
802.3ad Link Aggregation Yes
Link Aggregation Group Per Device 32
Max Port Per Link Aggregation Group 8
Web-based GUI Yes
Telnet Server Yes
Command Line Interface (CLI) Yes
Telnet Client Yes
SNMP Yes
SNMP Trap Yes
TFTP Client Yes
FTP Client Yes
Secured FTP (SFTP) Server Yes
Remote Copy Protocol (RCP) Yes
System Log Yes
ZModem Yes
Command Logging Yes
SMTP Yes
RMONv1 Yes
RMONv2 Yes
LLDP Yes
LLDP-MED Yes
D-Link Discover Protocol (DDP) Yes (v.0.25)
DHCP/BootP Client Yes
DHCP Auto-configuration Yes
DHCP relay Yes
DHCP Server Yes
Flash file system Yes
Multiple Configurations Yes
Multiple Images Yes
Editable System Prompt Yes
Editable Login Banner Yes
DNS Relay Yes
Debug Command Yes
DNS Client Yes
Password Recovery Yes
Password Encryption Yes
MTU Setting Yes
Ping Yes
Microsoft® Network Load Balancing (NLB) Yes
Traceroute Yes
Switch Resource Management (SRM) Yes
D-Link Network Assistant Yes
sFlow Yes
D-Link License Management System (DLMS) Yes
VLAN Mirroring Yes
Port Mirroring Yes
Flow-based (ACL) mirroring Yes
RSPAN Yes
MLDv1 Yes
MLDv2 Yes
Limited IP Multicast (MLD Filtering) Yes
MLD Proxy Yes
Cable Diagnostics Yes
802.3ah Ethernet Link OAM Yes
D-link Unidirectional Link Detection (DULD) Yes
802.1ag Connectivity Fault Management (CFM) Yes
Dying Gasp Yes
Y.1731 OAM Yes
Optical Transceiver Digital Diagnostic Monitoring (DDM) Yes
OSPFv2 Yes
OSPFv3 Yes
Switch Capacity 480 Gbps
Max. Packet Forwarding Rate 357.12 Mpps
PIM-DM Yes
PIM-SM Yes
PIM-SM v6 Yes
PIM-SSM Yes
PIM Sparse-Dense Mode (PIM-SDM) Yes
Multicast Source Discovery Protocol (MSDP) Yes
Remark 802.1p priority Yes
Remark ToS/DSCP Yes
Rate Limiting Yes
Time based QoS Yes
Power Input 100~240V, 50/60Hz, 2A
Modular Power Supply Yes
Power Slots 2
Redundant Power Supply Yes
Number of Queue 8
Queue Handling Yes
Strict Priority Queue (SPQ) Yes
Weighted Round Robin (WRR) Yes
Weighted Deficit Round Robin (WDRR) Yes
SPQ + WRR Yes
802.1Qaz Enhanced Transmission Selection (ETS) Yes
RIPv1 Yes
RIPng Yes
RIPv2 Yes
SSL Yes
SSH Yes
Broadcast/Multicast/Unicast Storm Control Yes
Port Security Yes
Traffic Segmentation Yes
IP-MAC-Port Binding (IMPB) Yes
IP Source Guard Yes
DHCP Snooping Yes
IPv6 Snooping Yes
Dynamic ARP Inspection (DAI) Yes
DHCPv6 Guard Yes
IPv6 Route Advertisement (RA) Guard Yes
IPv6 ND Inspection Yes
Duplicate Address Detection (DAD) Yes
D-Link Safeguard Engine Yes
L3 Control Packet Filtering Yes
NetBIOS/NetBEUI filtering Yes
DHCP Server Screening Yes
DHCP Client Filtering Yes
ARP Spoofing Prevention Yes
DoS Attack Prevention Yes
BPDU Attack Protection Yes
802.1D Spanning Tree (STP) Yes
802.1w Rapid Spanning Tree (RSTP) Yes
802.1s Multiple Spanning Tree (MSTP) Yes
BPDU Filtering Yes
Root Guard Yes
Root Restriction Yes
BPDU Restriction Yes
Loop Guard Yes
Physical Stacking Yes
Physical Stacking Bandwidth 80G
Units Per Physical Stack 4
Surge/Lightning Protection Yes
Surge/Lightning Protection (AC Power Inet) Vcom: 2KV Vdiff: 1KV
Surge/Lightning Protection (All Ethernet Ports) Vcom: 1KV
Maximum Heat Dissipation 557.94 BTU/hr
Dimension 441mm*44mm*380mm
Maximum Power Consumption 159.8 W
Operating Altitude up to 2000m
Operation Humidity 0% ~ 95% RH
Operation Temperature -5 ~ 50℃
Standby Power Consumption 85.1 W
Storage Humidity 0% ~ 95% RH
Storage Temperature -40 ~ 70℃
Weight DXS-3400-24TC: - 7.6 kg (with 2 PSU, 3 FAN modules) - 6.65 kg (with 1 PSU, 3 FAN modules) - 5.25 kg (no PSU and FAN modules) DXS-PWR300AC: - 1.01kg DXS-PWR300DC: - 1.01kg DXS-FAN100: - 0.144 kg
Network Time Protocol (NTP) Yes
Simple Network Time Protocol (SNTP) Yes
Precision Time Protocol (PTP) Yes (Transparent Clock)
D-Link Single IP Management (SIM) Yes
Units Per SIM Stack 32
802.1Q VLAN Yes
VLAN Groups 4K
Port-based VLAN Yes
802.1v Protocol-based VLAN Yes
MAC-based VLAN Yes
Subnet-based VLAN Yes
Voice VLAN Yes
Auto Surveillance VLAN Yes
GVRP Yes
Double VLAN (Q in Q) Yes
Selective Q in Q Yes
VLAN Translation Yes
ISM VLAN (Multicast VLAN) Yes
Asymmetric VLAN Yes
Private VLAN Yes
VLAN trunking Yes
VRRP Yes
High Availability and Flexibility

High Availability and Flexibility

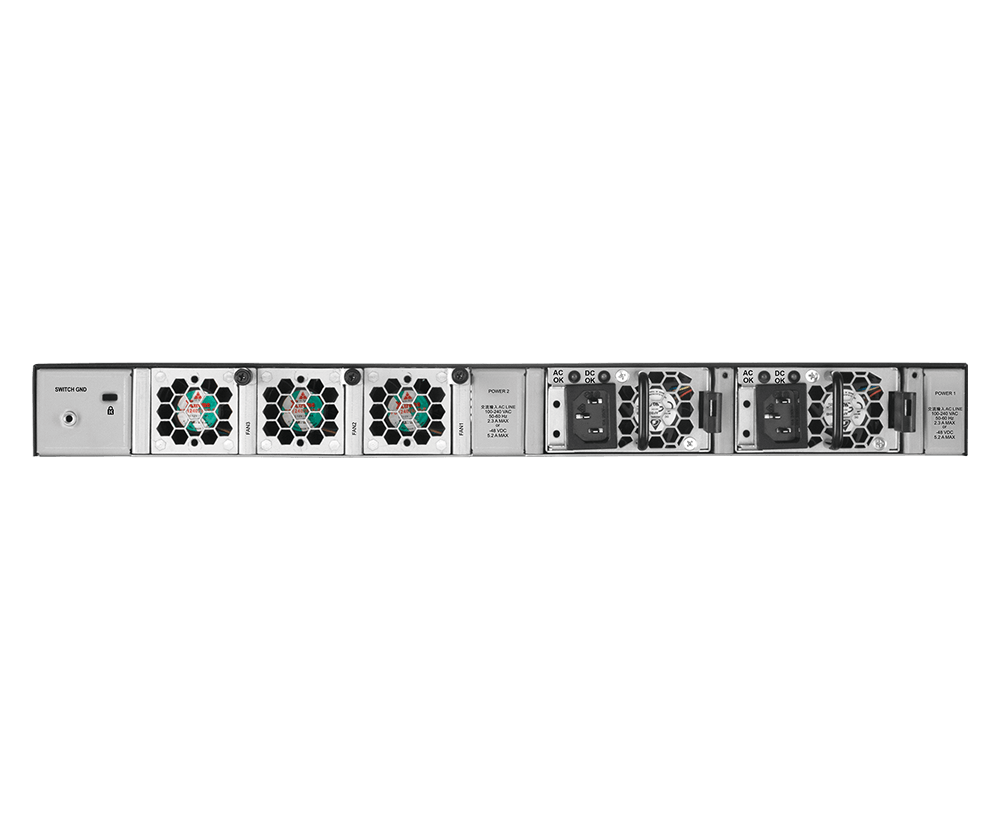

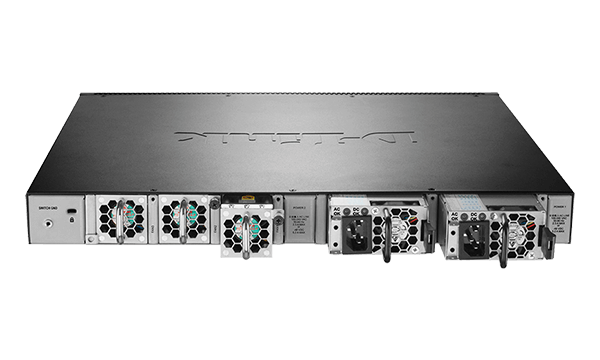

The DXS-3400 Series switches feature a modular fan and power supply design for a high availability architecture. The hot-swappable design means that fans and power supplies can be replaced without affecting switch operation. Physical and virtual switch stacking allow the switches to be managed from a single IP address and provide redundancy for connected devices. The Switch Resource Management (SRM) feature allows the hardware table size to be changed, so that switch functions can be optimized based on the use of the switch.

keyboard

Flexible Management With Multiple Software Images

The DXS-3400 Series is designed for use with two different software images: the Standard Image (SI) and the Enhanced Image (EI). The Standard Image provides core SMB and SME functionality. The Enhanced Image supports all Standard Image features, in addition to advanced L3 routing for enterprise integration. With multiple software images, only the required features need to be purchased, providing a flexible approach to software licensing

Auto sensing

Lossless Ethernet

Data Center Bridging (DCB) is an essential set of enhancements to Ethernet for networking in data center environments. The DXS-3400 Series switches support several core components of Data Center Bridging (DCB) such as IEEE 802.1Qbb Priority-based Flow Control, IEEE 802.1Qaz Enhanced Transmission Selection, and IEEE 802.1Qau Congestion Notification.

Energy Saving

Energy-Efficient

The DXS-3400 Series switches feature front-to-back airflow which facilitates the building of energy-efficient data centers. The front-to-back airflow optimizes air circulation inside the rack, allowing hot and cold isles in data centers, increasing energy efficiency in comparison to a mix of front-to back and side-to-side airflow. The switches also feature in-built smart fans; internal heat sensors monitor and detect temperature changes and react accordingly by utilizing different fan speeds for different temperatures.

DXS-3400 Series

Product
Interface
Performance
Switch Capacity
Max. Packet Forwarding Rate
PoE
PoE Budget
Technical Specification
Maximum Heat Dissipation
Maximum Power Consumption
MTBF
  • 20 x 10GBASE-T ports
  • 4 x 10GBASE-T/SFP+ Combo ports
  • 20 x 10G SFP+ ports
  • 4 x 10GBASE-T/SFP+ Combo ports
Performance
480 Gbps
480 Gbps
357.12 Mpps
357.12 Mpps
PoE
NO
NO
Technical Specification
557.94 BTU/hr
388.39 BTU/hr
159.8 W
118.6 W
NO
NO
