Unified Wireless N Simultaneous Dual-Band PoE Access Point

DWL-6600AP, DWL-6600AP/PC

  • Product Status (Revision A): End of Life

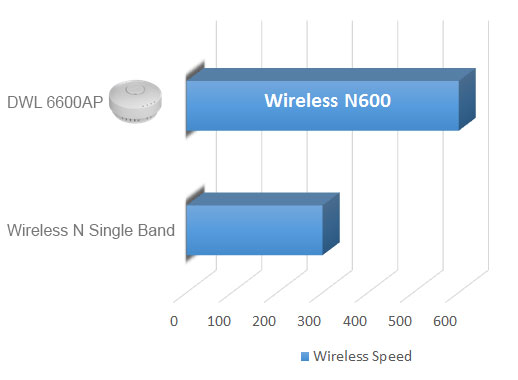

Performance without Compromise

Using the latest generation of Wireless N technology, the DWL-6600AP delivers great wireless performance and coverage in a compact design.

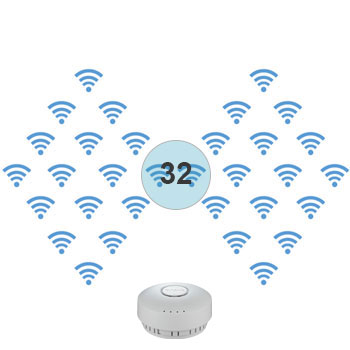

Broadcast on 32 SSIDs Simultaneously

Supports up to 32 SSIDs, 16 per radio, including Station Isolation

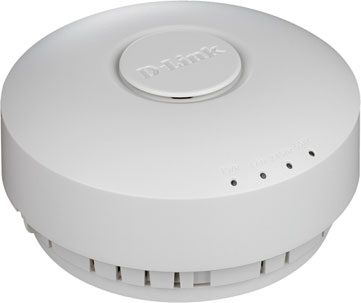

Smart Design

The DWL-6600AP has an discrete design, similar in look to a smoke detector, so that it can be mounted easily onto any wall or ceiling without looking out of place in a office or home. DWL-6600AP comes with a choice of fire regulations compliant plenum-rated (DWL-6600AP) or non-plenum (DWL-6600AP/PC) housing.

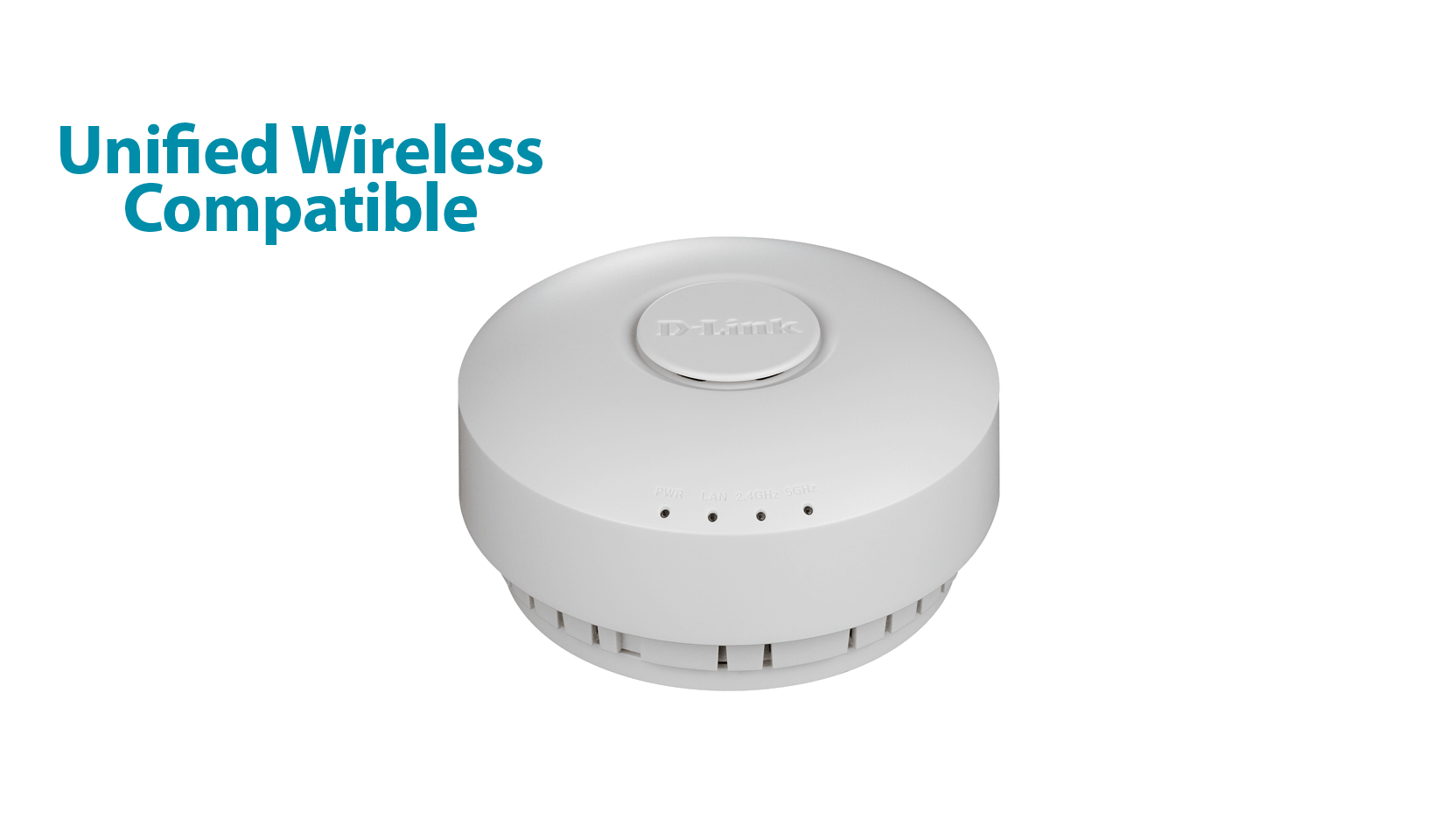

Managed using D-Link’s Wireless Controller or Unified Wireless Switch

All D-Link’s Unified Wireless Access Points can be managed using D-Link’s Wireless Controller or Unified Switch.

Simultaneous Dual-Band Wireless

Supports up to 300Mbps for the 5Ghz band and up to 300Mbps for the 2.4Ghz band

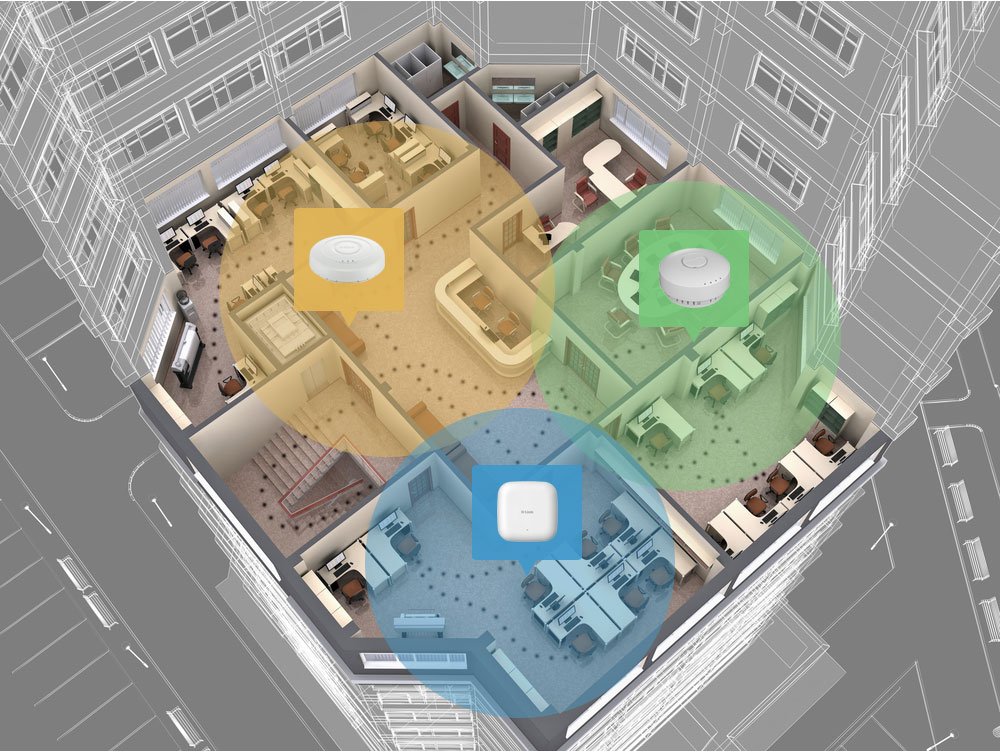

Fast seamless roaming

Combining the DWL-6600AP with a Unified Wireless Switch or Controller allows you to create a wireless network that enables people to move freely around a building without losing connectivity.

Secure and Green Design

The DWL-6600AP has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.

Versatility built as Standard

Whether you intend to use a single Access Point or roll out a large corporate network, the DWL-6600AP coupled with a D-Link Wireless Controller or Switch makes managing your wireless network simple.

Product Comparison


  DWL-2600AP DWL-3600AP DWL-6600AP DWL-8610AP
Wireless Standard B, G, N B, G, N B, G, N B, G, N, AC
Frequency 2.4GHz 2.4GHz 2.4GHz, 5GHz 2.4GHz, 5GHz
2.4GHz Throughput 300Mbps 300Mbps 300Mbps 450Mbps
5GHz Throughput - - 300Mbps 1300Mbps
Aspect Indoor Indoor Indoor Outdoor
Range* 100m 100m 100m 100m
Suggested number of users Up to 25
users
Up to 40
users
Up to 75
users
Up to 250
users

* Range indicates the maximum distance where the highest throughput can be achieved, anything beyond this distance results in a loss of throughput.

Type
Hardware-managed AP
Wireless standard
Wireless N
Frequency band mode
Dual-band simultaneous
Wireless speed
300 Mbps 2.4 GHz
300 Mbps 5 GHz
Antenna type
Embedded omni-directional antennas

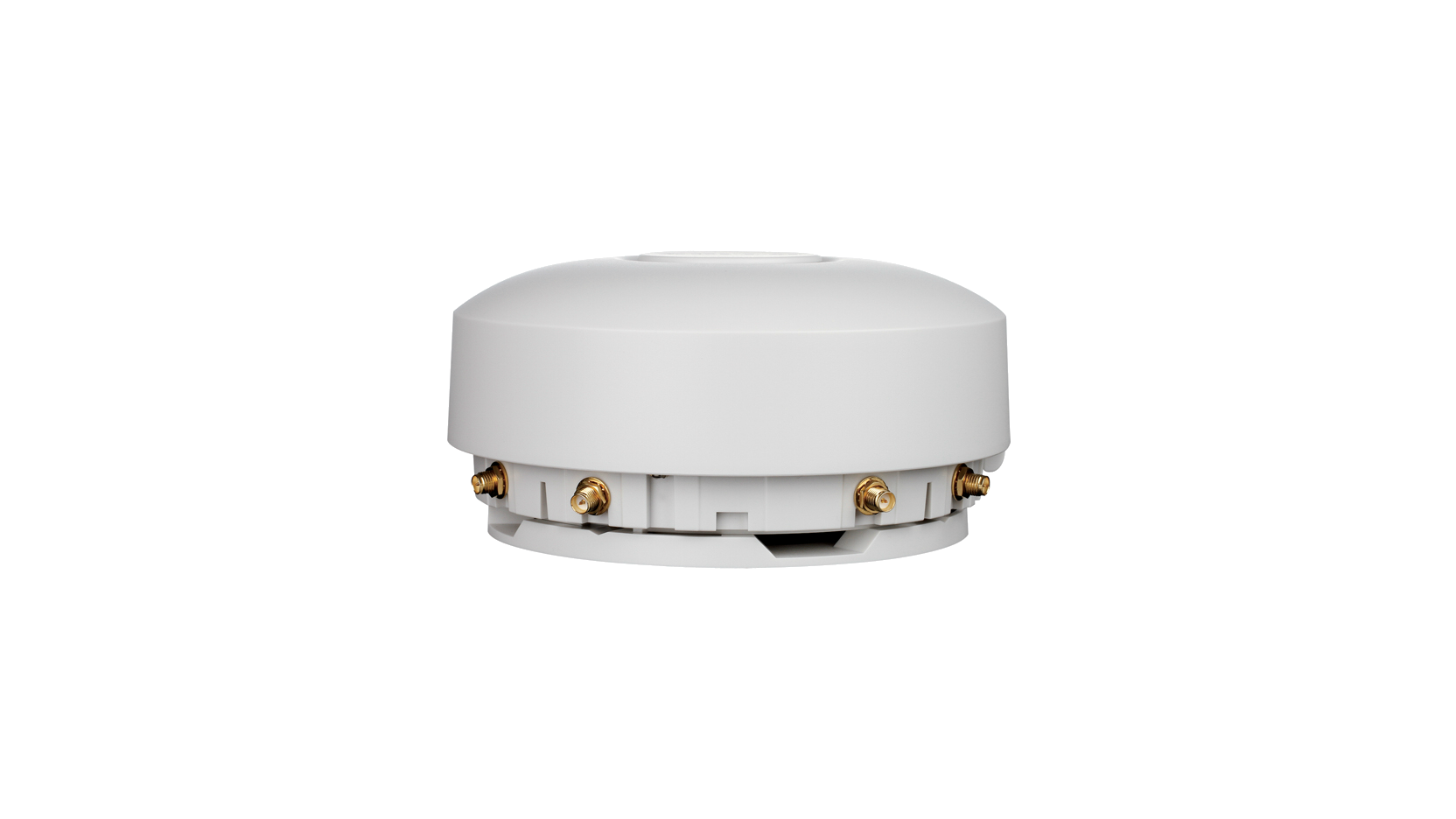

External antenna connectors
Antenna gain
5 dBi for 2.4 GHz
6 dBi for 5 GHz
Power-over-Ethernet
Yes
Wired interface
1 x Gigabit Ethernet LAN
Console port
Supported
Indoor/outdoor
Indoor
Type of housing
Plastic
Plenum rated (UL-2043)
Supported
Wireless modes
Access Point (AP)
WDS bridge
WDS with AP
Advanced features
MIMO
Maximum number of SSIDs
16 per radio
Auto channel selection
Supported
WMM-PS/802.11e (U-APSD)
Supported
Wi-Fi scheduler
Supported
AP traffic load balance
Supported
L2 roaming
Supported
WEP 64/128 bit
Supported
WPA/WPA2-Personal/Enterprise
Supported
TKIP/AES encryption
Supported
WPA_WPA2_PSK over WDS
Supported
WLAN partition
Supported
SSID broadcast disable
Supported
Rogue AP detection
Supported
Station isolation
Supported
MAC address filtering
Supported
802.1X authentication
Supported
Controller managed features
AP load balance
Auto-channel, auto-RF management
Captive portal
L2/L3 fast roaming
Rogue AP mitigation
View neighbour AP information
WIDS/WIPS
Supported D-Link Wireless Controllers/Unified Switches
DWC-1000
DWC-2000
DWS-3160
DWS-4026
Management platform
Hardware controller: DWC Series
WEB
Supported
SNMP (v1, v2c, v3)
Supported
CLI
Supported
Telnet
Supported
SSH
Supported
Syslog
Supported
Central management (through AP Manager II and/or D-View Wireless Control Module)
Supported

Support

This product was phased out on: 31/07/2019
This product's last date of support is on: 29/07/2024
