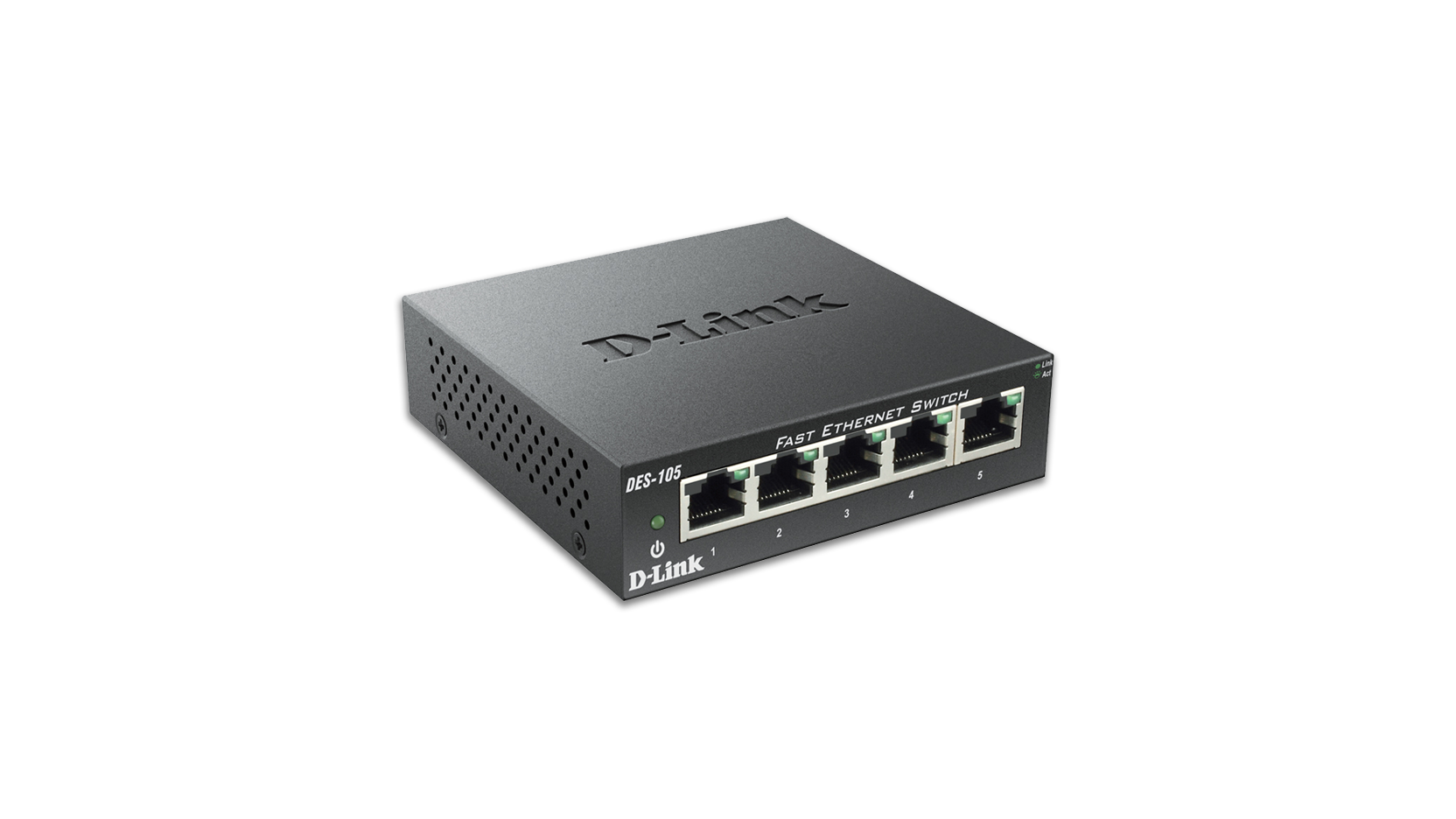

5-Port Fast Ethernet Unmanaged Desktop Switch
DES-105
- Product Status (Revision A): Live
The DES-105 5-Port Fast Ethernet Unmanaged Desktop Switch is a 5-port 10/100 Mbps Fast Ethernet switch that allows you to quickly set up a wired network. Connect the DES-105 to multiple computers together to share files and folders, or connect it to a router to share an Internet connection.
Where to buy
The DES-105 5-Port Fast Ethernet Unmanaged Desktop Switch is a 5-port 10/100 Mbps Fast Ethernet switch that allows you to quickly set up a wired network. Connect the DES-105 to multiple computers together to share files and folders, or connect it to a router to share an Internet connection.
Auto-Sensing 10/100 Ports
The DES-105 uses auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet devices to create an integrated network. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX, as well as between full and half-duplex, allowing you to get the maximum speed possible for each device connected to your network.
Auto MDI/MDIX Crossover

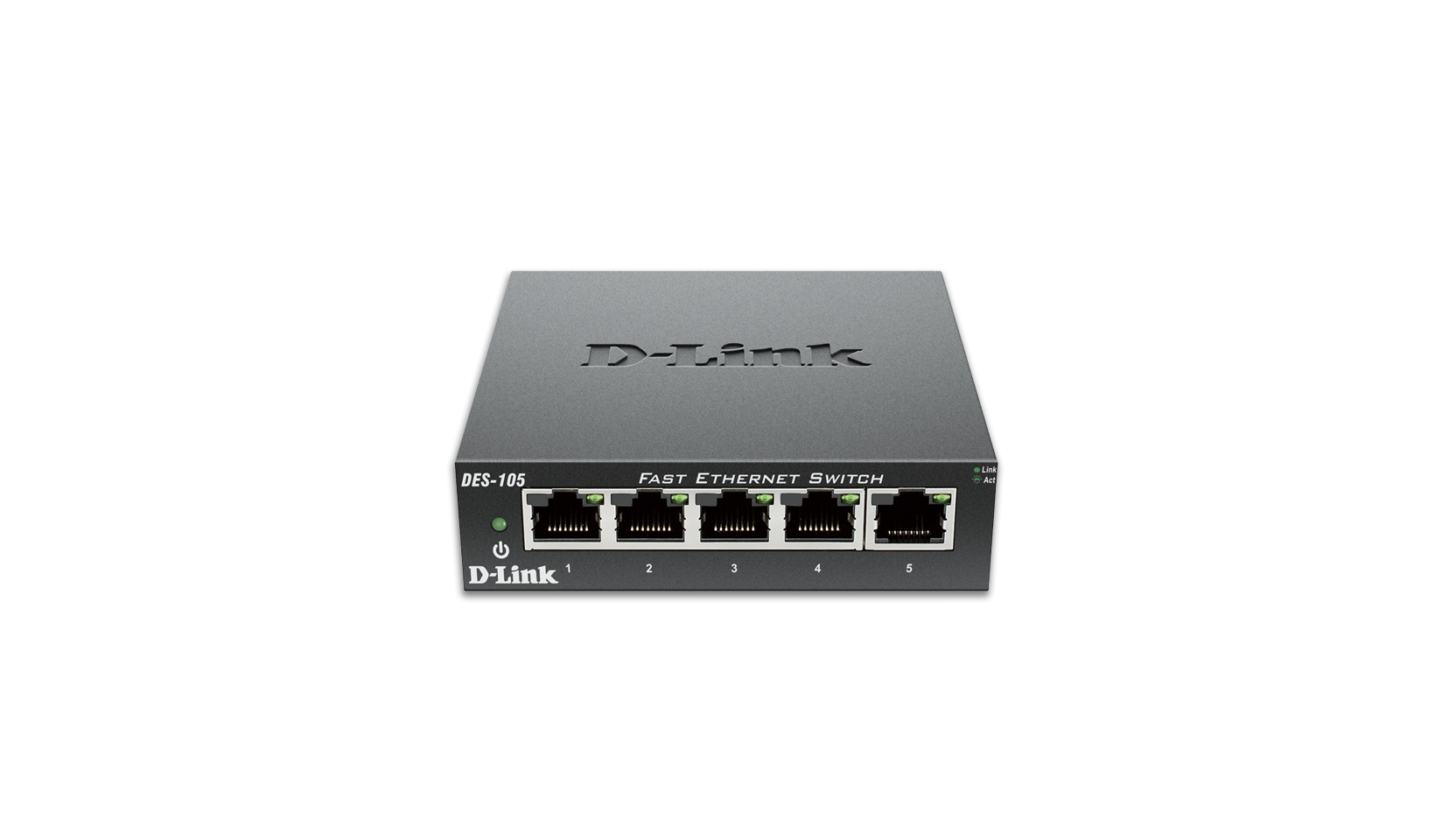

All of the ports on the DES-105 support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables. In addition, the DES-105 features multiple front, easy-to-access Ethernet ports with two colour LED indicators per port to easily distinguish link status.
Flow Control for Secure Transmission
When a port reaches its receiving buffer capacity, the 802.3x flow control feature activates to minimize dropped packets. By minimizing the number of dropped packets, the switch provides a more reliable connection for all of your connected devices while surfing the web, playing games, or accessing media.
Think Green
The DES-105 is a plug-and-play networking switch that offers D-Link’s Green Technology to save energy and reduce heat, which in turn extends product life without sacrificing performance or functionality. The switch supports IEEE 802.3az Energy-Efficient Ethernet (EEE) which detects when a connected computer is shut down or when there is no Ethernet traffic, in which the switch will proceed to power down the idle port, saving a substantial amount of power.
Specification
Type
|
Unmanaged |
---|---|
Number of ports
|
5 to 14 ports |
Main type of ports
|
100BASE-TX Fast Ethernet |
Switching capacity
|
1 Gbps |
Fanless
|
Supported
|
D-Link Green
|
Supported
|
802.3az Energy-Efficient Ethernet support
|
Supported
|
Form Factor
|
Desktop |
Housing
|
Metal |
Jumbo frame
|
Supported
|
MAC address
|
2K |
Number of QoS queues per port
|
2 |
Support
Version | Date | Type | File Size | |
---|---|---|---|---|
Datasheet (English) | - | 0.82mb | Download |
Version | Description | Date | Type | File Size | |
---|---|---|---|---|---|
Manual (English) | Manual (English) | - | 0.20mb | Download |
Version | Description | Date | Type | File Size | |
---|---|---|---|---|---|
1.01 | QIG |
2/25/2013 | 0.40mb | Download |
Version | Description | Date | |
---|---|---|---|
Reach 1.1 RevC2 | - | 1/11/2022 | Download |
CE doc 1.40 RevC2 | CE document | 10/6/2021 | Download |
Reach 1.00 RevC2 | - | 6/7/2021 | Download |
CE doc 1.30 RevC2 | CE document | 1/20/2020 | Download |
CE doc 1.20 RevC2 | CE document | 8/6/2019 | Download |
CE doc 1.10 Revision C2 | CE document | 11/9/2018 | Download |
Switching Cheat Sheet | - | 10/9/2014 | Download |
CE doc Revision B1 | CE document | 9/12/2012 | Download |
CE doc Revision B2 | CE document | 9/12/2012 | Download |
