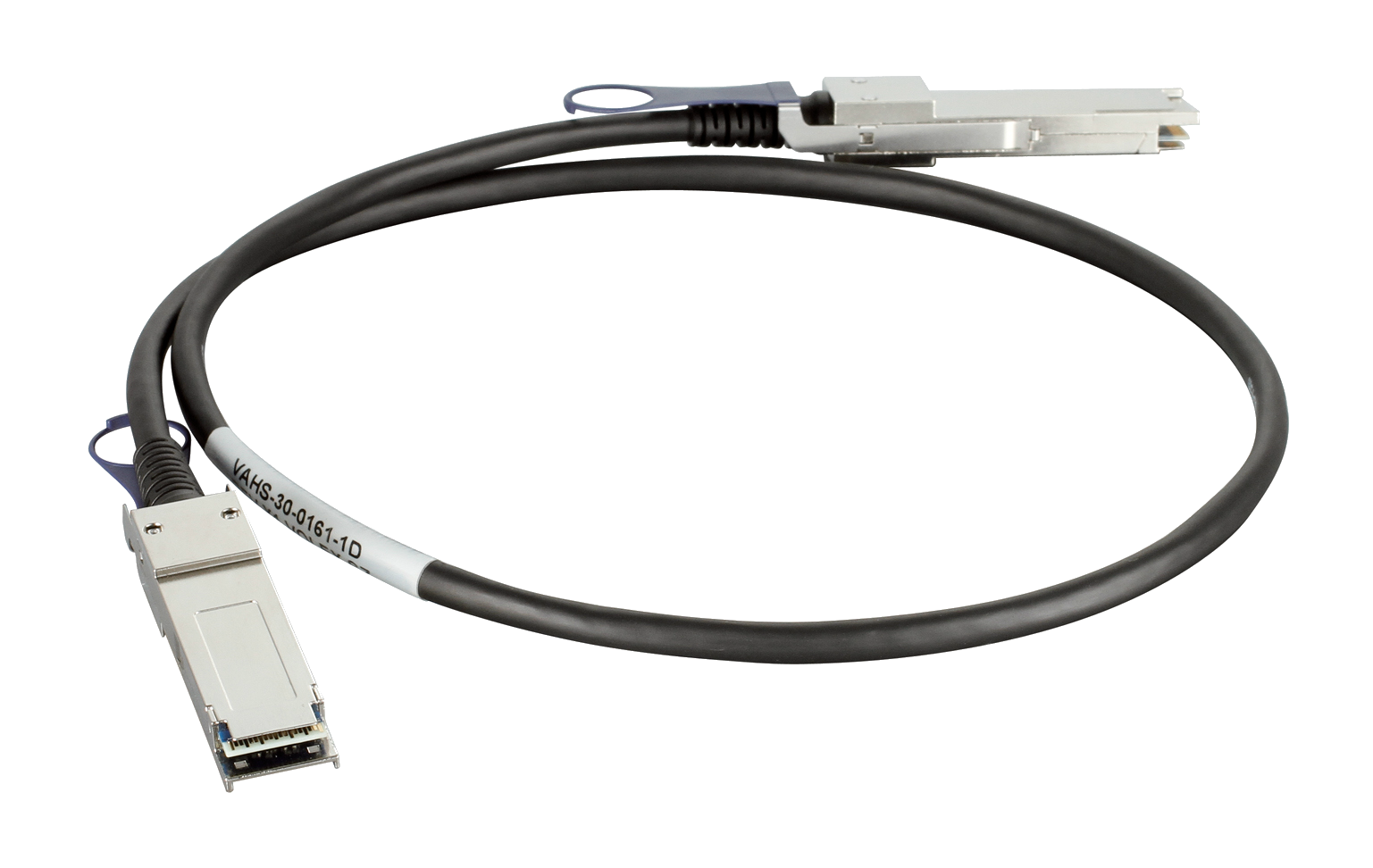

40G QSFP+ to QSFP+ 1 m Direct Attach Stacking Cable

DEM-CB100QXS

  • Product Status: End of Sale

The 40G Passive QSFP+ Direct Attach Cable is a high performance, high bandwidth and cost-effective connection solution that supports 40G Gigabit Ethernet. The 40G Passive QSFP+ Direct Attach Cable is designed to support high-density connections for switches with 40G interface, much faster than SFP+.

Ideal for High-Bandwidth Operations

The 40G Passive QSFP+ Direct Attach Cable supports speeds of up to 40 Gbps, while having lower crosstalk and power consumption than other cables. This makes it an optimal solution for handling high bandwidth transmission within short distances such as within a rack or between racks inside energy-efficient data centers.

Quad Small Form-factor Pluggable Plus Format

The D-Link 40G Passive QSFP+ Direct Attach Cable uses Quad Small Form-factor Pluggable Plus format (QSFP+) connectors, which integrate four transmitting and four receiving channels. The QSFP+ cable assemblies can replace four standard SFP+ cable assemblies, resulting in higher port density, cost efficiency, and a reduction in power savings compared to standard SFP+.

Save on Costs

The D-Link 40G Passive QSFP+ Direct Attach Cable features QSFP+ connectors on both ends, thus eliminating the need for expensive QSFP+ transceivers. This makes it more cost-effective than fiber cables which must use QSFP+ transceivers.

Related Products

24-Port Top of Rack 10 Gigabit Managed Switch with Expansion Slot
DXS-3600-32S/SI, DXS-3600-32S-SE-LIC, DXS-3600-EM-4XT, DXS-3600-EM-Stack, DXS-3600-FAN-FB, DXS-PWR300AC
Find out more
40G Passive QSFP+ Twinaxial Direct Attach Cable, 3 meter
DEM-CB300QXS
Find out more
40GBase-SR4 QSFP+ Multi-mode Transceiver, 100 m / 150 m
DEM-QX01Q-SR4
Find out more
40GBASE-LR4 QSFP+ Single-Mode Transceiver, 10 km
DEM-QX10Q-LR4
Find out more

Features

Connectivity

  • QSFP+ (Quad Enhanced Small Form-factor Pluggable)
  • 40 Gbps Gigabit Ethernet
  • Fully Compliant with the following standards:
    • SFP MSA (Multi-Source Agreement)
    • EIA 364
    • UL 94
    • SFF-8436
    • SFF-8431
    • EIA-364-1000.01

Technical Specifications

General

Device Rate

  • 40 Gbps Gigabit Ethernet

Connector Type

  • QSFP+ Cable Assembly

Cable Length

  • 1 metre

Wire AWG

  • 30 AWG

Physical

Minimum Cable Bend Radius

  • 32 mm (1.26 inches)

Cable Characteristic Impedance

  • 100 Ohms

Voltage

  • 30 V AC

Current

  • 0.5 A

Temperature

  • Operating: -40 to 85 °C (-40 to 185 °F)

Certifications

  • SFP MSA (Multi-Source Agreement)
  • EIA-364-1000.01
  • SFF-8436
  • EIA 364
  • UL 94
  • SFF-8431

Support

This product was phased out on: 11/08/2022
This product's last date of support is on: 11/08/2027
Version Description Date
Reach 1.01 RevC1 - 8/24/2021 Download
