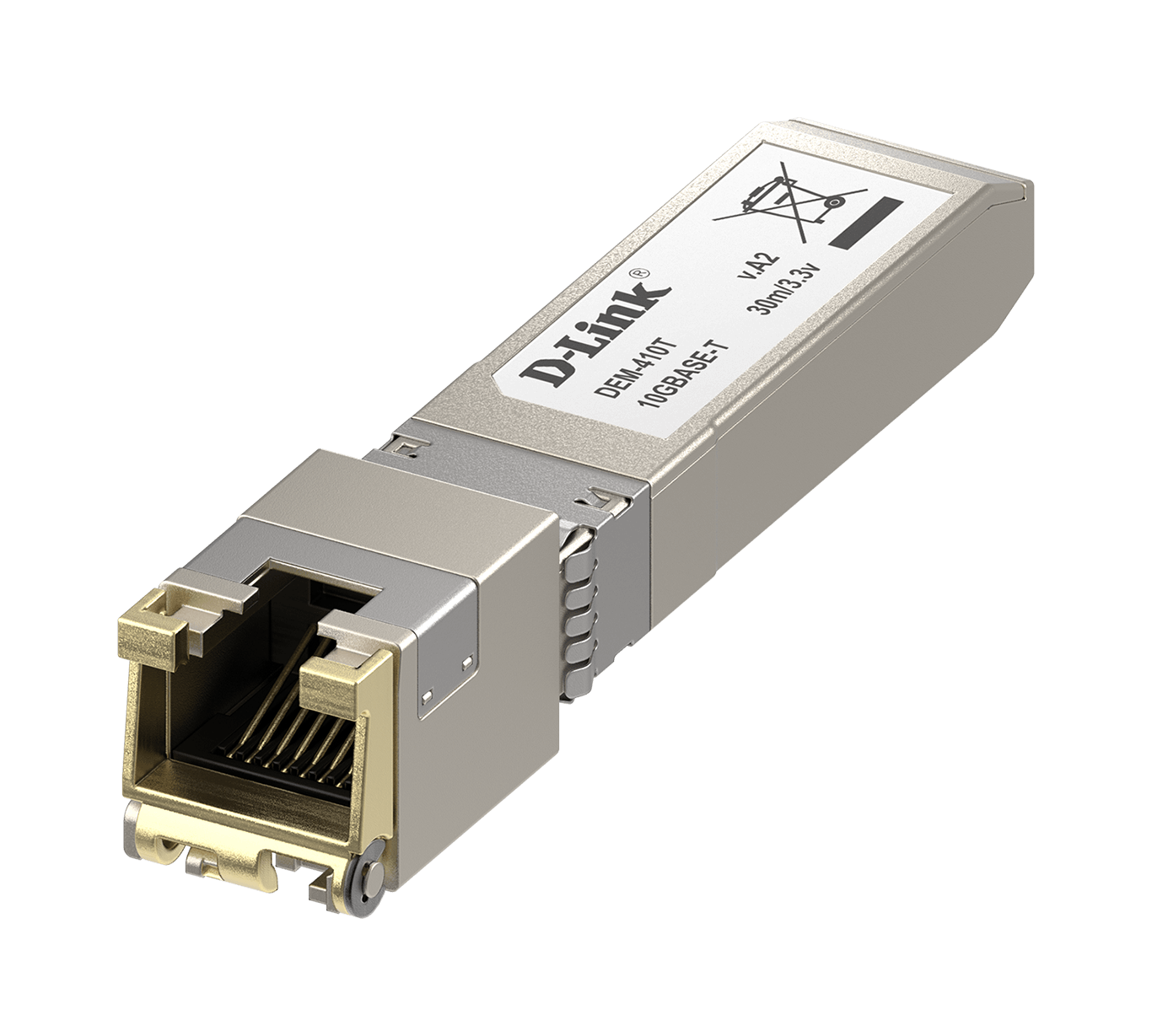

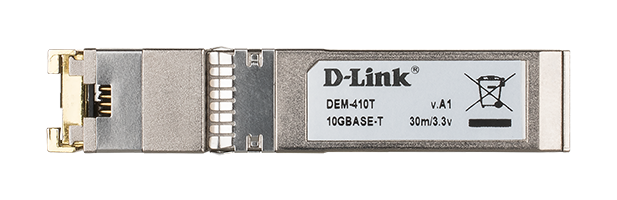

SFP+ 10GBASE-T Copper Transceiver
DEM-410T
- Product Status: Live
Where to buy
The 10GBASE-T SFP+ transceiver module delivers the flexibility and port density well known to the SFP+ form-factor, utilising Cat 6a UTP structured cabling for network connectivity. It is a power-optimised solution for lengths up to 30m, engineered to deliver a minimum power saving of at least 0.5W per port compared to an equivalent embedded 10GBASE-T RJ45 for the same length (Cat 6a, up to 30m). These power savings can add-up in ToR, mid-row and end-of-row switch connectivity.
It’s the alternative compared with standard SFP+ SR/LR fibre optics, which uses standard-based technology with the familiar RJ45 connector and provides backward compatibility with legacy networks.
Related Products
Specs
Features
- Hot Pluggable
- MSA Compliant: SFF-8431, SFF-8432
- RoHS Compliant
Specification
Compliant Standard
- IEEE 802.3an 10GBase-T IEEE
- 802.3ab 1000BASE-T
Transceiver Type
- RJ45
Max. Transmit Distance
- 10GBASE-T up to 30m with Cat 6a
- 1000BASE-T up to 100m with Cat 5e
Speed
- 10Gbps
Operating Power (V)
- 3.3V
Max Input Current (mA)
- 780mA
MTBF (hours)
- 217,186 hours
Operation Temperature (°C)
- 0~65℃
Storage Temperature (°C)
- -40~85℃
Operating Humidity (%)
- 5%~95%
Storage Humidity (%)
- 5%~95%
Dimension ( W x D x H mm)
- 13.7mm x 68mm x 8.5mm
Weight (g)
- 20g
Emission (EMI)
- FCC Class B, CE Class B VCCI, Class B
Safety
- LVD
