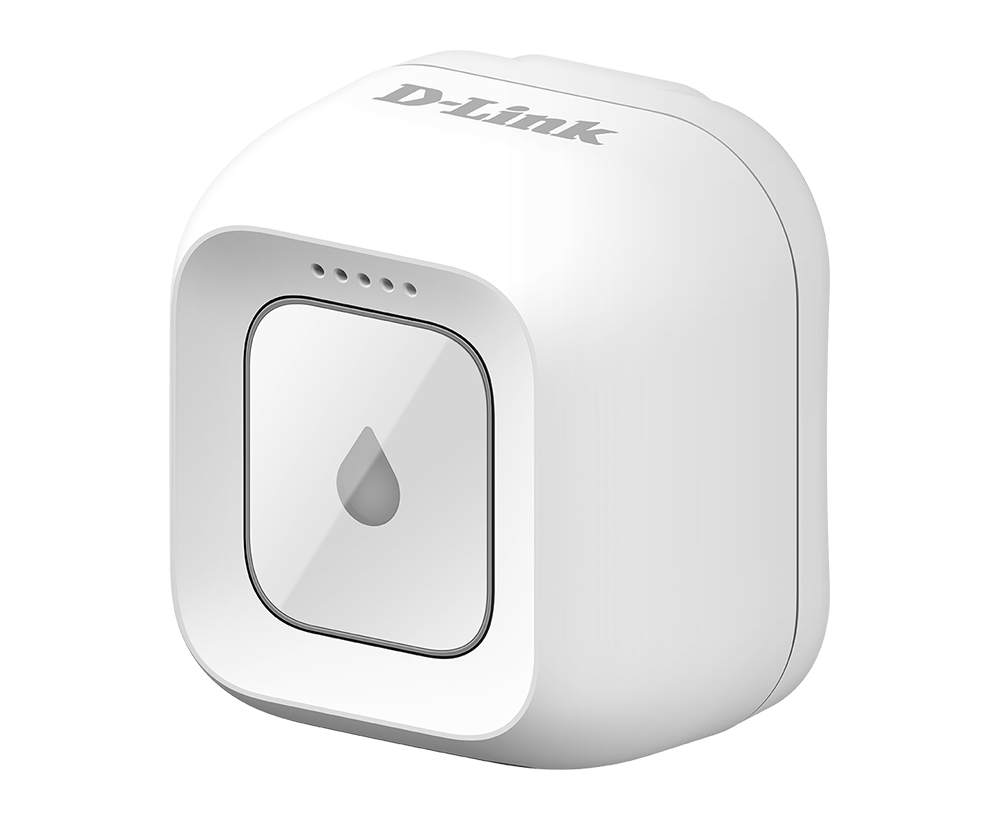

AC Powered Wi-Fi Water Leak Sensor

DCH-S162

  • Product Status (Revision A1_v100): Live
  • Connects to your existing Wi-Fi router, no hub required
  • Plug into any standard AC Powered (100-240Vac, 50/60Hz)
  • Integrated sub-GHz hub for long-range sensors (over 300 ft. indoors or 1000 ft. in open space)

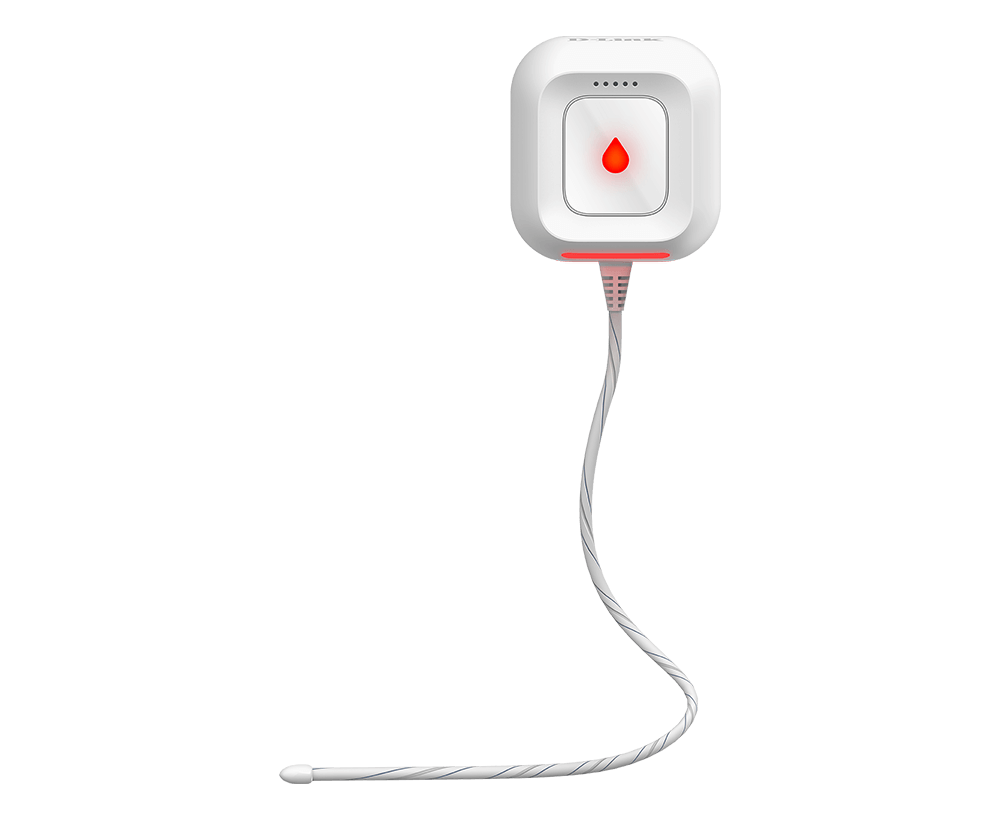

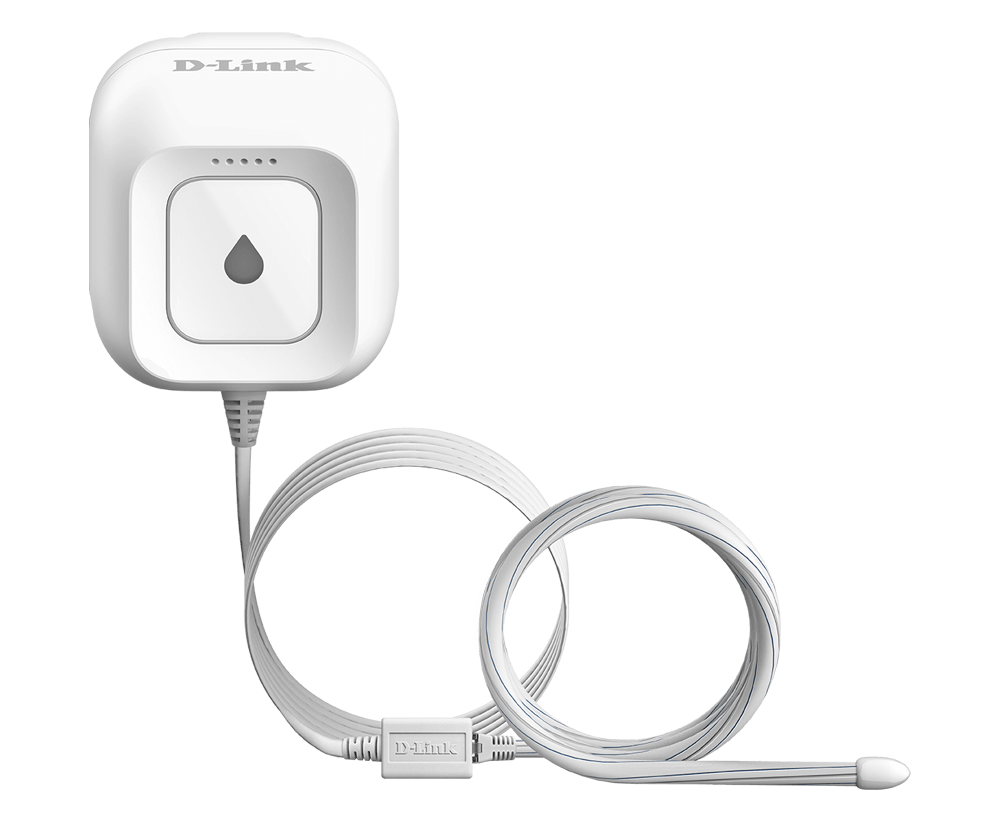

  • Detachable 1.5m (0.5m sensing) extendable cable with RJ11 connector
  • Connect up to 16 DCH-S163 water sensors
  • Strobe LED provides visual alert
  • Built-in 100 dB siren for audio alerts
  • Built-in Bluetooth™ for faster setup
  • Works with the free mydlink™ app to provide Rich Notifications, straight to your phone
  • Always up to date with over-the-air firmware upgrades
  • Works with the Google Assistant

Download the datasheet.

Where to buy

Smart Water Damage Prevention for Your Home

AC Powered Wi-Fi Water Leak Sensor

DCH-S162

Why you Want it

Detects Water Leaks

Instant push notification when water is detected

Smart Home Ready

Works with mydlink Smart Home devices and Google Assistant

Works with your Wi-Fi

Connects to your existing Wi-Fi router, no hub required

AC Plugin Sensor Hub

Built-in long-distance wireless hub (up to 1000 ft)

LED Strobe Light

Visual alerts when water is detected

Built-in 100dB Siren

Audible alerts when water is detected

Expandable Solution

Place up to 16 DCH-S163 long-range sensors in leak-prone areas

Simple BLE Setup

Built-in Bluetooth™ for faster setup

Meet The All-New Water Sensor

Household appliances, dodgy rooves and frozen pipes cause plenty of water damage that’s costly to repair,especially
when you don’t know they’re happening, and the leak is left to wreak havoc.

This handy water sensor helps you nip those troublesome leaks in the bud, alerting you before a few drips turn into a
tidal wave. Mitigate water damage, save repair costs, and maybe even cut your insurance premiums!

400png

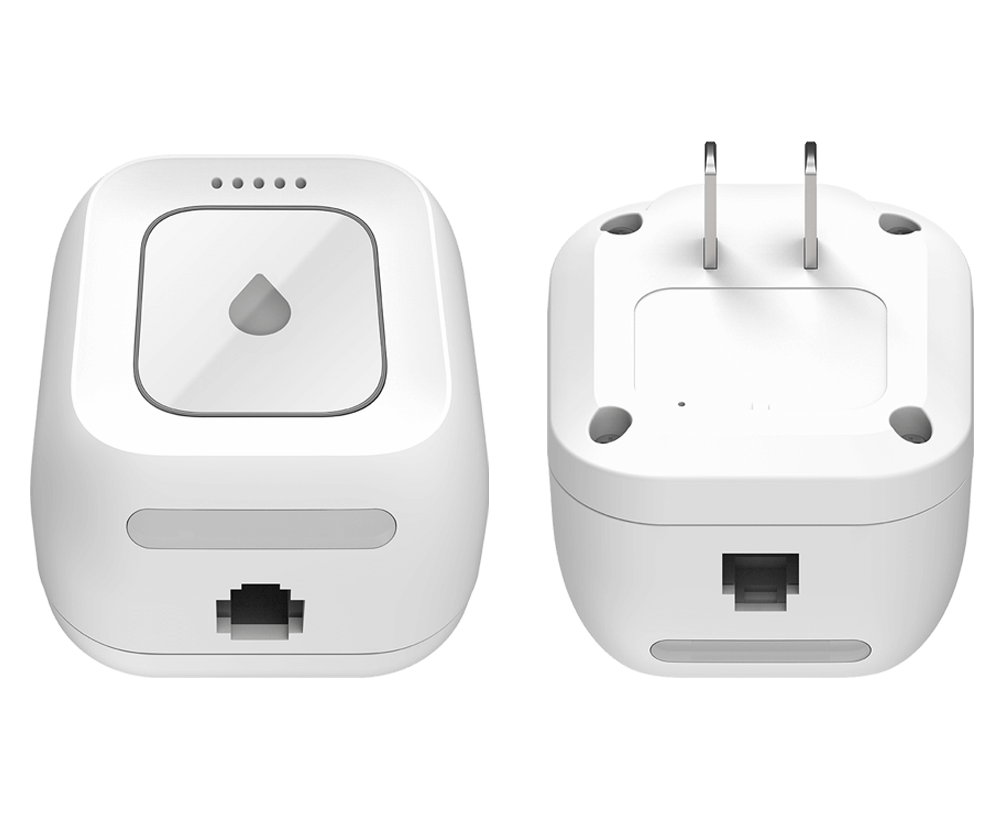

Setting an Example In What Compact Design Really Is

The DCH-S162 includes a strobe light, siren, mute/reset button, an RJ11 interface and onboard Bluetooth, you’ll be pleasantly surprised how we managed to pack so much in. All while only occupying a single power socket!

03bannersettingmodchs162

Expandable Coverage

You can conveniently expand your coverage area by adding additional DCH-S163 sensors (sold separately or available with the DCH-S1621KT Water Sensor Kit).

The DCH-S163 Battery-Powered Long-Range Water Sensor Add-on operates on interference resistant Sub-GHz bands, empowering it to work in conjunction with the central hub, even from afar1.

Compact and water resistant, it can be slipped under common appliances and placed in areas of interest: the basement, garage or even your garden shed.

1 DCH-S163 needs to be used in conjunction with a central hub, with a distance of 1,500 ft. in an open area and 300 ft. indoors

Catch Those Leaks Early


Perfect Water Heater

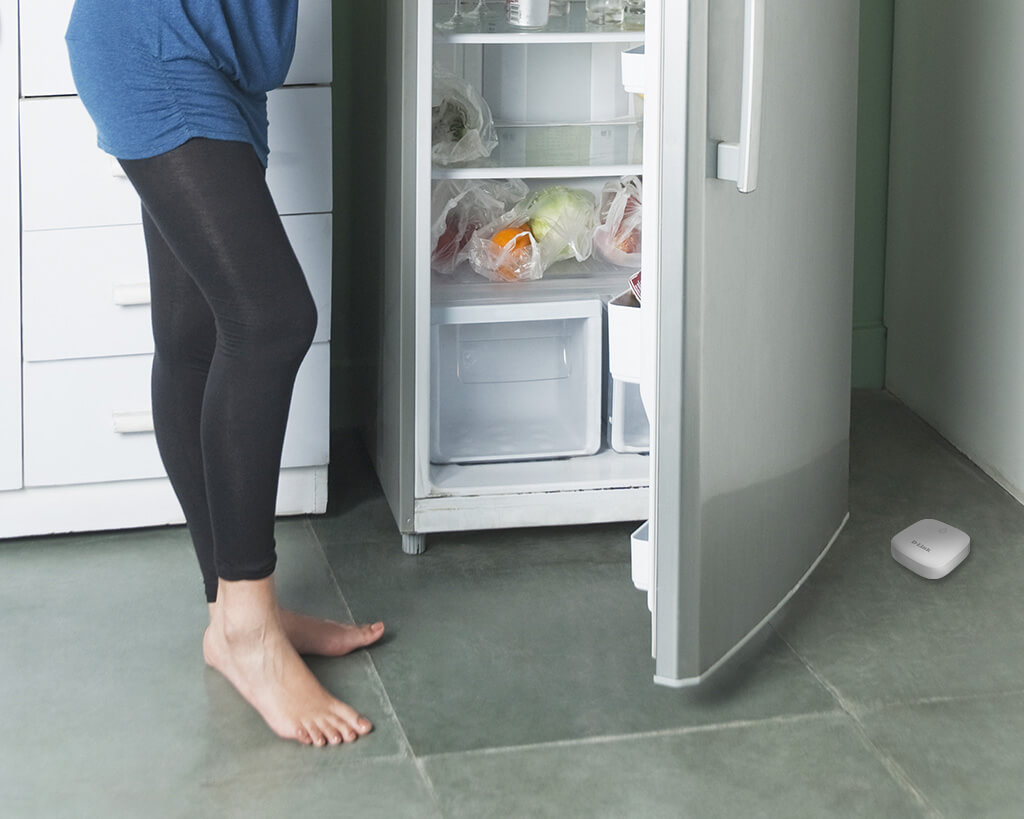

Refrigerator

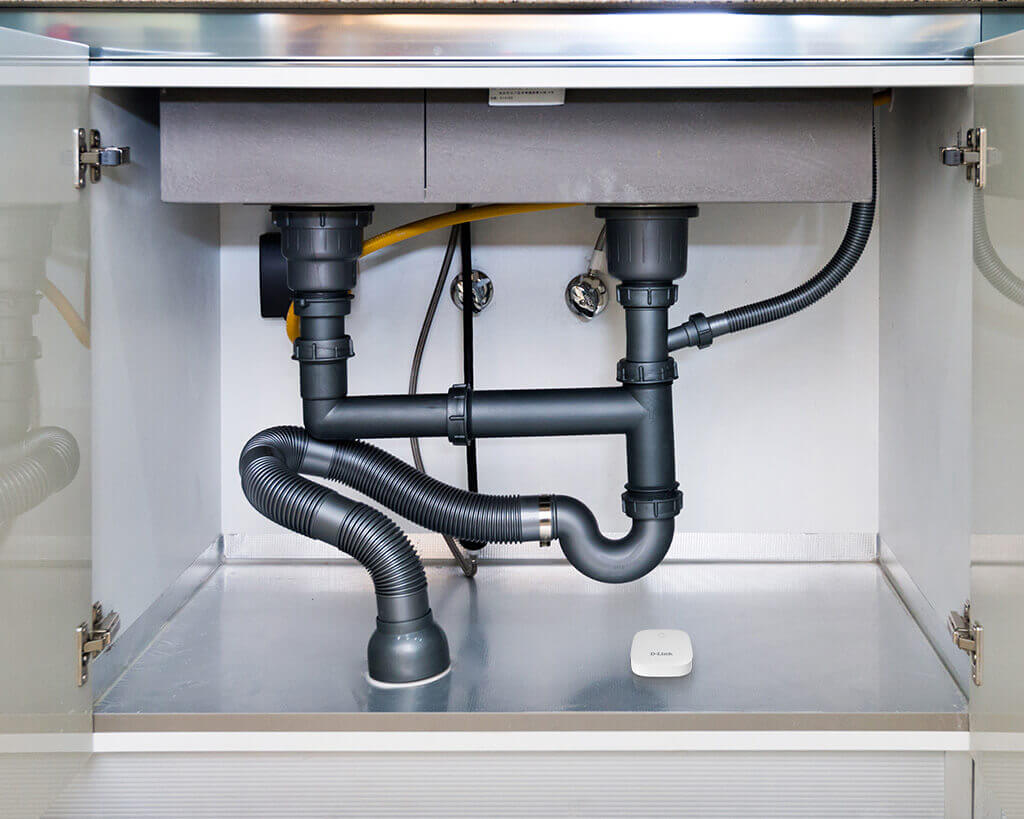

Sink


Washing Machine

Leak Detected!

Your water detector kit lets you know immediately if anything is out of the ordinary.

. Strobe Light
. Built-in 100dB Siren
. mydlink™ Rich Notification

400png

How it works

  1. Open the mydlink app, then select "Add Device" and follow the on-screen steps.
  2. Please your hub (DCH-S162) in a centeral location where you also need to detect leaks.
  3. Place Long-Range Sensors (DCH-S163) in locations of potential leaks, such as the basement, garden shed.
  4. Relax! Your trusty home assistant mydlink has the rest covered.

More Help Around The House

Make your home life easier by setting up home automation with mydlink™ combination actions. Turn a light on automatically when a flood is detected and send an alert to your mobile phone.

Create ‘recipes’ of actions, letting your smart home devices interact with each other to give you more control and help protect your property from floods.

Let your Google Assistant inform you when there's a water leak.

Google Assistant

Related Products

DCH-S1621KT
Whole Home Smart Wi-Fi Water Leak Sensor Kit
DCH-S1621KT
Find out more
Battery-Powered Long-Range Water Sensor Add-on
DCH-S163
Find out more
DCS-8302LH Full HD Outdoor Wi-Fi Camera - front view.
Full HD Outdoor Wi‑Fi Camera
DCS-8302LH
Find out more
Antenna
2 x internal antennas
Certifications
cUL

FCC

IC

RoHS
Device Management
mydlink™ app
Dimensions
58 x 54 x 57 mm
Interfaces
Bluetooth Low Energy 4.2

IEEE 802.11n/g wireless

Sub-GHz wireless
Power Supply
100-240 Vac

50/60 Hz

type A plug
Product Description
Compact AC Powered Wi-Fi Water Sensor
Standards
802.11n/g wireless
Weight
72 g
Wireless Frequency Range
2.4 GHz to 2.4835 GHz

Support

Version Date Type File Size
Datasheet - PDF 0.46mb Download
