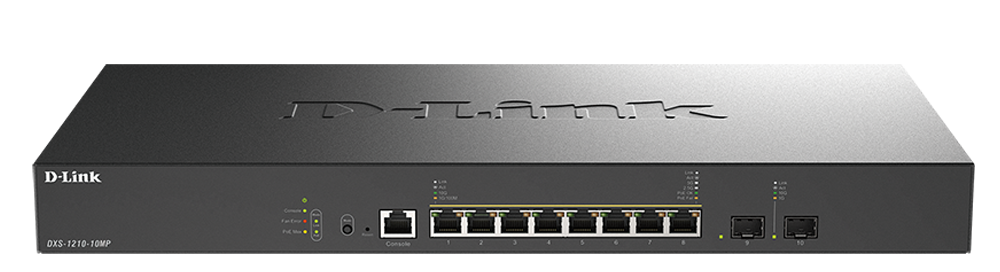

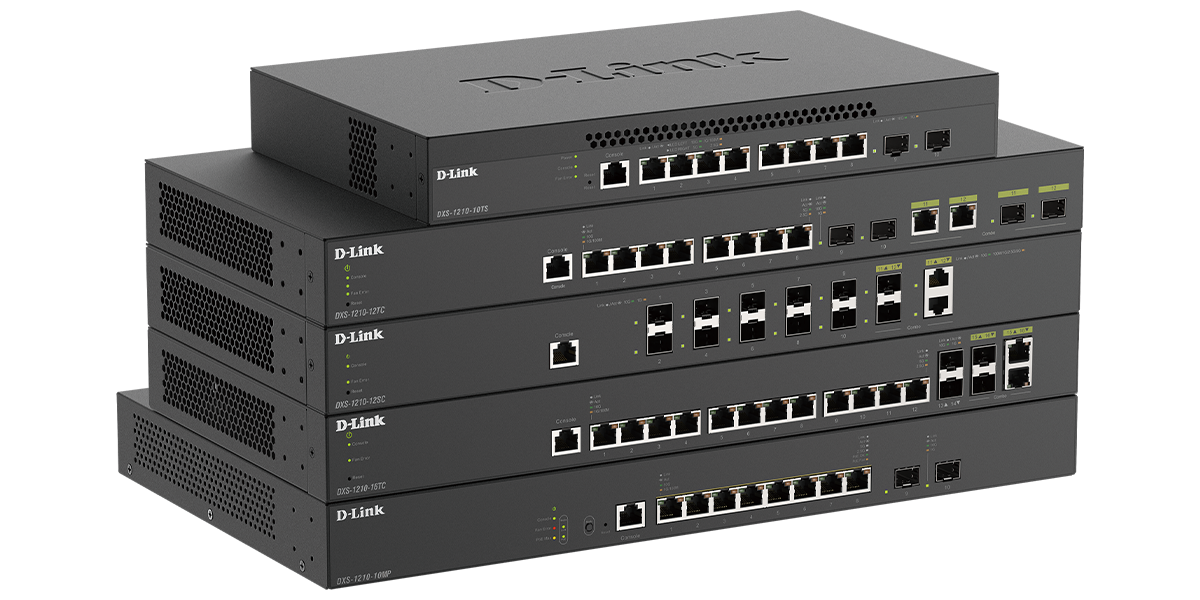

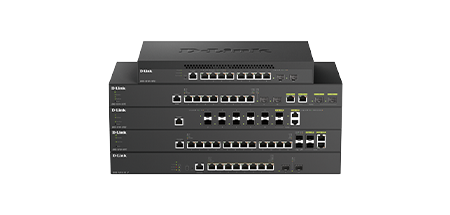

10G Multi-Gigabit Smart Managed Switches

DXS-1210 Series

  • Product Status: Live
  • 100/1000/2.5G/5G/10GBASE-T Multi-Gigabit connections
  • Layer 2 management and security, with Layer 3 Lite features
  • Industry standard full CLI, web-based GUI, console port
  • Static Routing and MSTP
Where to buy

Highlights

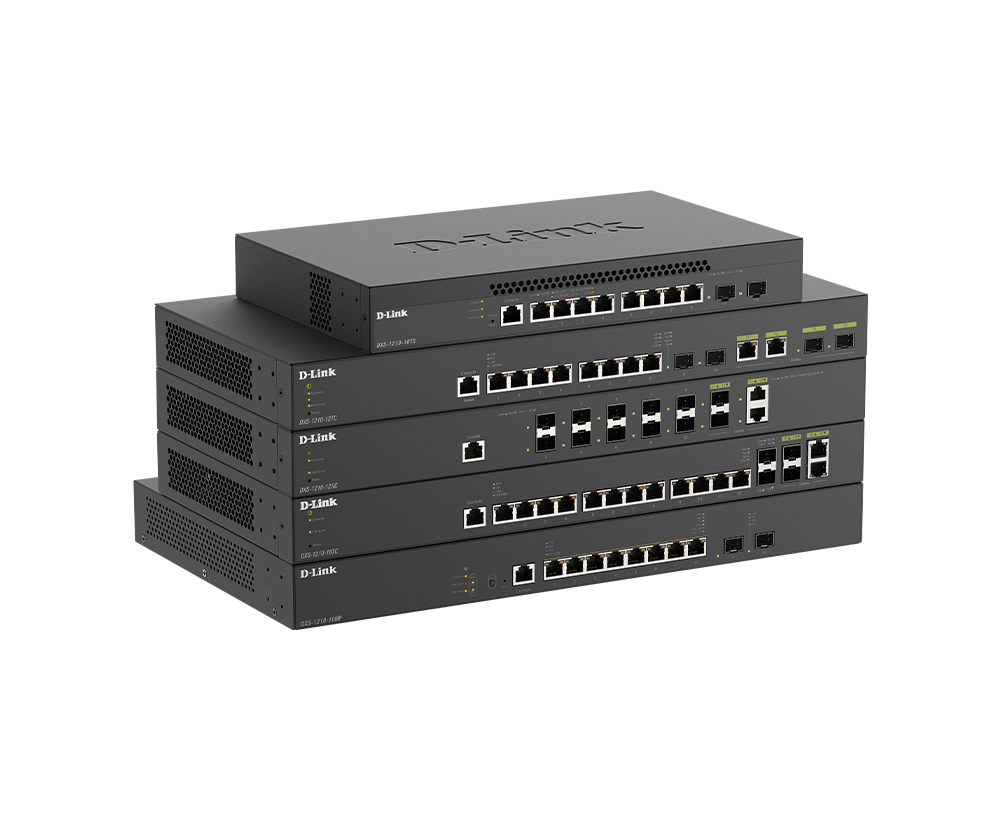

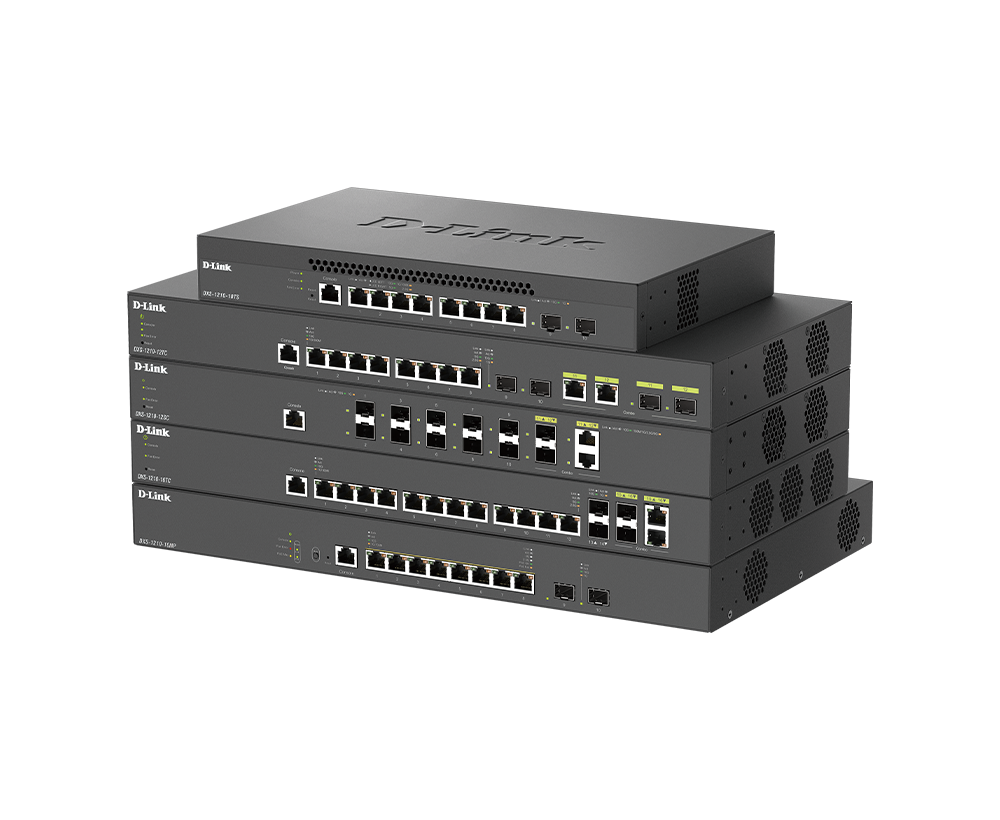

The D-Link DXS-1210 Series conveniently offers a range of 10-Gigabit copper and fiber port combinations to cost-effectively alleviate network congestion. Select models are equipped with SFP+ or SFP28 ports for 10G/25G expandable network designed for scalability and can auto-detect surveillance and voice data to ensure uninterrupted video footage and jitter-free VoIP calls.



10 Gigabit Ports

10G connections for low latency and high bandwidth environments

10G/ 25G SFP28 Ports

10G/25G expandable network designed for scalability (DXS-1210-28T only)



User Friendly Web GUI

Multi-language Web GUI makes management easy for global deployments

Eco-friendly Design

With a housing made from post-consumer recycled materials and delivered in sustainable packaging, the smart mesh router was designed to reduce its environmental impact

Layer 2 Features

Equipped with a complete lineup of L2 features, including IGMP snooping, port mirroring, spanning tree protocol(STP), and link aggregation control protocol (LACP).

Lite Layer 3 Features

Supports IP interfaces, ARP, IPv6 neighbor discovery (ND) and default routing

Quality of Service

Auto detection for uninterrupted surveillance video and jitter-free VoIP calls

Network Security

D-Link’s innovative Safeguard Engine™ protects the switches against traffic flooding caused by malicious attacks.

Affordable 10G capabilities,
for a reliable high-speed network

Add 10-Gigabit Ethernet connectivity to your network with these cost-effective switches. Designed to work as the network core for Small to Medium Businesses (SMBs) or as an aggregation switch in a larger Enterprise.

Extensive Layer 2 & Layer 3 Lite features.

The DXS-1210 series includes layer 2 features such as port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). They also support IP interfaces, ARP, IPv6 Neighbor Discovery (ND), default routing, IPv4/IPv6 static routing, IGMP and MLD Snooping, auto voice and surveillance VLAN, LLDP and LLDP-MED.

Improved intranet performance
Inter-VLAN routing allows traffic to be routed between VLANs without passing through the router, reducing the load on the router as well as the backbone networks.

Security and QoS controls for priorities
Security controls for protection of the network, and QoS ensures essential traffic reaches its destination.



Seamless integration

The DXS-1210 Series comes with both RJ45 and SFP+ ports capable of connecting to Cat. 6 and fibre for 10G Ethernet. This means the DXS-1210 series can provide a flexible solution for upstream or downstream server connections, making network deployment easier.



Security with every port.

The innovative D-Link Safeguard Engine protects the switches against traffic flooding caused by malicious attacks and increases overall network reliability.

These switches also feature Address Resolution Protocol (ARP) spoofing prevention which further protects the network from cyber attacks. They also use packet control ACLs to block invalid packets that contain fake ARP messages.

The Access Control List (ACL) helps protect the internal IT network through permission-based network access.

The DHCP server screen feature filters DHCP replies on unauthorised ports to prevent them from being assigned an IP address.

And support for 802.1X port-based and host-based authentication allows the network to be authenticated through external RADIUS servers.

Unhindered Surveillance & VoIP with a Simple Click

If you need surveillance or VoIP, there is no need to build a dedicated network. With the DXS-1210 Series, expediting latency-intolerant services such as surveillance and VoIP through the existing network can’t be any easier. Simply enable the Auto Surveillance VLAN & Auto Voice VLAN features. Your surveillance videos will always run smoothly and your VoIP calls will be crystal-clear from beginning to end, even during peak working hours.



Enhanced Manageability for Peace of Mind

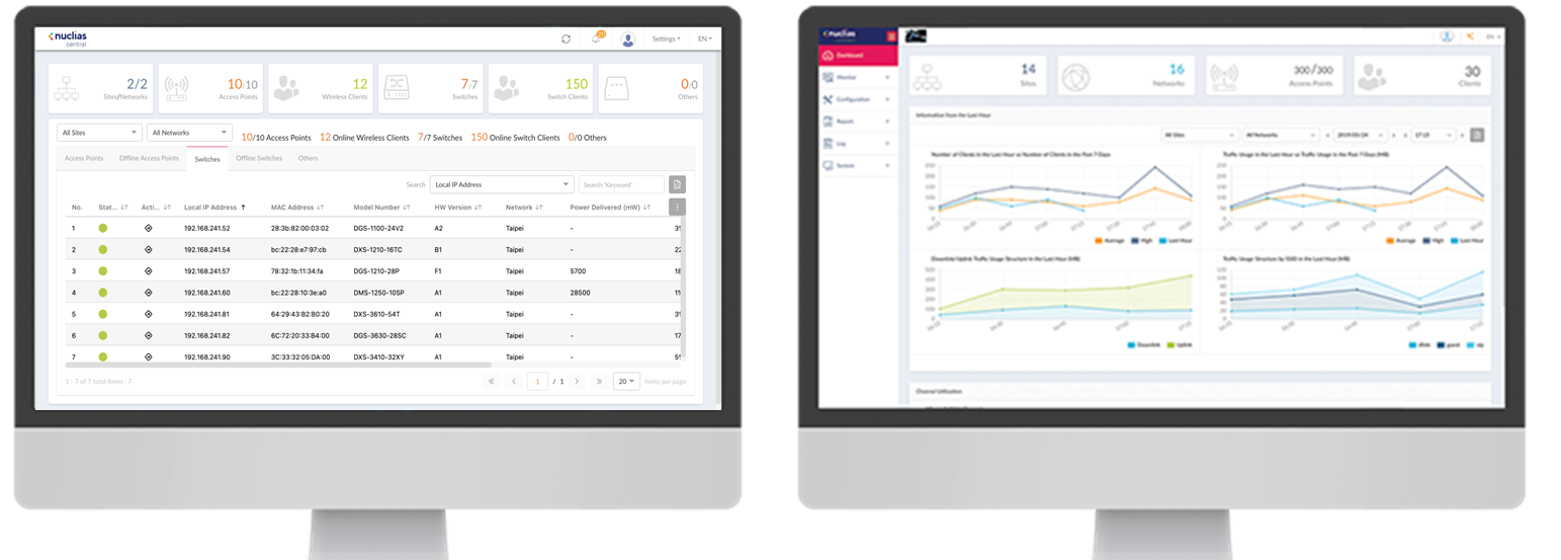

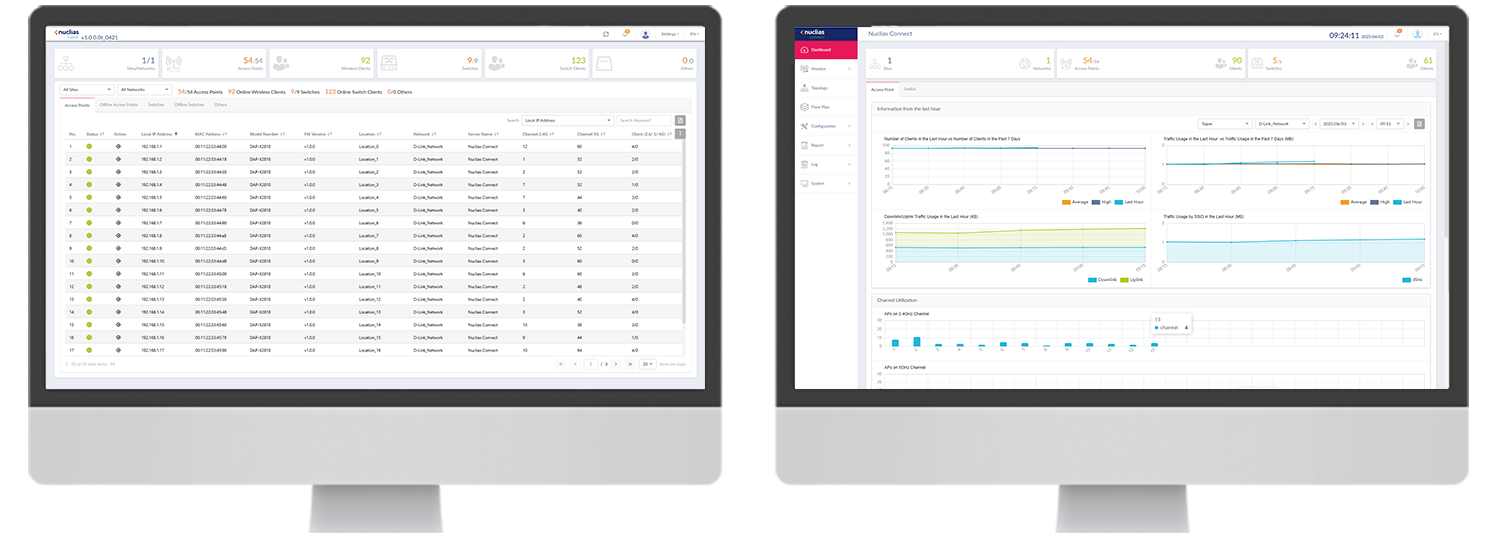

D-View 7

For more complex network infrastructures, D-View 7, a centralized management platform, can be installed for in-depth network management and maintenance to optimize network availability, reliability, security, and resilience.

D-Link Network Assistant

Built upon a highly-intuitive user interface, the D-Link Network Assistant (DNA) simplifies device configuration using the D-Link Discovery Protocol, auto-detecting supported devices and displaying them for port-level configurations.

Better for Your Budget, Better for the Planet

When low-traffic or idle interface ports are detected, the DXS-1210 Series automatically transitions them into a low-power state, substantially reducing overall device power consumption. Furthermore, the DXS-1210 Series can determine the approximate length of cables attached to each port to apply just enough power for data transmission on that link, saving even more power while lowering total cost of ownership (TCO).

Built for Enterprise and SMBs

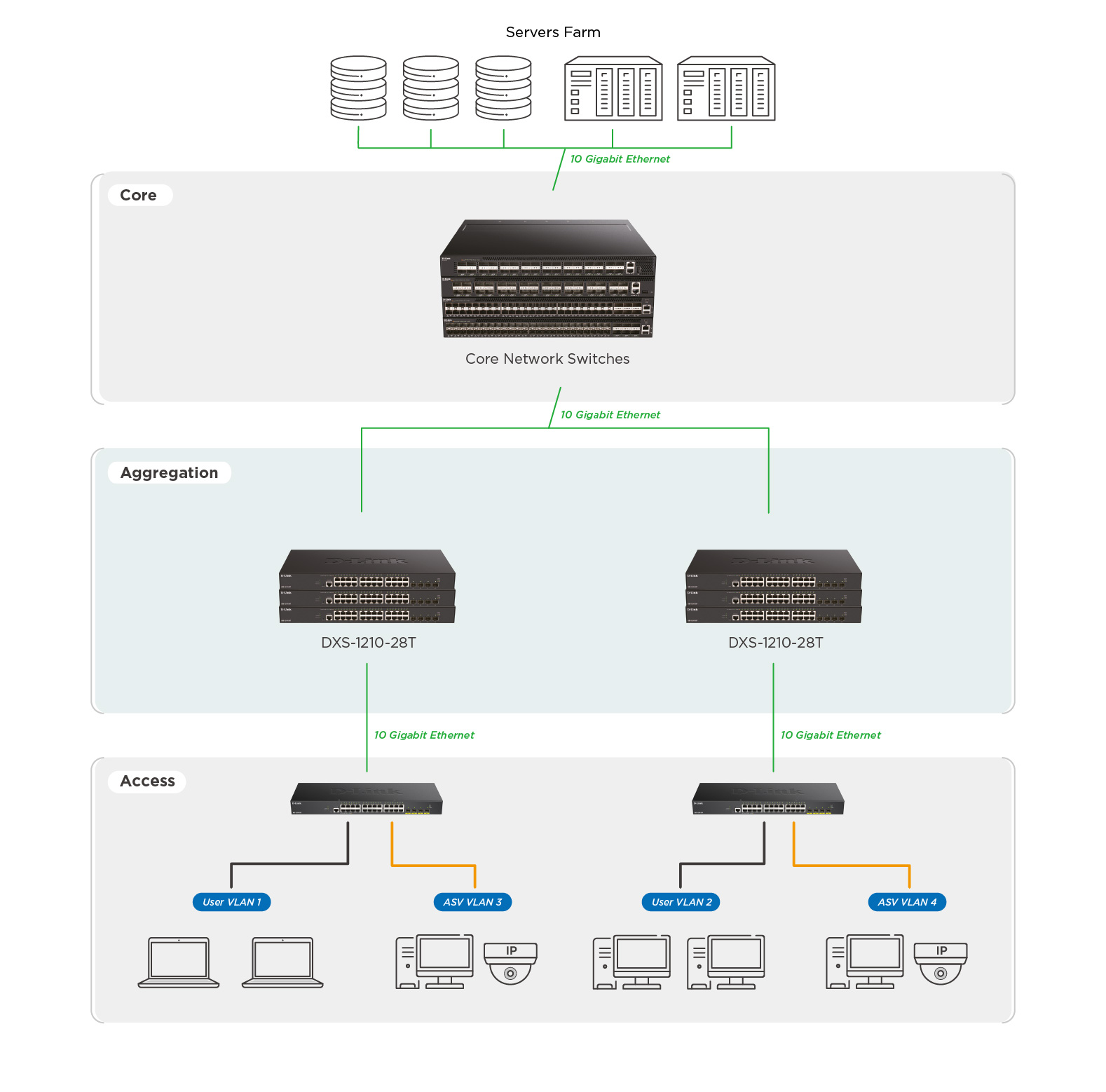

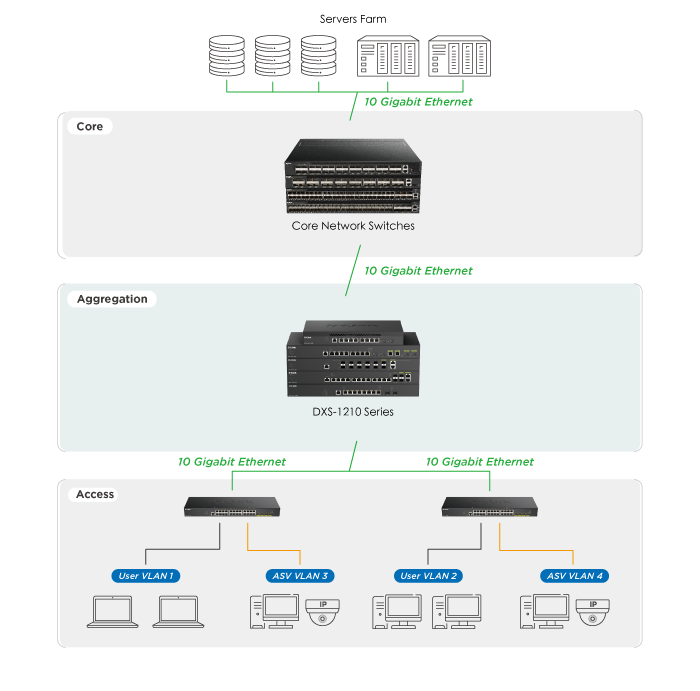

Aggregation for Enterprise Infrastructure

A range for port combinations for server farm or Enterprise aggregation applications

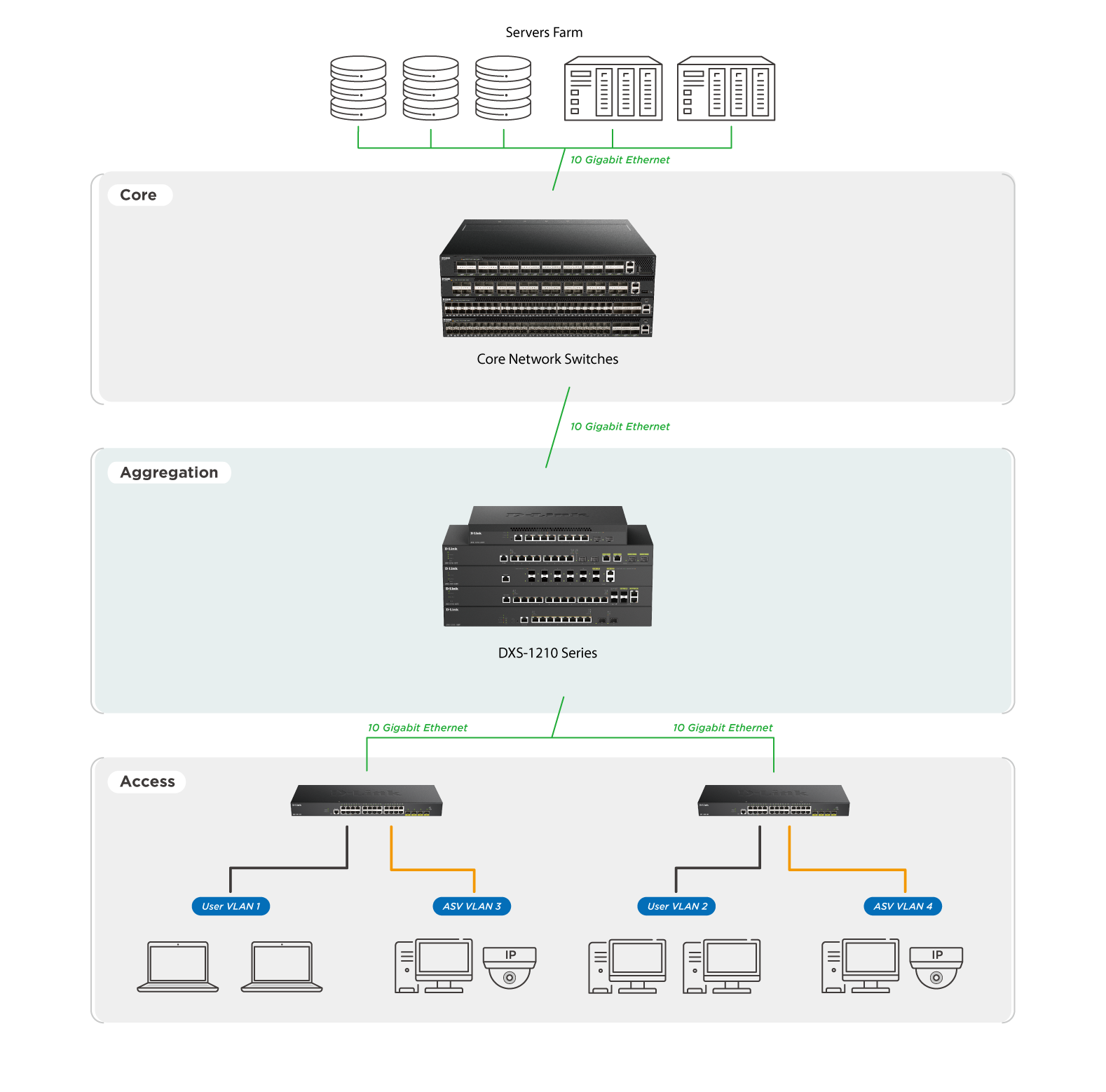

Core Switch for SMB Applications

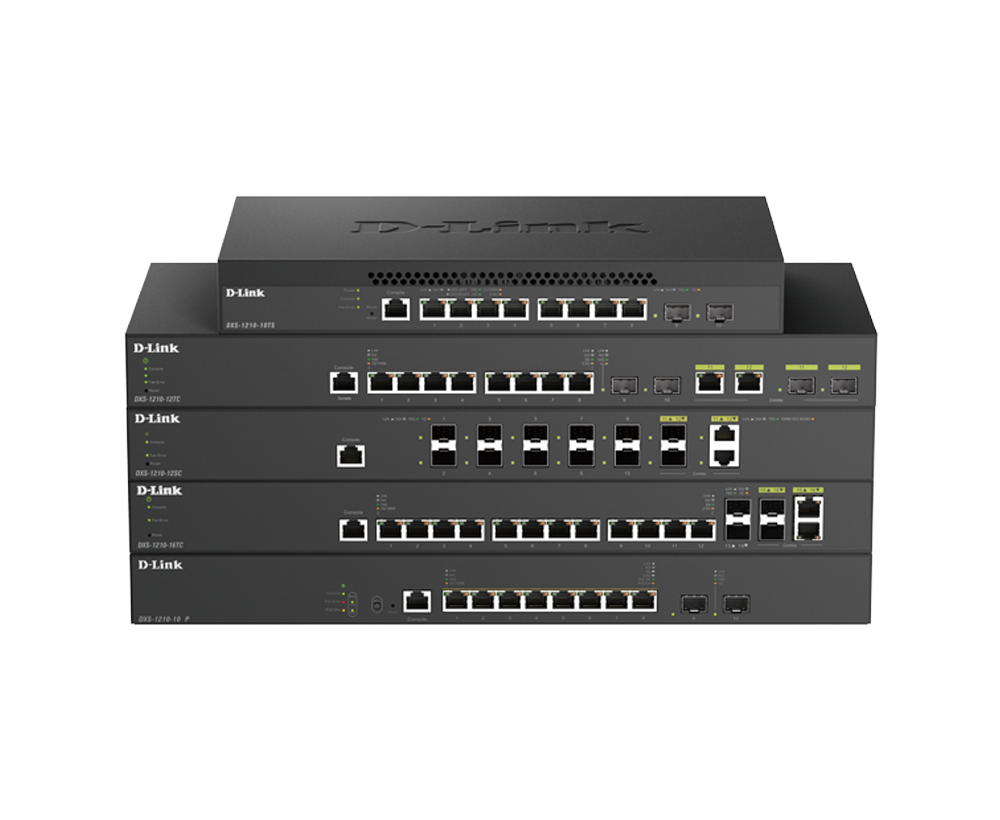

DXS-1210 Series Comparison



Product
DXS-1210-10TS
DXS-1210-10TS
DXS-1210-12TC
DXS-1210-12TC
DXS-1210-12SC
DXS-1210-12SC
DXS-1210-16TC
DXS-1210-16TC
DXS-1210-28T
DXS-1210-28T
DXS-1210-28S
DXS-1210-28S
Interface
8 x
10GBASE-T Ports
2 x
SFP+ Ports
8 x
10GBASE-T Ports
2 x
SFP+ Ports
2 x
10GBASE-T/SFP+ Combo Ports
10 x 10G
SFP+ Ports
2 x
10GBASE-T/SFP+ Combo Ports
12 x
10GBASE-T Ports
2 x
SFP+ Ports
2 x
10GBASE-T/SFP+ Combo Ports
24 x
10GBASE-T Ports
4 x
10G/25G SFP28
24 x 10G
SFP+ Ports
4 x
10GBASE-T Ports
Switching Capacity
200 Gbps
240 Gbps
240 Gbps
320 Gbps
680 Gbps
560 Gbps


Related Products

Stackable Smart Managed Gigabit Switches
DGS-1510-20, DGS-1510-28X, DGS-1510-28P, DGS-1510-28XMP, DGS-1510-52X, DGS-1510-52XMP
Find out more
Smart+ Managed Gigabit Switches
DGS-1210-10, DGS-1210-10P, DGS-1210-10MP, DGS-1210-20, DGS-1210-26, DGS-1210-28, DGS-1210-28P, DGS-1210-28MP (Max PoE), DGS-1210-52, DGS-1210-52MP (Max PoE)
Find out more
xStack Gigabit L2 Stackable Managed Switches
DGS-3120-24TC, DGS-3120-24PC, DGS-3120-48TC, DGS-3120-48PC
Find out more
24-Port Top of Rack 10 Gigabit Managed Switch with Expansion Slot
DXS-3600-32S/SI, DXS-3600-32S-SE-LIC, DXS-3600-EM-4XT, DXS-3600-EM-Stack, DXS-3600-FAN-FB, DXS-PWR300AC
Find out more

Specification

Type
Smart managed
Number of ports
16 to 30 ports
5 to 14 ports
Layer
Layer 2+
Main type of ports
100/1000/2.5G/5G/10GBASE-T Ethernet
Type of uplink ports
10GbE SFP+
Combo 10GBASE-T/SFP+
Switching capacity
200 Gbps
240 Gbps
320 Gbps
D-Link Green
Supported
802.3az Energy-Efficient Ethernet support
Supported
Form Factor
Rackmountable
Housing
Metal
Jumbo frame
Supported
Cable diagnostics
Supported
MAC address
16K
Spanning Tree Protocol
802.1D STP
802.1s MSTP
802.1w RSTP
Ethernet ring protection switching (ERPS)
Supported
Link aggregation
802.1AX
802.3ad
VLAN group (max static)
4K
VLAN type
GVRP
Port-based
Advanced VLAN
Asymmetric VLAN
Auto Surveillance VLAN
Auto Voice VLAN
IP interfaces
16
Static route for IPv4/IPv6
IPv4 - 32
IPv6 - 32
Number of QoS queues per port
8
CoS based on contents
Supported
Bandwidth control
64 Kbps minimum granularity
ACL type
VLAN-based
ACL based on packet contents
Supported
Encryption protocol supported
SSH
SSL (v1/v2/v3)
IP-MAC-port binding (IMPB) / Smart Binding
Supported
ARP spoofing
Supported
802.1X access control
Supported
RADIUS/TACACS+ authentication
Supported
SNMP (v1/v2c/v3)
Supported
RMON v1/v2
Supported
LLDP
Supported
LLDP-MED
Supported
ICMPv6
Supported
