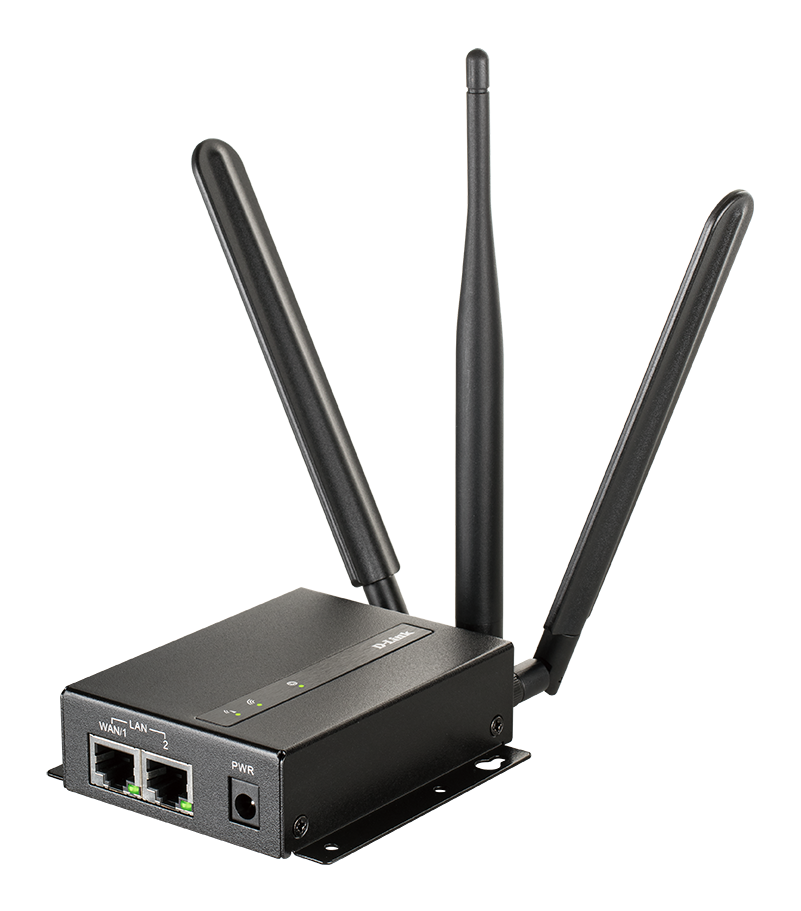

4G LTE M2M Wi-Fi VPN Router

DWM-313

  • Product Status (Revision A1): Live
  • Dual-SIM card for always-on Internet at 4G or 3G/LTE
  • Blazing fast download speeds of up to 150 Mbps1
  • Wi-Fi with 2 x Fast Ethernet interface
  • Integrated advanced VPN options
  • Rugged design to handle any environment
  • 3-Year D-Link Warranty

Download the datasheet.

Where to buy

Robust, dual-SIM 4G Wi-Fi VPN Router

Easy-to-deploy, high-performance, industrial-grade 4G/3G mobile router for Machine-to-Machine applications in any environment.

High-speed 4G Internet

Blazing fast 4G/3G LTE download speeds of up to 150 Mbps1

Wired and wireless connectivity for broad compatibility

Offers maximum flexibility for your Machine-to-Machine (M2M) applications with wireless and wired connectivity

Dual-SIM slot for always-on Internet

Configurable dual-SIM fallback provides connectivity that you can count on, even if one operator's network goes down

Advanced VPN

Integrated VPN client and server with support for IPSec, PPTP, L2TPv2, GRE, and OpenVPN tunneling

Easy management

Local and remote access through web/Telnet/SSH and SNMP support. TR-069 and D-ECS management platform available for projects.

Rapid deployment anywhere

The wall-mount for easy installation anywhere, small form factor, SNMP management support, Zinc-plated steel case, wide operating temperature and humidity tolerance

Purpose-built for M2M

Remotely monitor and manage your Machine-to-Machine (M2M) networks with the industrial-grade DWM-313. Features such as redundant mobile Internet with dual SIM slots, secure VPN connection, flexible wired and wireless LAN connectivity, ensure your M2M applications stay online, 24/7.

Your Internet will never fail you again

Disruptions can happen at any time, but we’ve developed D-Link’s Failover technology to eliminate them altogether.

If one of your network providers are having connectivity issues, the DWM-313 will automatically switch your connection over to backup 4G/3G cellular data on another network, thanks to the built-in Dual-SIM option - so your business can keep functioning, as normal.

Connectivity where you need it most

Easily connect to your high-speed 4G/3G LTE mobile connection and enjoy downlink speeds of up to 150 Mbps1 and uplink speeds up to 50 Mbps1 - facilitating fast, reliable and responsive Internet access that enables you to deploy the router in a remote location, and still access your devices from anywhere.

Reliable, secure and high-speed VPN

The DWM-313 can support almost any VPN policy and manage multiple configurations. It even supports IPSec, GRE and OpenVPN protocols as well as handling pass-through traffic.

Advanced VPN configuration options include multiple encryption options, key management, negotiation modes, and VPN authentication using an internal user database.

Easy installation in extreme conditions

The corrosion-resistant zinc-plated steel case and wide operating temperature and humidity tolerance make the DWM-313 an industrial-grade device, ready for the most demanding M2M environment.

Network agility for Enterprise IoT Management

D-Link offers the latest advanced EaaS (Edge as a Service) cloud computing platform to enable flexible, secure and low latency networks for mission critical operations.

With fast, flexible deployment and having full control and visibility over your network, the D-ECS D-Link Edge Cloud Solution platform offers extensive functionality enabling device management, traffic analytics, security, cost-management and more.

Related Products

4G LTE Cat.4 M2M VPN Modem
DWM-311
Find out more
4G LTE M2M Router
DWM-312
Find out more
Type
VPN security router
Wireless standard
Wireless N
Frequency band mode
Single-band
Wireless speed
150 Mbps 2.4 GHz

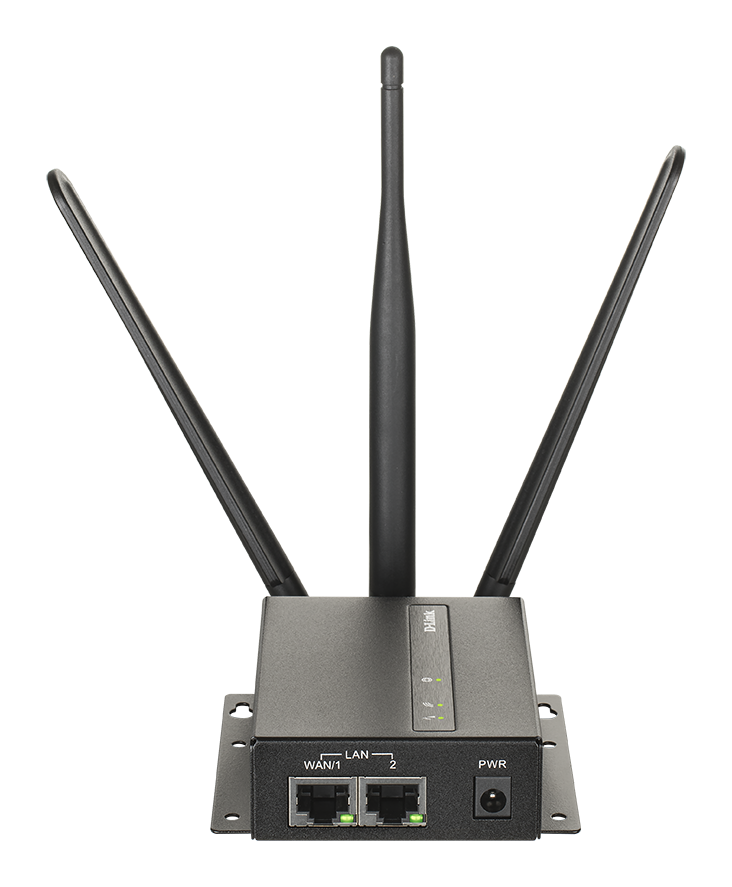

Antenna type
3 detachable omni-directional antennas

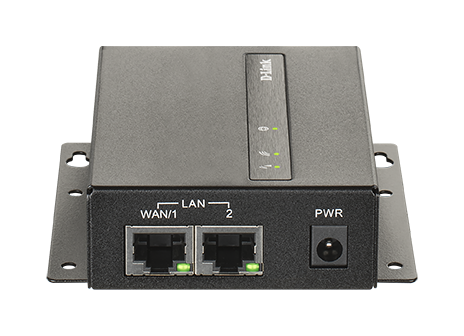

Wired interface
1 x Fast Ethernet LAN

1 x Fast Ethernet WAN/LAN
3G/4G LTE support
3G/4G LTE via Dual SIM
Type of housing
Metal
VPN features
IPSec/PPTP/L2TP Server

VPN Tunnel Keep Alive
DHCP server
Supported
WEB
Supported
SNMP (v1, v2c, v3)
Supported
Telnet
Supported
SSH
Supported

1 Data rates are theoretical. Data transfer rate depends on network capacity, signal strength, and environmental factors.

Support

Version Date Type File Size
- - 0mb Download
Datasheet EN - PDF 0.32mb Download
Version Description Date Type File Size
Manual 1.30 RevA1 Product Manual 29/10/2021 - - Download
Manual 1.00 RevA1 Product Manual 16/08/2021 - - Download
Version Description Date Type File Size
QSG 1.00 RevA1 Quick Setup Guide 05/02/2021 - - Download
Version Description Date
CE UKCA doc 1.00 RevA1 CE document 17/10/2021 Download
