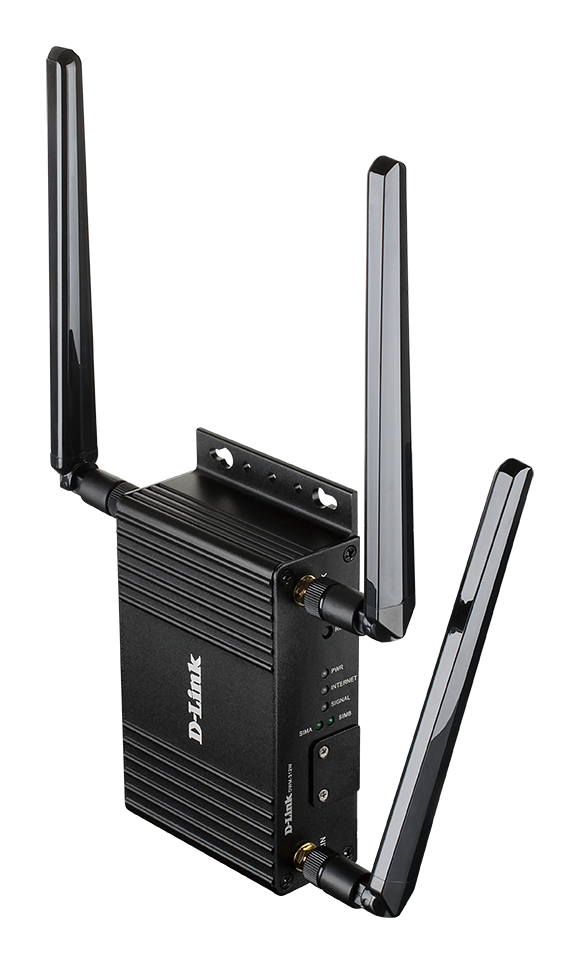

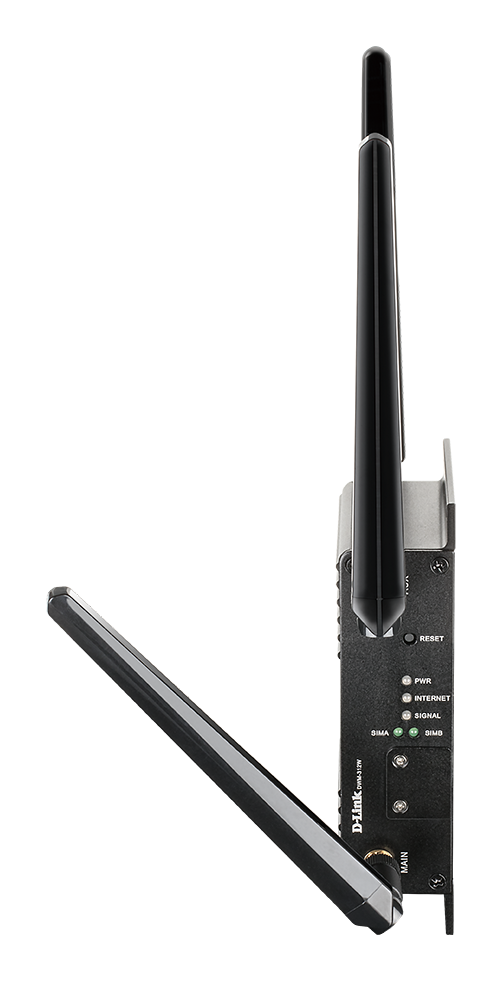

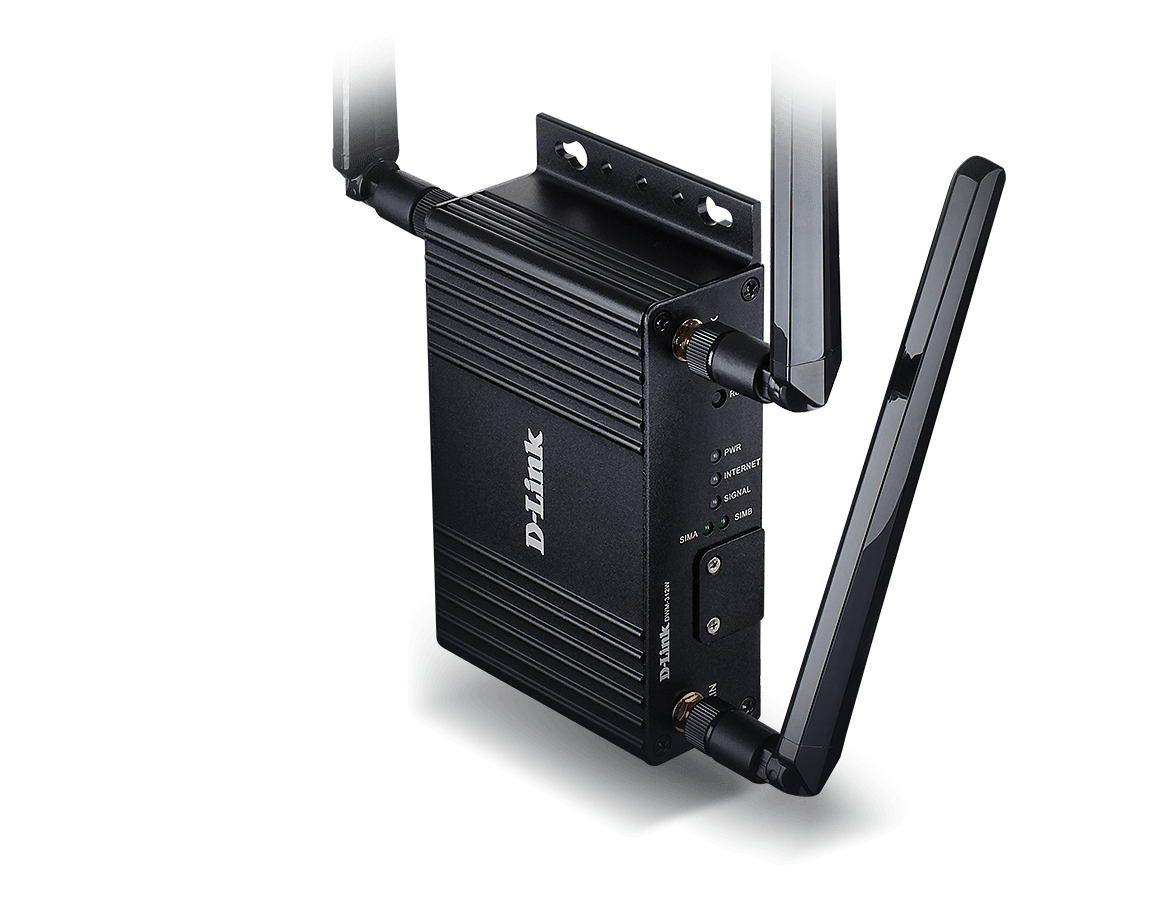

Robust, dual-SIM 4G Mobile Router
Easy-to-deploy, high-performance, industrial-grade 4G/3G mobile router for Machine-to-Machine applications in any environment.
High-speed 4G Internet
Blazing fast 4G/3G LTE download speeds of up to 150 Mbps1
Wired and wireless connectivity for broad compatibility
Offers maximum flexibility for your Machine-to-Machine (M2M) applications with wireless and wired connectivity
Dual-SIM slot for always-on Internet
Configurable dual-SIM fallback provides connectivity that you can count on, even if one operator's network goes down
Advanced VPN
Integrated VPN client and server with support for IPSec, PPTP, L2TPv2, GRE, and OpenVPN tunneling
Easy management
Local and remote access through web/Telnet/SSH and SNMP support. TR-069 and D-ECS management platform available for projects.
Rapid deployment anywhere
The DIN/wall-mount for easy installation anywhere, small form factor, SNMP management support, Zinc-plated steel case, wide operating temperature and humidity tolerance

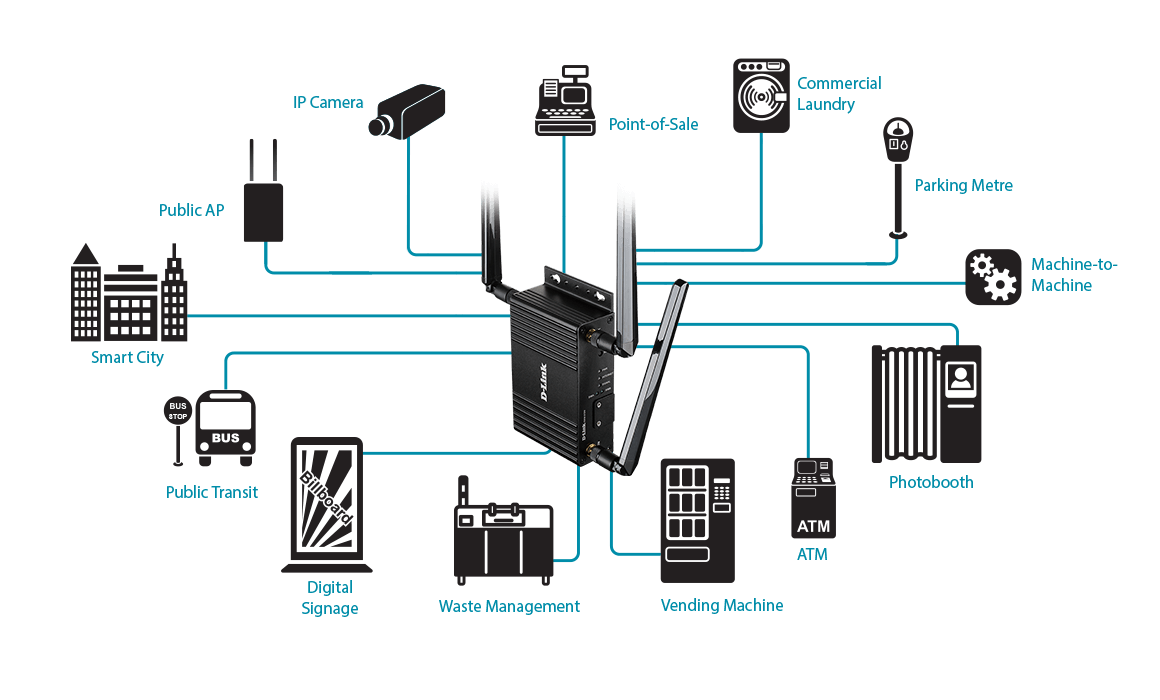

Purpose-built for M2M
Remotely monitor and manage your Machine-to-Machine (M2M) networks with the industrial-grade DWM-312W. Features such as redundant mobile Internet with dual SIM slots, secure VPN connection, flexible wired and wireless LAN connectivity, ensure your M2M applications stay online, 24/7.

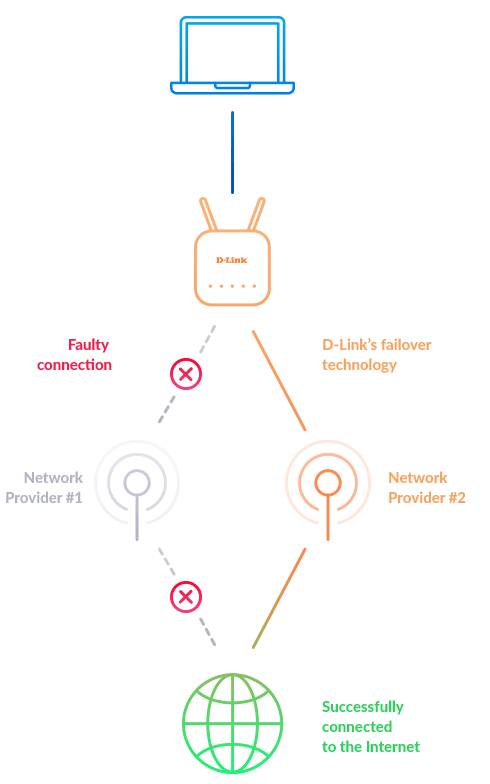

Your Internet will never fail you again
Disruptions can happen at any time, but we’ve developed D-Link’s Failover technology to eliminate them altogether.
If one of your network providers are having connectivity issues, the DWM-312W will automatically switch your connection over to backup 4G/3G cellular data on another network, thanks to the built-in Dual-SIM option - so your business can keep functioning, as normal.

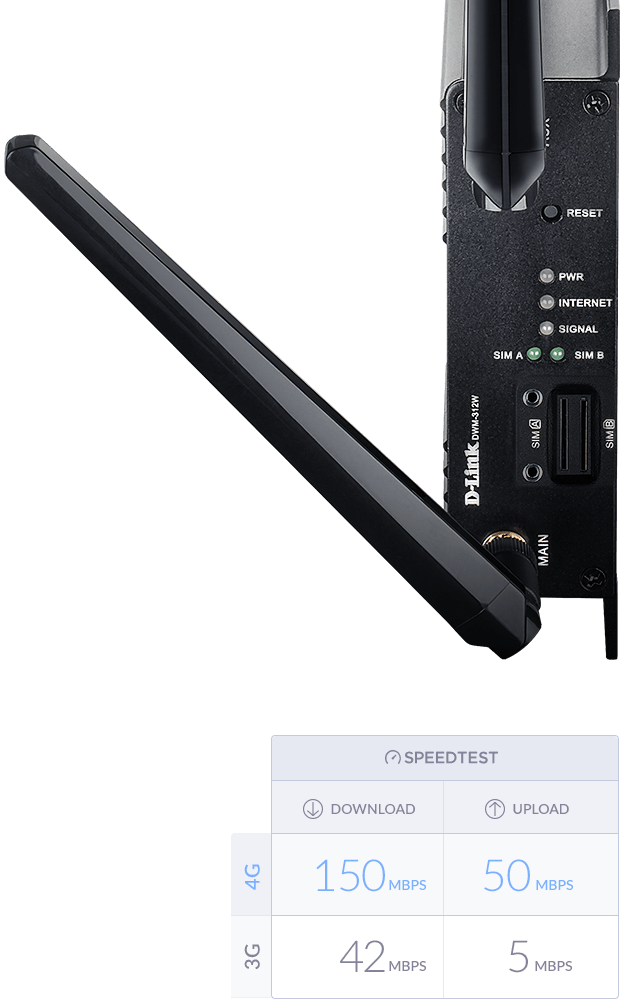

Connectivity where you need it most
Easily connect to your high-speed 4G/3G LTE mobile connection and enjoy downlink speeds of up to 150 Mbps1 and uplink speeds up to 50 Mbps1 - facilitating fast, reliable and responsive Internet access that enables you to deploy the router in a remote location, and still access your devices from anywhere.
The DWM-312W also offers maximum redundancy and flexibility to power your Machine-to-Machine (M2M) applications with a dedicated Ethernet for high reliability that provides downlink speeds of up to 150 Mbps1.

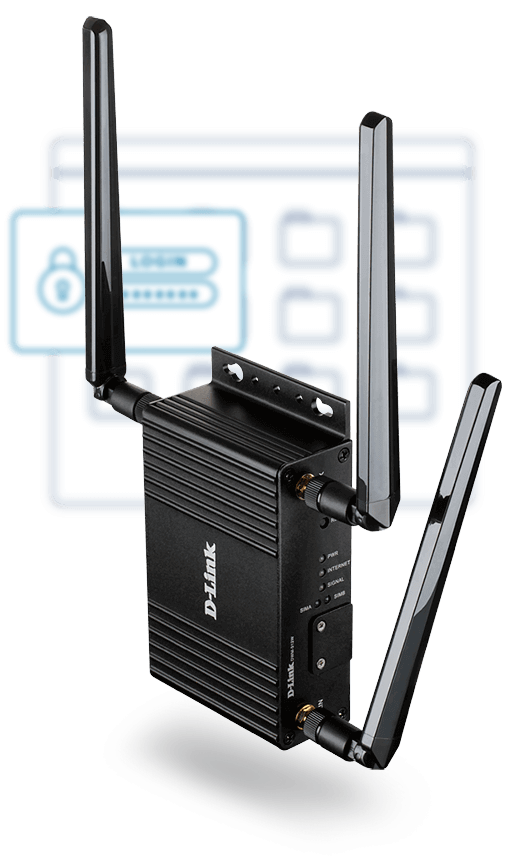

Reliable, secure and high-speed VPN
The DWM-312W’s can support almost any VPN policy and manage multiple configurations. It even supports IPSec, GRE and OpenVPN protocols as well as handling pass-through traffic.
Advanced VPN configuration options include multiple encryption options, key management, negotiation modes, and VPN authentication using an internal user database.
Easy installation in extreme conditions
The corrosion-resistant zinc-plated steel case and wide operating temperature and humidity tolerance make the DWM-312W an industrial-grade device, ready for the most demanding M2M environment.

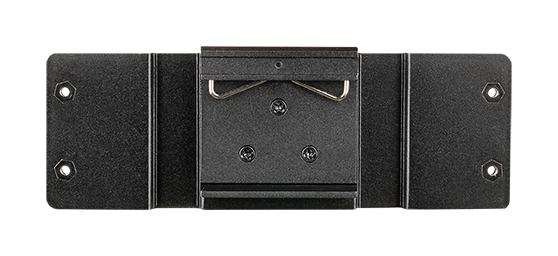

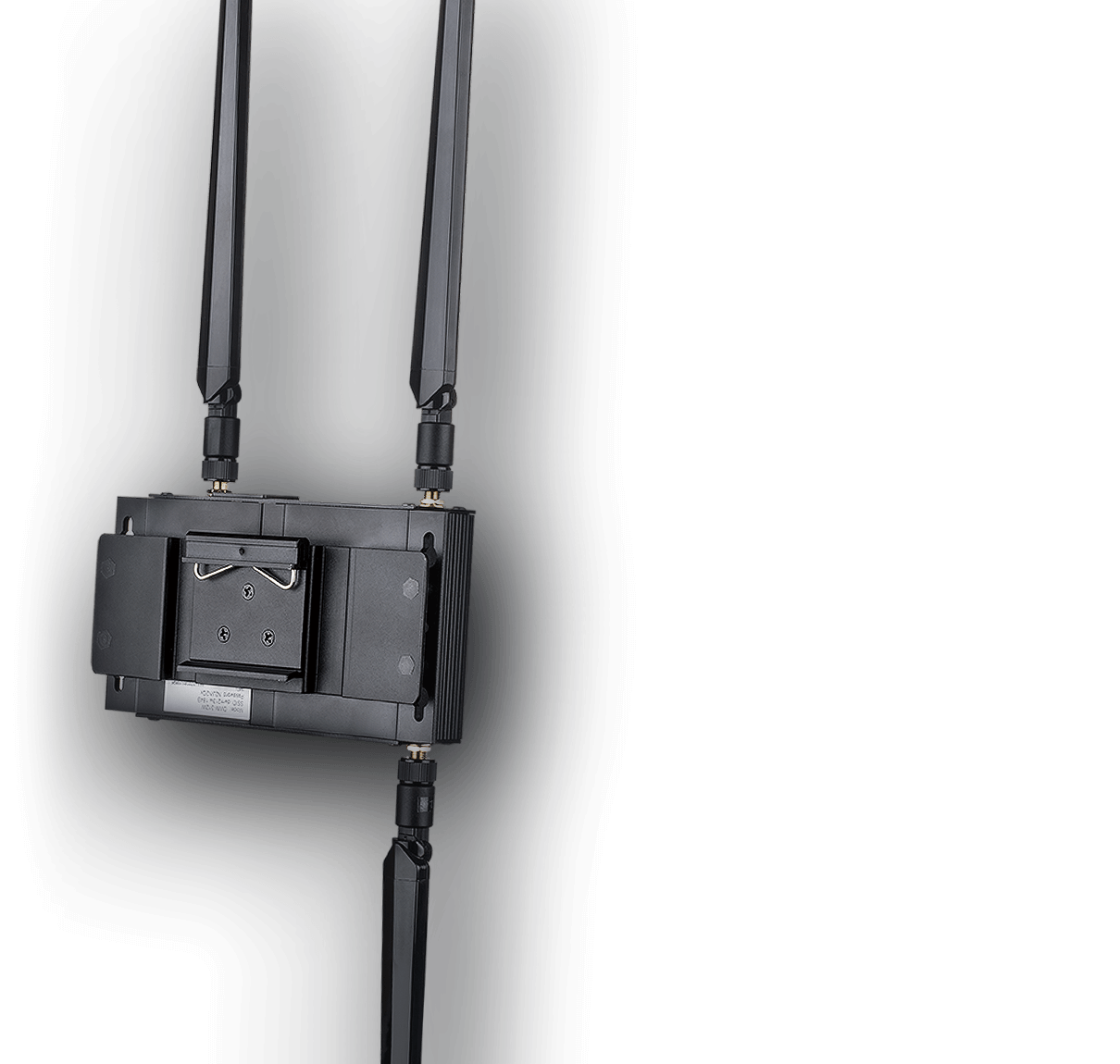

Equipped with wall and DIN rail mounting configurations, the DWM-312W can be installed where it is needed for optimal connectivity. Flexible power input allows the router to operate under any convenient power source.

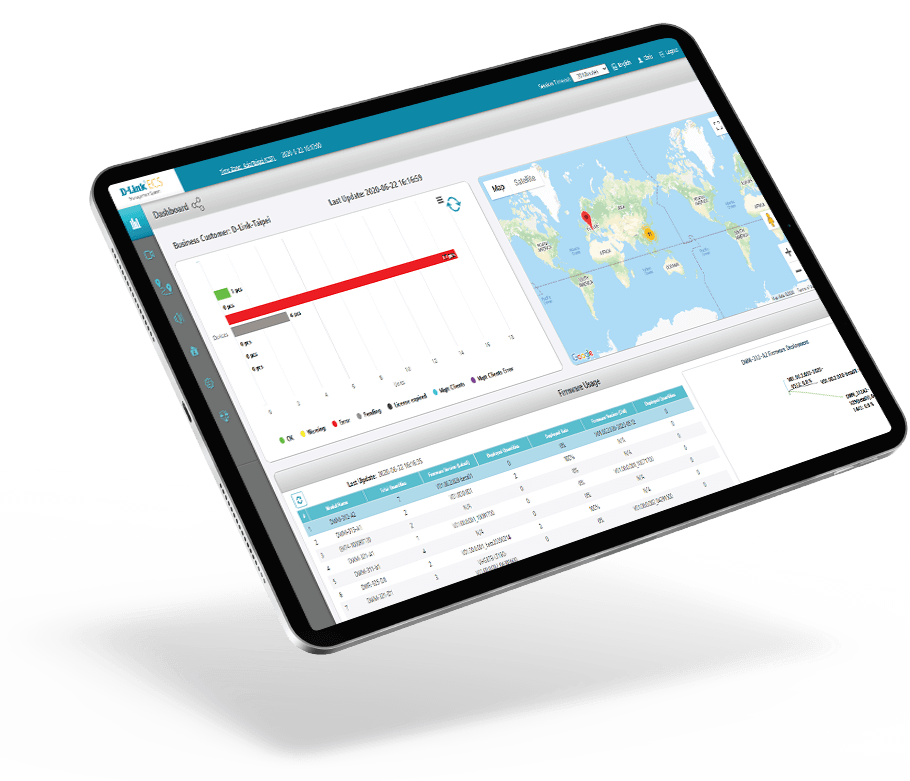

Network agility for Enterprise IoT Management
D-Link offers the latest advanced EaaS (Edge as a Service) cloud computing platform to enable flexible, secure and low latency networks for mission critical operations.
With fast, flexible deployment and having full control and visibility over your network, the D-ECS D-Link Edge Cloud Solution platform offers extensive functionality enabling device management, traffic analytics, security, cost-management and more.
Related Products
Specification
Type
|
VPN security router |
---|---|
Wireless standard
|
Wireless N |
Frequency band mode
|
Single-band |
Wireless speed
|
150 Mbps 2.4 GHz |
Antenna type
|
3 detachable omni-directional antennas |

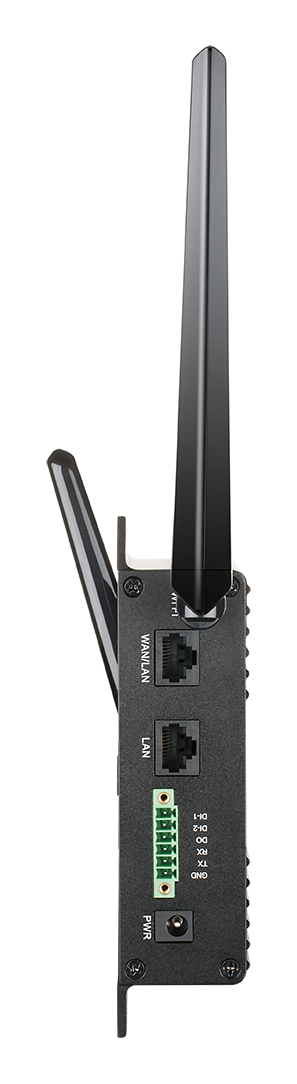

Wired interface
|
1 x Fast Ethernet LAN 1 x Fast Ethernet WAN |
3G/4G LTE support
|
3G/4G LTE via Dual SIM |
Type of housing
|
Metal |
VPN features
|
IPSec/PPTP/L2TP Server VPN Tunnel Keep Alive |
DHCP server
|
Supported
|
WEB
|
Supported
|
SNMP (v1, v2c, v3)
|
Supported
|
Telnet
|
Supported
|
SSH
|
Supported
|
1 Data rates are theoretical. Data transfer rate depends on network capacity, signal strength, and environmental factors.
