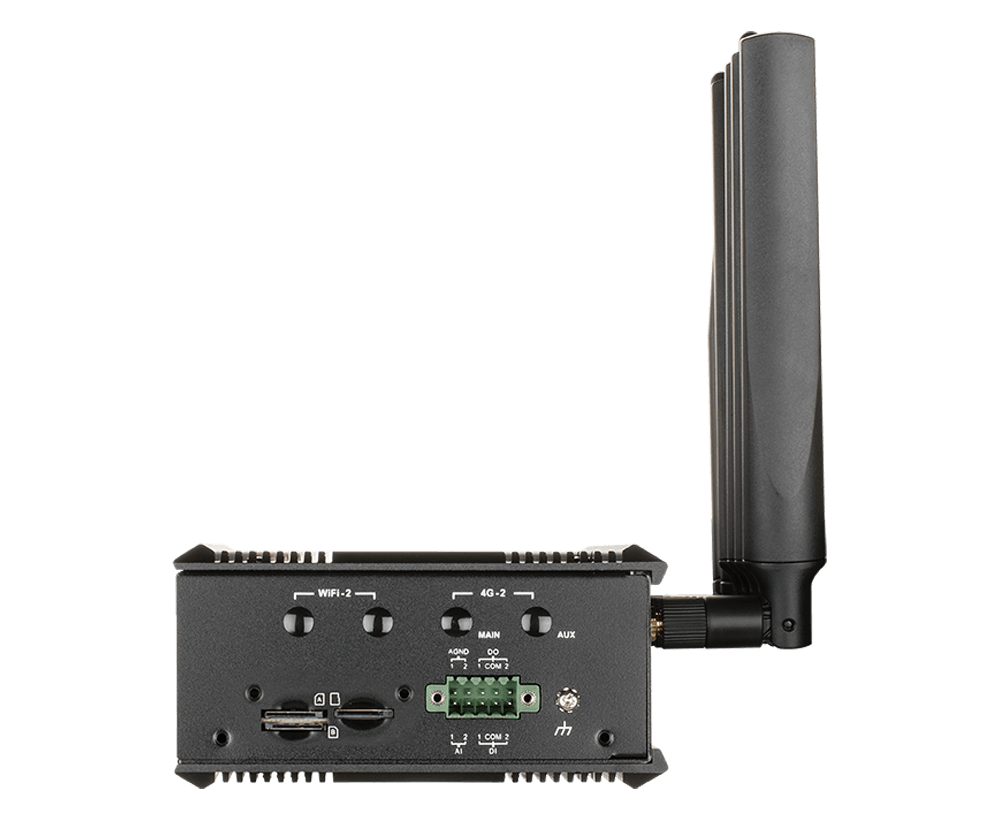

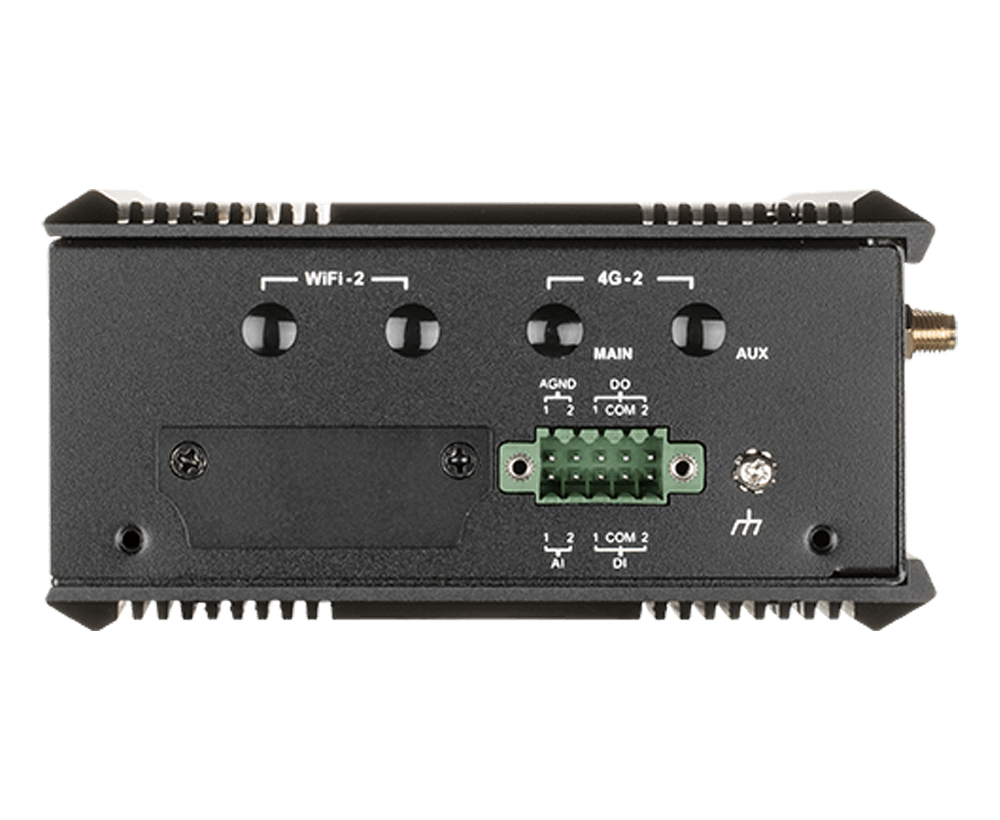

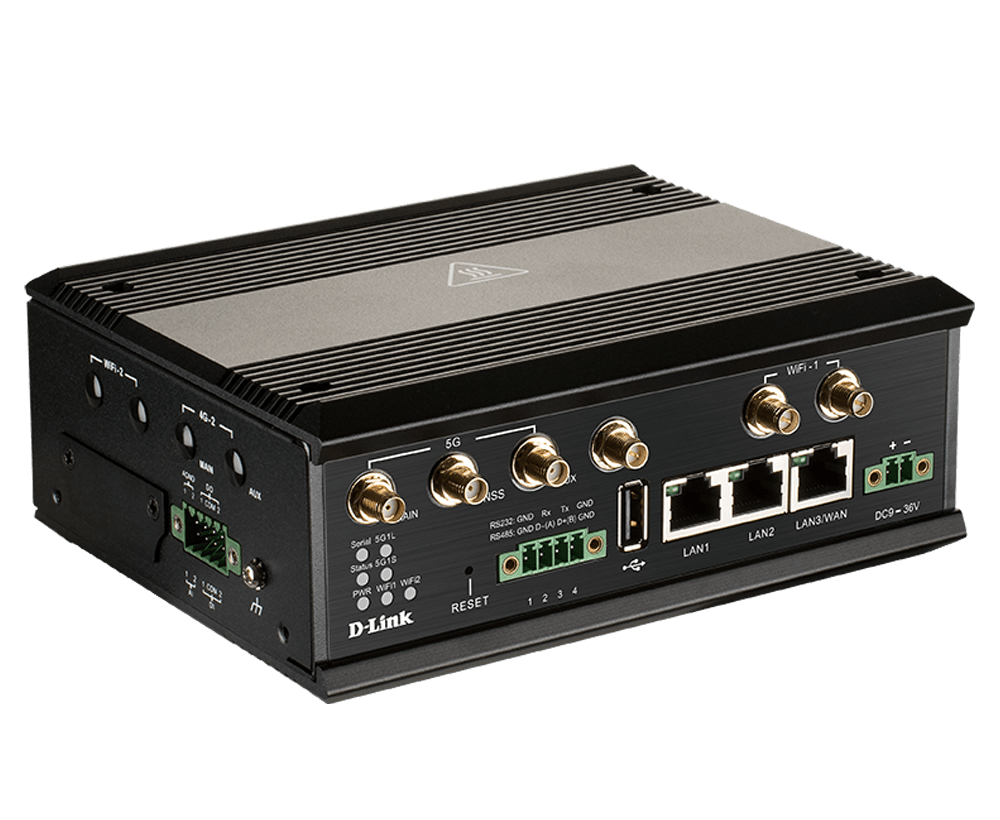

5G NR M2M Gateway

DWM-3010

  • Product Status: Live
  • 1 x 10/100/1000 Ethernet WAN/LAN Ports
  • 2 x 10/100/1000 Ethernet LAN port
  • Roll out a high-speed dual-band Wi-Fi network capable of Gigabit-plus speeds
  • Reap the full benefits of 5G NR, experiencing lightning-fast downloads, ultra-low latency and reduced congestion
  • Dual SIM slots allow multiple providers, eliminating dead zones and offering cellular failover
  • Supports WPA2™ — Wi-Fi security for more protection
  • Supports a range of professional VPN options, incl.: IPSec/OpenVPN/L2TP/PPTP/GRE
  • Effortless remote management with the D-Link Edge Cloud Solution
  • Connect up to 50 devices simultaneously to your Wi-Fi network
  • Ruggedized design for wide-temperature operation
Where to buy



Delivering Secure Wired & Wireless Connectivity For Virtually Any Device

The all new 5G NR M2M Gateway from D-Link throws open the doors for industries to utilize IoT technologies, accelerate their digital transformation and embrace Industry X.0.






Why you Want it

Blazing Fast 5G

Next-gen, Gigabit-plus speeds ensure the highest throughput and reliability for IoT applications

Ultra-Low Latency

Near-instantaneous communications, essential for large-scale IoT deployments

High Efficiency IoT M2M Communication Protocols

Field communication protocols such as Virtual COM, Modbus and MQTT help IoT devices communicate more efficiently

Rugged Design

Specifically designed for harsher environments and wide temperature ranges

Dual SIM Slots

Bolster your network’s reliability with a backup SIM providing WAN failover

Centralized Management

With D-ECS, preconfigure, deploy and manage your devices, wherever you are

Blazing Fast 5G

5G is the absolute cutting edge in mobile broadband connectivity, designed to connecting everyone and everything.
Delivering multi-Gigabit speeds, ultra-low latency, greater reliability and unbeatable network capacity, 5G’s empowering industries in ways that LoRa or NB-IoT cannot.

The Catalyst for IoT in Industry X.0

Industry X.0 demands large-scale deployment of sensors and monitors throughout smart factories, warehouses and other industrial settings. The DWM-facilitates private network deployments to ensure low latency for near-instantaneous M2M communications.

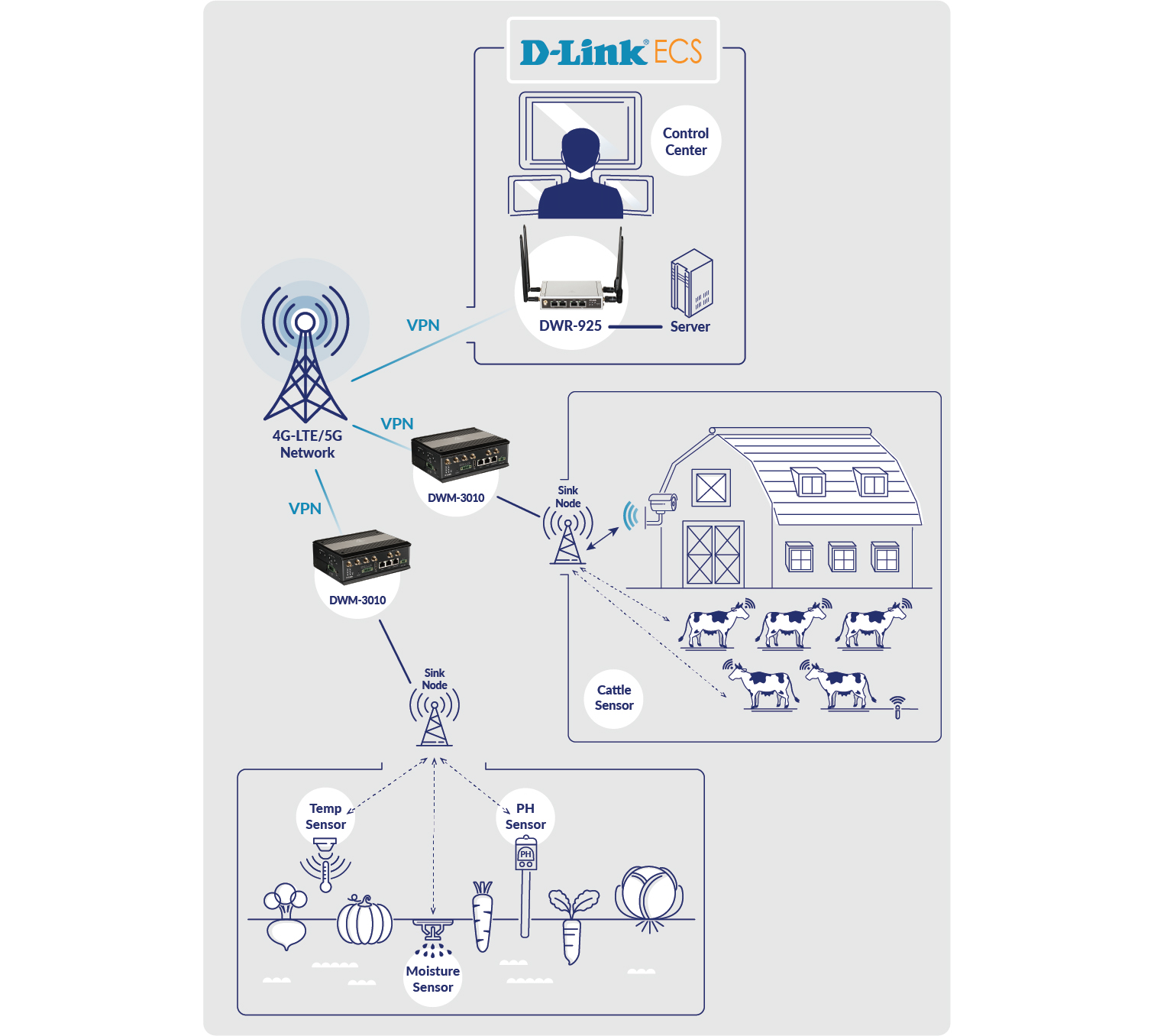

Support for Industry Standard IoT/M2M
Communication Protocols

Field communication protocols such as Virtual COM, Modbus and MQTT enable an extensive range of IoT devices
communicate efficiently with one another.

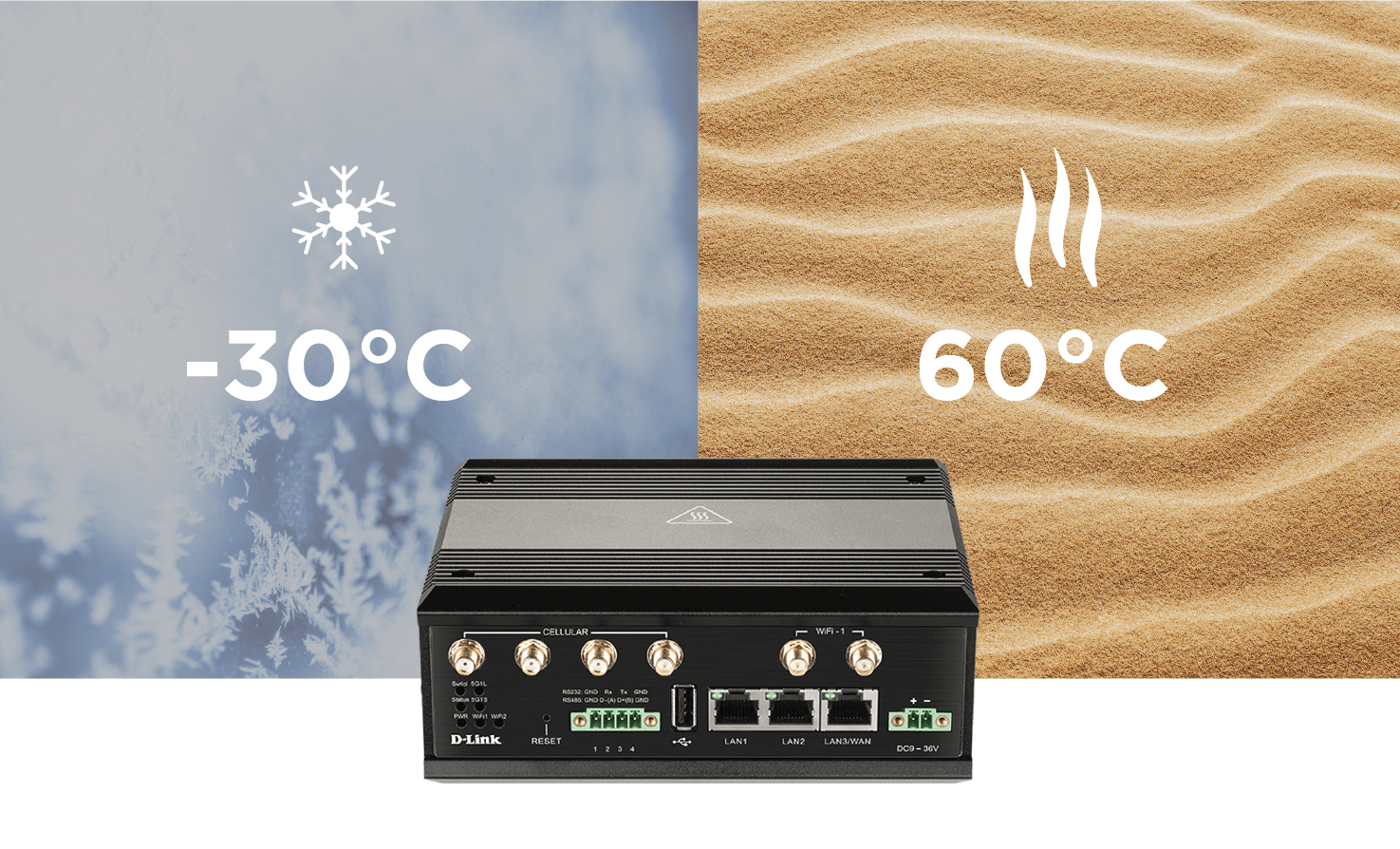

Rugged Design, Enhanced Durability

The DWM-3010 can withstand wide temperature ranges from a chilly -30°C up to a sweltering 60°C. The robust and
rugged design is perfect for smart industrial applications.

Potential Applications

Centralized Management

Mission-critical applications are downtime intolerant. Automated network task services alleviate administrators of routine tasks, allotting more time for network monitoring and preventive maintenance. D-ECS also features automatic failure detection and alerts to resolve network issues quickly and efficiently.

  • Map Display of Network Nodes
  • GPS Location & Route History
  • Event Filtering
  • Searchable Event Log

Learn More

Related Products

4G LTE Cat.4 M2M VPN Modem
DWM-311
Find out more
4G LTE M2M Router
DWM-312
Find out more

Specs

Advanced Features
DMZ & Pass Through

Port Forwarding

QoS engine (Quality of Service)

SNMP Support

Virtual Server

Web-based UI

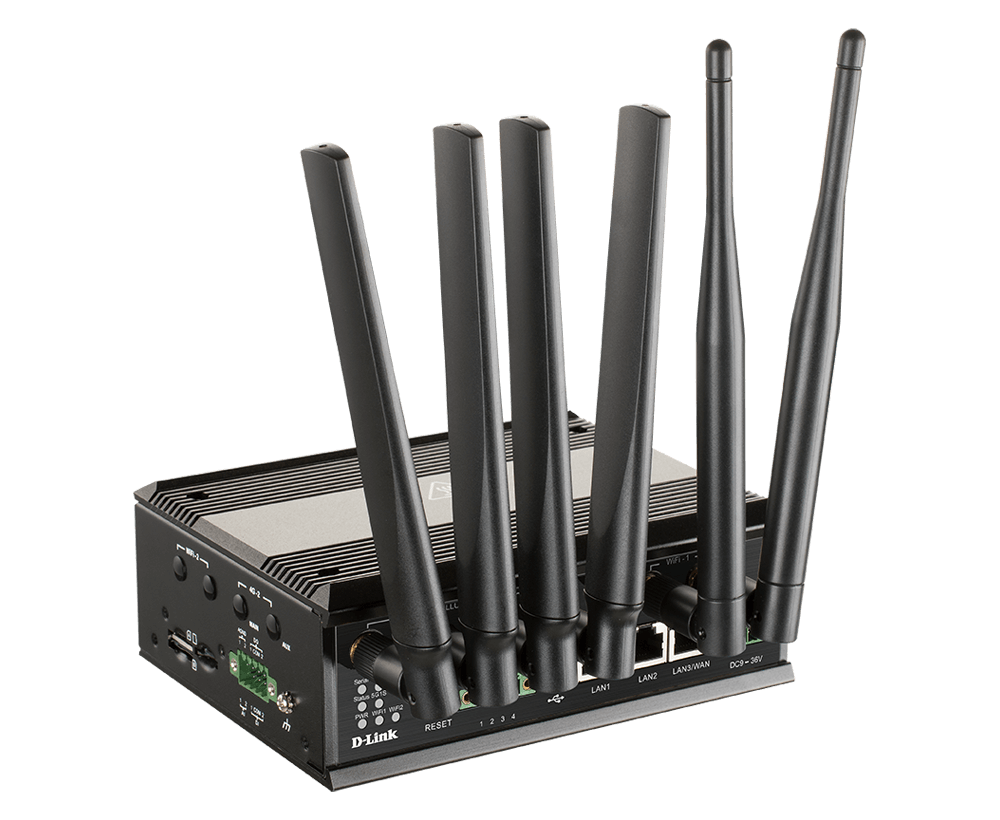

Antenna
2 x Male type jack for Wi-Fi

4 x Female type jack for 5G NR/LTE
Data Throughput
5G NR: 900 Mbps (DL, Ethernet) / 150

Mbps (UL, Ethernet)

Up to 300 Mbps with 802.11n clients

Up to 866 Mbps with 802.11ac clients
Product Description
5G NR M2M Gateway
Standards
IEEE 802.11ac/n/g/b/a
Dimensions
62 x 125 x 160 mm (w/o mounting kit)
Interfaces
1 x 10/100/1000 Ethernet WAN/LAN port

2 x 10/100/1000 Ethernet LAN port

2 x SIM slots

DI/DO/TX/RX/Grounding ports

USB 3.0 miniPCIe
Power Input
DC 9 V / 2.7 A ~ 36 V / 0.7 A
Weight
1.15 kg
