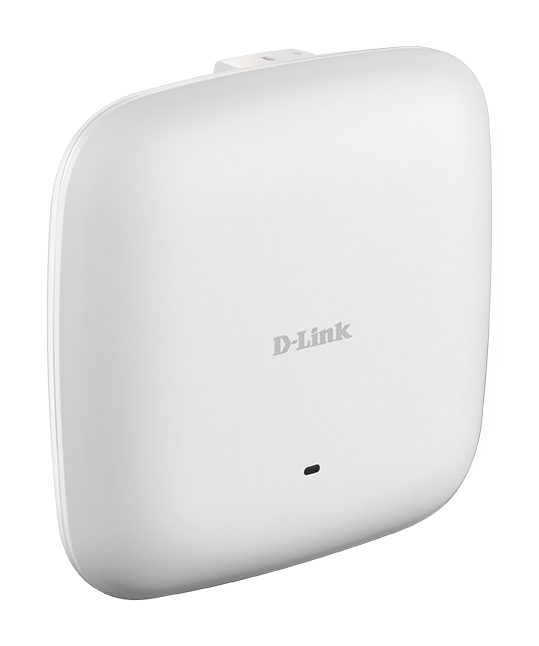

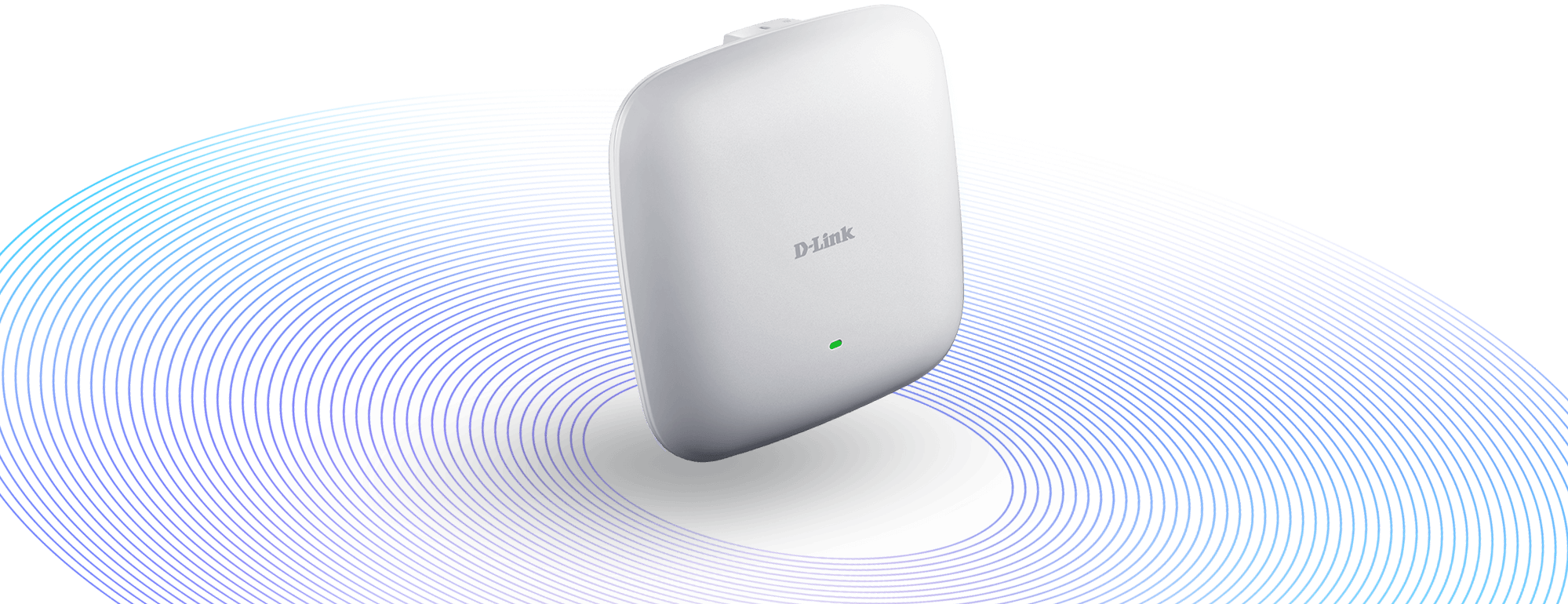

Wireless AC1750 Wave 2 Dual-Band PoE Access Point

DAP-2680

  • Product Status: Live
  • 802.11ac Wave 2 wireless, up to 1.75 Gbps1
  • MU-MIMO with beamforming
  • Band steering
  • Gigabit PoE-capable LAN port
  • AP Array utility support
  • Free D-Link Central WiFiManager
Where to buy
AC1750 Wave 2 Wi-Fi

802.11ac Wave 2 wireless with combined speeds of up to 1.75 Gbps1

Multiple Operational Modes

Functions as an access point, Wireless Distribution System (WDS), WDS with access point, or wireless client.

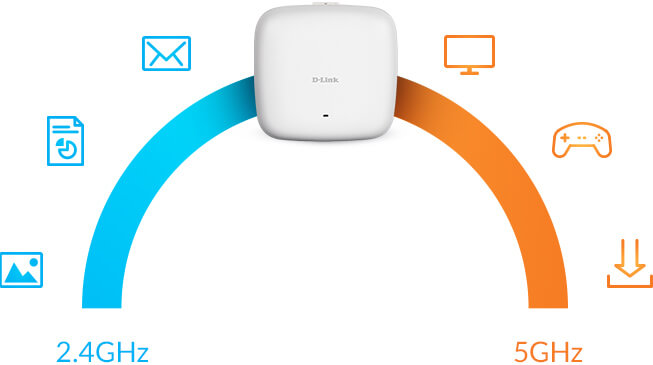

Band steering

Automatically steers traffic to the fastest, least congested band.

MU-MIMO & Beamforming

Allows multiple devices to connect simultaneously for improved efficiency. And creates highly-targeted Wi-Fi connections for superior Wi-Fi bandwidth.

Smart, secure & green

The wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saves power and increases network security.

This product is compatible with Nuclias Connect*

Nuclias Connect is our free remote network management software designed with network scalability, privacy and customisation in mind. It can be used either as an on-premises software management platform, or as a cloud solution.

*An upgrade to the latest product firmware is required.

Download

Nuclias hardware controller

The DNH-100 Wireless Controller provides an inexpensive, ready-made solution, and removes the need for installing and maintaining Nuclias Connect on additional hardware such as a server or PC. It supports up to 100 APs, automatically detects devices, pushes configurations, and provides robust hardware management. Simply plug in and power on.

Learn more

Related Products

Nuclias Connect Hub
DNH-100
Find out more
Wireless AC1300 Wave 2 DualBand PoE Access Point
DAP-2610
Find out more
Wireless AC1200 Wave 2 Dual-Band PoE Access Point
DAP-2662
Find out more
Wireless AC2300 Wave 2 Dual-Band PoE Access Point
DAP-2682
Find out more

Specs

Type
Software Managed AP
Wireless standard
Wireless AC Wave 2
Frequency band mode
Dual-band simultaneous
Wireless speed
1300 Mbps 5 GHz

450 Mbps 2.4 GHz
Antenna type
Embedded omni-directional antennas
Antenna gain
3.6 dBi for 2.4 GHz

4.2 dBI for 5 GHz
Power-over-Ethernet
Yes
Wired interface
1 x Gigabit Ethernet LAN
Indoor/outdoor
Indoor
Type of housing
Plastic
Wireless modes
Access Point (AP)

WDS bridge

WDS with AP

Wireless client
Advanced features
MU-MIMO

SmartBeam
Maximum number of SSIDs
16
Auto channel selection
Supported
WMM-PS/802.11e (U-APSD)
Supported
Wi-Fi scheduler
Supported
AP traffic load balance
Supported
WEP 64/128 bit
Supported
WPA/WPA2-Personal/Enterprise
Supported
TKIP/AES encryption
Supported
WPA_WPA2_PSK over WDS
Supported
WLAN partition
Supported
SSID broadcast disable
Supported
Rogue AP detection
Supported
Station isolation
Supported
MAC address filtering
Supported
802.1X authentication
Supported
DHCP server
Supported
IGMP snooping
Supported
ARP spoofing
Supported
NTP
Supported
IPv6
Supported
Management platform
Nuclias Connect
WEB
Supported
SNMP (v1, v2c, v3)
Supported
CLI
Supported
Telnet
Supported
SSH
Supported
Syslog
Supported
