How to Setup SNMP – DXS-3600-Series – D-View 7

Device and Software Used:

- DXS-3600-32S – FW: 2.40.046
- D-View7 – Version: 1.0.3.9

Note: Please always check our website for updates for firmware

Before commencing this setup, please check the following for D-View7 compatibility:

http://dview.dlink.com/models.php

Step 1 – Login to DXS-3600-32S

DXS 3600 How to Setup SNMP

Step 2 – Enable SNMP Global Settings

DXS-3600-32S > Management > SNMP > SNMP Global Settings

DXS 3600 How to Setup SNMP

Select the “Trap Settings” then click “Apply”

Step 3 – Enable SNMP Linkchange Trap Settings

DXS-3600-32S > Management > SNMP > SNMP Linkchange Trap Settings

DXS 3600 How to Setup SNMP


Click “Apply”

DXS 3600 How to Setup SNMP


You should see the above ports and “Traps” are “Enabled” – This will also depend on what ports you want to enable

Step 4 – Save configuration

Save > Save Configuration

DXS 3600 How to Setup SNMP

DXS 3600 How to Setup SNMP

Click “Apply”

DXS 3600 How to Setup SNMP

Click “OK”

Step 5 – Login to D-View7

DXS 3600 How to Setup SNMP

Step 6 – Once you login, you may be presented with the following.

DXS 3600 How to Setup SNMP

Click “Later”

Step 7 – You should now be in “Dashboard” view – At the moment there will not be any “Managed Devices”

DXS 3600 How to Setup SNMP


To add a rule – Click on “Edit”

DXS 3600 How to Setup SNMP

DXS 3600 How to Setup SNMP

Click “Add Rule”

Step 8 – Enter the probe settings for the device – In our example we are using the DXS-3600-32S (IP: 192.168.1.250). Note: You may also include a wide coverage of the network, for example: 192.168.1.1 – 192.168.1.254

DXS 3600 How to Setup SNMP

Click “Add” then “Save”

DXS 3600 How to Setup SNMP


D-View 7 will now search for the device that was added in Step 7“Discovering”

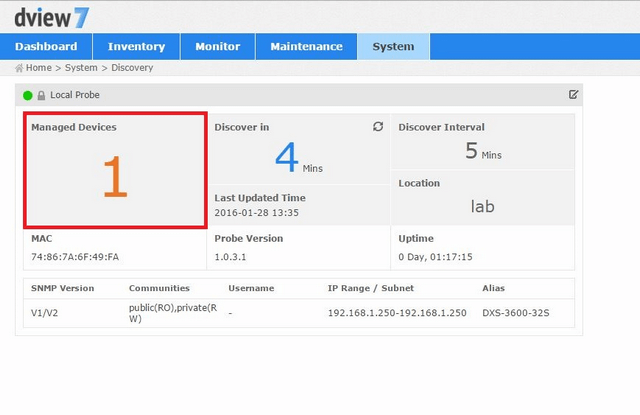

Step 9 – You should notice that the device added in Step 7 has been added to “Managed Devices”

DXS 3600 How to Setup SNMP


Step 10 – To manage and connect to the device – go to “Device View”

Monitor > Device View

DXS 3600 How to Setup SNMP
DXS 3600 How to Setup SNMP


Click on the link – In our example the IP was: 192.168.1.250 – This should open another tab and you may login

DXS 3600 How to Setup SNMP

DXS 3600 How to Setup SNMP
