How to manually add DCH-Z120 to mydlink account

First, ensure the DCH-G020 has been successfully added to your mydlink account.

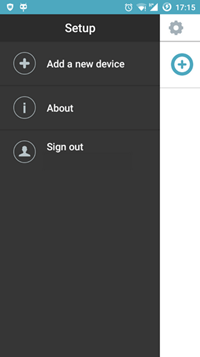

 Tap the gear icon at the top left of
the app screen and then tap ‘Add
a new device’.

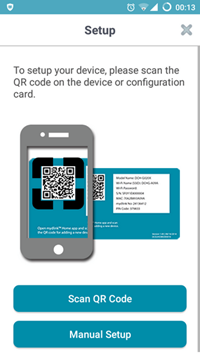

Tap on ‘Manual Setup’.
 DCH Z120 how to add to mydlink home app  DCH Z120 how to add to mydlink home app

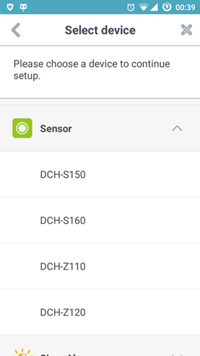

Tap on ‘Sensor’, and select
the DCH-Z120.

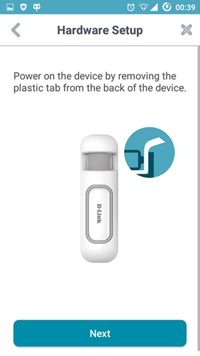

Pull the plastic tab from the rear of
 the sensor – a red LED will start to
flash. Tap ‘Next’.

 DCH Z120 how to add to mydlink home app

 DCH Z120 how to add to mydlink home app

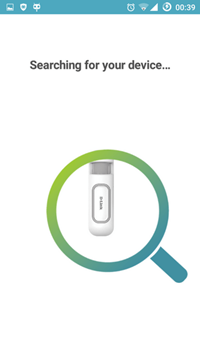

The DCH-Z120 will now search for  and attempt to connect to your Hub

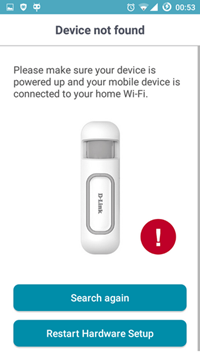

 If the app does not see the Sensor join to
the Hub, it will ask you to search again. If it
still does not find it, then you can restart the Hardware Setup – tap the button.

 DCH Z120 how to add to mydlink home app  DCH Z120 how to add to mydlink home app

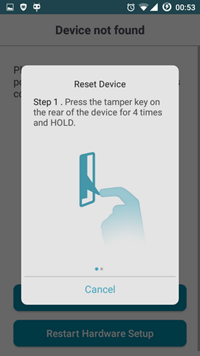

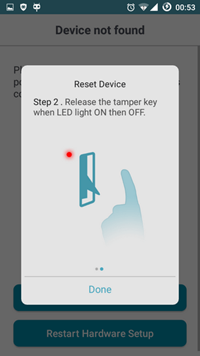

On the back of the Sensor, swipe the
Tamper switch four times, holding it
down on the fourth swipe until the LED
glows and fades.
The app will search for the Sensor again.
 DCH Z120 how to add to mydlink home app   DCH Z120 how to add to mydlink home app

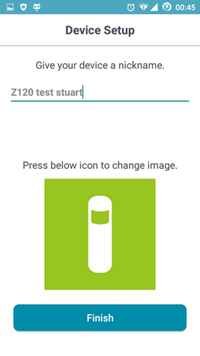

When the Sensor is found, you can then give
it a name, which will be how it shows in the
app – when done, tap ‘Finish’.

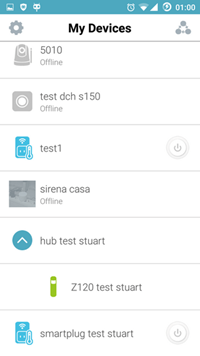

You can now see the Sensor listed in
My Devices, attached to the Hub.
Tap on it.
 DCH Z120 how to add to mydlink home app

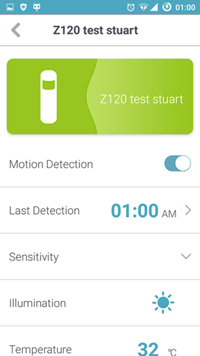

Here you can see the options for  Motion Detection, sensitivity, light detection status...
 ... and further down, the battery status, Schedule and Device Information menus.
 DCH Z120 how to add to mydlink home app  DCH Z120 how to add to mydlink home app



 DCH Z120 how to add to mydlink home app

... and further down, the battery status,
Schedule and Device Information menus.
