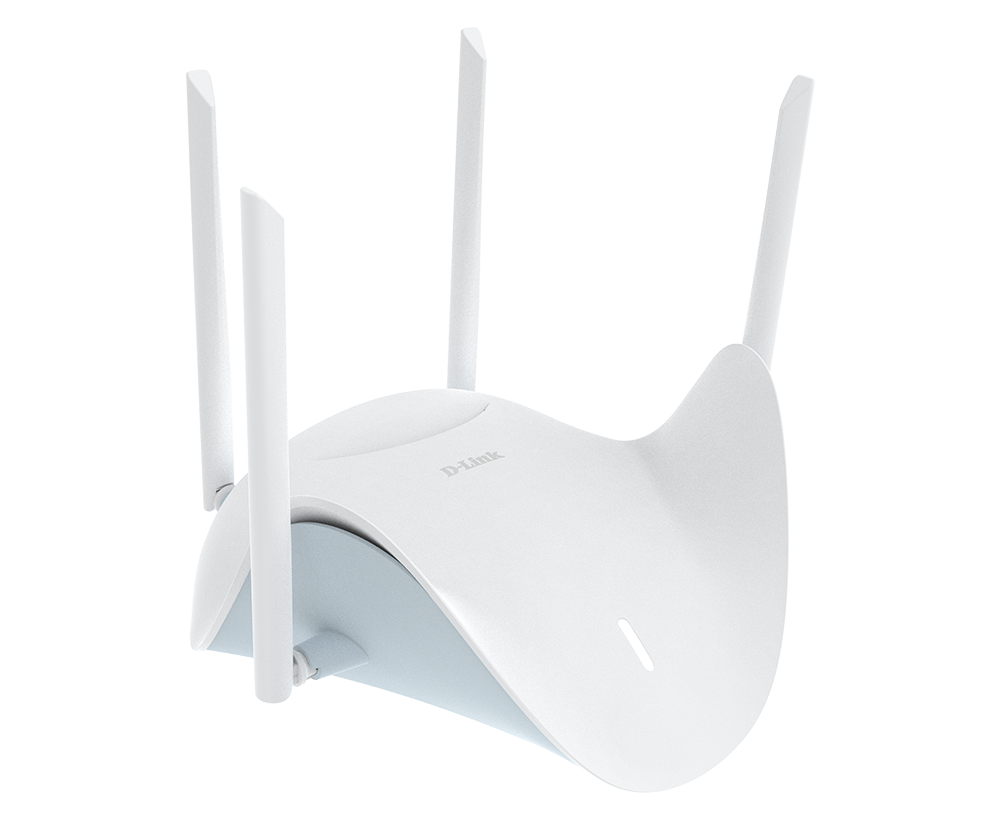

BE9500 Wi-Fi 7 Smart Router
R95
- Product Status (R95 A1 Datasheet v1_03 WW): Live
- The Latest Wi-Fi 7 Technology: Provides ultra high-speed up to 46 Gbps1, greater capacity, and higher throughput
- Tri-Band Performance: 2.4 GHz, 5 GHz and 6 GHz utilizing ultra-wide 320 MHz channels
- Multi-Link Operation (MLO) Technology:
Simultaneously transmits data across different bands to minimize congestion - Gigabit Connectivity: A 2.5-Gigabit WAN port and 3 x 2.5-Gigabit LAN ports
- External Antennas: Four adjustable external antennas for enhanced flexibility and optimized signal reception
- Simple Setup and Management
- Made In Taiwan
Where to buy

Built for Next-Gen Wi-Fi 7 Speed Performing at the Highest Level

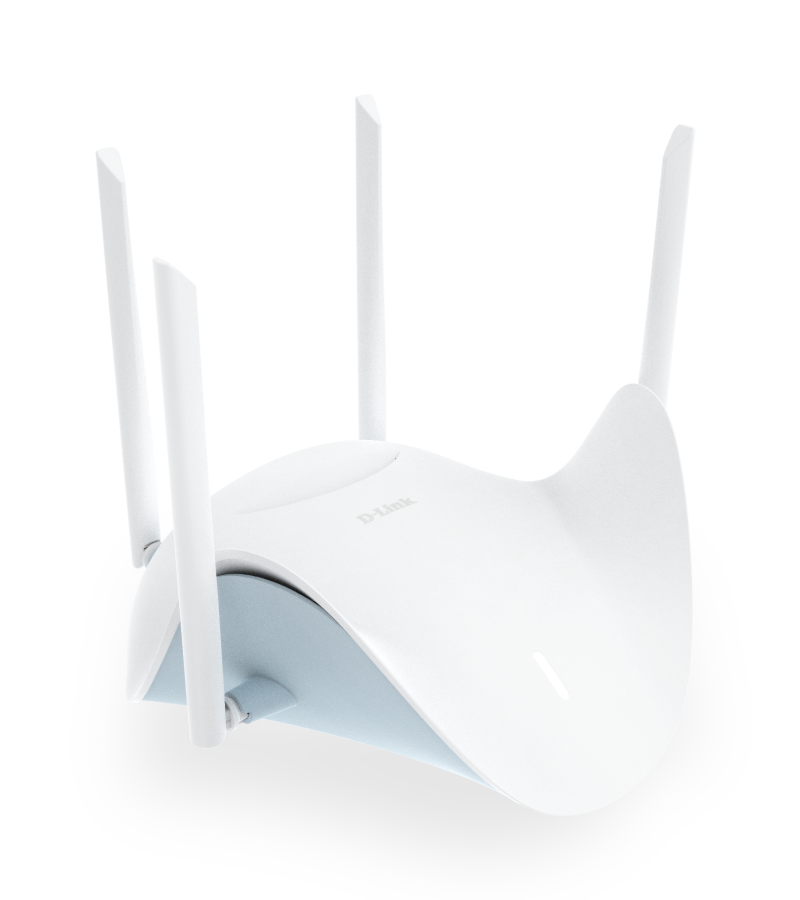

Tri-Band for Peak Performance

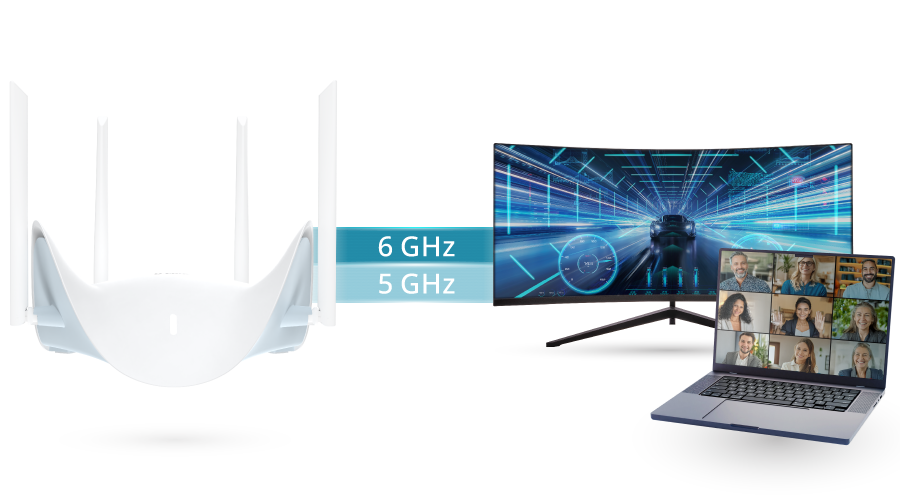

Faster, Smoother, and More Reliable with MLO

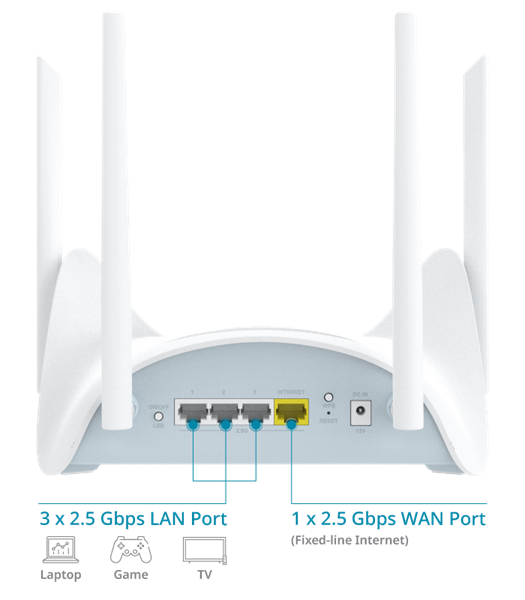

2.5-Gigabit High-Speed Wired Connectivity

Smarter Wi-Fi with AI Management
- AI Traffic Optimizer2: Prioritizes bandwidth for 4K/8K streaming, gaming, and video calls, reducing lag even during peak hours.
- AI Wi-Fi Optimizer: Scans for the cleanest channel to avoid interference and improve signal quality.
- AI Mesh Optimizer: Ensures seamless roaming and stable connections with auto path optimization and self-healing.

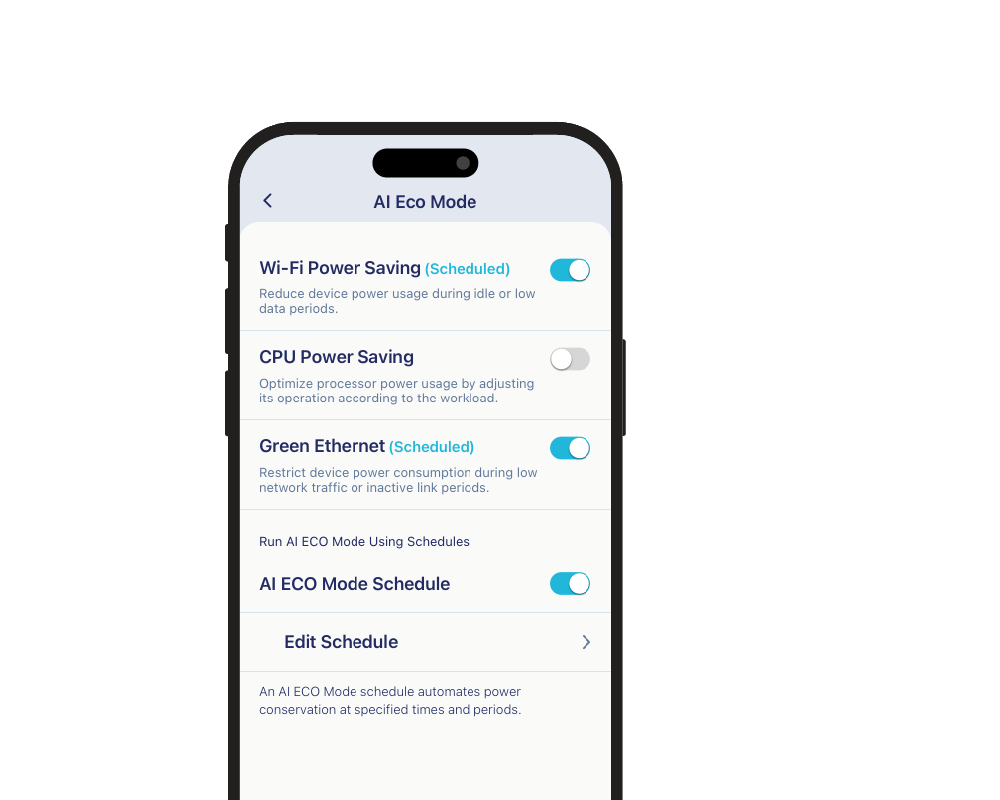

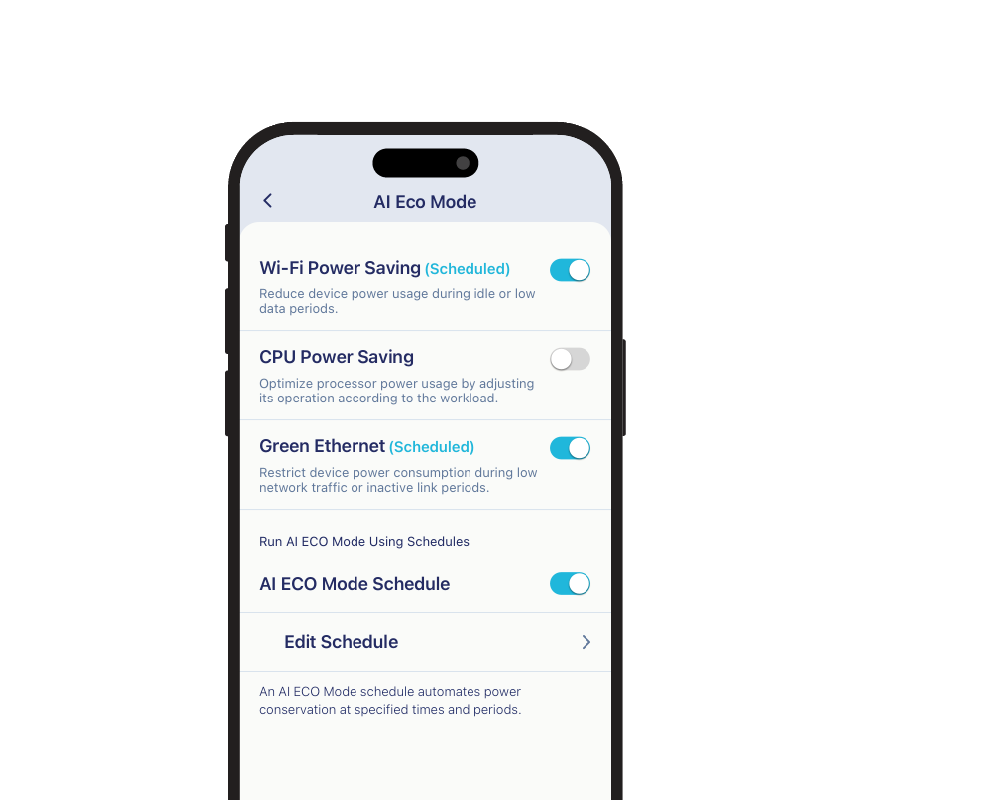

Smarter Power Saving with AI ECO Mode

Smartly Separates Your Devices into Zones
The R95 enhances network management by separating device types into dedicated zones with customizable SSIDs, optimizing stability, performance, and security across wireless bands.
• IoT Zone: Prioritizes smart home devices, reducing interference and enhancing network stability and security.
• Guest Zone: Designed for visitor access, isolating guests from the main network to protect connected devices.
• MLO Zone: Combines multiple bands to deliver ultra-fast speeds and low latency for high-demand applications.

Secure, Smart, and Seamless
The R95 is equipped with advanced security features to keep your network and data more secure. With WPA3™ encryption, parental controls, and guest Wi-Fi isolation.
Enjoy the convenience and simplicity of hands-free voice control. You can activate or deactivate your guest Wi-Fi, verify your login details, and reset your Wi-Fi system, using just your voice with an Amazon Alexa4 or Google Assistant5-enabled devices.

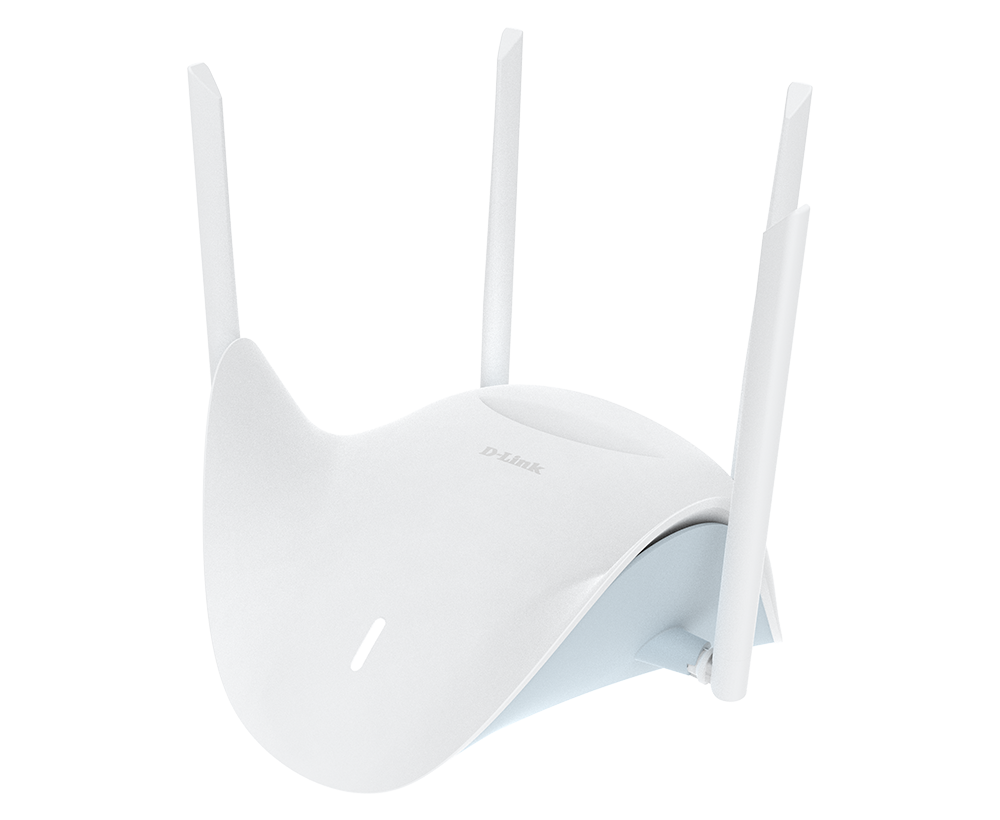

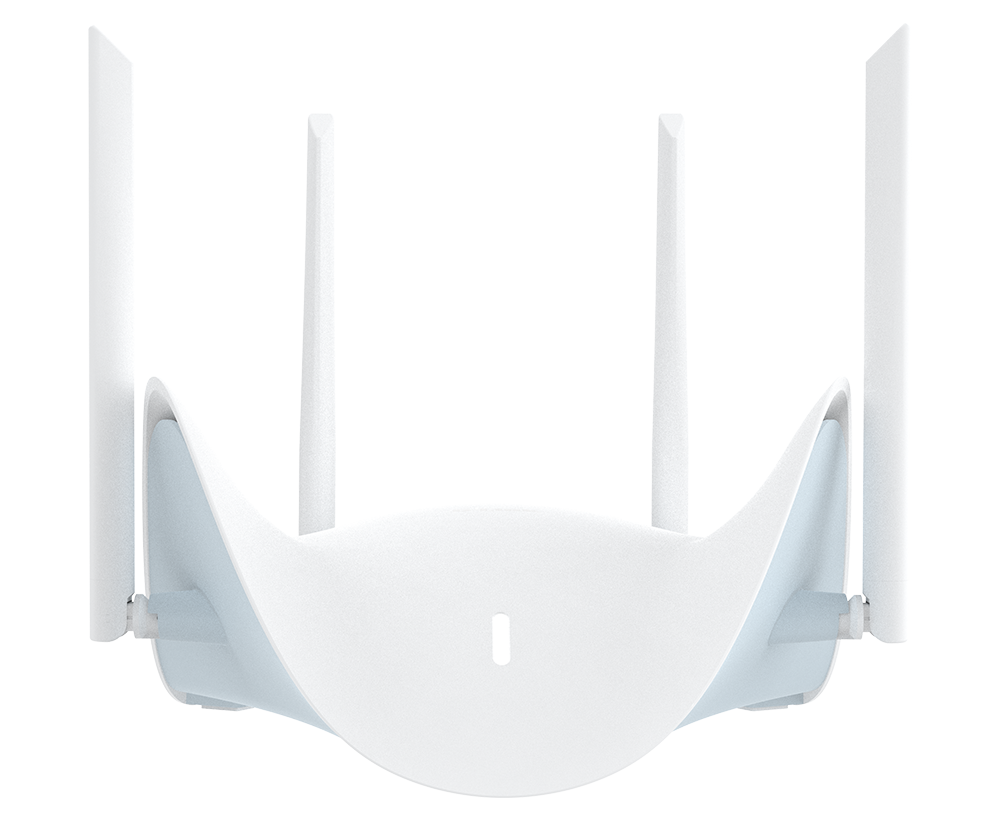

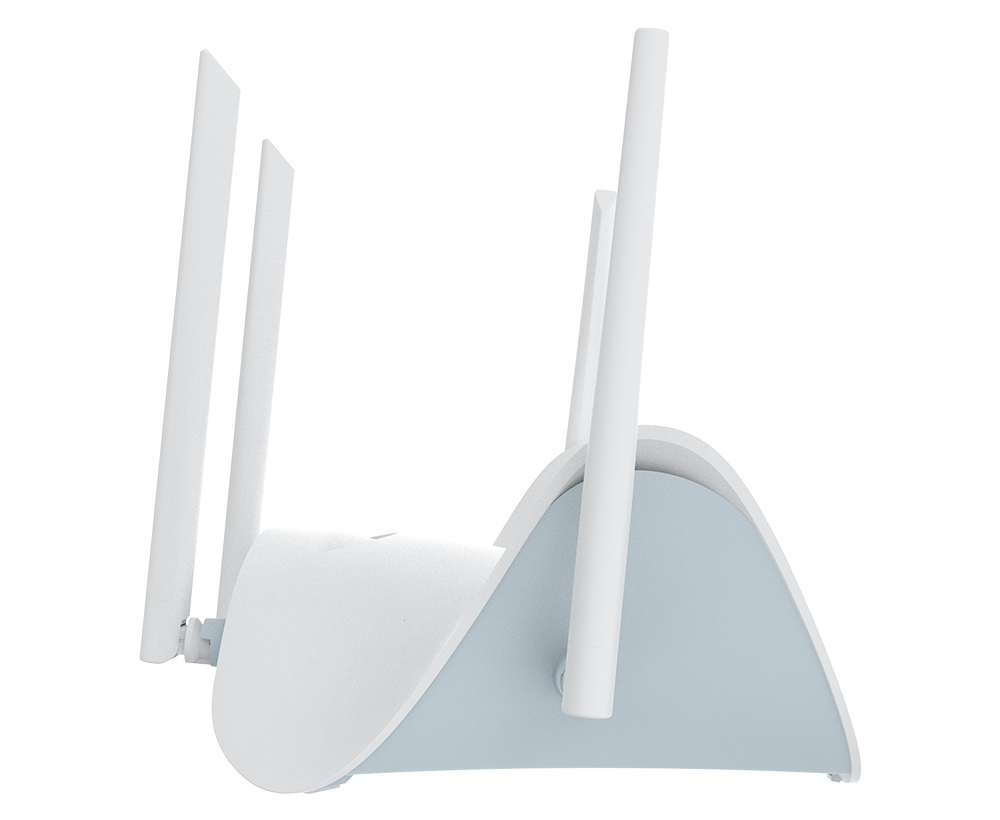

Equipped with four powerful external antennas, the R95 delivers stronger and more reliable Wi-Fi coverage. The adjustable angles offer enhanced flexibility to fine-tune signal reception for optimal performance. It’s a perfect blend of functionality and design that fits seamlessly into any modern home.

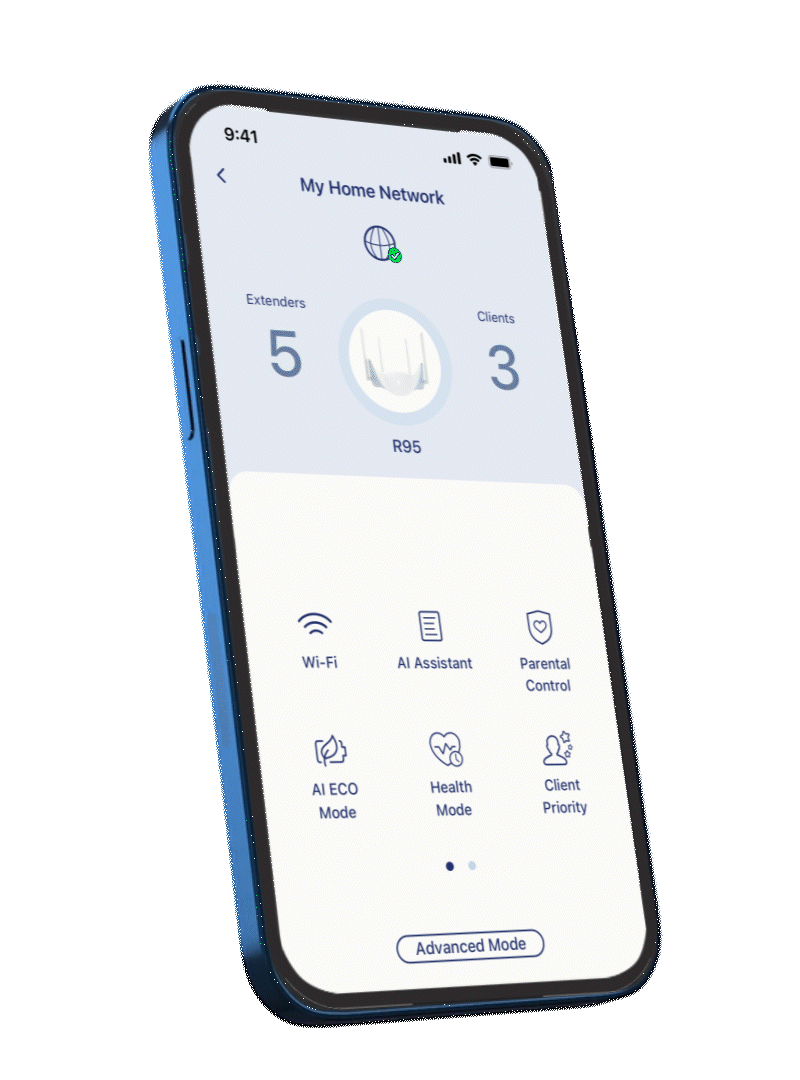

Smarter Control via the AQUILA PRO AI App
Manage your entire network with ease, optimize performance, monitor connections, block unwanted devices, set parental controls, enable guest Wi-Fi, and schedule updates, all in one powerful app.

Specification
Antenna
|
2 x 2.4/5 GHz external antennas 2 x 6 GHz external antennas |
---|---|
Certifications
|
CE FCC IC |
Device Management
|
AQUILA PRO AI app (iOS and Android) Web UI |
Dimensions
|
244 x 220 x 207 mm (9.61 x 8.66 x 8.15 in) |
Firewall
|
DoS Stateful Packet Inspection Anti-spoofing Checking IP/MAC Address Filtering 1 x DMZ |
Wi-Fi Data Rate
|
2.4 GHz up to 688 Mbps 5 GHz up to 2882 Mbps 6 GHz up to 5764 Mbps |
Wireless Standard
|
IEEE 802.11be/ax/ac/n/g/b/k/v/a/h IEEE 802.3u/ab/bz |

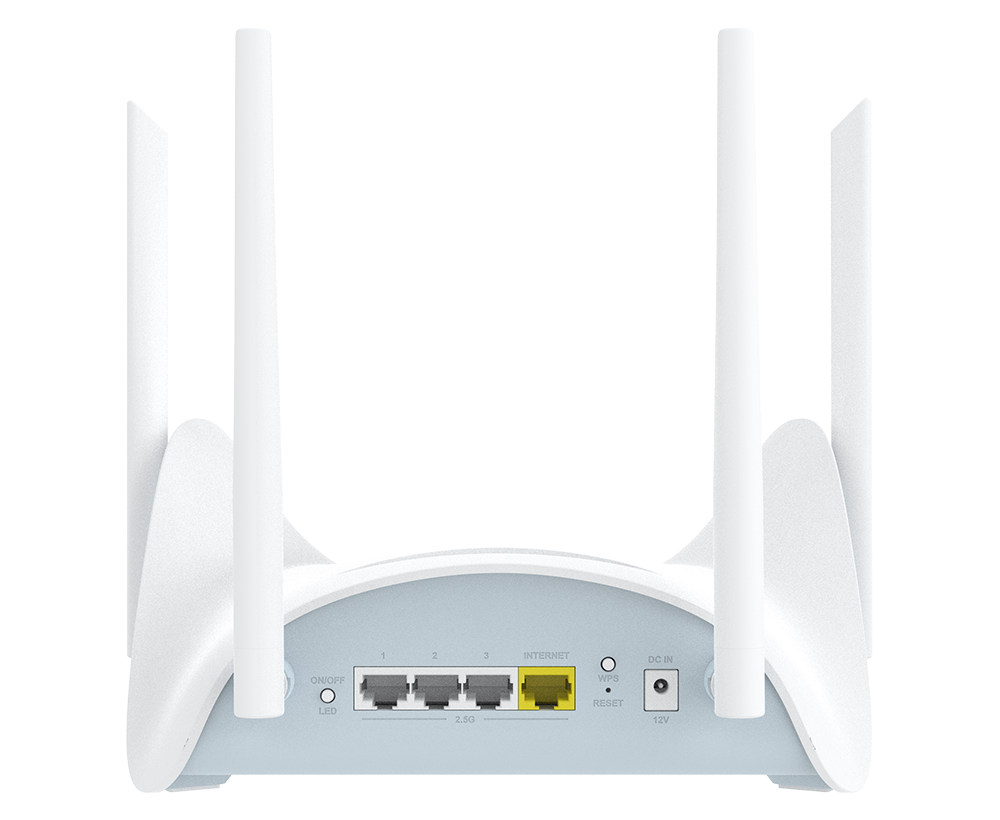

Interfaces
|
3 x 2.5 Gigabit Ethernet LAN ports 1 x 2.5 Gigabit Ethernet WAN port 1 x reset button 1 x power connector 1 x LED on/off |
LED Status Indicators
|
Power Status/WPS |
Maximum Power Consumption
|
20.291W |
Mesh-Compatible Devices
|
R95, M95, M30, M60, E30 |
Operating Humidity
|
10% to 90% non-condensing |
Operating Temperature
|
0 to 40 °C (32 to 104 °F) |
Power Input
|
12 V / 4 A |
Security Protocol
|
WPA2 - Personal WPA3 - Personal |
Voice Assistant
|
Amazon Alexa Google Assistant |
