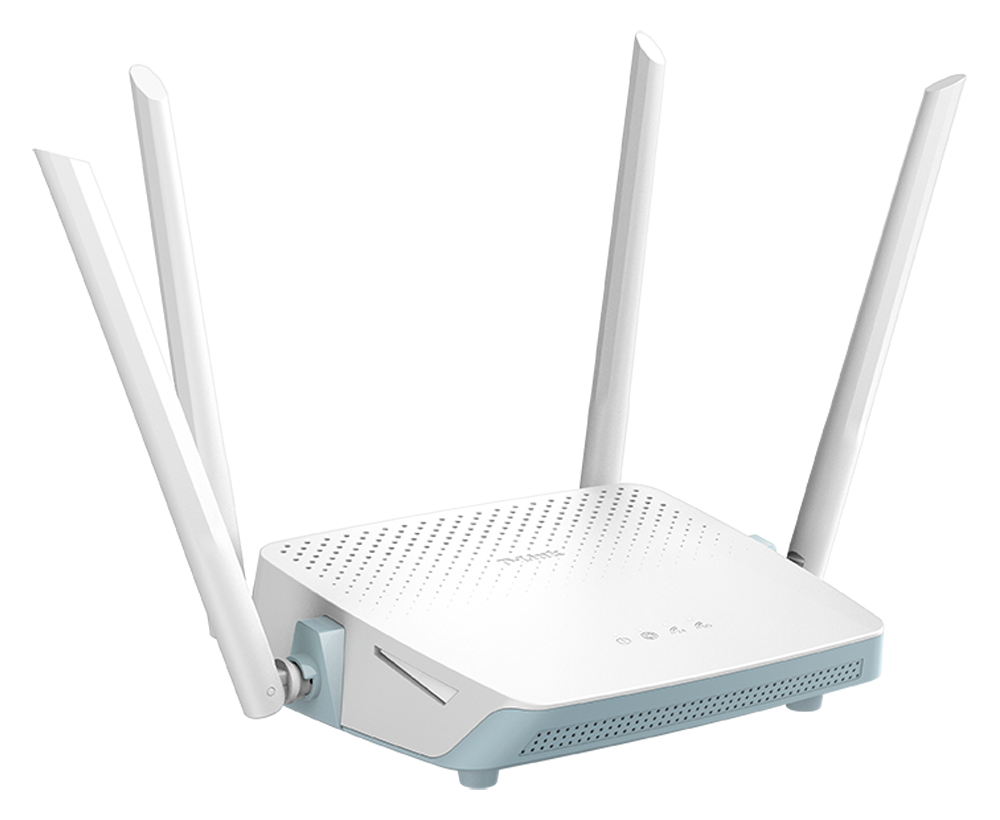

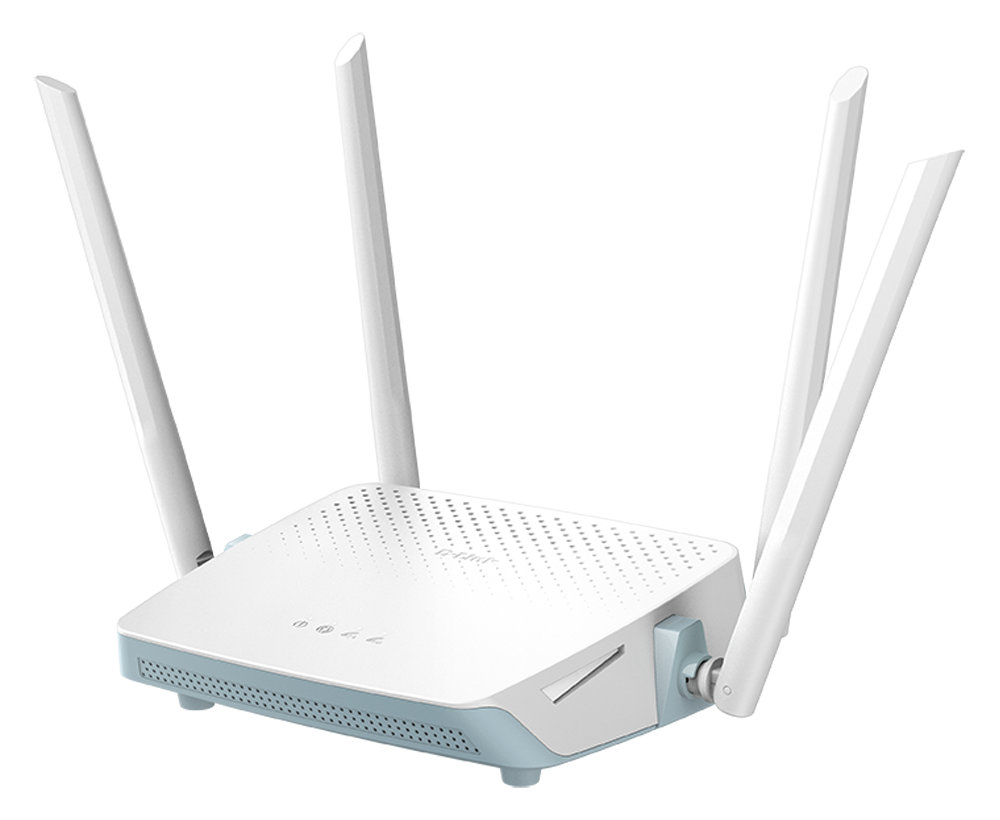

AC1200 Smart Router

R12

  • Product Status (Revision A1_v130): Live
  • High-speed, dual-band Wi-Fi 5 (802.11ac) wireless reduces congestion
  • Up to 867Mbps (5GHz) and 300Mbps (2.4GHz) Speeds
  • 1x 10/100/1000 Gigabit Ethernet WAN Port
  • 4x 10/100/1000 Gigabit Ethernet LAN Ports
  • Dual Band 2.4 GHz, 5GHz 2x2
  • Supports WPA,WPA2, and the latest WPA3 Wi-Fi Security
  • EAGLE PRO AI features including
  • AI Wi-Fi Optimizer
  • AI Traffic Optimizer
  • AI Parental Controls
  • AI Assistant

Download the datasheet.

Where to buy
R12 Product KV
R12

Optimization

R12

Coverage

R12

Connectivity

R12

Security

Dual-Band with a Kick

The R12 has the smarts to handle multiple wireless devices and enable smooth streaming and sharing across your entire home network. Dual-Band technology provides better performance and a lag-free wireless experience. Use the 2.4 GHz band for everyday tasks, while leaving the high-speed, lower interference 5 GHz band free for HD video streaming, online gaming and large file transfers.

Doul-band

Supports WPA3 – The Latest Wi-Fi Security

The R12 supports the latest WPA3 Wi-Fi Security Protocol, which can help prevent brute-force password hacks, allows for more natural passwords, and secures past transmissions from being read, even if your password is exposed.

Supports-WPA3_R12_APP

Always the Best Connection Possible

AI Wi-Fi Optimizer continuously scans the environment to keep you connected to the cleanest channel available.



R12

Quality of Service

The Quality of Service (QoS) is evaluated data size and data size is used to filter the High and Lower priority data transmission. So, the users can set the manual priority  based on their essentials in EAGLE PRO AI App.



R12

Keep Playtime Safe and Healthy

AI Parental Control lets you designate online hours for little ones and restrict website access to keep their learning experience a safe and healthy one.



R12

Health Mode

  • Schedule Wi-Fi transmission hours to reduce possible effects of electromagnetic radiation
  • Schedule Wi-Fi access hours to maintain a balanced family lifestyle
  • Turn off Wi-Fi entirely to conserve energy

R12

For Everything Wi-Fi, there’s D-Link EAGLE PRO AI

The EAGLE PRO AI App brings you a personal AI Assistant to continuously monitor
data usage and provide actionable recommendations and weekly reports. Managing your Wi-Fi has never been easier.

EAGLE PRO AI App

Voice Control works with Google Assistant or Alexa

Easily integrates with Amazon Echo’s Alexa
or the Google Assistant for convenient hands-free voice control.

*Please check availability in your region

google amazon

R18

Related Products

R15 EAGLE PRO AI AX1500 Smart Router - Front view.
EAGLE PRO AI AX1500 Smart Router
R15
Find out more
R04
N300 Smart Router
R04
Find out more
Antenna
4 x External antennas
Certifications
CE

FCC

IC
Device Management
EAGLE PRO AI app (iOS and Android)

Web UI
Dimensions
L: 177 mm (6.96 in), W: 139 mm (5.47 in), H: 50 mm (1.96 in)
Firewall
1 x DMZ

Anti-spoofing Checking

DoS

IP/MAC Address Filtering

Stateful Packet Inspection
Interfaces
1 x power connector

1 x reset button

1 x WPS button

1x Gigabit Ethernet WAN port

4 x Gigabit Ethernet LAN port
Minimum Requirements
Cable_DSL modem or other ISP equipment with Ethernet port

Card

Network Interface

Supports Internet Explorer 10/Firefox 28.0/Chrome 28.0/Safari 6.0 and up

Windows 10/8.1/8/7/Vista or Mac OS X 10.6 or higher
Operating Humidity
10% to 90% non-condensing
Operating Temperature
0 to 40 °C (32 to 104 °F)
Power Input
12V/1A
QoS
D-Link Intelligent QoS Technology
Security Protocol
WPA2 (Wi-Fi Protected Access)

WPA3Wi_Fi Protected Access

WPS Wi_Fi Protected Setup
Storage Humidity
5% to 95% non-condensing
Storage Temperature
-20 to 65 °C (-4 to 149 °F)
Voice Assistant
Amazon Alexa

Google Assistant
WAN
DS-Lite

Concurrent session: 32,000

Dynamic IP

L2TP

PPPoE

PPTP

Static IP

Supports 802.1p & 802.1q

VLAN tagging and Priority bit
Weight
250 g
Wireless Standard
IEEE 802.11ax/ac/n/g/b/k/v/a/h

IEEE 802.3u/ab
