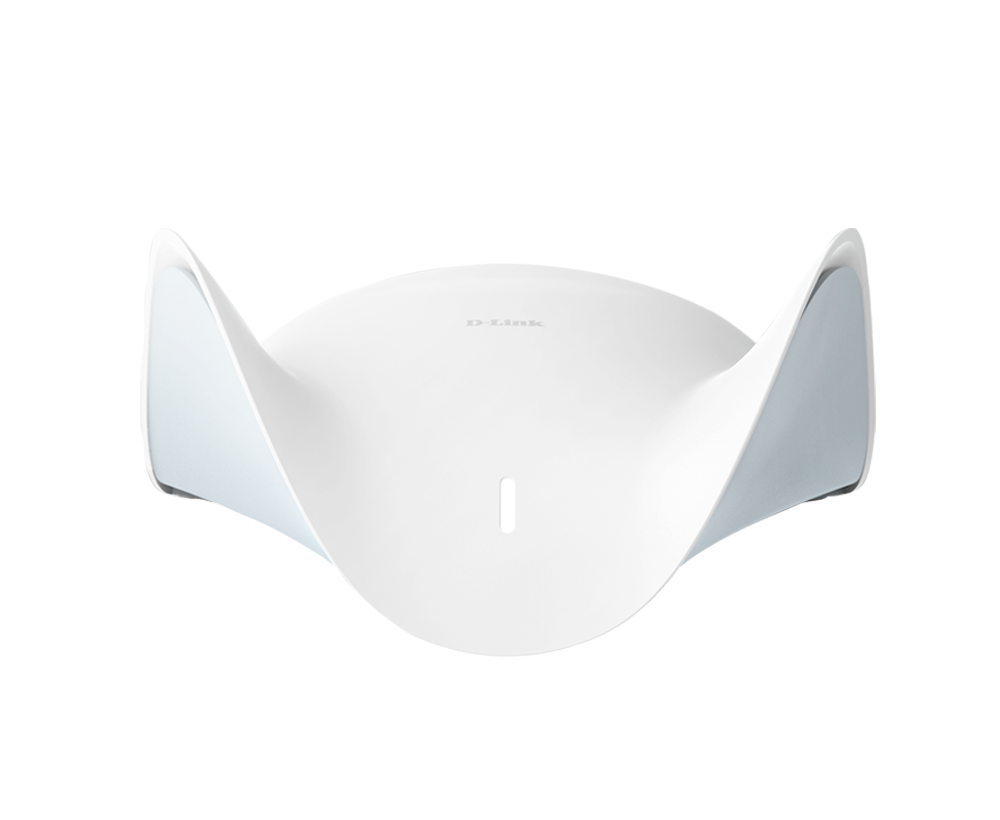

BE3600 Wi-Fi 7 Smart Mesh Router
M36
- Product Status (M36 B1 Datasheet_v1_01 WW): Live
- The Latest Wi-Fi 7 Technology: Delivers dual-band speeds up to 2882 Mbps (5 GHz) and 688 Mbps (2.4 GHz) with 160 MHz channels1
- Multi-Link Operation (MLO) Technology: Simultaneously transmits data across different bands to minimize congestion
- 360° Spherical Coverage: Advanced 4 internal antennas to ensure full, balanced coverage and eliminate dead zones
- Mesh Network: Easily create a whole-home Mesh network by adding more AQUILA PRO AI routers or extenders
- 2.5-Gigabit Connectivity: A 2.5-Gigabit WAN port and 3 x 2.5-Gigabit LAN ports
- Simple Setup and Management
- Made In Taiwan
Where to buy
Built for Next-Gen Wi-Fi 7 Speed Performing at the Highest Level
No More Dead Zone, Whole Home Coverage
Built-in omnidirectional antennas deliver 360° Wi-Fi for seamless, wall-to-wall connectivity. And expand your network by adding more AQUILA PRO AI routers or extenders to expand coverage and build a whole home Mesh system*.
* The M36 supports mesh networking with other AQUILA PRO AI models. Compatible models include: M36, R36, M95, R95, M30, M60 and E30

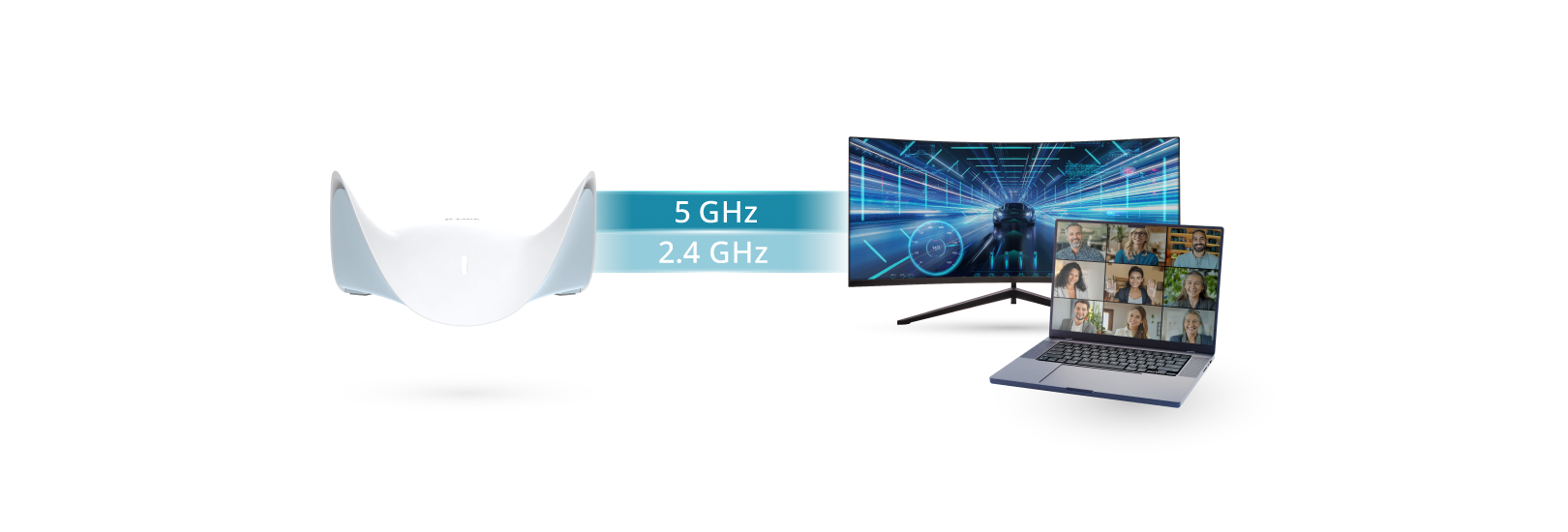

Faster, Smoother, and More Reliable with MLO
With Wi-Fi 7 Multi-Link Operation (MLO) technology, the M36 transmits across multiple bands simultaneously, boosting speed, reducing latency, and enhancing reliability. MLO Mesh applies this technology to mesh networks, strengthening the connection between your router and extender for ultra-smooth, always-on performance in every corner of your home.

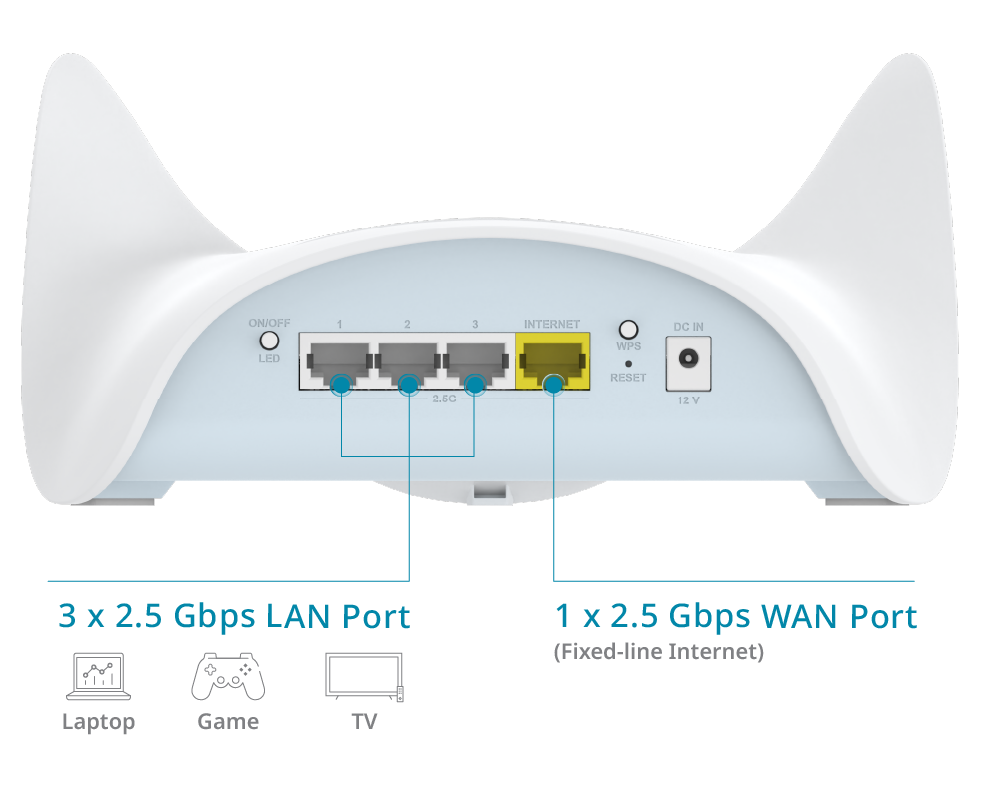

2.5-Gigabit High-Speed Wired Connectivity
Faster Transmission
Ideal for 4K streaming, NAS transfers, and workstation file sharing
Future Proof
Supports new NAS and mini PCs with 2.5G ports for better network performance
Multi-User Ready
Reduces congestion to keep all devices running smoothly during peak usage
Efficient Workflows
Faster wired speeds for SMBs and creators handling large files and efficient workflows
High-Speed Internet
Fully utilize high-speed internet plans without LAN port limitations
Smarter Wi-Fi with AI Management
- AI Traffic Optimizer2: Prioritizes bandwidth for 4K streaming, gaming, and video calls, reducing lag even during peak hours.
- AI Wi-Fi Optimizer: Scans for the cleanest channel to avoid interference and improve signal quality.
- AI Mesh Optimizer: Ensures seamless roaming and stable connections with auto path optimization and self-healing.

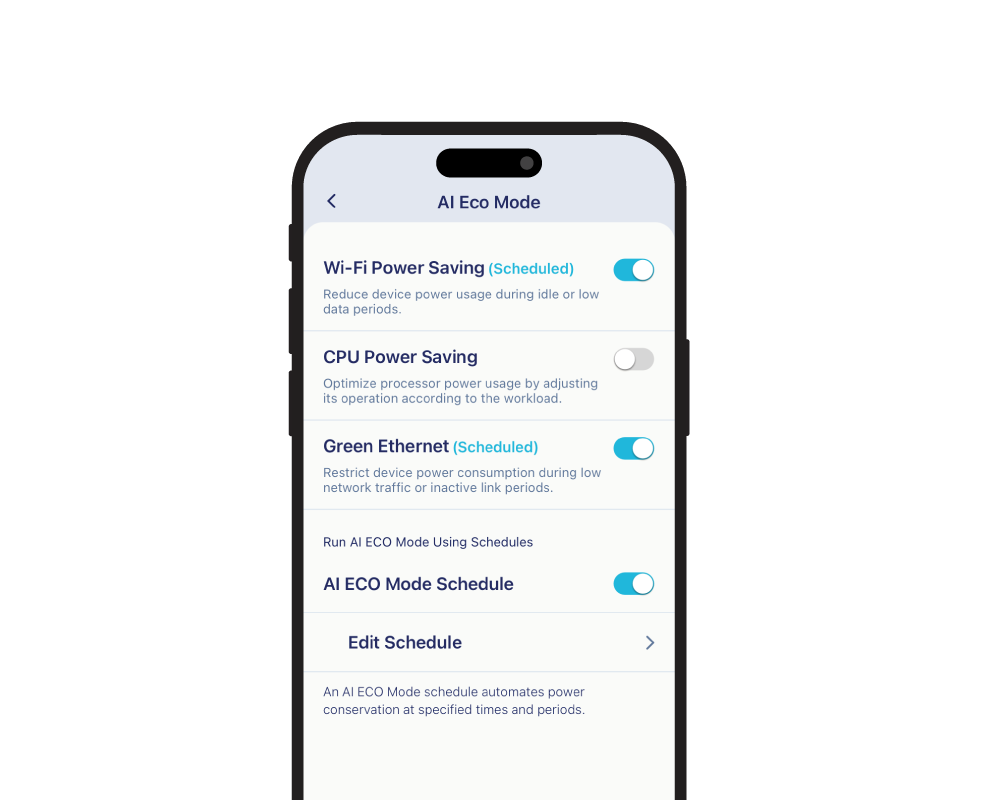

Smarter Power Saving with AI ECO Mode
Smartly Separates Your Devices into Zones
The M36 enhances network management by separating device types into dedicated zones with customizable SSIDs, optimizing stability, performance, and security across wireless bands.
• IoT Zone: Prioritizes smart home devices, reducing interference and enhancing network stability and security.
• Guest Zone: Designed for visitor access, isolating guests from the main network to protect connected devices.
• MLO Zone: Combines multiple bands to deliver ultra-fast speeds and low latency for high-demand applications.
Secure, Smart, and Stylish
The M36 is equipped with advanced security features to keep your network and data more secure. With WPA3™ encryption, parental controls, and guest Wi-Fi isolation.
Enjoy the convenience and simplicity of hands-free voice control. You can activate or deactivate your guest Wi-Fi, verify your login details, and reset your Wi-Fi system, using just your voice with an Amazon Alexa4 or Google Assistant5-enabled devices.

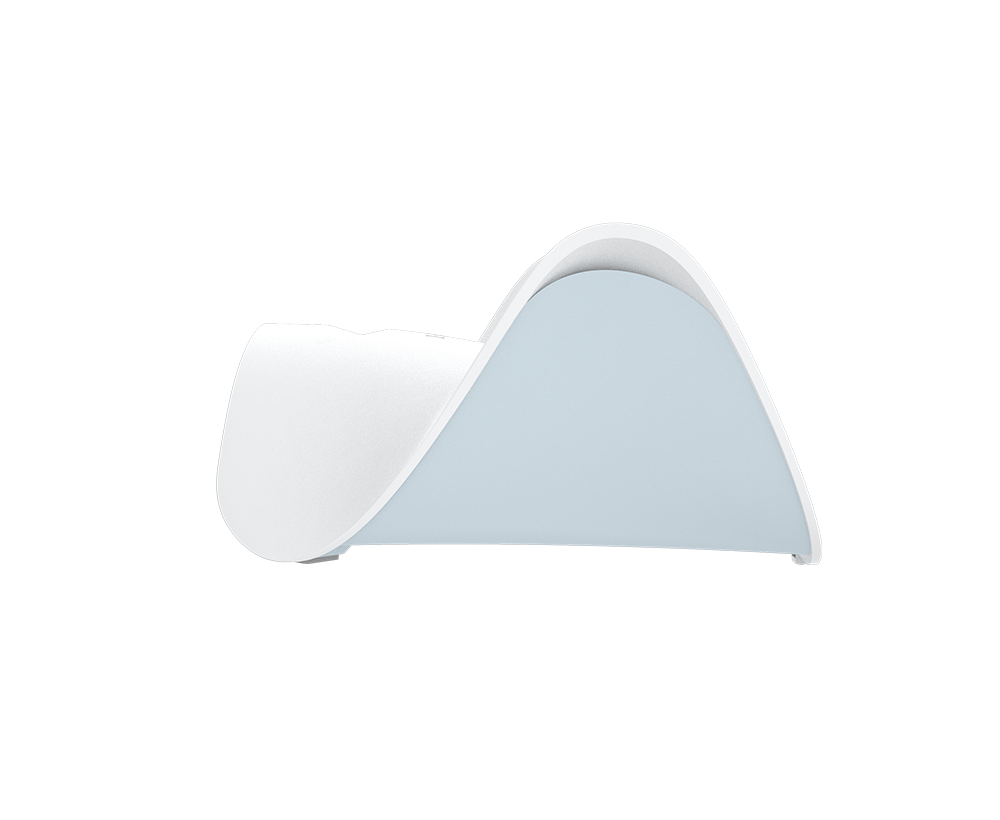

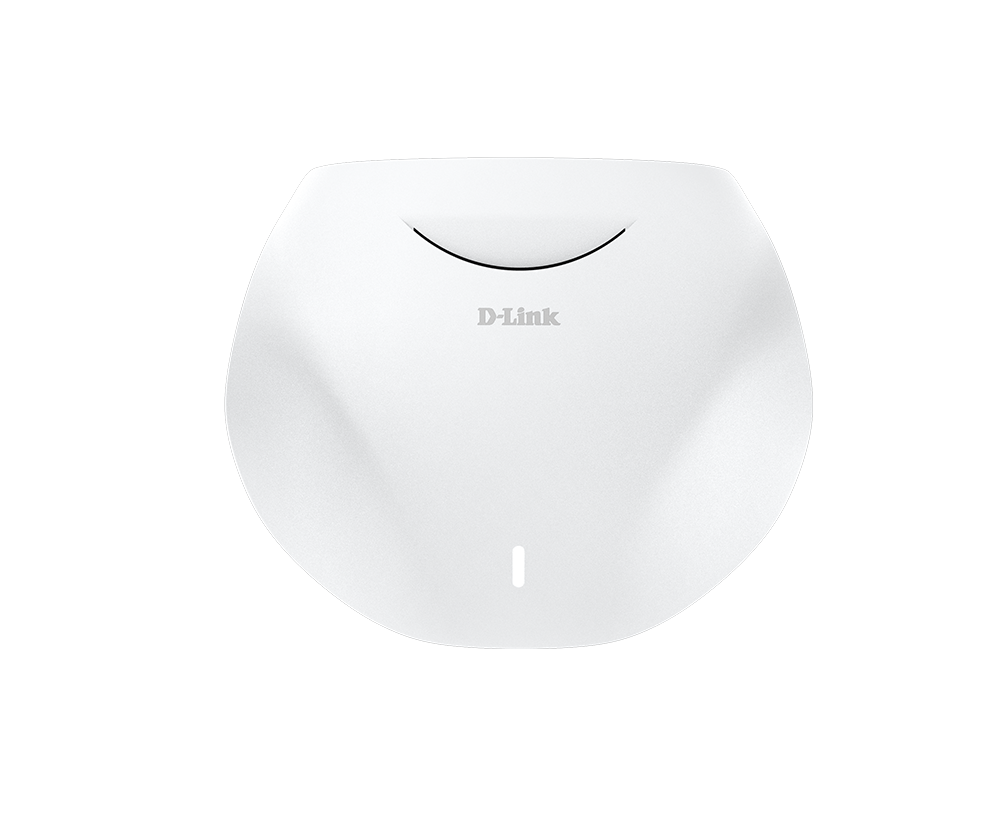

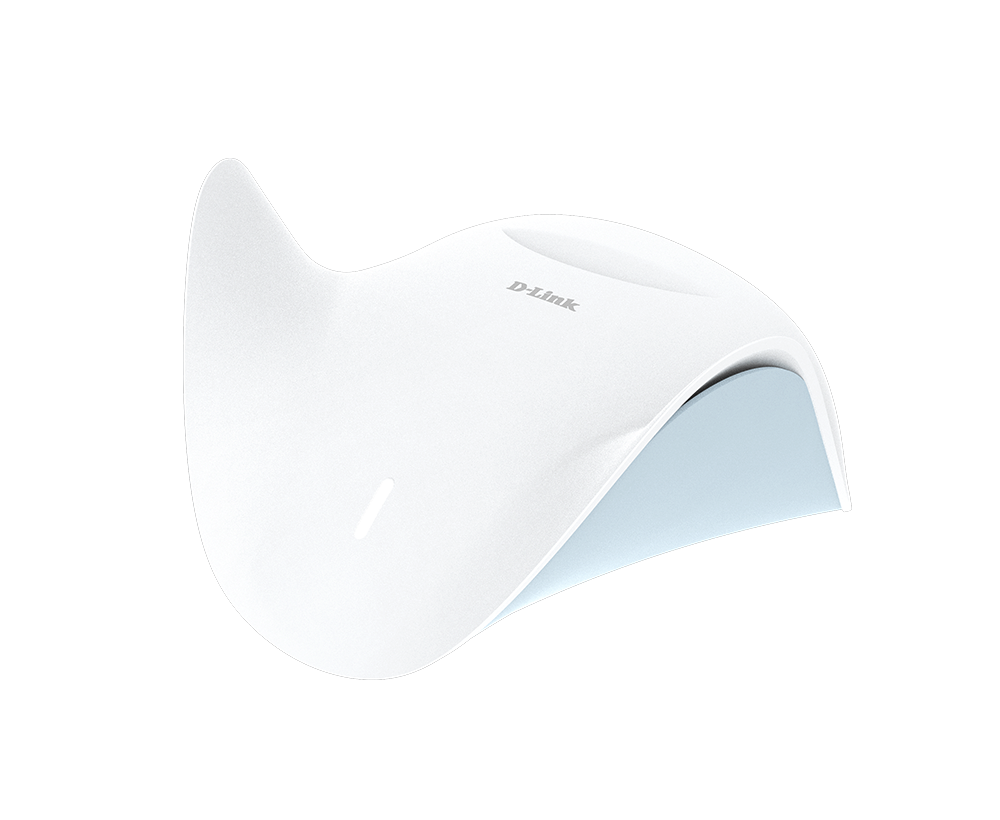

Inspired by the elegance of an eagle in flight, the M36 features a sleek curved form, integrated wing-like antennas, and feather-patterned ventilation.

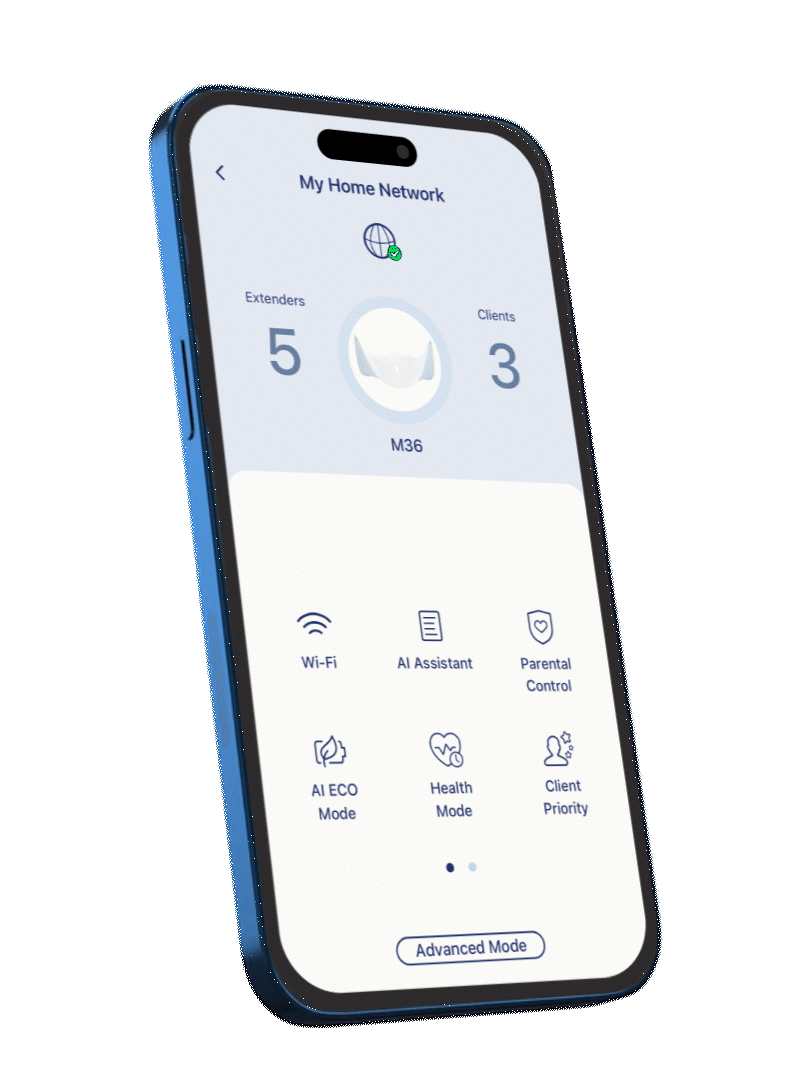

Smarter Control via the AQUILA PRO AI App
Manage your entire network with ease, optimize performance, monitor connections, block unwanted devices, set parental controls, enable guest Wi-Fi, and schedule updates, all in one powerful app.
Specification
|
Antenna
|
2 x 2.4 GHz internal antennas 2 x 5 GHz internal antennas |
|---|---|
|
Certifications
|
CE FCC IC |
|
Device Management
|
AQUILA PRO AI app (iOS and Android) Web UI |
|
Dimensions
|
192.65 x 171.42 x 92.96 mm (7.58 x 6.75 x 3.66 in) |
|
Firewall
|
DoS Stateful Packet Inspection Anti-spoofing Checking IP address filtering 1 x DMZ |
|
Wi-Fi Data Rate
|
2.4 GHz up to 688 Mbps 5 GHz up to 2882 Mbps |
|
Wireless Standard
|
IEEE 802.11be/ax/ac/n/g/b/k/v/a/h IEEE 802.3u/ab/bz |
|
Interfaces
|

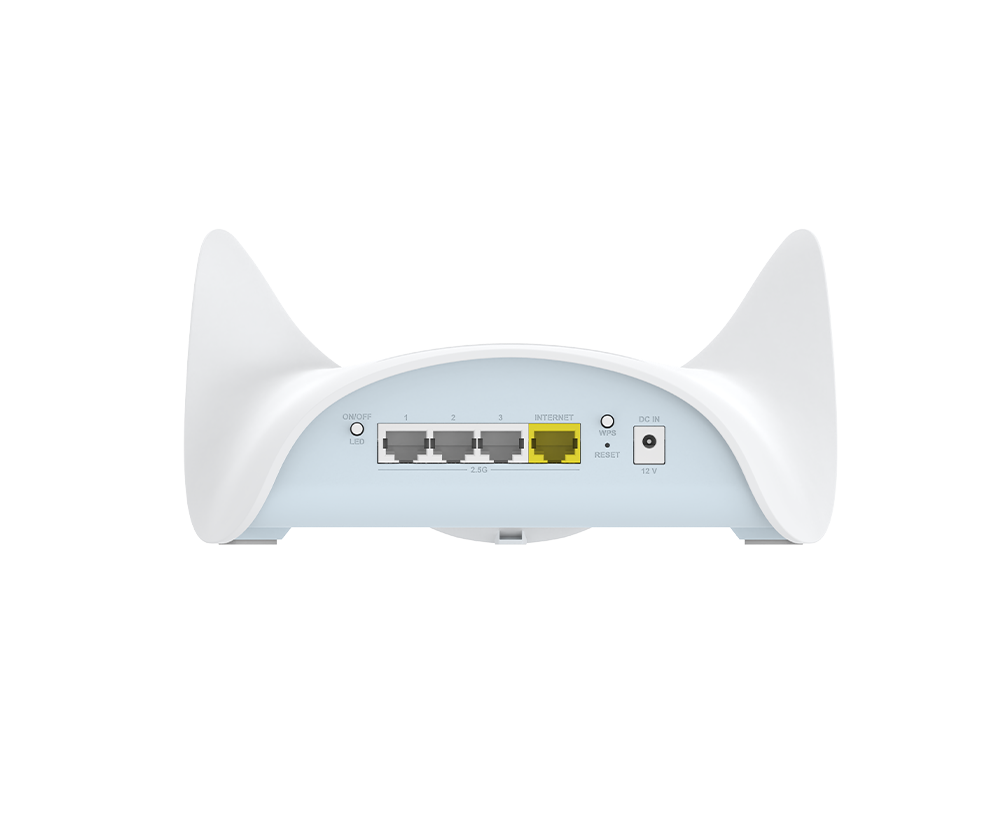

3 x 2.5 Gigabit Ethernet LAN ports 1 x 2.5 Gigabit Ethernet WAN port 1 x WPS button 1 x reset button 1 x power connector 1 x LED on/off |
|
LED Status Indicators
|
Power/Status/WPS |
|
Maximum Power Consumption
|
11.45 W |
|
Mesh-Compatible Devices
|
M36, R36, M95, R95, M30, M60, E30 |
|
Operating Humidity
|
10% to 90% non-condensing |
|
Operating Temperature
|
0 to 40 °C (32 to 104 °F) |
|
Power Input
|
12 V / 1.5 A |
|
Security Protocol
|
WPA2 - Personal WPA3 - Personal |
|
Voice Assistant
|
Amazon Alexa Google Assistant |
|
Weight
|
557 g |
