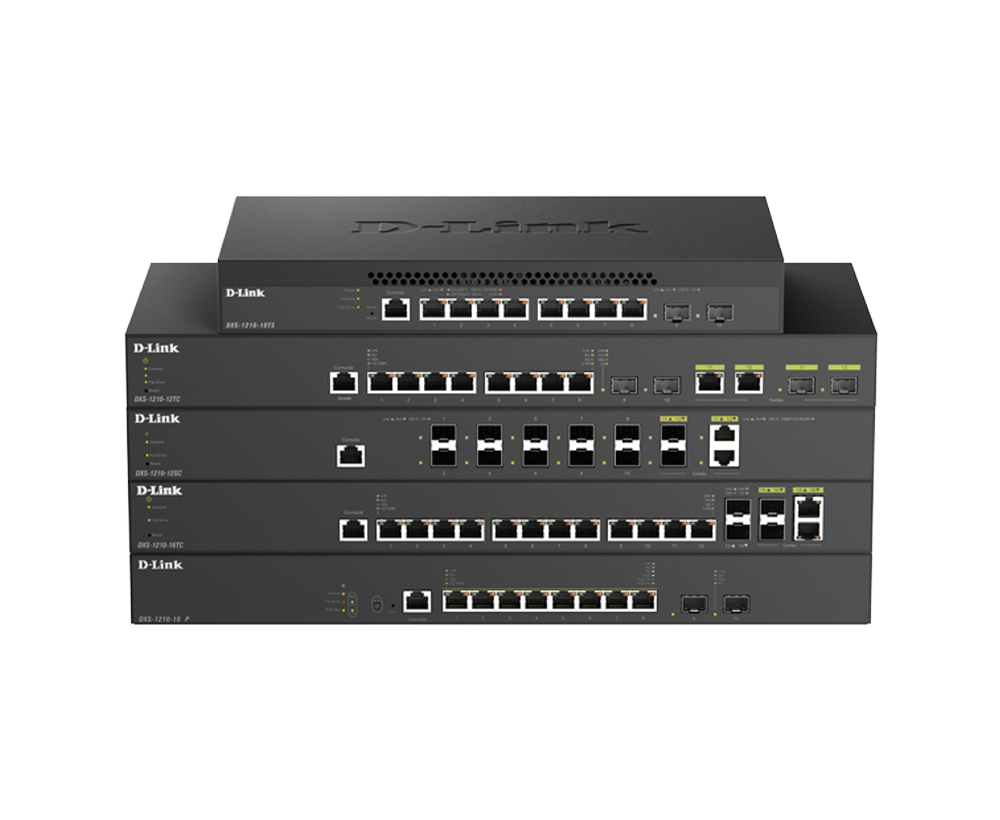

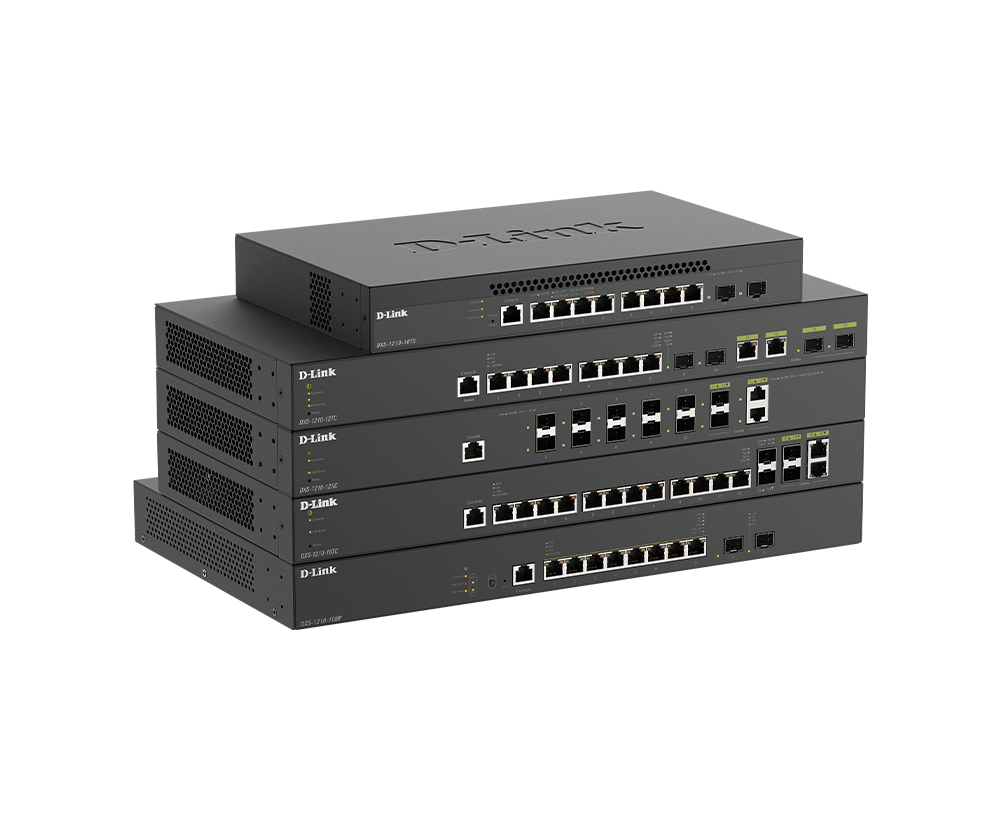

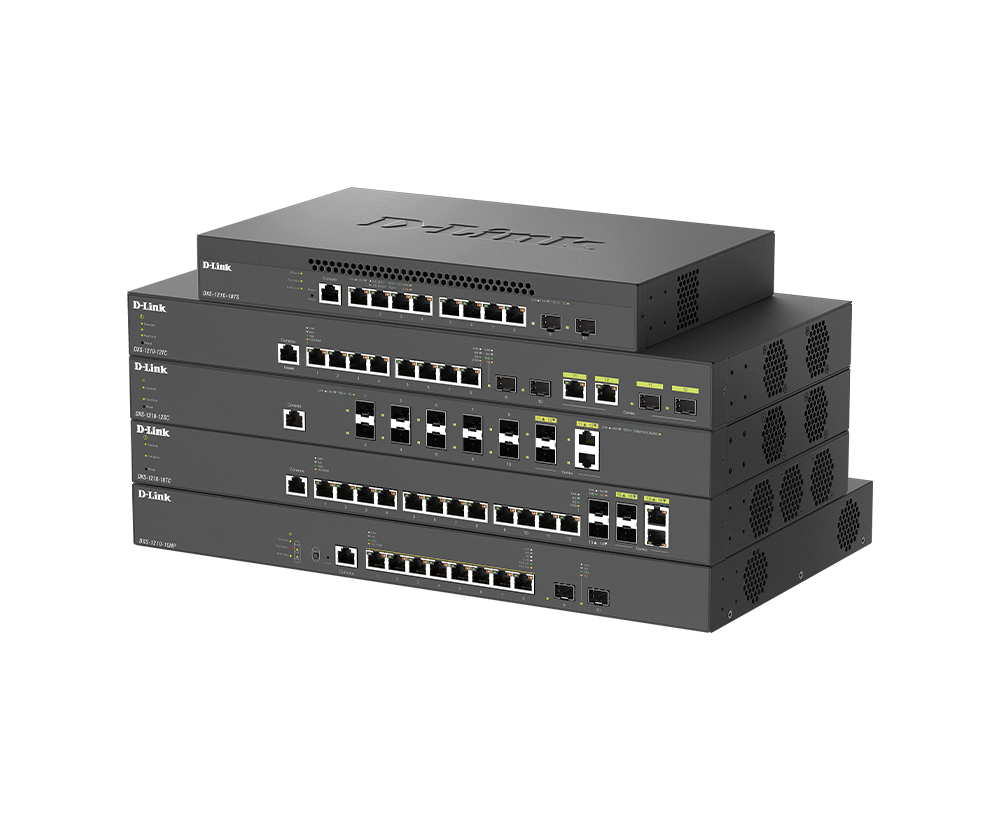

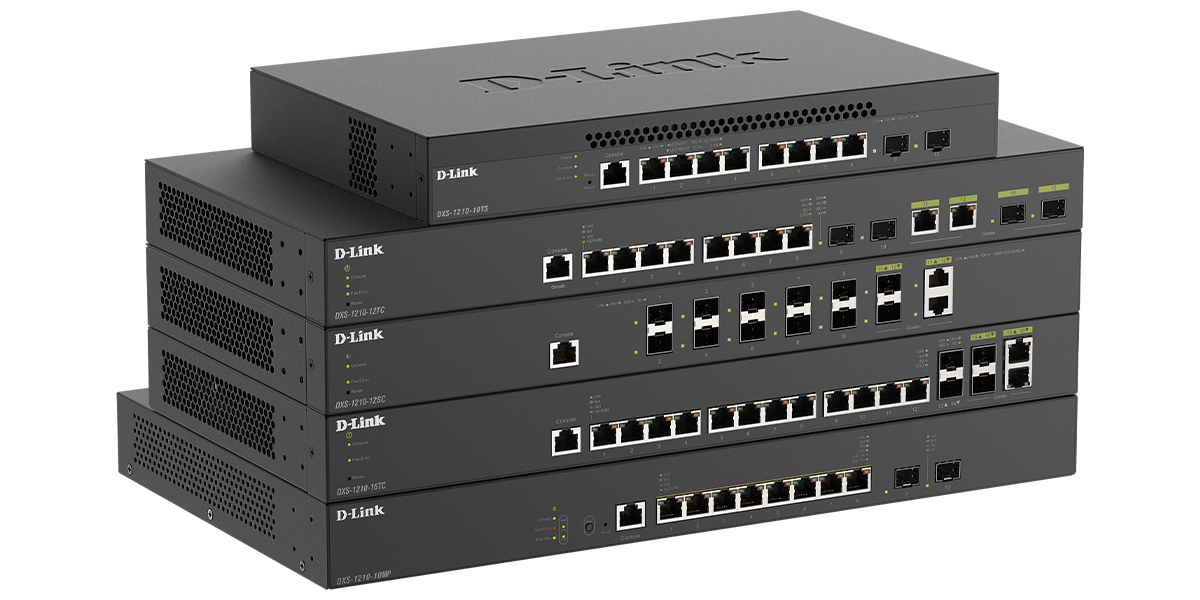

10G Multi-Gigabit Smart Managed Switches

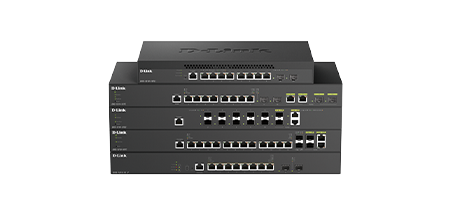

DXS-1210 Series
- Product Status (B1 v1.07): Live
- Support 2.5G/5G/10G for Downlink Ports
- Support 10G SFP+ and 25G SFP28 for Uplink Ports
- Supports IEEE 802.3af/at/bt for enough power budget
- 6kV surge protection on only PoE models
- Features ERPS for enhanced network resilience
- Built-in SNMP MIB for remote NMS
- Advanced L2 Features port mirroring, STP, and LACP
- Support Duplicate IP Address Detection
- Support DoS Attack Prevention
- Centralized Management: Nuclias Network Controller
Where to buy
Affordable 10G capabilities,
for a reliable high-speed network
for a reliable high-speed network

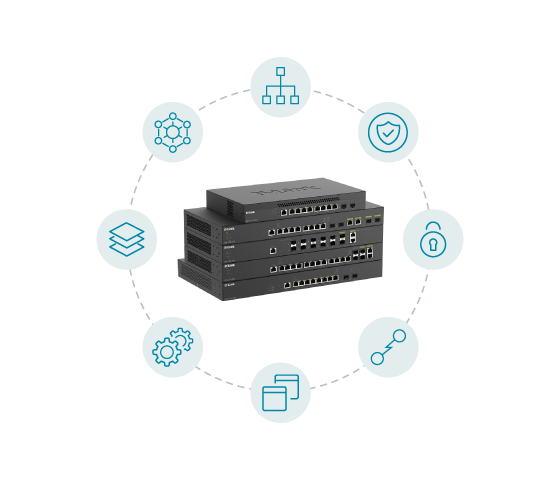

Extensive Layer 2 & Layer 3 Lite features.
The DXS-1210 series includes layer 2 features such as port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). They also support IP interfaces, ARP, IPv6 Neighbor Discovery (ND), default routing, IPv4/IPv6 static routing, IGMP and MLD Snooping, auto voice and surveillance VLAN, LLDP and LLDP-MED.
Improved intranet performance
Inter-VLAN routing allows traffic to be routed between VLANs without passing through the router, reducing the load on the router as well as the backbone networks.
Security and QoS controls for priorities
Security controls for protection of the network, and QoS ensures essential traffic reaches its destination.
Seamless integration
The DXS-1210 Series comes with both RJ45 and SFP+ ports capable of connecting to Cat. 6 and fibre for 10G Ethernet. This means the DXS-1210 series can provide a flexible solution for upstream or downstream server connections, making network deployment easier.
Security with every port.
The innovative D-Link Safeguard Engine protects the switches against traffic flooding caused by malicious attacks and increases overall network reliability.
These switches also feature Address Resolution Protocol (ARP) spoofing prevention which further protects the network from cyber attacks. They also use packet control ACLs to block invalid packets that contain fake ARP messages.
The Access Control List (ACL) helps protect the internal IT network through permission-based network access.
The DHCP server screen feature filters DHCP replies on unauthorised ports to prevent them from being assigned an IP address.
And support for 802.1X port-based and host-based authentication allows the network to be authenticated through external RADIUS servers.

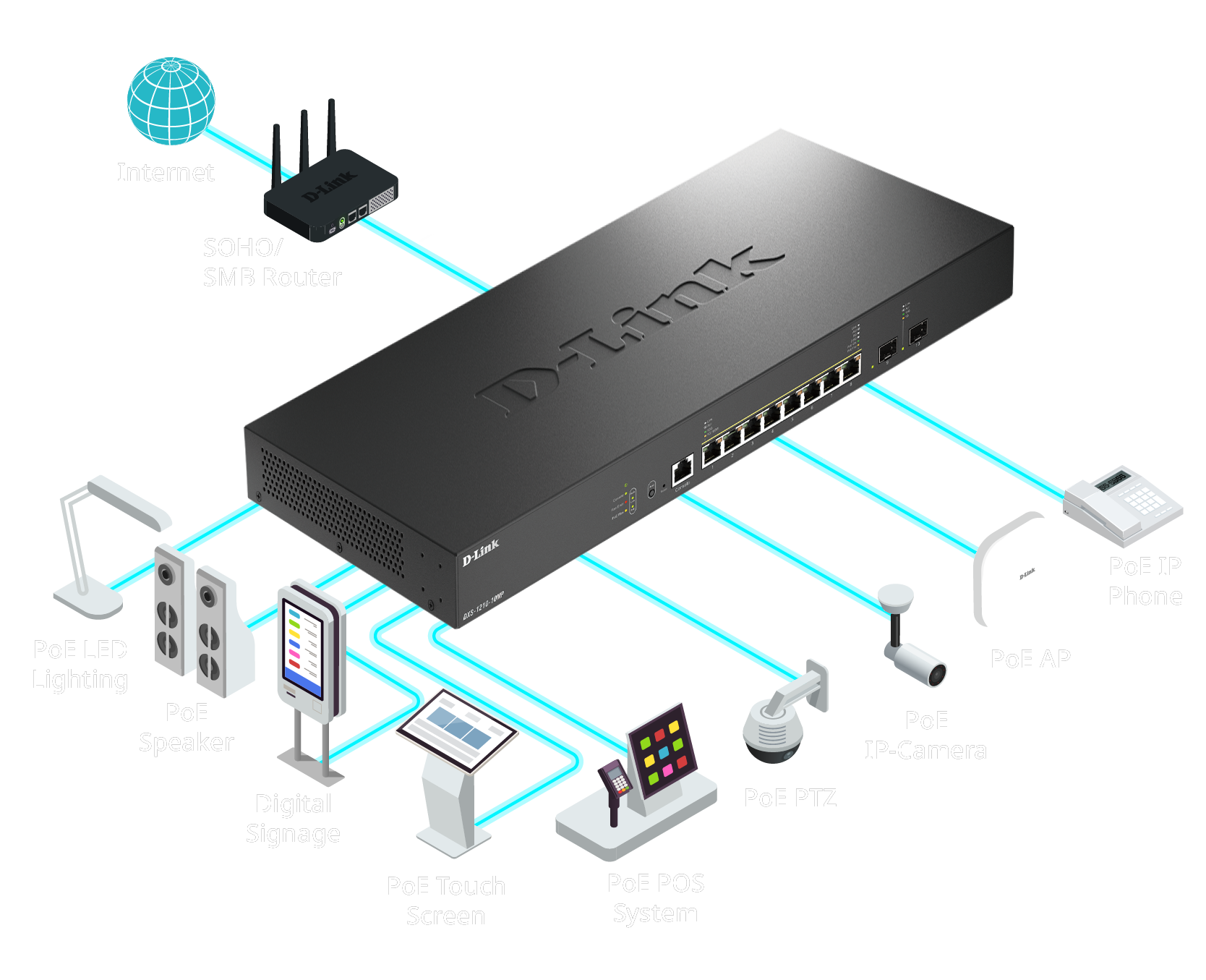

Unhindered Surveillance & VoIP with a Simple Click
If you need surveillance or VoIP, there is no need to build a dedicated network. With the DXS-1210 Series, expediting latency-intolerant services such as surveillance and VoIP through the existing network can’t be any easier. Simply enable the Auto Surveillance VLAN & Auto Voice VLAN features. Your surveillance videos will always run smoothly and your VoIP calls will be crystal-clear from beginning to end, even during peak working hours.

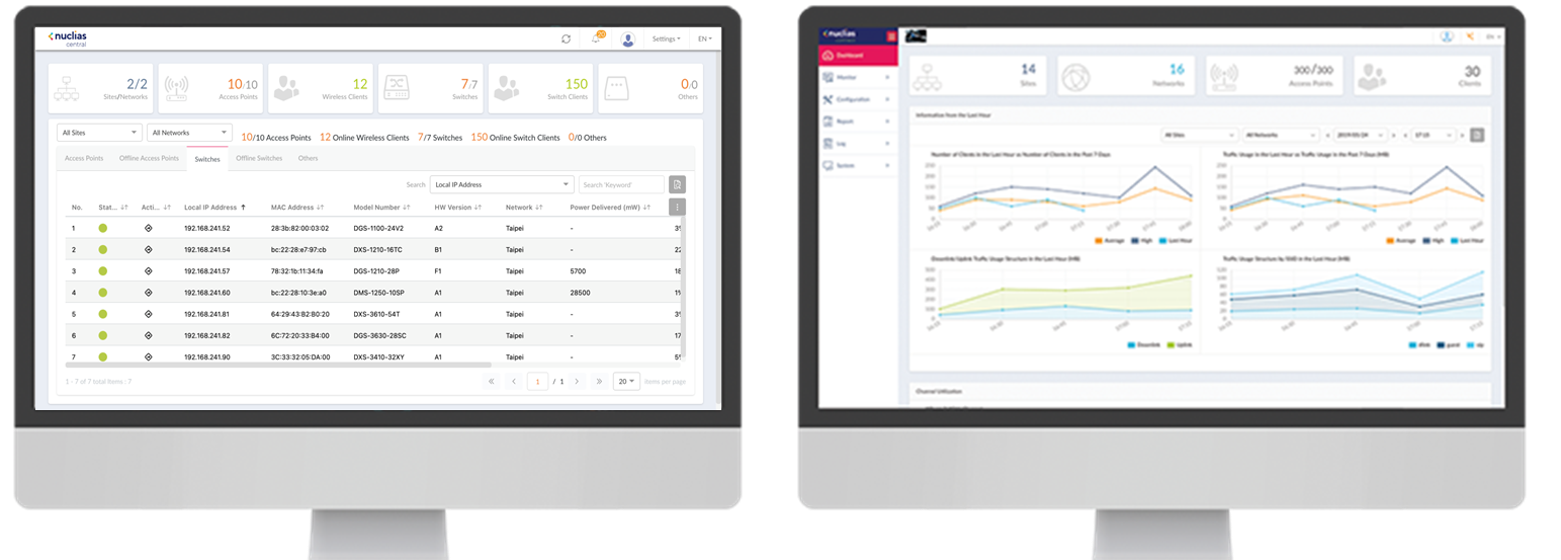

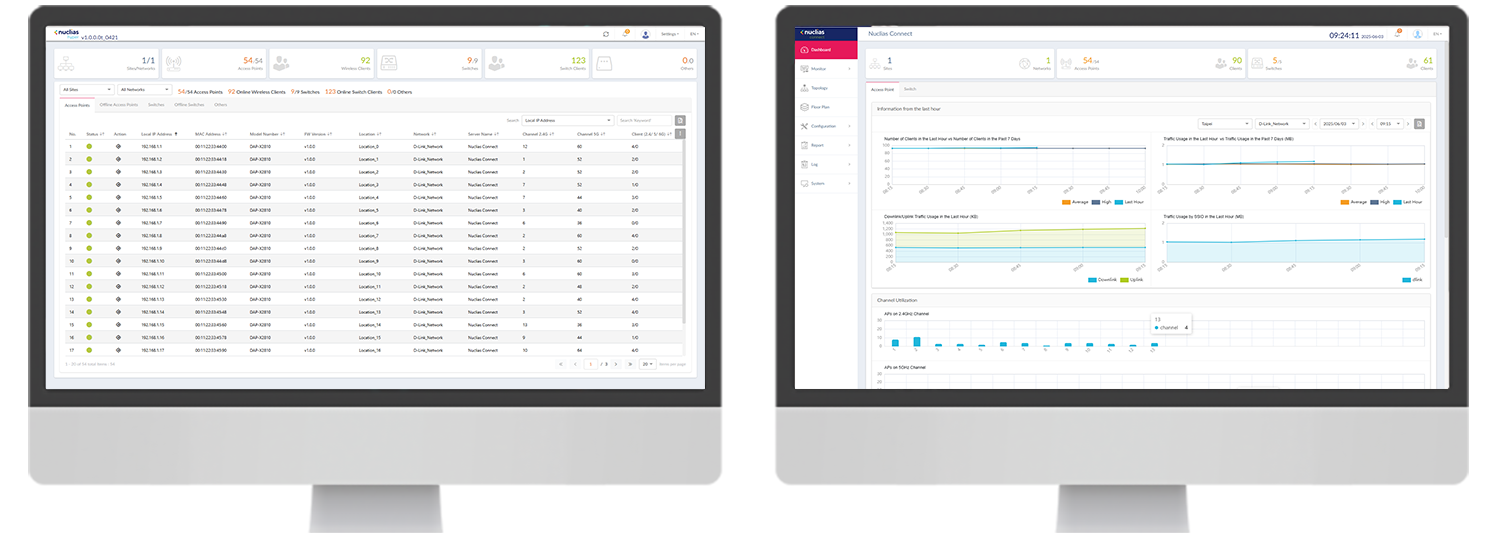

Nuclias Network Controller
The DXS-1250 Series switches support the Nuclias Network Controller for centralized management, simplifying device configuration and enhancing network efficiency. Features like device discovery, real-time monitoring, and updates ensure robust control and optimized operations.
Better for Your Budget, Better for the Planet

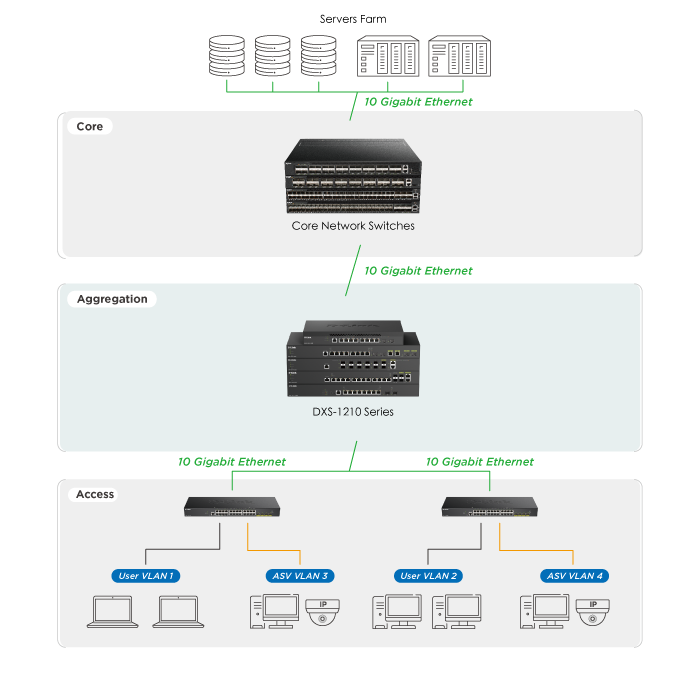

Built for Enterprise and SMBs
DXS-1210 Series Comparison
| Products | DXS-1210-10MP | DXS-1210-10TS | DXS-1210-12TC | DXS-1210-12SC | DXS-1210-16TC |
|---|---|---|---|---|---|
 |  |  |  |  | |
| Interface | 8 x 10GE 2 x 10G SFP+ | 8 x 10GE | 8 x 10GE | 10 x 10G SFP+ | 12 x 10GE |
| PoE | PoE++, with 370W Power Budge | - | - | - | |
| Learn More | Learn More |
Related Products
DXS-1210 Series Specification
Products | DXS-1210-10MP | DXS-1210-10TS | DXS-1210-12SC | DXS-1210-12TC | DXS-1210-16TC |
|---|---|---|---|---|---|
 |  |  |  |  | |
| Interface | 8 x 10GE | 8 x 10GE | 10 x 10G SFP+ | 8 x 10GE | 12 x 10G SFP+ |
| Performance | |||||
| Switch Capacity | 200 Gbps | 200 Gbps | 240 Gbps | 240 Gbps | 320 Gbps |
Max. Packet | 148.8 Mpps | 148.8 Mpps | 178.56 ps | 178.56 Mpps | 238.08 Mpps |
| PoE | |||||
| PoE Standard | IEEE 802.3af/at/bt | - | - | - | - |
| PoE Ports | Port 1 - 8 | - | - | - | - |
| PoE Budget | 370 W | - | - | - | - |
| Technical Specification | |||||
Surge Protection | 6kV surge protection on all 2.5-Gigabit Ethernet ports | IEEE 61000-4-5 standard surge protection by default | |||
| Maximum Power Consumption | 453.9 W | 43.26 W | 27.4 W | 59.1 W | 64.2 W |
| Fan | 2 Smart fans | 1 Fan | 2 Fans | 2 Fans | 3 Fans |
| Console Port | Yes | Yes | Yes | Yes | Yes |
| Power Supply Type | Internal | Internal | Internal | Internal | Internal |
