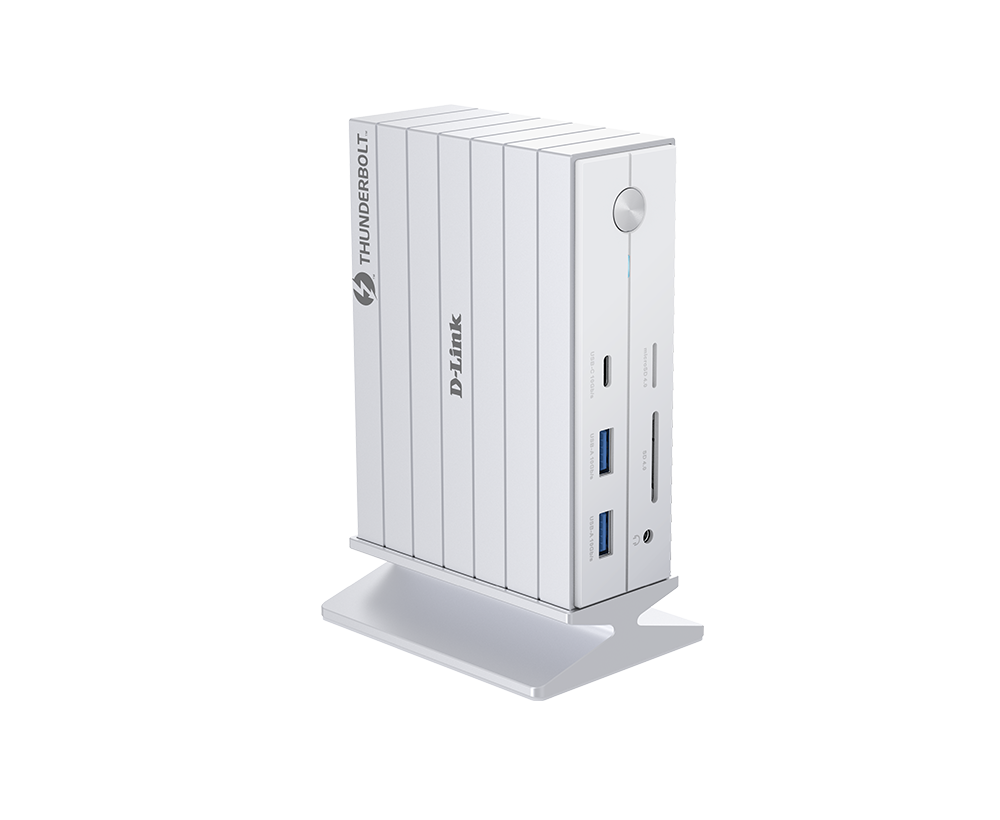

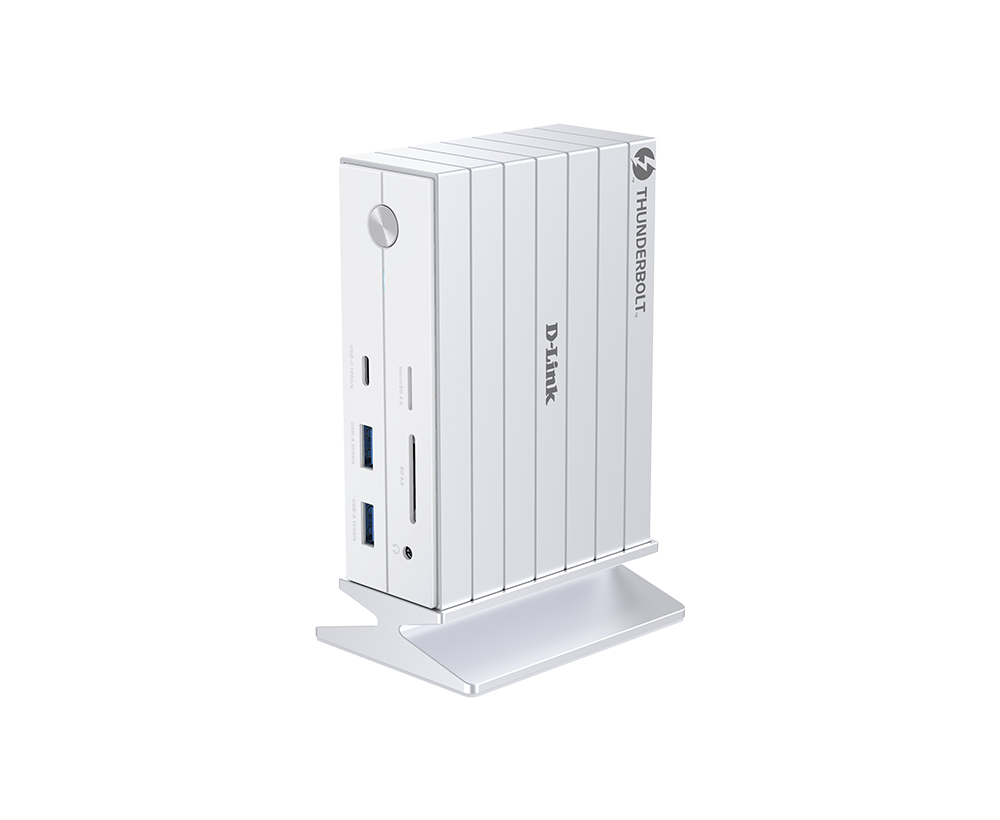

14-in-1 Thunderbolt 4 Docking Station

DUF-E01

  • Product Status: Live
  • 14-in-1 Expansion: Connect all your storage, peripherals, networking, and displays with 14 versatile ports
  • Thunderbolt 4: Thunderbolt 4 enables faster data, high-res displays, and power delivery via one connection
  • 40 Gbps Data Transfer Speeds: Up to 40 Gbps data transfer in seconds with the Thunderbolt 4 port
  • 4K @ 60Hz Triple Display: Extend or mirror across HDMI 2.1, DP 1.4, and Thunderbolt 4 ports
  • Up to 8K resolution: HDMI 2.1, DP 1.4, and Thunderbolt 4 ports support up to 8K @ 30Hz single display
  • PD 60W Fast Charging: Power your laptop up to PD 3.0 60W while charging another device at 15W
  • Magnetic Detachable Stand: Premium aluminum casing enhances heat dissipation
  • Aluminum Alloy Case: The detachable magnetic base keeps your setup organized
Where to buy

Empowering the Modern Workforce

14-in-1 Thunderbolt 4 Docking Station | DUF-E01

14-in-1 Expansion to Power Your Workflow

Connect storage, peripherals, networks, and displays with 14 ports, streamlining tasks and maximizing productivity.

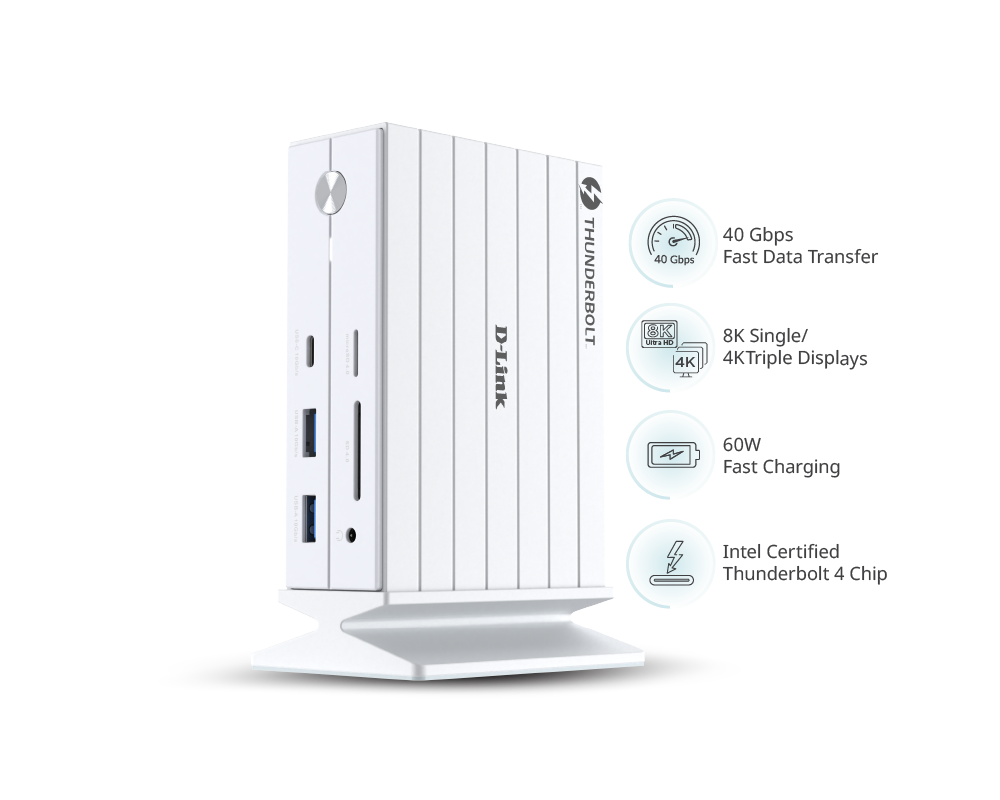

Power, Speed, and Clarity with Thunderbolt 4

Experience 40 Gbps fast data transfer, triple 4K displays, or single 8K displays, and 60W power delivery through a single connection. Fully backward compatible with previous USB versions.　

*Thunderbolt 4 certified cable required

Blasting-Fast 40 Gbps Data Transfers

Transfer large files, 8K videos, and backups in seconds with Thunderbolt 4’s fast 40 Gbps bandwidth, along with three 10 Gbps and a 5 Gbps USB ports.

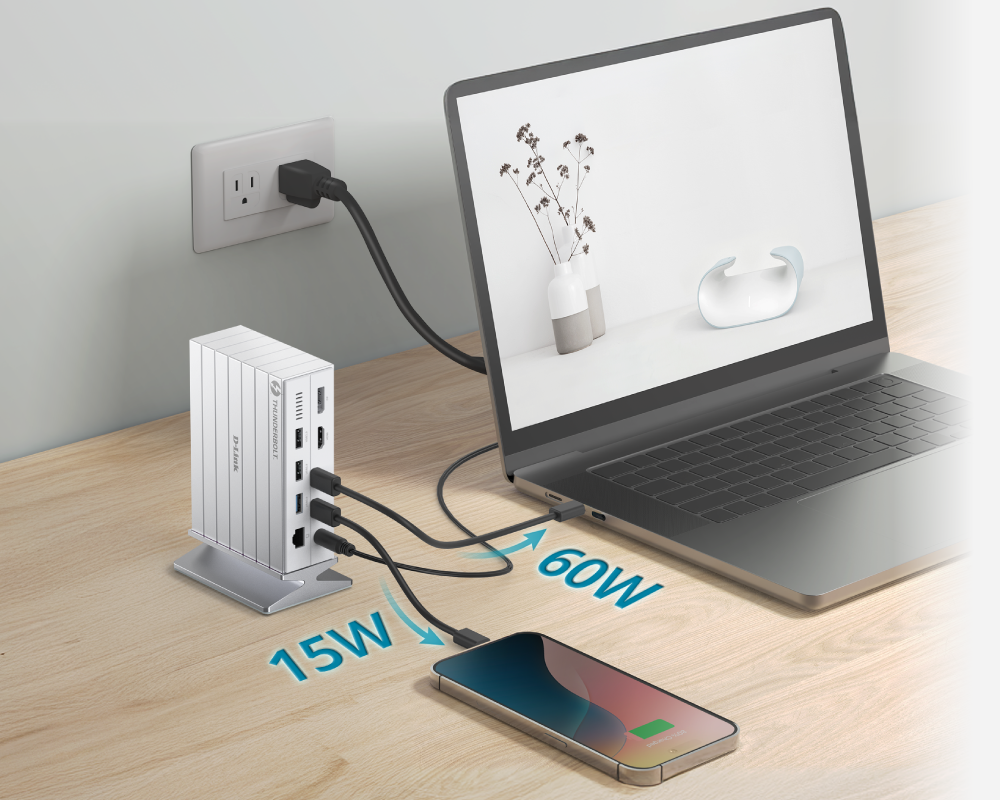

Dual Power with 60W + 15W Fast Charging

With one Thunderbolt 4 connection, your laptop receives 60W fast charging, plus 15W extra for phones, tablets, or accessories, powering all your devices together with ease.

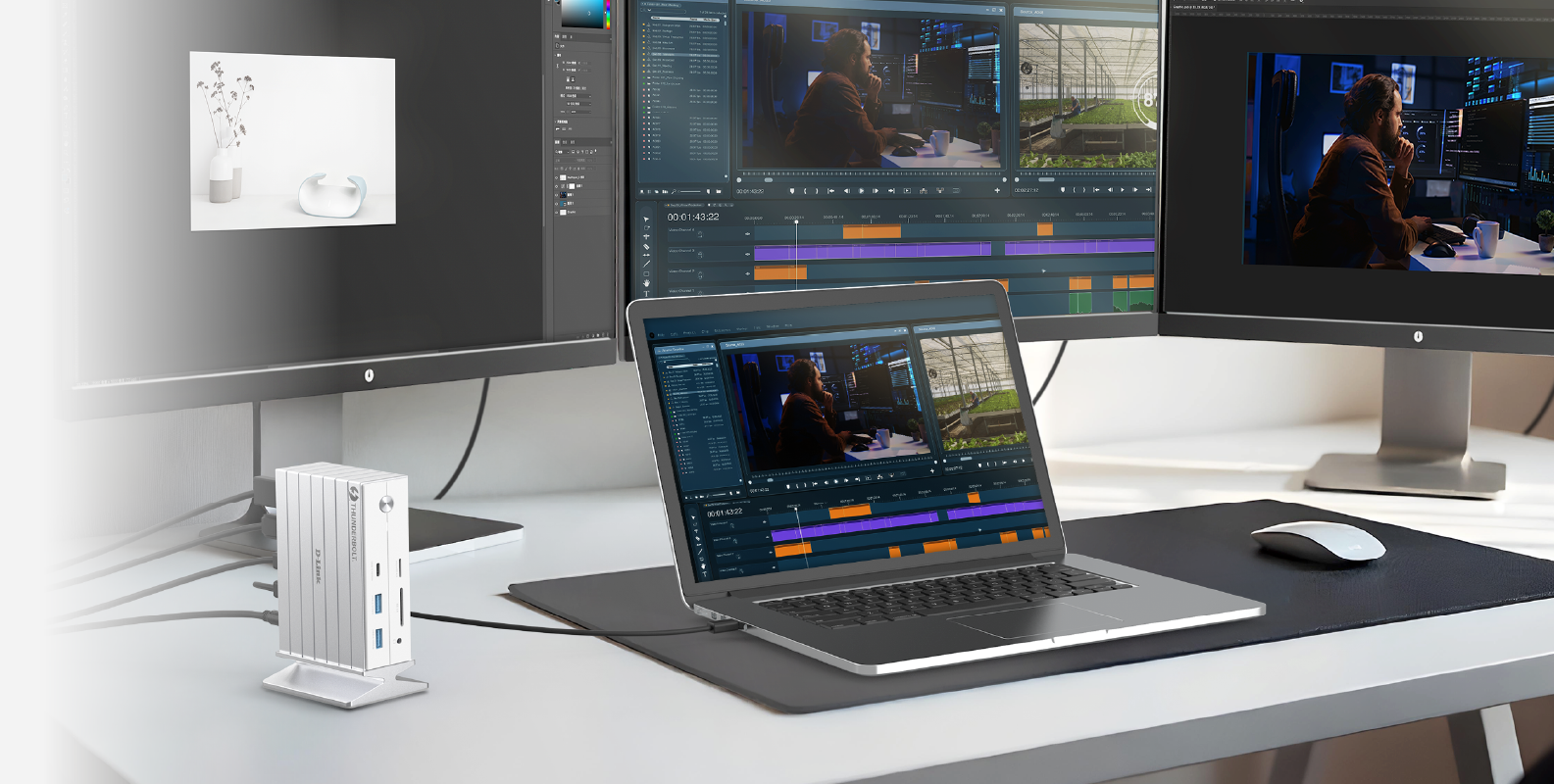

Expand Your View with

Triple 4K or　　　Single 8K Display

The DUF-E01 supports Daisy Chain with triple 4K monitors for effortless multitasking, or a single 8K display for breathtaking detail, enhancing both productivity and entertainment.

Expand Your View with

Triple 4K or　　　Single 8K Display

The DUF-E01 supports Daisy Chain with triple 4K monitors for effortless multitasking, or a single 8K display for breathtaking detail, enhancing both productivity and entertainment.

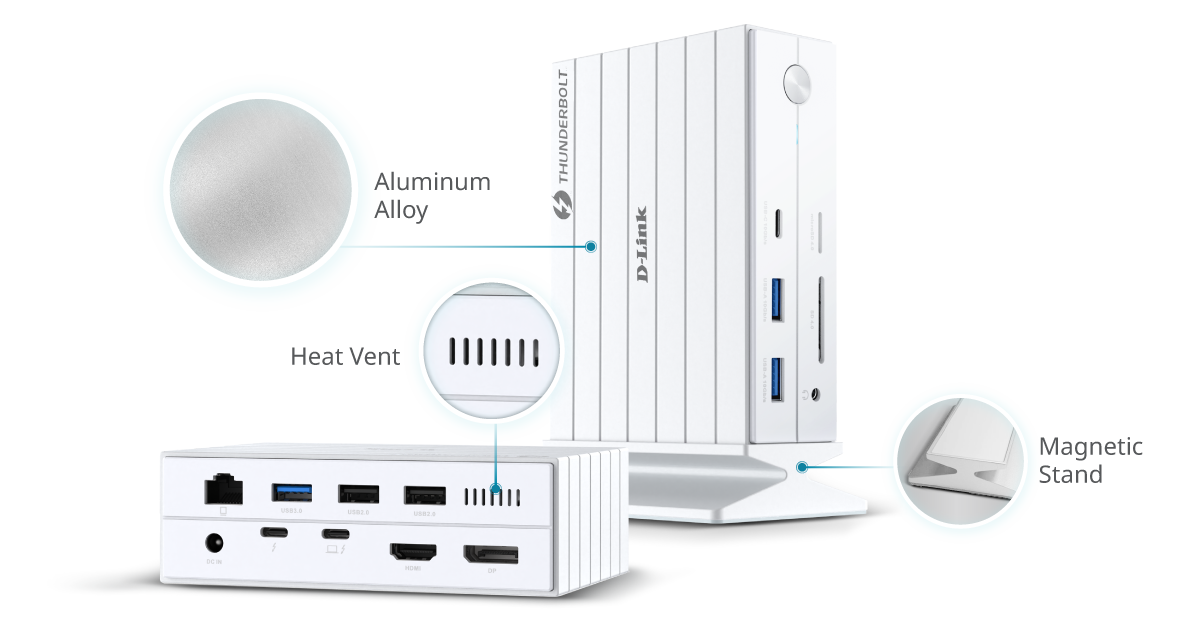

Stay Cool and Organized

Engineered with aluminum alloy and heat vent for efficient cooling, with a magnetic stand that elevates both style and workspace order.

Specification

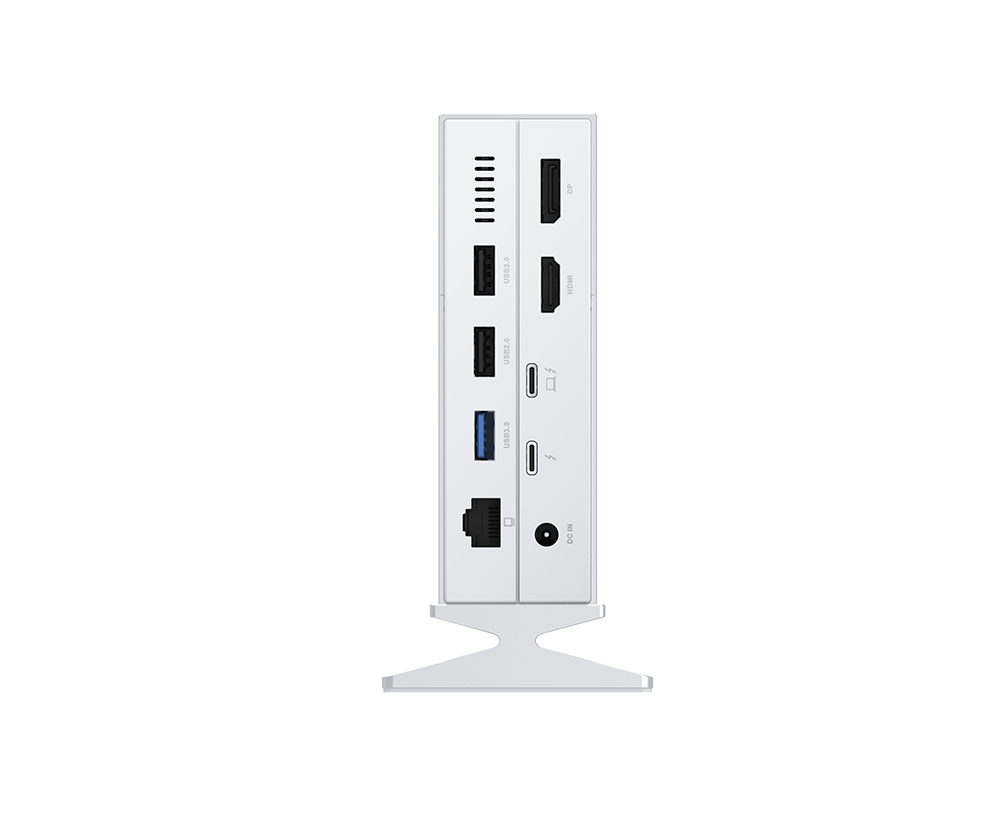

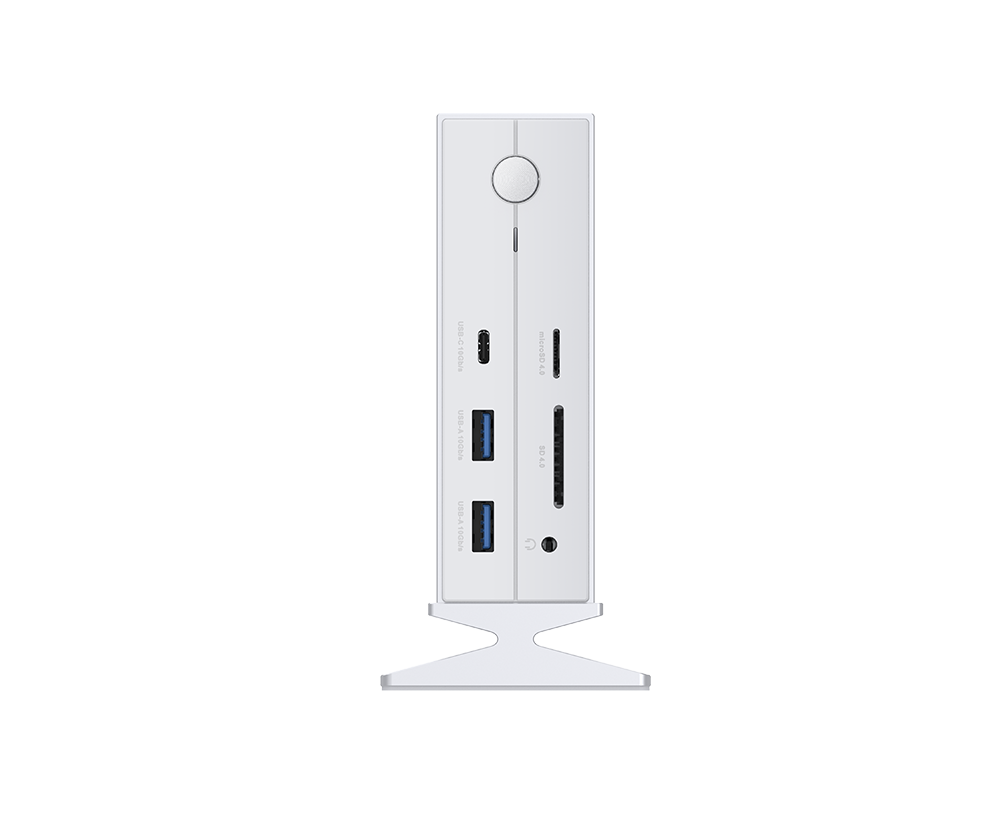

Device Interfaces
Video Ports:
Network Port:
• 1 x RJ45 (10/100/1000 Base-T)
Memory Card Slots:
$name
Host Connector:
Operating System
macOS, Windows 10, Windows 11, and Android
Dimensions
188 x 40 x 125 mm (7.4 x 1.57 x 4.92 in)
Weight
1.2 Kg (2.65 lb)

Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.

Note:                                                                                                                                                                                                                                                                                                                            1. Backward compatible with previous USB versions.                                                                                                                                                                                                                                          2. Resolutions based on DP 1.4 of the input signal of the connected device. If the input signal of the connected device is compatible with DP 1.2, only 4K (3840 x2160@60H) can be supported as the max resolution for all three video interfaces (i.e. USB Type-C, DP port 1 & 2) in single, dual, and triple display configuration.
