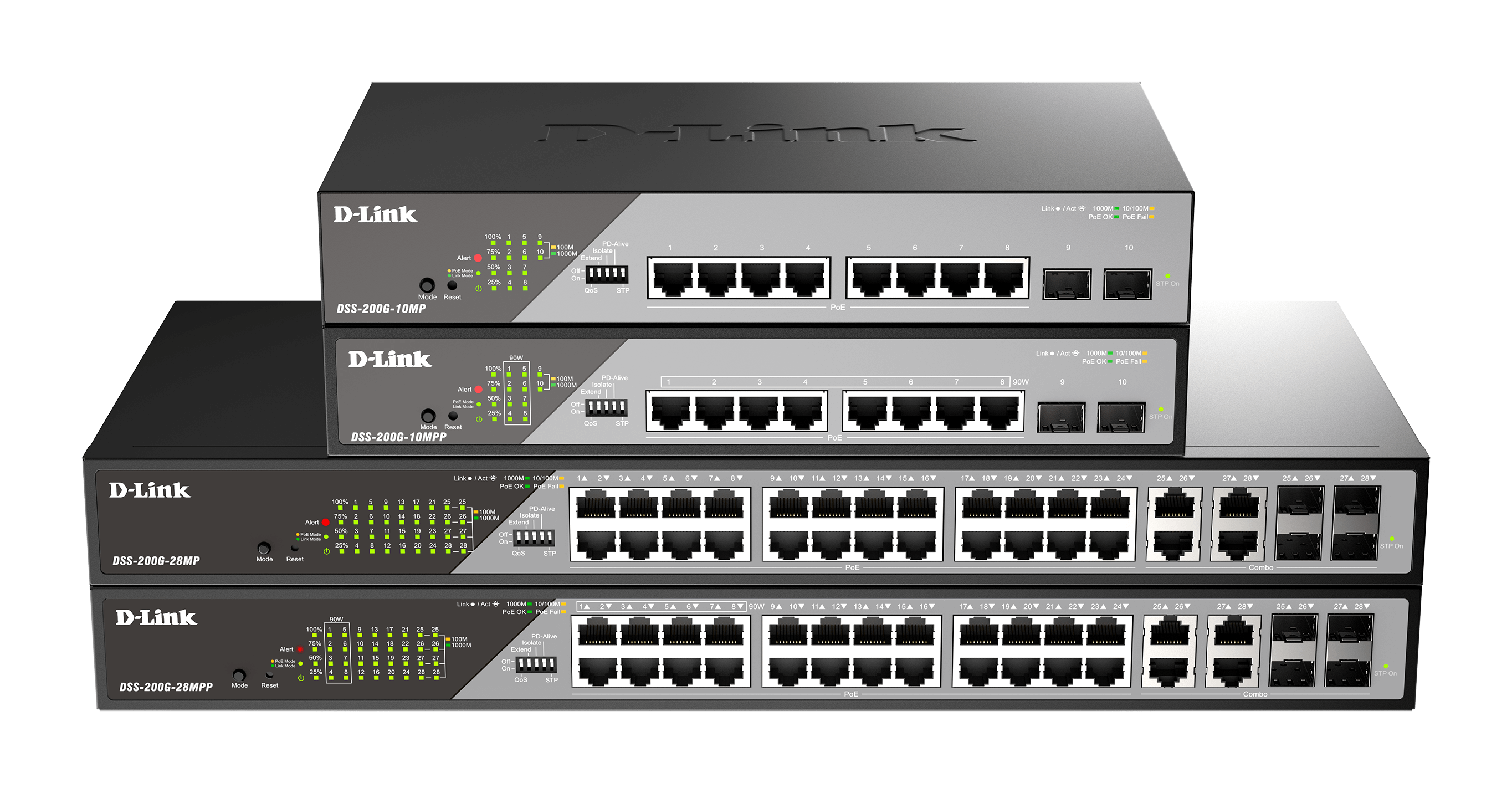

DSS-200G Gigabit PoE Smart Surveillance Switches - front view

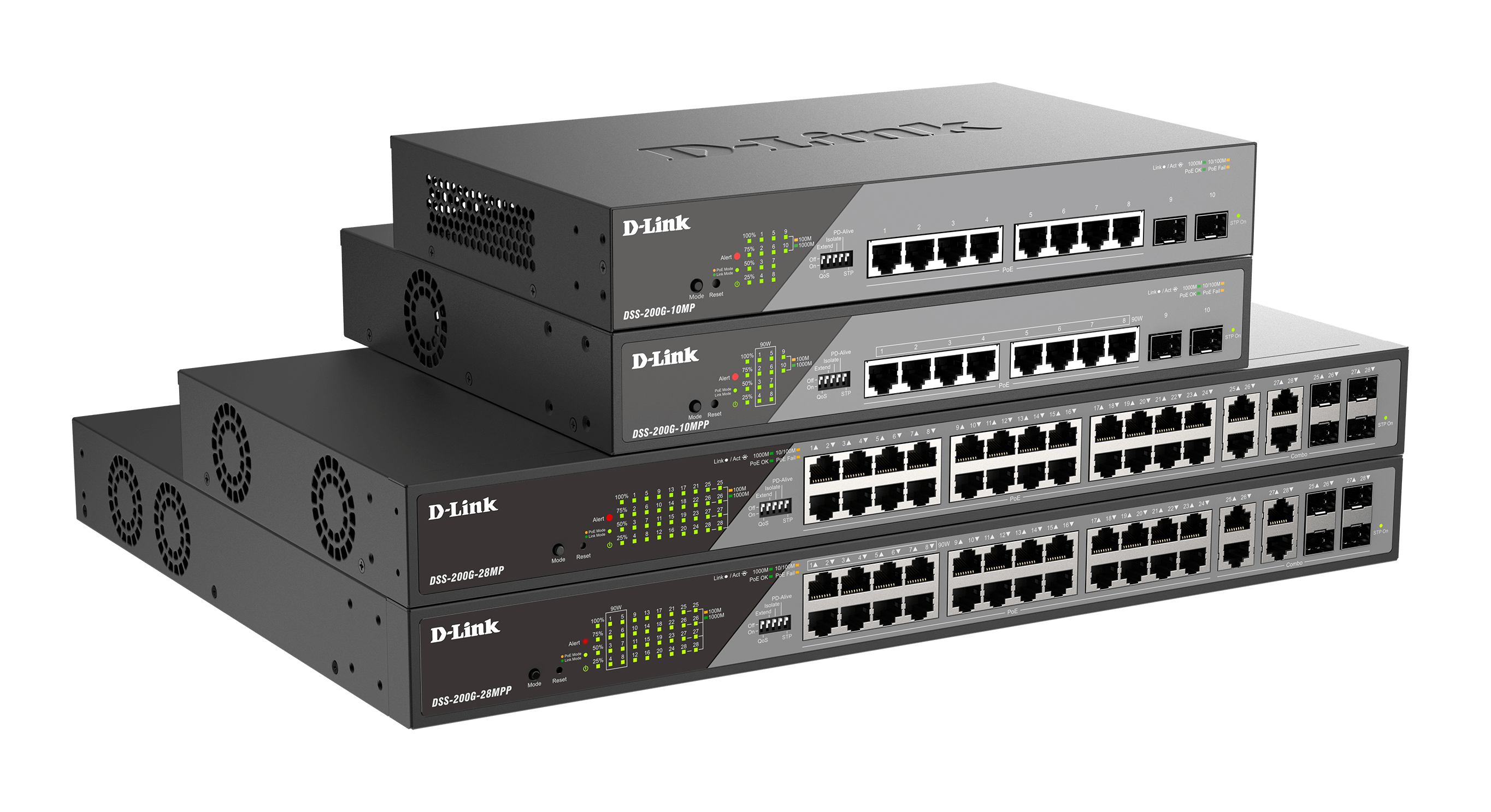

DSS-200G Gigabit PoE Smart Surveillance Switches - side view

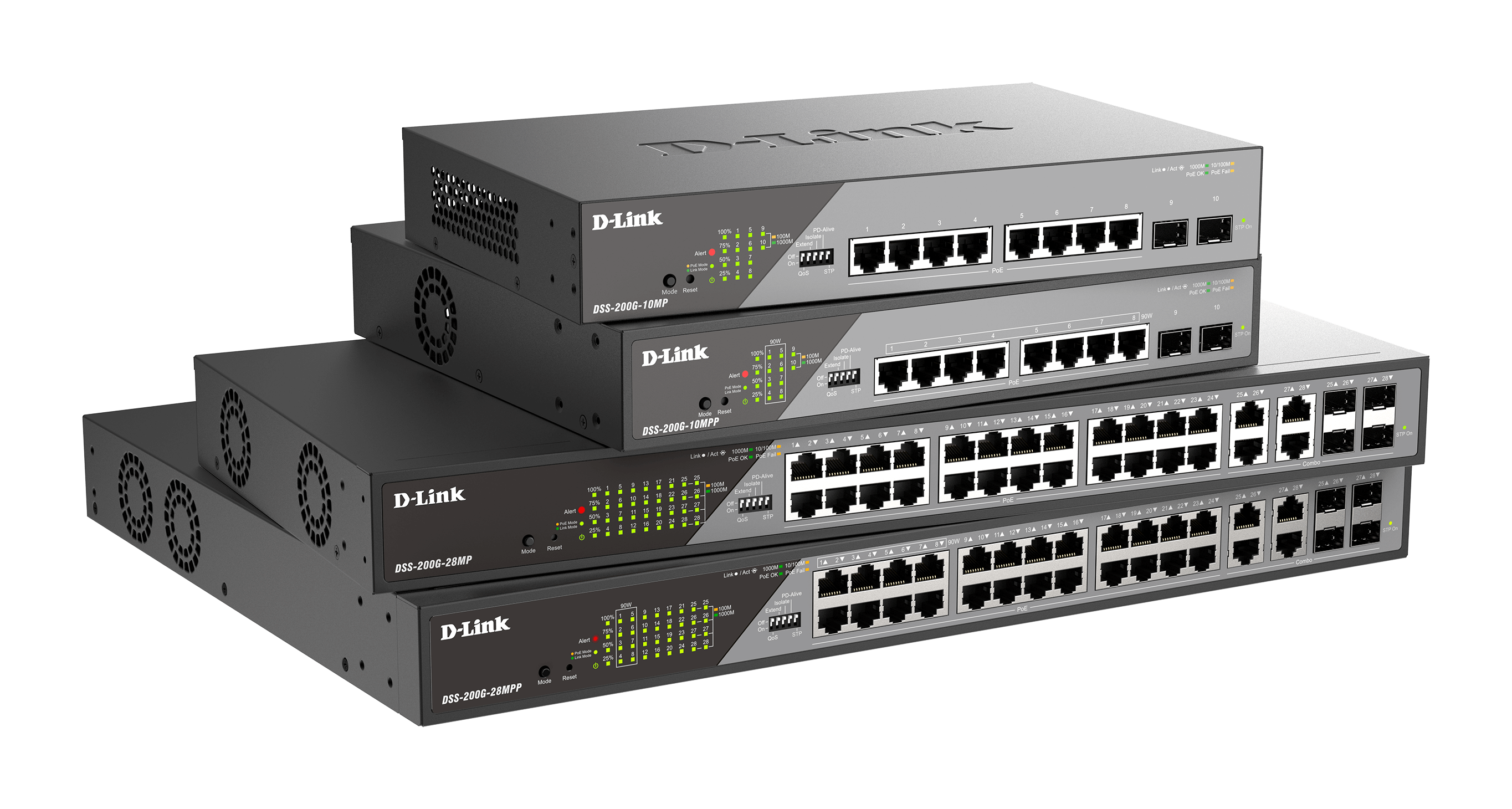

DSS-200G Gigabit PoE Smart Surveillance Switches - side off-centred view

DSS-200G-10MP 10-Port Gigabit PoE+ Smart Surveillance Switch - front view

DSS-200G-10MP 10-Port Gigabit PoE+ Smart Surveillance Switch - left side view

DSS-200G-10MP 10-Port Gigabit PoE+ Smart Surveillance Switch - back view

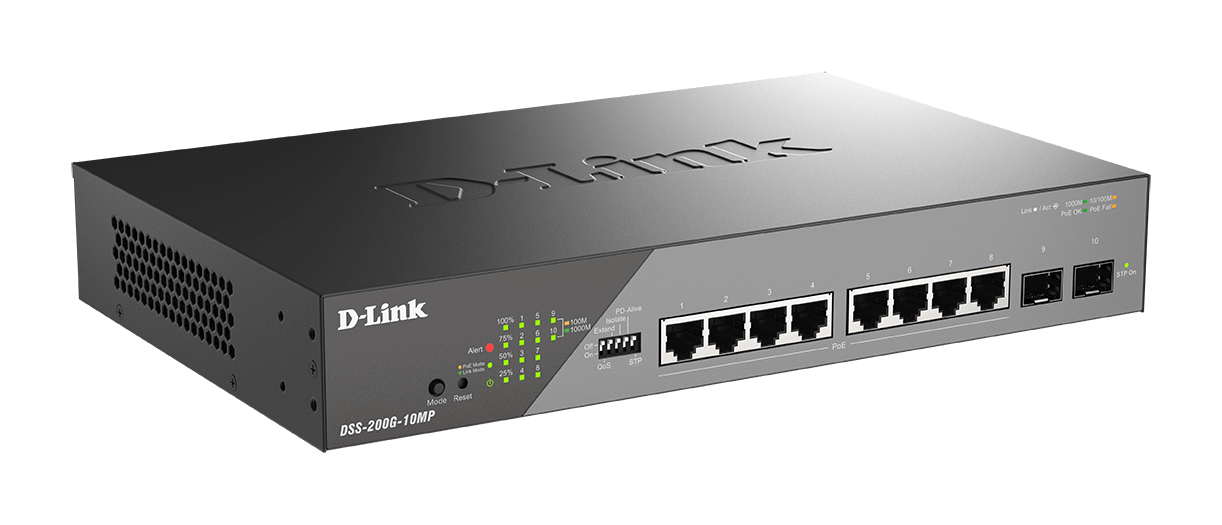

DSS-200G-10MP 10-Port Gigabit PoE+ Smart Surveillance Switch - right side view

DSS-200G-10MPP 10-Port Gigabit PoE++ Smart Surveillance Switch - front view

DSS-200G-10MPP 10-Port Gigabit PoE++ Smart Surveillance Switch - left side view

DSS-200G-10MPP 10-Port Gigabit PoE++ Smart Surveillance Switch - back view

DSS-200G-10MPP 10-Port Gigabit PoE++ Smart Surveillance Switch - right side view

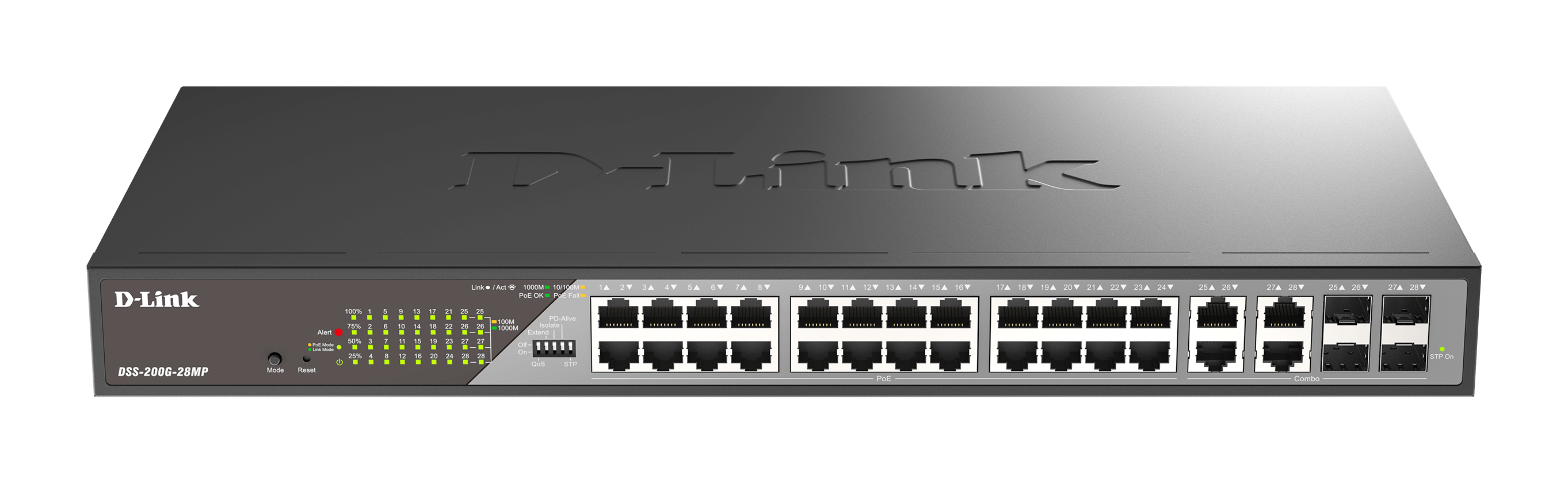

DSS-200G-28MP - 28-Port Gigabit PoE+ Smart Surveillance Switch - front view.

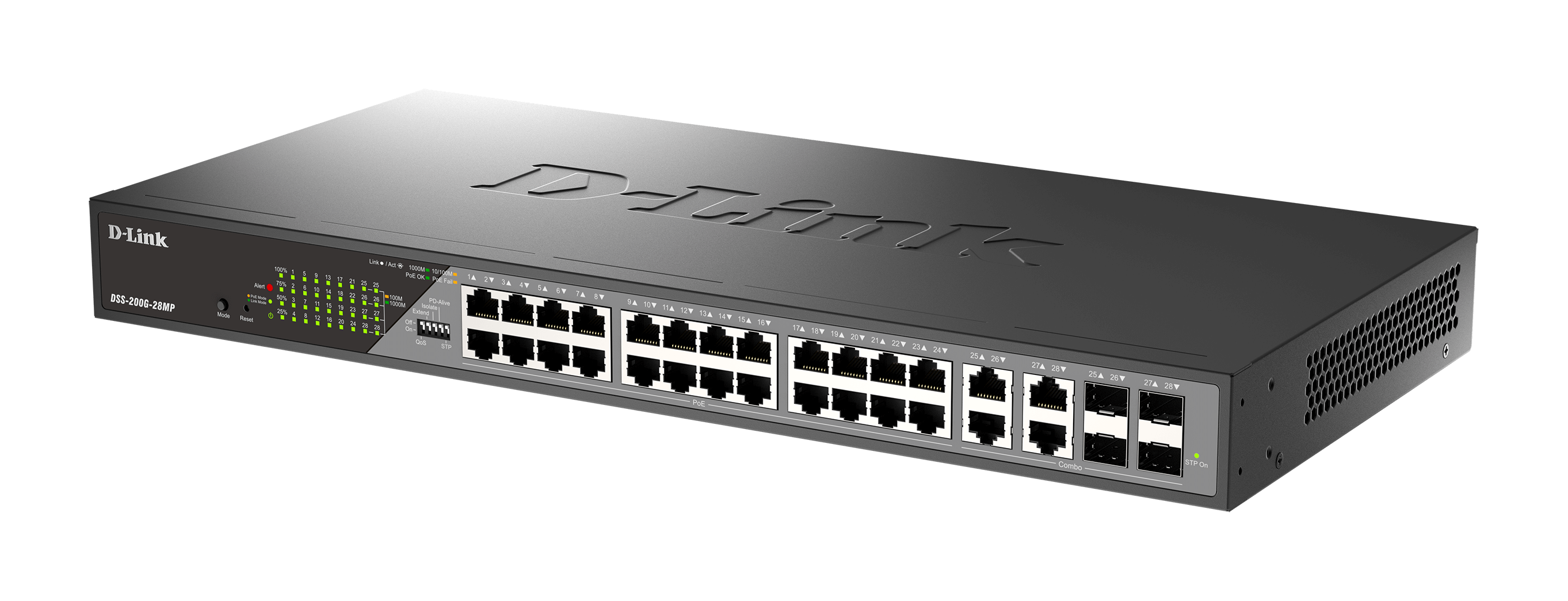

DSS-200G-28MP - 28-Port Gigabit PoE+ Smart Surveillance Switch - left side view.

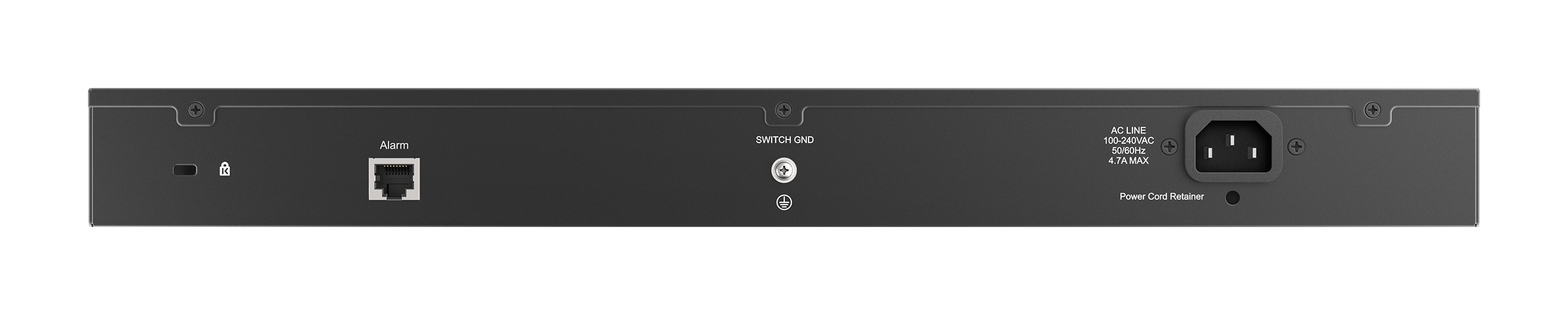

DSS-200G-28MP - 28-Port Gigabit PoE+ Smart Surveillance Switch - back view.

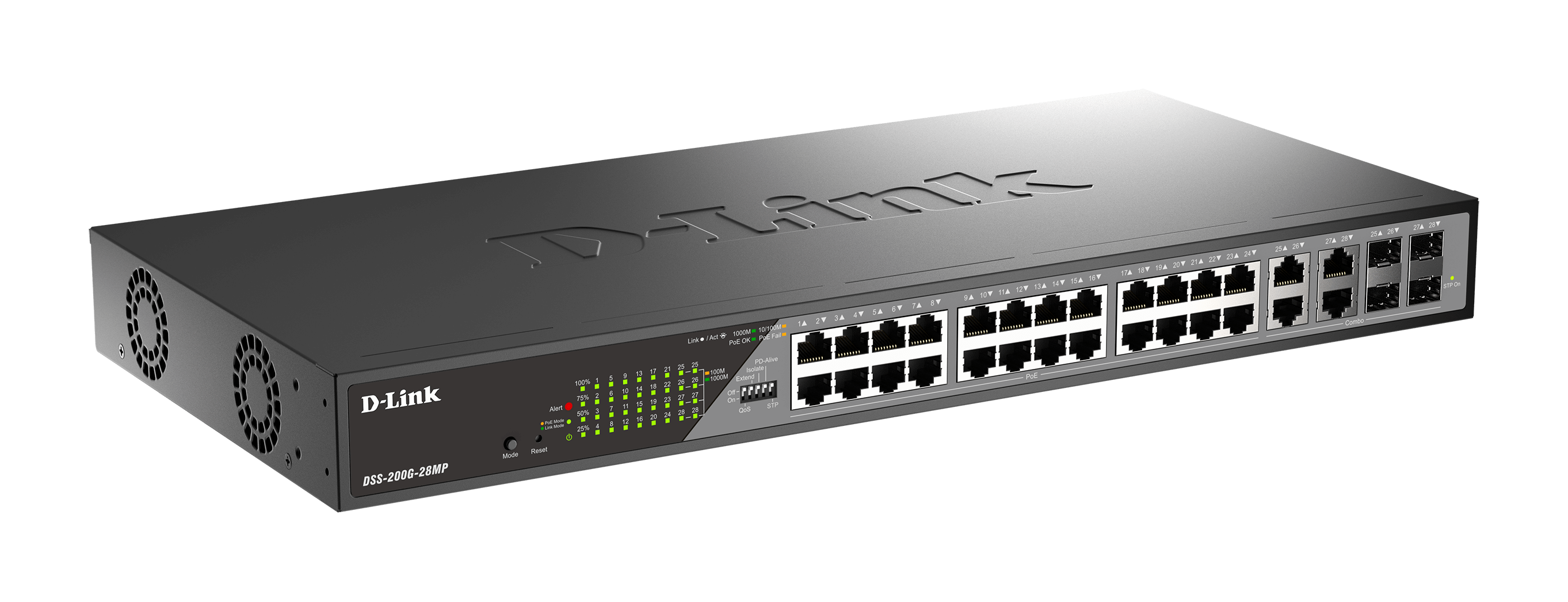

DSS-200G-28MP - 28-Port Gigabit PoE+ Smart Surveillance Switch - right side view.

DSS-200G 28MPP - 28-Port Gigabit PoE++ Smart Surveillance Switch - front view.

DSS-200G 28MPP - 28-Port Gigabit PoE++ Smart Surveillance Switch - left side view.

DSS-200G 28MPP - 28-Port Gigabit PoE++ Smart Surveillance Switch - back view.

DSS-200G 28MPP - 28-Port Gigabit PoE++ Smart Surveillance Switch - right side view.

Gigabit PoE Smart Surveillance Switches

DSS-200G Series

Product Status (Revision A1_v1.02WW): Live

Gigabit Ethernet PoE
PoE & PoE++ with up to 518W power budget
Deploy IP cameras at up to 250m
DIP Switch for quick controls
6kV Surge Protection on all PoE ports
Alarm Port and four-stage PoE usage indicator light
Layer 2 Management Features
Auto-Detects ONVIF devices
Built-in SNMP MIB
Web-based GUI

Download the datasheet.

Where to buy

Built for Surveillance,
with Gigabit Ethernet & PoE++

Designed to meet surveillance requirements for businesses of all sizes, with features like support for high-powered PTZ cameras, high PoE budgets, Auto Surveillance VLAN, and surge protection, these switches are ideal for IP surveillance setups.

Long Range PoE Delivery

Connect and power cameras up to 250 metres away without the need for additional PoE extenders.

Power Your Devices

Supports PoE/PoE+ to connect and power your PoE-cable network devices via Ethernet cables without the need for power adapters.

Reliable PoE Connections

Surge protection on all PoE ports protects the switch when feeding power to PoE-capable devices.

Rapid deployments with a single PoE cable.

The series supports PoE, and some provide higher power PoE++, delivering up to 90 watts on selected ports, enabling faster deployment of PoE devices such as IP cameras, VoIP phones, access points, terminals, speakers, lights, conferencing systems, displays, and more.

Reach further with a flick of a switch.

The built-in DIP switch allows easy configuration and quick adjustment of application settings without the need to access the web configuration. Quickly enable and disable functions such as QoS, Extend (connection by up to 250 metres), Port Isolation, PD-Alive and STP (Spanning Tree Protocol) in an instant.

Protects the network against power surges.

6kV surge protection on all PoE ports protects the network against voltage spikes with link aggregation, ERPS and STP support to make your network more robust and resilient.

Connect to more with PoE++

See your remaining power availability with the built-in PoE Power Budget LEDs for 25%, 50%, 75%, and 100% power usage at a glance. And utilise up to 518W, with 90W on 8 ports and 30W on 15 ports for DSS-200G-28MPP, so you can rapidly deploy more devices.

D-Link Bullet Surveillance Camera mounted on an outside wall.

Layer 2 management features.

Comes with a complete line-up of L2 features, including port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). Network maintenance features such as loopback detection and cable diagnostics.

Quality of Service and bandwidth control.

Bandwidth control allows network administrators to reserve bandwidth for important functions that require higher priority or more bandwidth.

Auto Surveillance VLAN consolidates data and surveillance video transmission through a single switch, sparing businesses the expense of dedicated hardware and facilities.

VoIP and D-Link Surveillance Cameras along with video surveillance and video conference calls.

Voice VLAN enhances the VoIP service by automatically placing voice traffic from IP phones to a designated VLAN. With a prioritised and segmented VLAN, this feature guarantees quality and security of VoIP traffic.

Energy efficient

With built-in D-Link Green technology, this series saves power without sacrificing operational performance or functionality.

Time-Based PoE
Schedule the ports on the switch to provide PoE power to devices on specific days and during set hours of the week for energy savings

Sleep mode
Link status drastically reduces power consumption by automatically putting ports without a link into a sleep mode

Advanced chipset
The series incorporates a special chipset with advanced silicon technology for efficient use of energy

¹The 250m long range mode is subject to cabling quality and/or IP camera’s electrical design. Compatibility testing is recommended prior to use. UTP CAT5e rated cables (or higher) are required.
