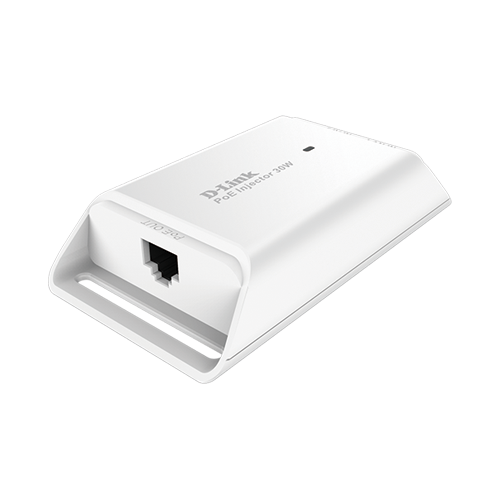

Gigabit PoE+ Injector

DPE-301GI

  • Product Status (DEU_Revision_RevA): Live

The IEEE 802.3at (PoE+)/802.3af (PoE) compliant DPE-301GI Gigabit PoE+ Injector is designed to supply data and up to 30 watts of power to PoE-enabled devices such as network cameras and wireless access points.


Download the datasheet.

Where to buy

Extend Your Existing Wireless Network

The IEEE 802.3at (PoE+)/802.3af (PoE) compliant DPE-301GI Gigabit PoE+ Injector is designed to supply data and up to 30 watts of power to PoE-enabled devices such as network cameras and wireless access points.

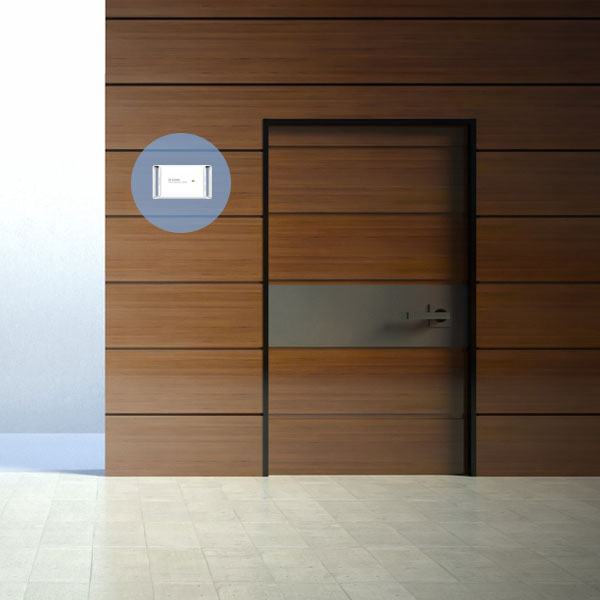

The DPE-301GI gives you the ability to mount your PoE device virtually anywhere in a building, such as on ceilings or near entryways, by eliminating the need for a nearby power outlet.

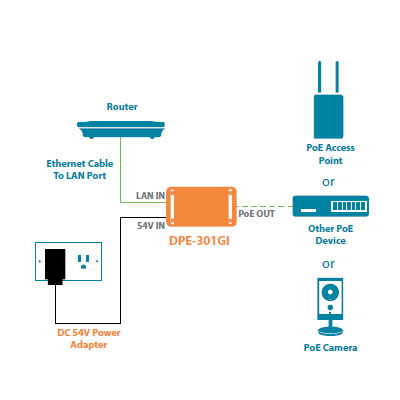

D-Link's DPE-301GI combines electrical power with a Gigabit network connection to produce a Gigabit Power over Ethernet (PoE) signal for transmission over a single Ethernet cable, to up to 100 metres1 distance.

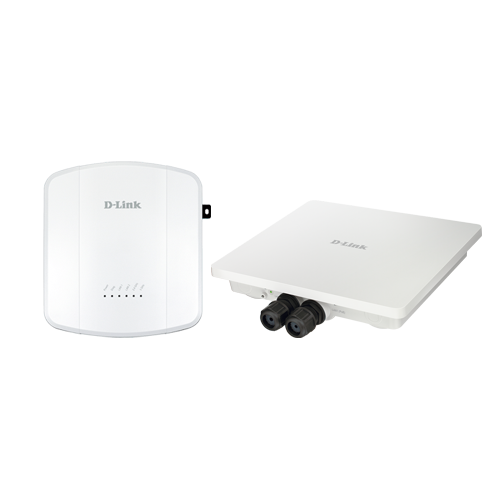

Examples where the DPE-301GI is ideal include powering network devices such as professional network cameras with pan/tilt/zoom, night vision or internal heating/cooling features, as well as the latest wireless access points that support the high throughput 802.11ac standard.

1 Maximum distance per 802.3u specifications.

Related Products

Gigabit PoE injector
DPE-101GI
Find out more
Main type of ports
1000BASE-T Gigabit Ethernet
Type of uplink ports
1000BASE-T Gigabit Ethernet
PoE options
802.3at
Number of PoE ports
1
Fanless
Supported
Housing
Plastic

Support

Version Date Type File Size
Datasheet - PDF 0.29mb Download
Version Description Date
CE doc 3.00 Revision A1 CE document 8/15/2016 Download
