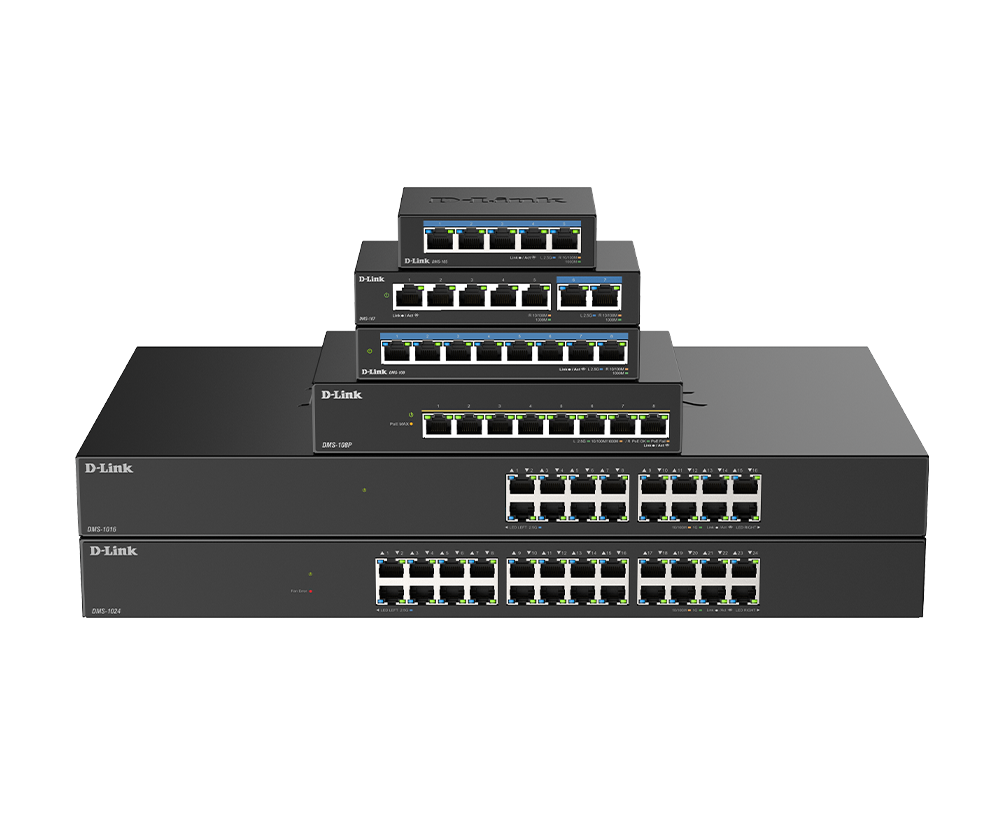

2.5G Multi-Gigabit Unmanaged Switches

DMS-1000 Series

  • Product Status: Live
  • 2.5 Gigabit ports enables significantly faster data transfer rates
  • IEEE 802.3af/at/bt PoE ports for up to 90W/port (DMS-108P only)
  • Eco-friendly IEEE 802.3az feature saves power and operating costs
  • IEEE 802.3x flow control feature prevents packet loss during congestion
  • 802.1p QoS prioritizes transmission of important data and services
  • IGMP Snooping optimizes multicast traffic and ensures smooth data delivery
  • Auto MDI/MDIX adjustment eliminates need for different cables
  • Compact metal housing enhances product durability
  • Fanless and smart fan designs enhance cooling and quiet operation
Where to buy

Why You Need It​

Plug & Play

No complex configurations required for fast and easy network connectivity

2.5G Ports

Multi-Gigabit ports for high data rate transmission

Multicast Optimization

IGMP snooping feature prevents network flooding

Rugged Design

Compact metal casing improves device durability

High Output

Up to 90W/port and 230W total budget (DMS-108P)

Data Prioritization

QoS optimizes traffic, enhancing user experience

DMS-1000 Series Comparison

Products DMS-105DMS-107DMS-108DMS-108PDMS-1016DMS-1024






 Interface

5 x 2.5GE

2 x 2.5GE
5 x GE

8 x 2.5GE

8 x 2.5GE PoE

16 x 2.5GE

24 x 2.5GE

 PoE --

-

PoE++ 90W/Port
230W Power Budget

--
Learn MoreLearn MoreLearn MoreLearn MoreLearn MoreLearn More

Related Products

Gigabit Smart Managed Switches
DGS-1100 Series
Find out more

　

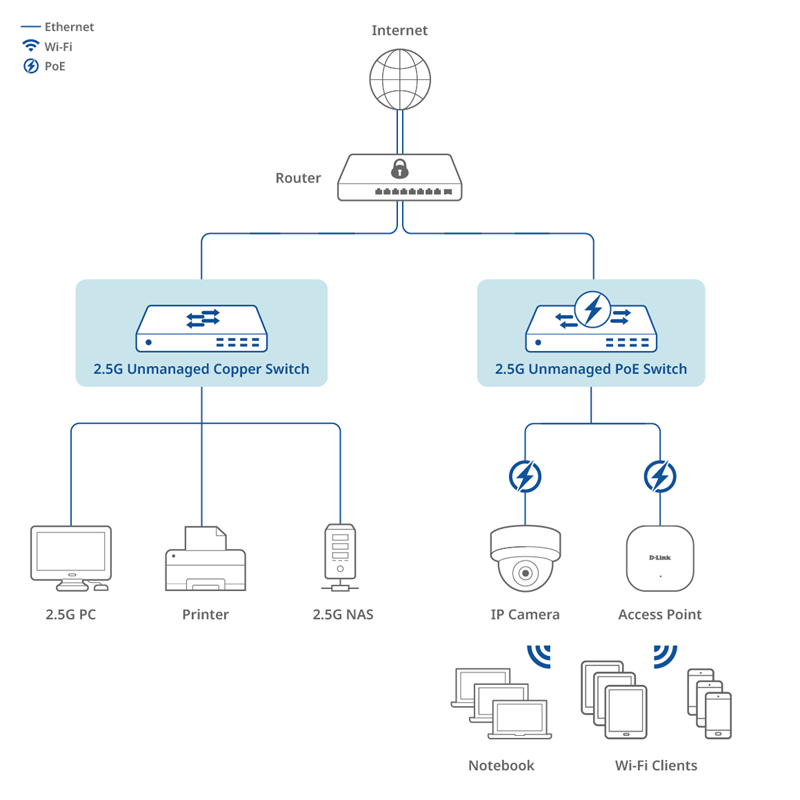

Connection Diagram

The cost-effective DMS-1000 Series not only delivers plug-and-play 2.5G connectivity for edge devices, but also offers a range of port options and performance optimization to help eliminate bottlenecks for applications such as Wi-Fi-6, HD surveillance, 4k/8k streaming, and much more.

Business Router

Learn More

Access Point

Learn More

DMS-1000 Series Specification

Products

DMS-105DMS-107DMS-108DMS-108PDMS-1016DMS-1024





Interface

 5 x 2.5GE

2 x 2.5GE
5 x GE

 8 x 2.5GE

 8 x 2.5GE PoE

 16 x 2.5GE

24 x 2.5GE

Performance
Switch Capacity 25 Gbps 20 Gbps 40 Gbps 40 Gbps 80 Gbps 120 Gbps

Max. Packet
Forwarding Rate

 18.60 Mpps 14.88 Mpps 29.76 Gbps 29.76 Gbps 59.52 Gbps 89.28 Gbps
PoE
PoE Standard - - - IEEE802.3af/at/bt          - -
PoE Ports - - - Port 1 ~ 8 - -
PoE Budget - - - 230W - -
Technical Specification
Fan Fanless Fanless Fanless Fanless Fanless Smart Fan
Power Supply Type
 External External External External Internal Internal
Learn MoreLearn MoreLearn MoreLearn MoreLearn MoreLearn More
