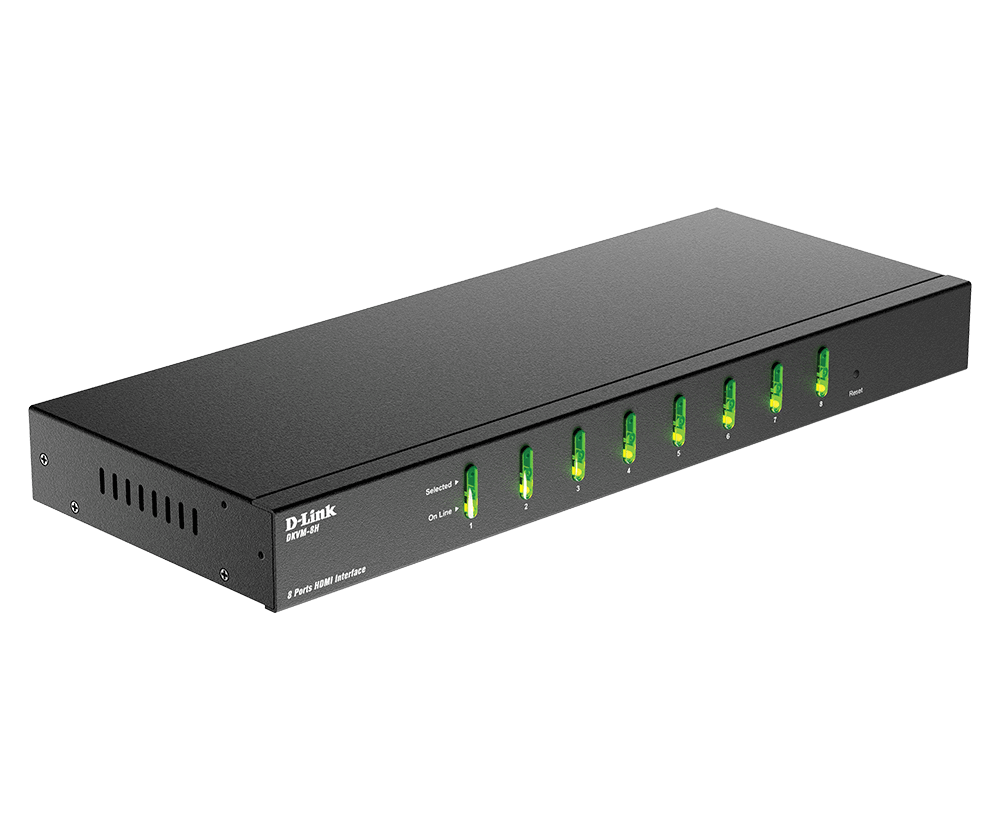

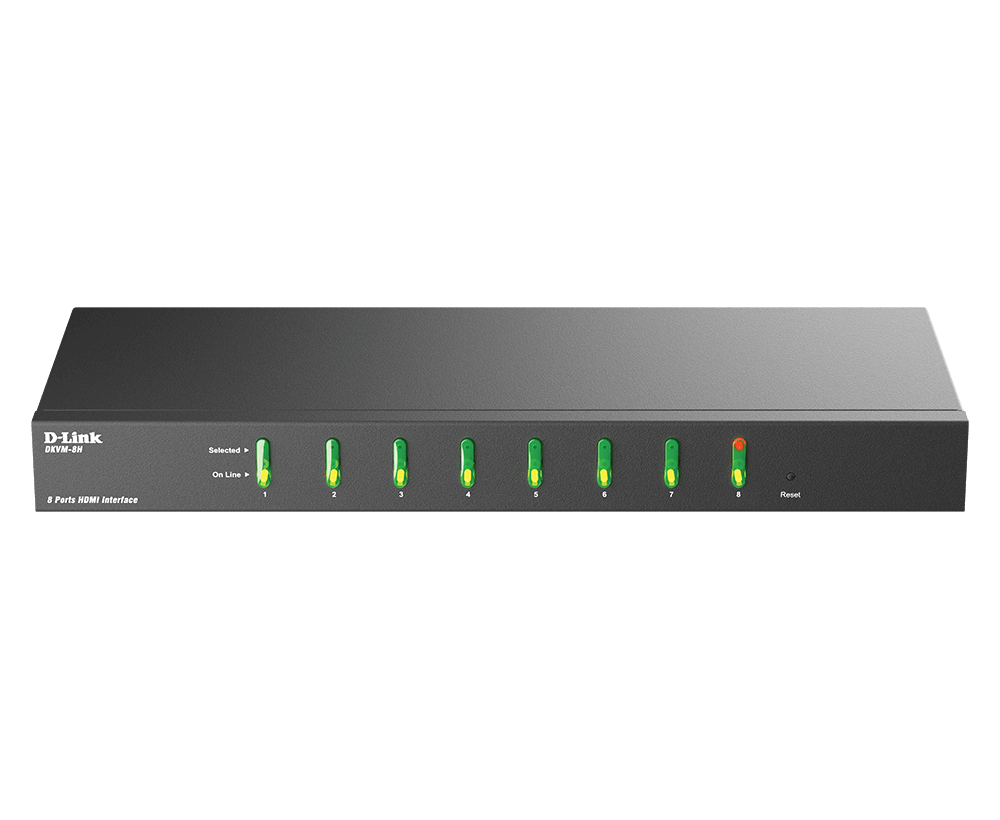

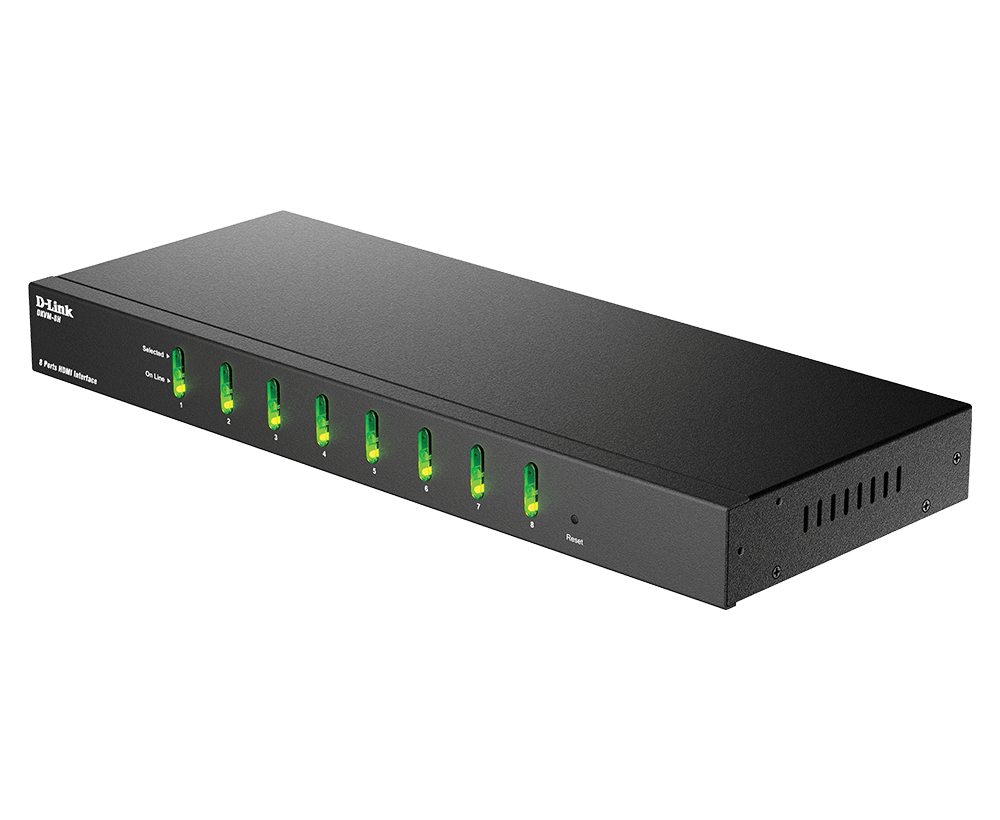

8-Port HDMI KVM Switch
DKVM-8H
- Product Status ($name): Live
- Control up to eight HDMI computers and 2 additional USB devices
- HDMI & EDID compatibility for up to 4K high quality resolution
- Computer selection via panel buttons or hotkeys for fast switching
- Plug & Play and hot-pluggable for fast and effortless installation
Where to buy
Why you Want It
Cut Costs and Clutter
Eliminate cable hazards, reduce power usage, and cut costs (cables included)
High Connection Density
Connect up to 8 computers, including mouse, keyboard, printer, or USB drive
High-Quality Display
HDMI & EDID compatibility for up to 4K resolution at 30 Hz without image degradation
Convenient Switching
Quickly switch from one computer to the next using hotkeys or panel buttons
Convenient Switching & 4K Display Quality
Quickly access connected computers with ease using front panel buttons or hotkeys. HDMI and EDID compatibility ensures crystal-clear images.
High Connection Density Cuts Costs and Clutter
Clear up more usable space in your work area, eliminate hazardous cable clutter, and lower cooling costs.
Specification
|
Interfaces
|

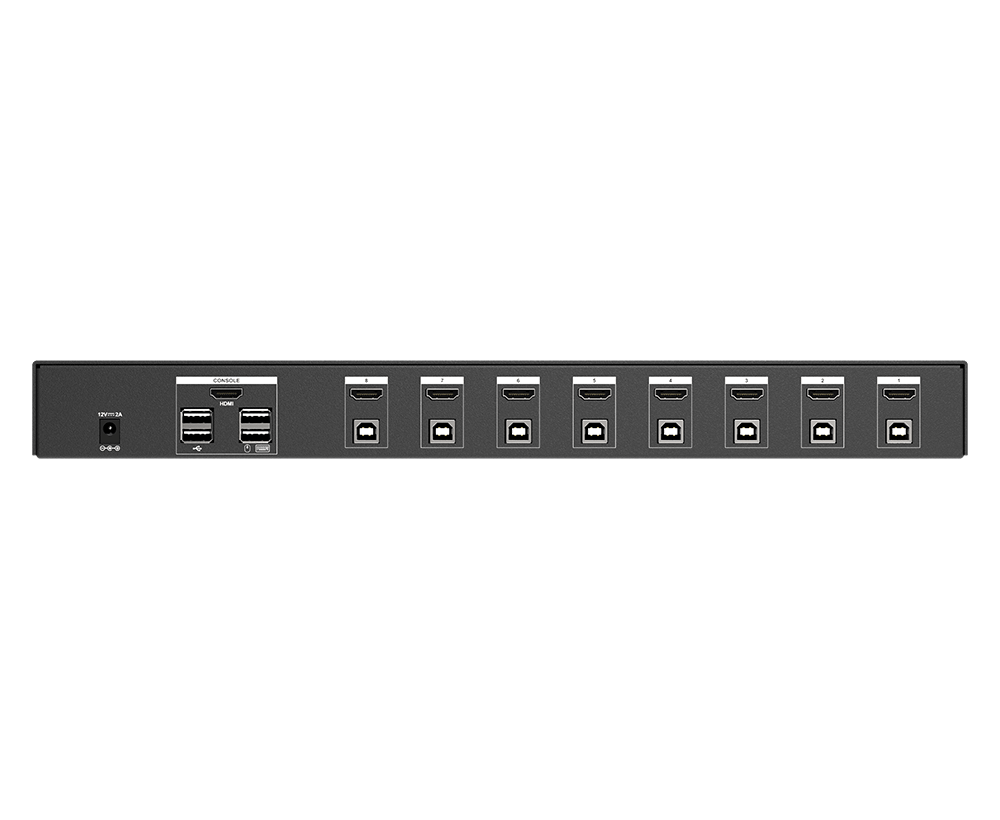

1 x Power DC Jack 1 x HDMI Port (Console) 4 x USB 2.0 Port (Console) 8 x HDMI Port (Audio Support) 8 x USB Type B Port 1 x Reset Button 8 x Panel Switch Button |
|---|---|
|
HDMI Resolution
|
1280 x 720p at 60 Hz 1920 x 1080 at 60 Hz 4000 x 2000 at 30 Hz |
|
HDMI Standard
|
1.4 |
|
LED
|
8 x Online (Green), 8 x Selected (Red) |
|
Number of Computers Controlled
|
8 |
|
Weight
|
4.7 kg (10.4 lb) |
|
Dimensions
|
43 x 16.6 x 4.5 cm (16.9 x 6.5 x 1.8 in) |
|
Temperature
|
Operating:-10 to 50 °C 14 to 122 °F Storage: -30 to 80 °C (-22 to 176 °F) |
|
Humidity
|
Operating: 0~80% RH non-condensing Storage: 0%-80% RH non-condensing |
|
Power Input
|
DC 12 V, 2 A |
|
Power Feature
|
DC 12 V, 100 mA (without connection) |
|
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice. |
|
