Offers high performance with low latency and reliable long-distance fiber connectivity
Delivers up to 60W per port with IEEE 802.3af/at/bt PoE to power your devices
Dual power supply redundancy minimizes downtime and boosts system reliability
Corrosion-resistant steel casing and hardened components ensure reliable operation in harsh environments
Enables real-time performance monitoring, proactive maintenance, and simplified network management
ERPS ensures fast recovery, reliable connectivity, and seamless network restoration

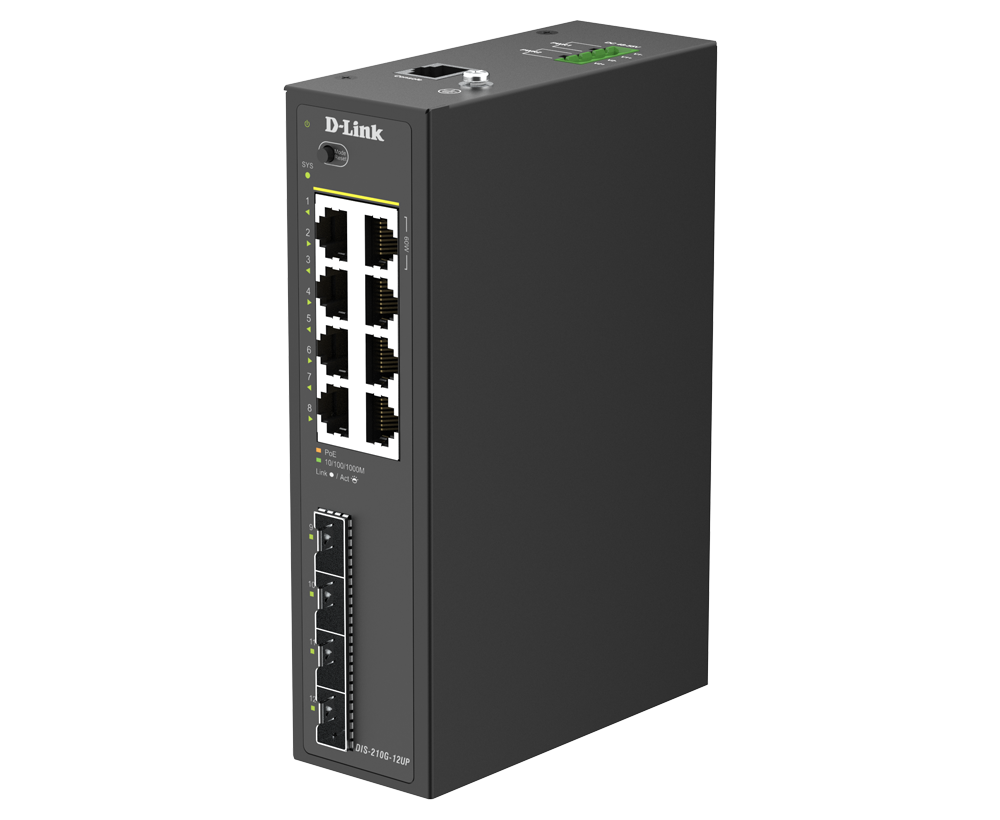

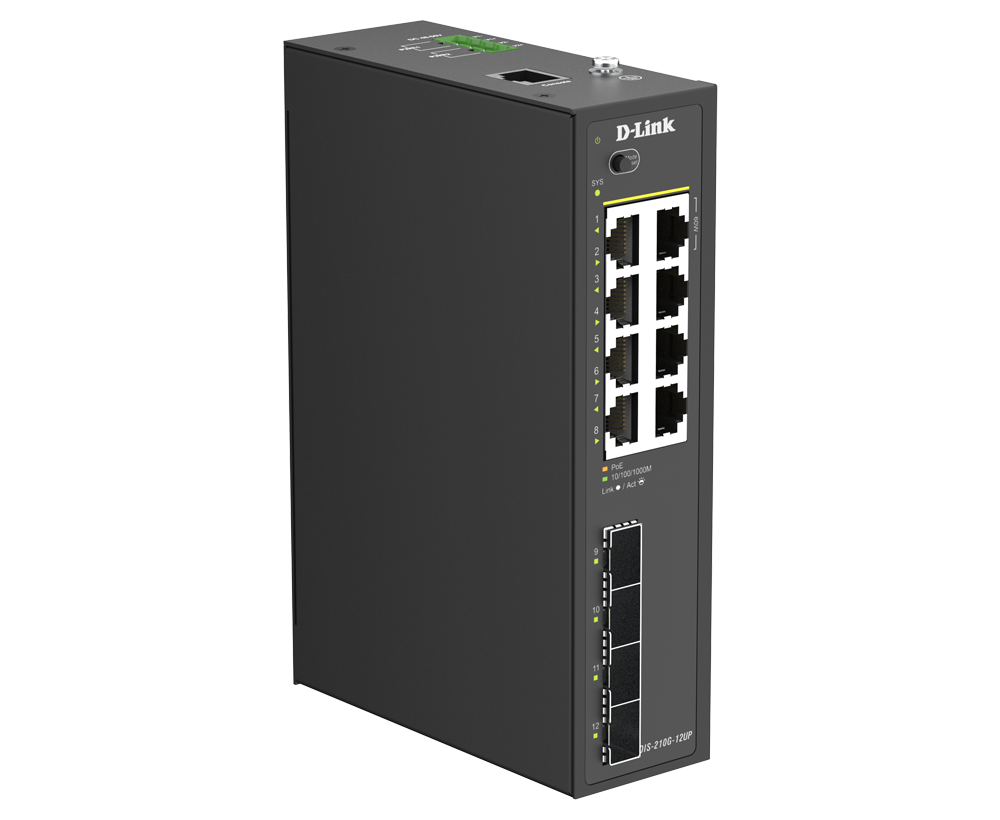

The DIS-210G-12UP comes with four 1G SFP ports to extend transmission distances, enabling seamless aggregation of smaller networks into a unified system. With static routing support, it boosts performance and simplifies management. By streamlining routing and improving overall efficiency, it enhances network resilience, helping IT professionals deliver more reliable, high-quality services.
The DIS-210G-12UP is equipped with eight PoE ports compliant with IEEE 802.3af/at/bt standards, delivering both data and power through a single Ethernet cable.
With a total power budget of up to 240W, ports 1 and 2 can supply up to 60W each, while the remaining ports supply up to 30W, making it a great fit for powering devices such as surveillance cameras, IP phones, wireless access points, and IoT sensors. This simplifies installation, enables flexible device placement, and reduces the need for additional electrical infrastructure.

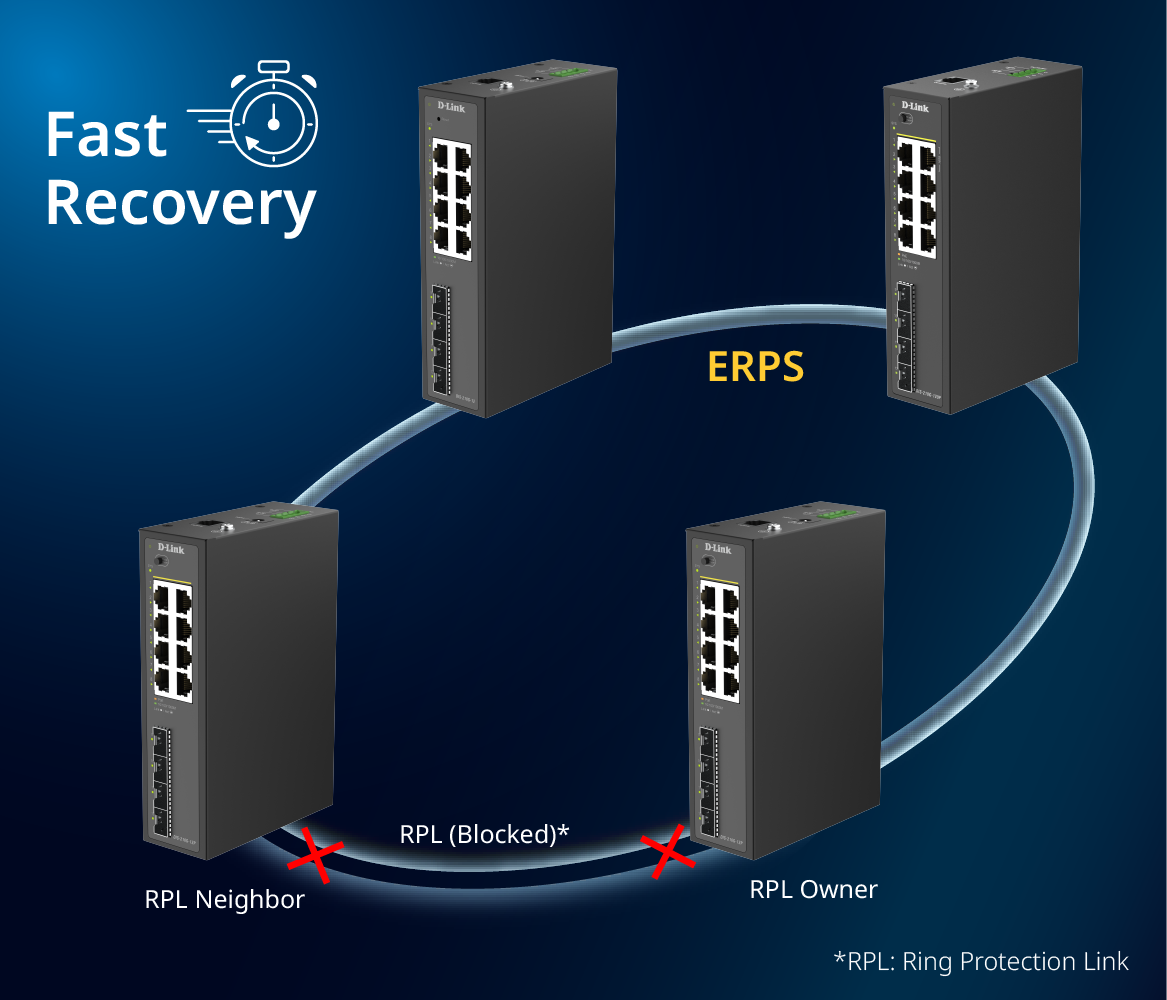

The DIS-210G-12UP combines ERPSv1/v2 and Operations, Administration, and Maintenance (OAM) to deliver a highly resilient and easy-to-manage network. ERPS ensures redundant backup paths, preventing loops and providing rapid failover with fault recovery as fast as 50ms. OAM includes a function set (Y.1731, 802.1ag, 802.3ah) that continuously monitors physical connections and virtual circuits, helping network administrators quickly identify issues. Together, these features enhance network reliability, minimize downtime, and maintain a consistent, high-quality service experience.

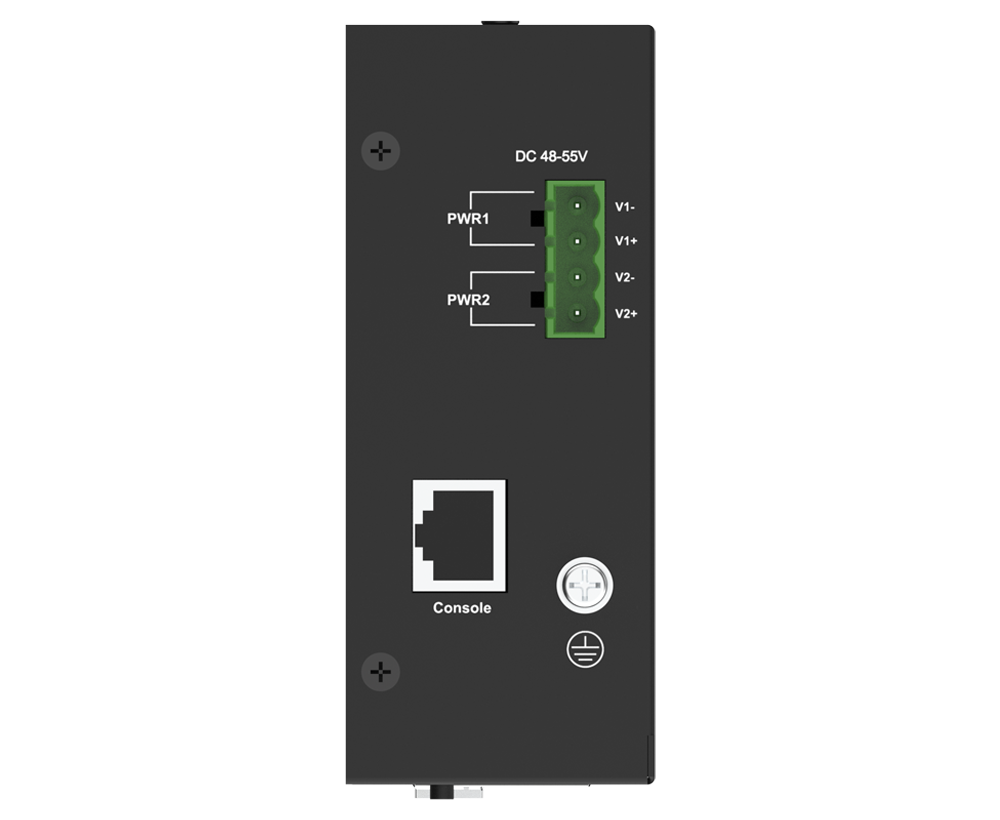

The DIS-210G-12UP supports dual power supplies, and each is capable of independently powering the device. The redundancy ensures continuous operation when one power source fails, which minimizes shutdown risk and maintains network performance.
RedundancyPower Supply
OvercurrentProtection
Anti-reverseProtection
FirmConnection
The DIS-210G-12UP is built with a rugged, durable design ideal for harsh environments such as outdoor installations, unconditioned factory floors, and remote sites. With a wide operating temperature range of -40°C to 75°C, it ensures stable and reliable performance even in extreme conditions. Its industrial-grade IP40-rated enclosure protects against dust and solid particles larger than 1mm, while the fanless design and 6kV surge protection on all Ethernet ports help reduce the risk of downtime and enhance long-term reliability.

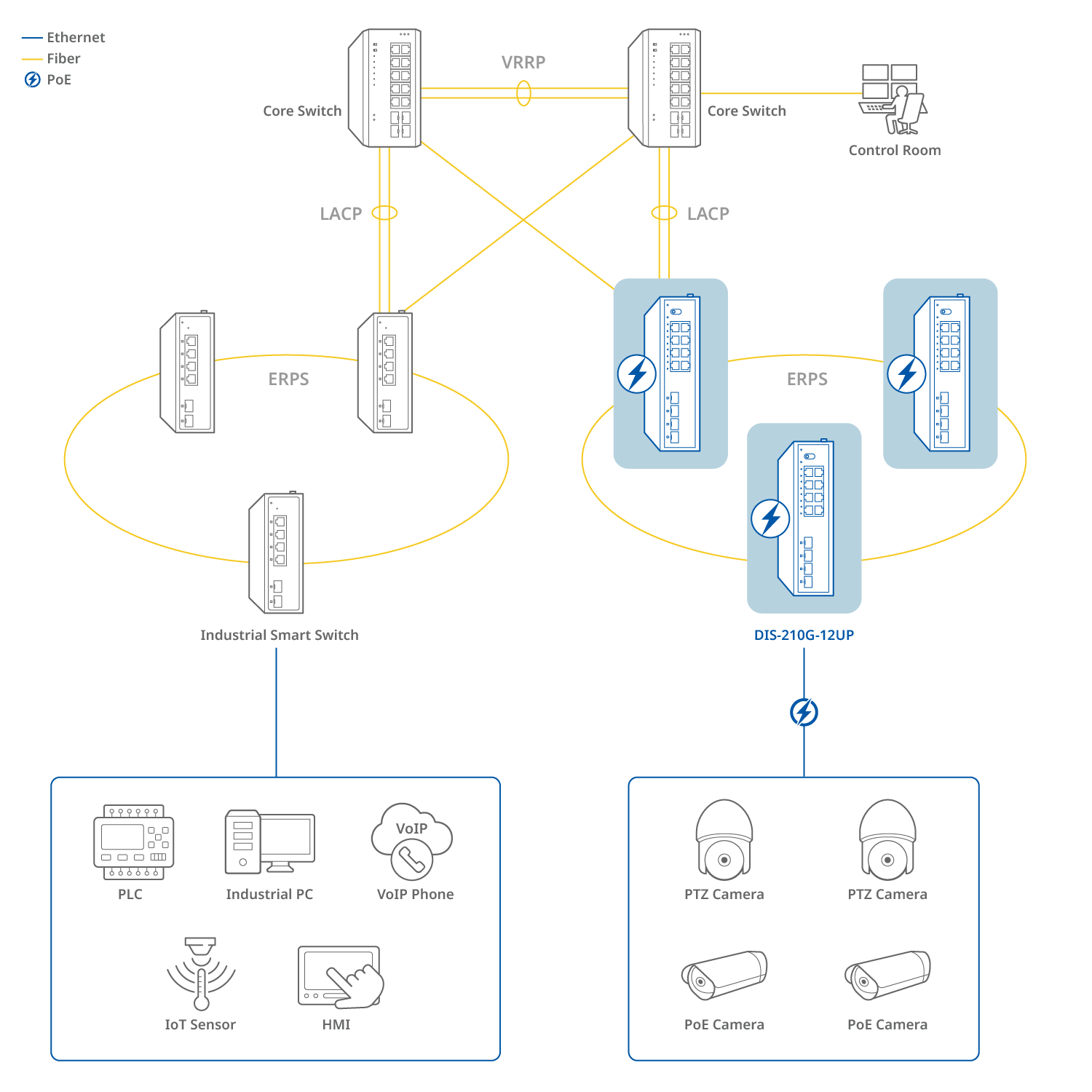

The DIS-210G-12UP is an industrial smart switch equipped with eight 1G ports and four 1G SFP ports for network management and aggregation. With a total power budget of up to 240W, six ports can supply up to 30W each, while two ports can supply up to 60W. The SFP ports support long-distance data transmission, rapid failover redundancy, and throughput aggregation. The DIS-210G-12UP supports ERPS and static routing, which reduces latency, enables effective traffic control, and improves network scalability and efficiency.
CoreSwitch
Industrial
Switch

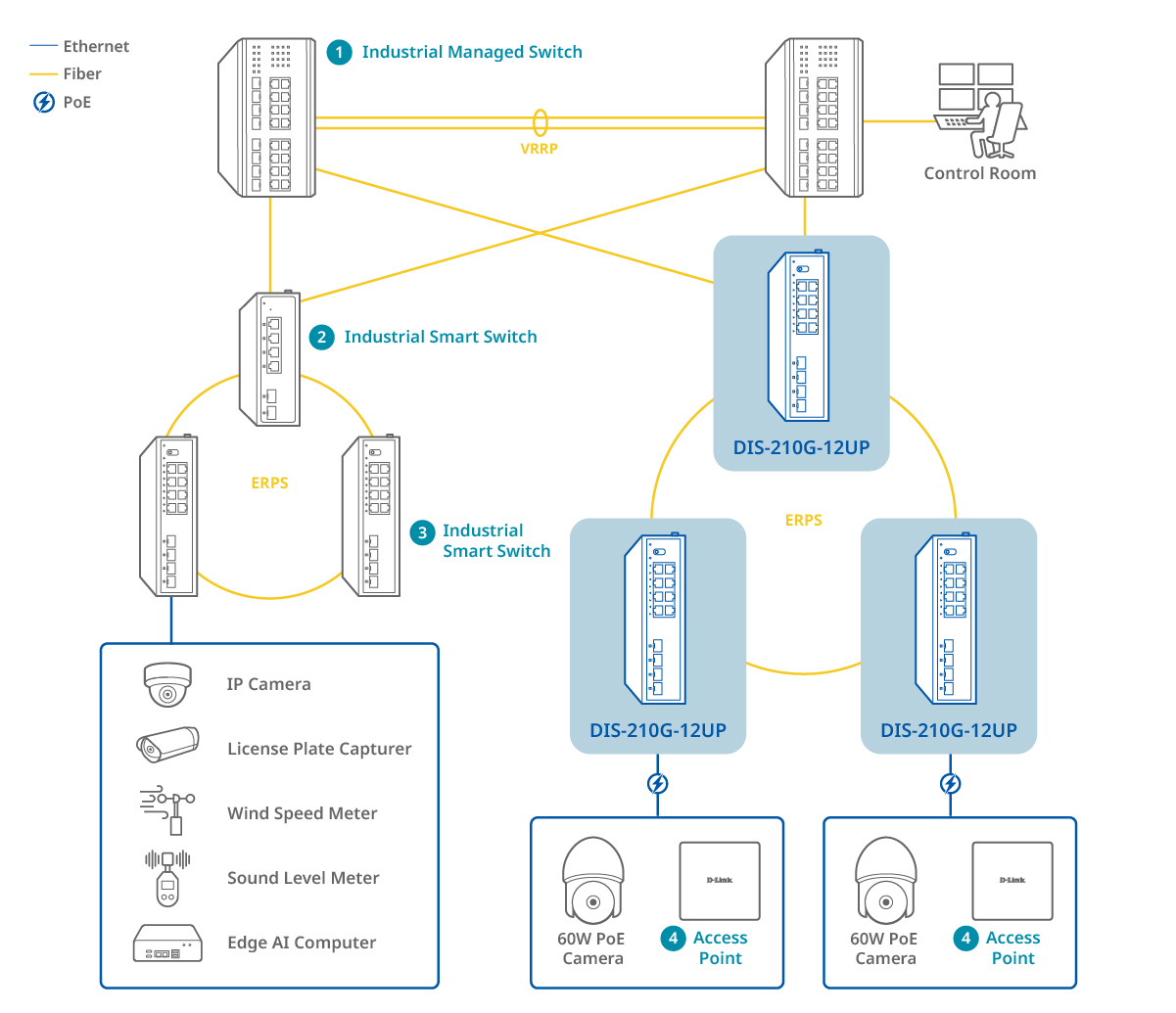

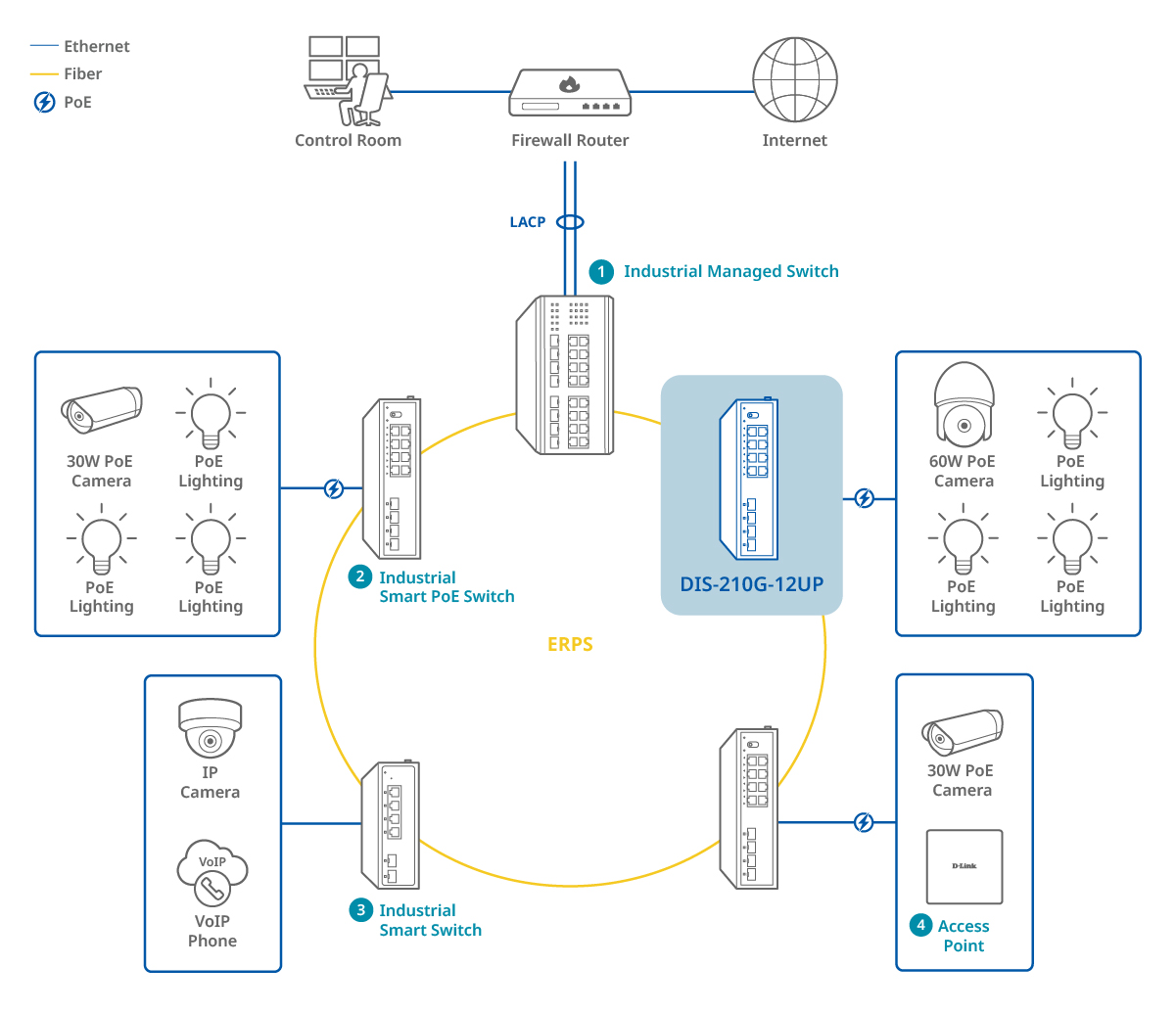

Industrial Automation
City Surveillance
User benefits :
Learn more :
User benefits :
Learn more :
|
Category
|
Smart Industrial Switches |
|---|---|
|
Number of PoE Ports
|
8 |
|
PoE Power Budget
|
240 W |
|
PoE Ports
|
802.3at 802.3bt |
|
Fanless
|
Supported
|
|
Installation
|
DIN-Rail |
|
Operating Temperature
|
-40°-75°C |
|
Surge Protection
|
6kV |
|
802.3az EEE
|
Supported
|
|
Jumbo Frame
|
9K |
|
Ingress Protection
|
IP40 |
|
Power Supply Type
|
DC:48~55V Dual input |
|
MAC Address
|
Up to 8K |
|
802.1D STP, 802.1w RSTP, 802.1s MSTP
|
Supported
|
|
Ethernet ring protection switching (ERPS)
|
Supported
|
|
Port/VLAN Basis GVRP
|
Supported
|
|
802.1X, RADIUS
|
Supported
|
|
LLDP, LLDP-MED
|
Supported
|
|
ICMPv6
|
Supported
|
|
OAM by 802.3ah, 802.1ag, ITU-T Y.1731
|
Supported
|
|
Command Line Interface (CLI)
|
Supported
|
|
Console Port
|
RJ-45 console port |
|
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice. |
|
