Industrial Gigabit Smart Managed Switch
DIS-200G-12S
- Product Status: Live

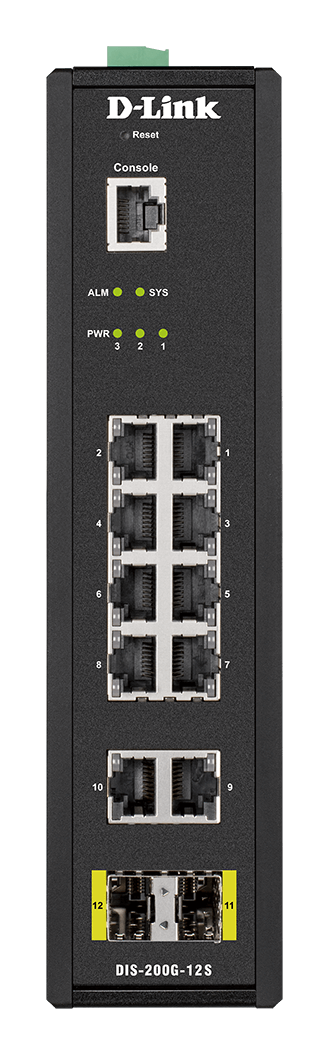

- 10 x 10/100/1000Base-T ports, 2 x SFP ports
- RJ-45 Console port
- Easy-to-control management interfaces and security
- Withstands severe temperatures
- Compliant with vibration, shock, free-fall testing
Where to buy
Features

Featuring management interfaces, including an industry-standard CLI, and Web-based UI, the DIS-200G Serie is easy to manage and provides the controls to help protect and shape your network.

Designed with 10 x 10/100/1000BaseT ports and 2 x SFP ports to suit a range of devices and network layouts.

Certifications for vibration, shock, free-fall, electromagnetic, and high-capacity 6 kV surge protection on all copper ports to maximise network uptime in harsh deployment environments.

Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +65°C.

ERPS quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings.

The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.


With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.

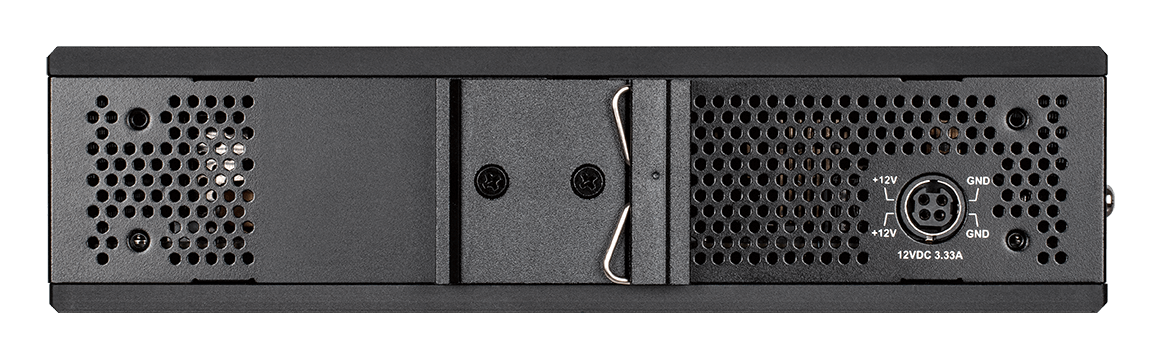

For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.

Small but mighty. To make the most of cabinet space, it measures: 48 x 210 x 171.2 mm.
Related Products



Specification
Type
|
Smart managed Industrial |
---|---|
Number of ports
|
5 to 14 ports |
Layer
|
Layer 2 |
Main type of ports
|
1000BASE-T Gigabit Ethernet |
Type of uplink ports
|
SFP |
Fanless
|
Supported
|
Form factor
|
DIN rail |
Housing
|
Metal |
Jumbo frame
|
Supported
|
Environmental
|
Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6 |
MAC address
|
8K |
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
Link aggregation
|
802.3ad |
VLAN type
|
Port-based GVRP |
802.1X access control
|
Supported
|
RADIUS/TACACS+ authentication
|
Supported
|
SNMP (v1/v2c/v3)
|
Supported
|
LLDP
|
Supported
|
Switching capacity
|
24 Gbps |
802.3az Energy-Efficient Ethernet support
|
Supported
|
Cable diagnostics
|
Supported
|
Ethernet ring protection switching (ERPS)
|
Supported
|
VLAN group (max static)
|
128 |
Advanced VLAN
|
Asymmetric VLAN Auto Surveillance VLAN Voice VLAN |
Number of QoS queues per port
|
4 |
Encryption protocol supported
|
SSH |
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only.Specifications may be subject to change without prior notice. |
|
