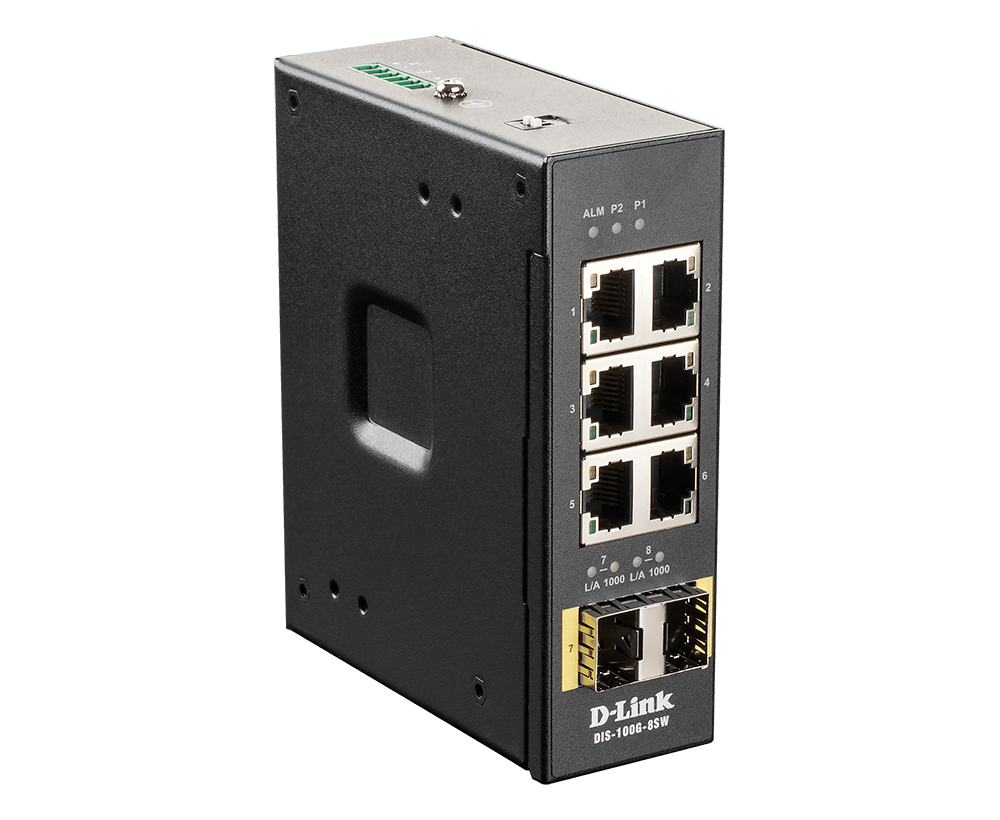

8-Port Gigabit Unmanaged Industrial Switch

DIS-100G-8SW

  • Product Status (Revision A1_v200): Live
  • 6 x 10/100/1000BASE-T ports
  • 2 x SFP ports
  • -40°C to +75°C wide operating temperature range
  • IP30-rated solid metal housing
  • High EMC endurance

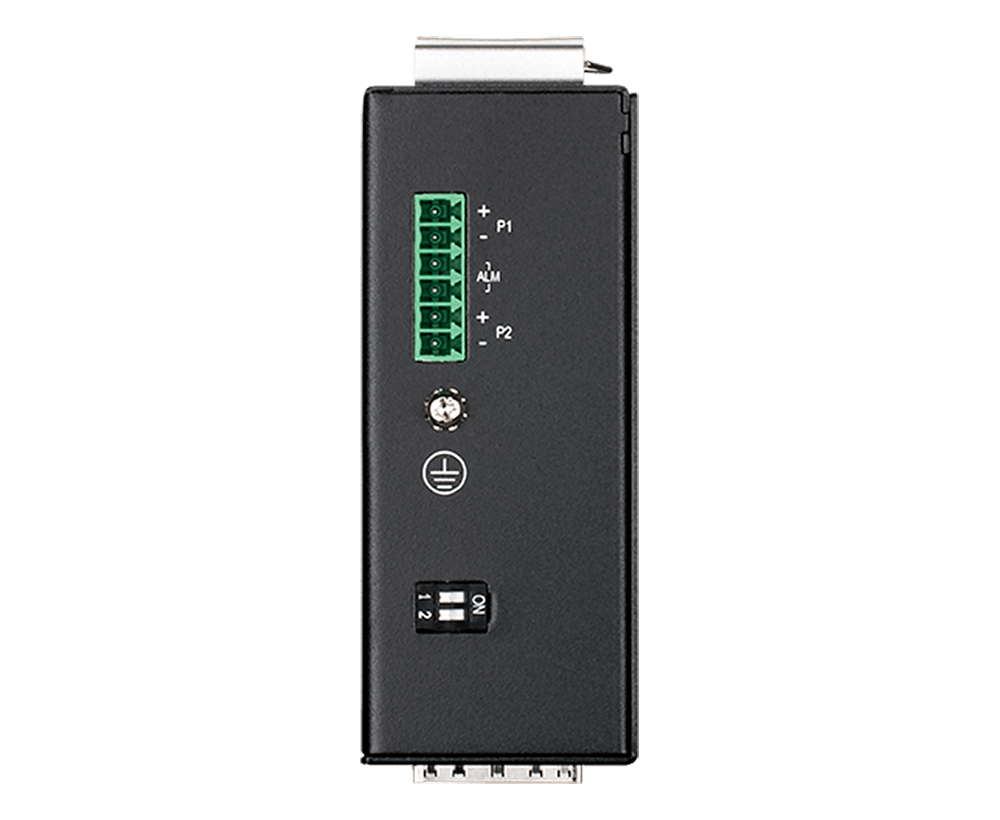

  • Dual power input for redundant power supplies

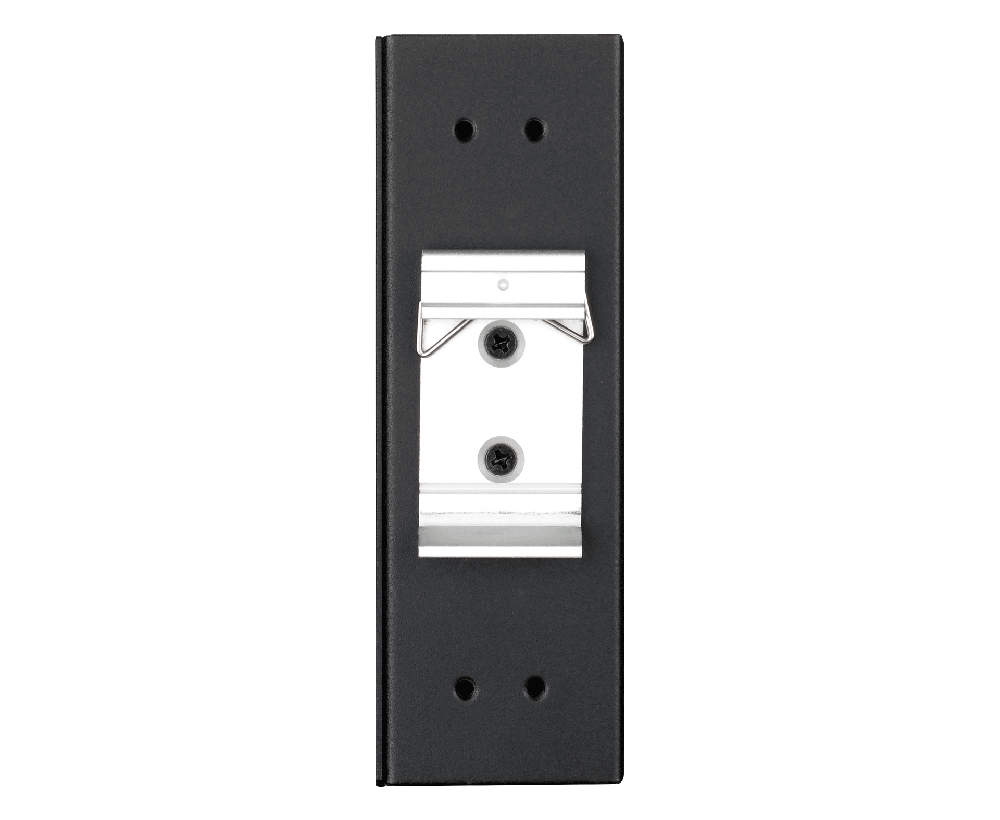

  • DIN-rail and wall-mounting options
  • Compliant with EN-50121-4 wayside control and NEMA-TS2 traffic control standards

Download the datasheet.

Where to buy

Durable, Reliable, and Efficient

The DIS-100G Series switches are housed in a highly resistant IP30-rated metal casing to protect the switches from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects the DIS-100G Series from unwanted effects when operating in environments with strong electromagnetic interference.

Fully Compliant

The D-Link DIS-100G Series industrial switches are compliant with all international requirements for product safety and electromagnetic compatibility that ensure safe deployment. Moreover, the DIS-100G Series fully complies with the EN50121-4 wayside control and NEMA-TS2 traffic control standards, which makes these switches an ideal solution for Intelligent Transportation System (ITS) applications.

Alarm Port
Yes
Dimensions
117.8 x 39 x 96.9 mm
FAN
Fanless
Humidity
Operating: 5% to 95% RH, non-condensing
Storage: 5% ~ 95% RH
Interfaces
2 x 1000M SFP
2 x SEP ports
6 x 10/100/1000 BASE-T ports
6 x 1000Base-T
Auto MDI/MDIX
Maximum Forwarding Rate
11.9Mpps
Maximum Heat Dissipation
29 BTU/hr
Maximum Power Consumption
8.5W
MTBF
> 25 years
Operating Altitude
2000 m
Power Input
12-58Vdc
Switching Capacity
16 Gbps
Temperature
Operating -40 ~ 75℃
Storage -40 ~ 85℃
Weight
0.448kg
