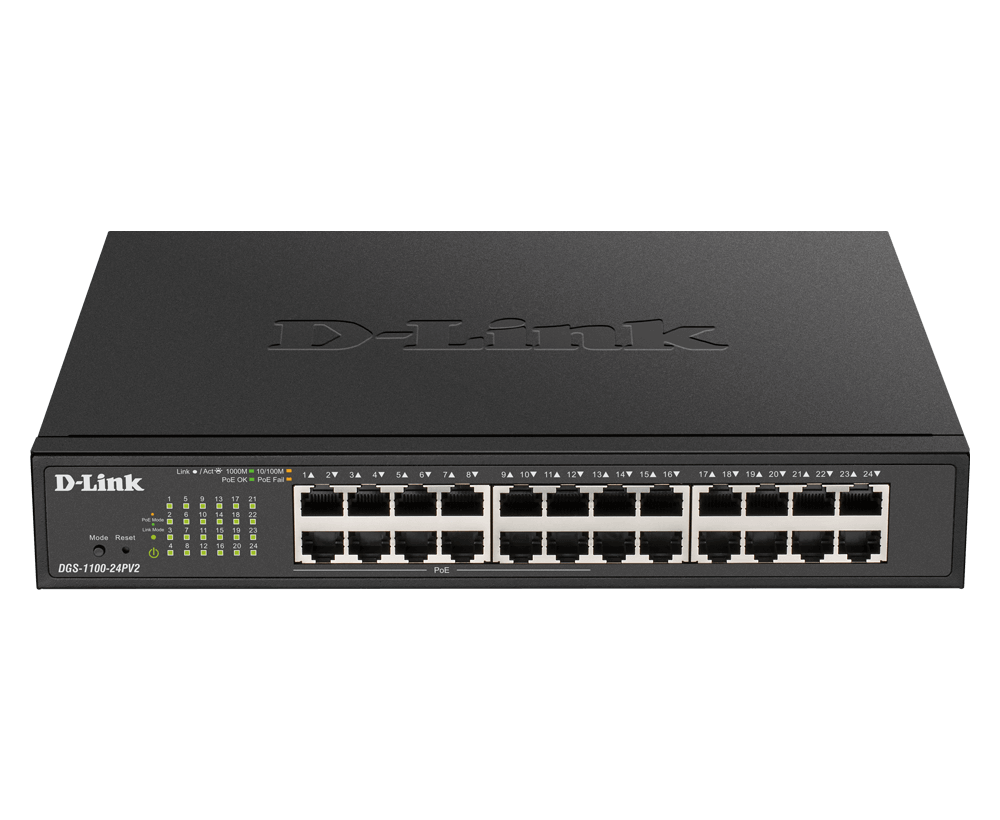

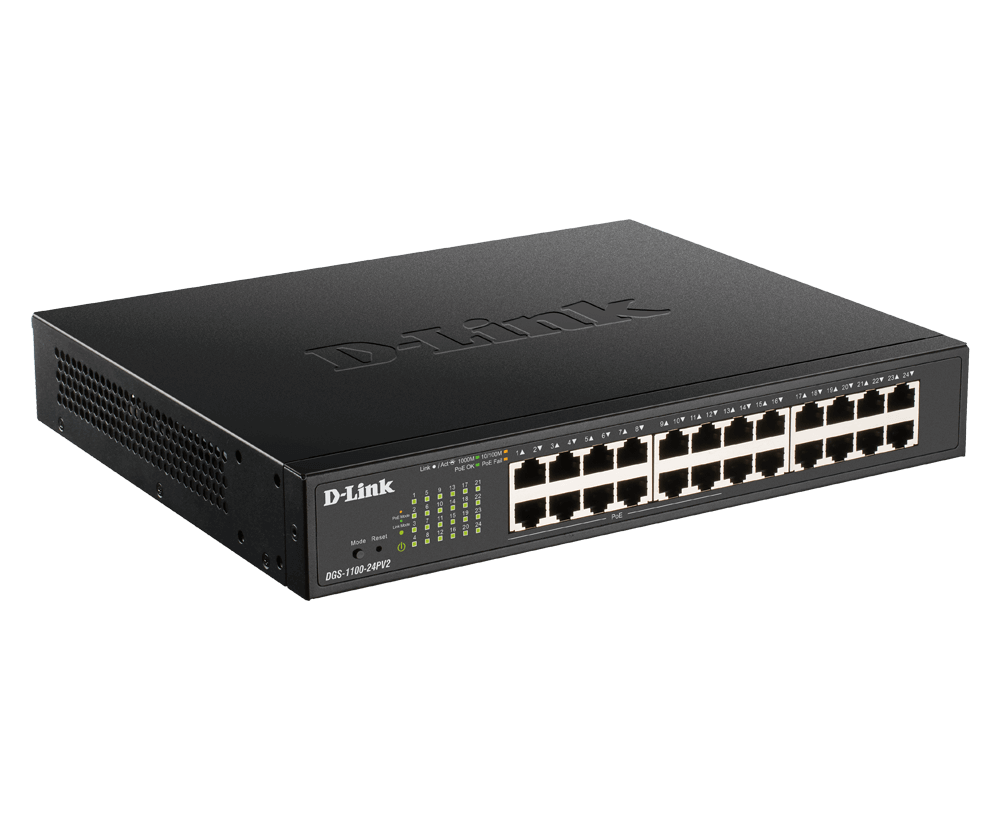

24-Port Gigabit PoE Smart Managed Switch
DGS-1100-24V2
- Product Status: Live
- 12 x 10/100/1000Base-T Ports
- 12 x 10/100/1000Base-T PoE Ports
- 100W PoE Power Budget

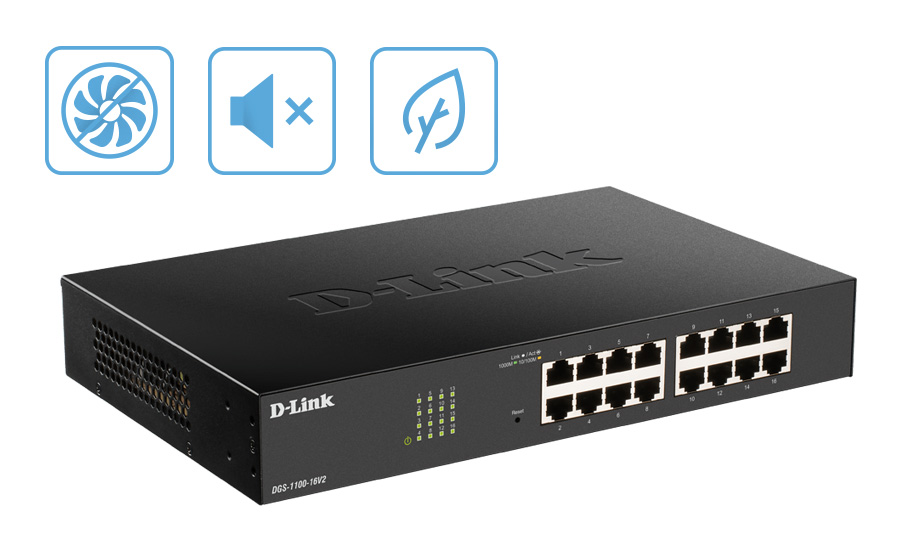

- Fanless design for silent operation
- Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs
- Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery
- Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security
- IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic
- Innovative energy saving features are good for your budget, as well as the environment
- Get up and going quickly with streamlined first-time setup and ongoing management

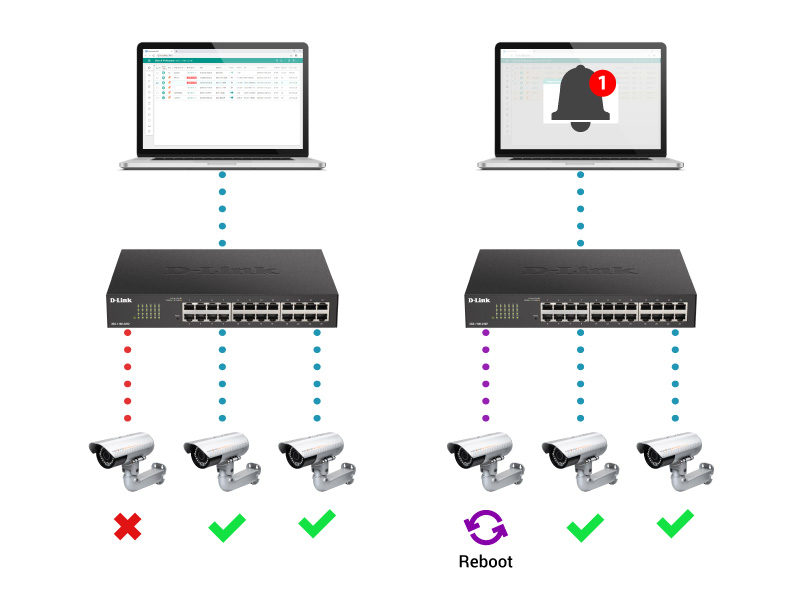

Actively Mitigating
Round-the-clock surveillance footage is vital. If you have cameras attached to your network, you may have thought technical difficulties were a given. However, the PD-Alive feature actively mitigates device downtime. If a device is not working as expected, the switch can automatically reset them and get them back online. No need to turn them on and off again in the middle of the night.
Specification
Acoustic
|
0 dB |
---|---|
Aggregation
|
8 x Link Aggregation Group Per Device 8 x Max Port Per Link Aggregation Group |
Comply with RoHS 6
|
Yes |
Control
|
802.3x Flow |
CPU Speed
|
125MHz |
Dimensions
|
280 x 180 x 44 mm(11.02 x 7.08 x 1.73 in) |
DRAM Size
|
128KBytes |
Energy Efficiency Ethernet (EEE)
|
Yes |
FAN
|
Fanless |
Flash Memory Size
|
16 MBytes |
Head-of-line (HOL) Blocking Prevention
|
Yes |
Humidity
|
Operating: 0% - 95% RH Storage: 0% - 95% RH |
IGMP Snooping
|
Max 64 IGMP Snooping Groups |
Interfaces
|
16 x 10/100/1000BASE-T 16 x 1000Base-T Auto MDI/MDIX |
Jumbo Frame
|
9,216 Bytes |
MAC Address Table Size
|
8000 |
Maximum Forwarding Rate
|
23.81Mpps |
Maximum Heat Dissipation
|
34.46 BTU/hr |
Maximum Power Consumption
|
10.1 W |
MTBF
|
710,519 hours |
Operating Altitude
|
2000 m |
Packet Buffer Size
|
4.1Mbits |
Power Input
|
AC:100 ~ 240 V |
Power Saving
|
By LED Shut-Off By Link Status By Port Shut-Off By System Hibernation |
Protection
|
Surge/Lightning Protection (AC Power Inet) 2KV |
Spanning Tree Protocol (STP)
|
IEEE 802.1D STP IEEE 802.1w RSTP |
Standby Power Consumption
|
3.4 Watts |
Switching Capacity
|
32 Gbps |
Temperature
|
Operating: -5 to 50° C (23 to 122° F) Storage: - 40 ~ 70 °C |
VLAN
|
802.1Q Asymmetric VLAN Auto Surveillance VLAN Port-based VLAN VLAN Groups Voice VLAN |
Weight
|
1.27 Kg |
