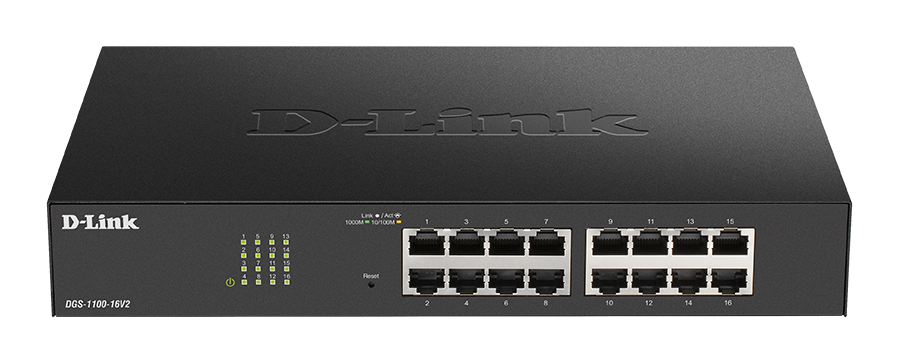

16-Port Gigabit Smart Managed Switch
DGS-1100-16

Powerful and flexible networking solution for small, medium, and enterprise businesses.

  • 16 x 10/100/1000BASE-T ports
  • Fanless design for silent operation
  • Innovative D-Link Green energy saving features
  • Complete web interface for comprehensive switch management


  • 16 x 10/100/1000BASE-T ports
  • Fanless design for silent operation
  • Innovative D-Link Green energy saving features
  • Complete web interface for comprehensive switch management


Specifications

1000Base-T Interface 16
Auto MDI/MDIX Yes
10/100/1000BASE-T ports 16
Switch Capacity 32 Gbps
Max. Packet Forwarding Rate 23.81Mpps
Power Input AC: 100-240V
Energy Efficiency Ethernet (EEE) Yes
Comply with RoHS 6 Yes
Power Saving By Link Status Yes
Power Saving By LED Shut-Off Yes
Power Saving By Port Shut-Off Yes
Power Saving By System Hibernation Yes
MAC Address Table Size 8K
802.3x Flow Control Yes
Head-of-line (HOL) Blocking Prevention Yes
802.1D Spanning Tree (STP) Yes
802.1w Rapid Spanning Tree (RSTP) Yes
802.3ad Link Aggregation Yes
802.1AX Link Aggregation Yes
Link Aggregation Group Per Device 8
Max Port Per Link Aggregation Group 8
Port Mirroring Yes
Loopback Detection (LBD) Yes
Jumbo Frame 9216 bytes
IGMP Snooping Yes
Max IGMP Snooping Groups 64
802.1Q VLAN Yes
VLAN Groups 128
Port-based VLAN Yes
Voice VLAN Yes
Auto Surveillance VLAN Yes
Asymmetric VLAN Yes
Number of Queue 4
Class of Service (CoS) Yes
Two Rate Three Color Marker (trTCM) Yes
Rate Limiting Yes
Queue Handling Yes
Strict Priority Queue (SPQ) Yes
Weighted Round Robin (WRR) Yes
SSL Yes
Broadcast/Multicast/Unicast Storm Control Yes
D-Link Safeguard Engine Yes
Traffic Segmentation Yes
DoS Attack Prevention Yes
Port-based Bandwidth Control Yes
Cable Diagnostics Yes
Simple Network Time Protocol (SNTP) Yes
SNMP Yes
Web-based GUI Yes
SNMP Trap Yes
TFTP Client Yes
LLDP Yes
System Log Yes
D-Link Discover Protocol (DDP) Yes (v0.25)
DHCP/BootP Client Yes
Dual Images Yes
Ping Yes
D-Link Network Assistant Yes
Smart Wizard Yes
Surge/Lightning Protection (AC Power Inet) 2kV
Surge/Lightning Protection (All Ethernet Ports) 1Kv
Store-and-Forwarding Yes
Weight 1.27 Kg
Dimension 280x 180x 44mm
Operation Temperature -5-50°C
Storage Temperature -40-70°C
Storage Humidity 0% ~ 95% RH
Operation Humidity 0%-95% RH
Operating Altitude 2000 m
Maximum Power Consumption 10.1 W
Maximum Heat Dissipation 34.46 BTU/hr
Standby Power Consumption 3.4 Watts
Acoustic 0 dB(A)
MTBF 710,519 hours
CPU Speed 125MHz
DRAM Size 128KBytes
Flash Memory Size 16 MBytes
Packet Buffer Size 4.1 MBytes
FAN Fanless

Simple. Easy. Smart.

WebUI Web UI

Easy to use web interface to access management features.

Smart Green Green Technology

Innovative D-Link Green power saving features

Management Software Management Software

Supports DNA and D-View for remote setup and management

Smart Managed

Advanced Security Features

The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation(static). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.

Dview

Simplify Network Management

D-Link’s free Network Assistant (DNA) displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.

Learn More About D-View 7

Easy Troubleshooting

Easy Troubleshooting

The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.
Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.



Think Green

Green Technology

D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).

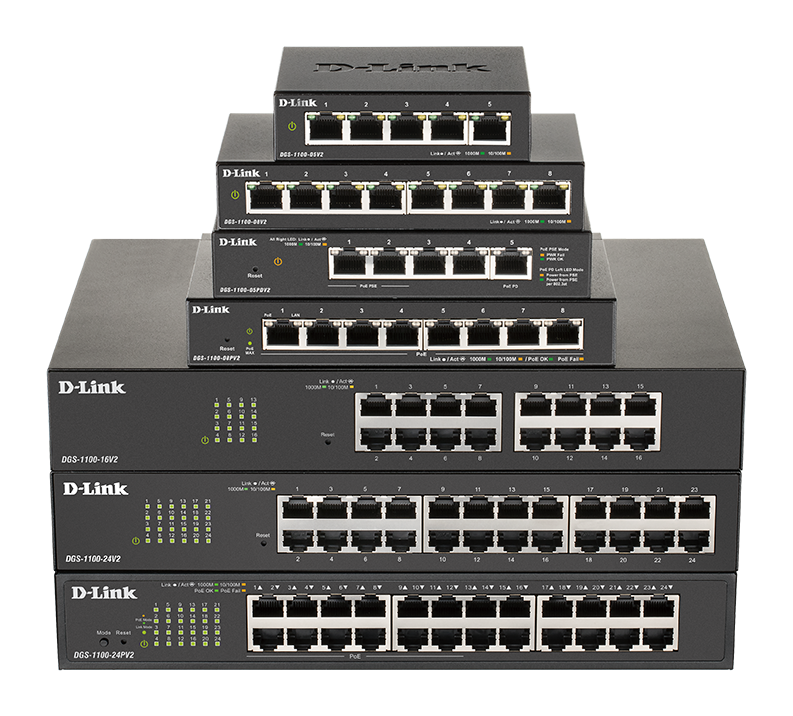

DGS-1100 Series
