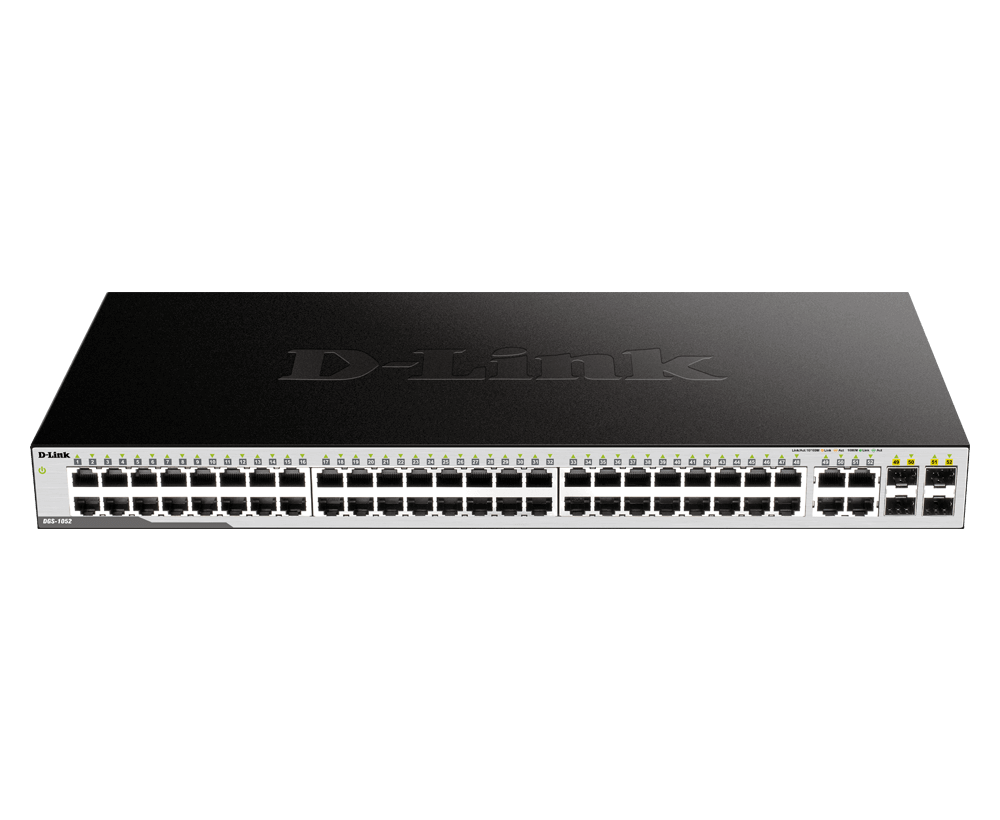

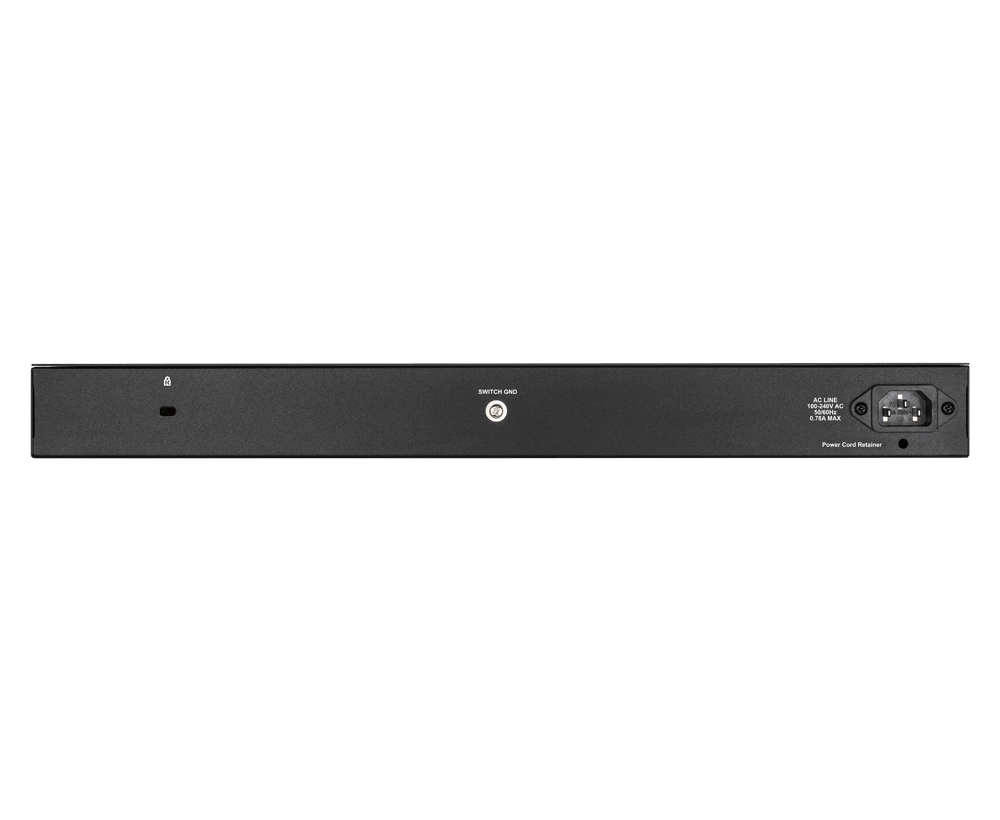

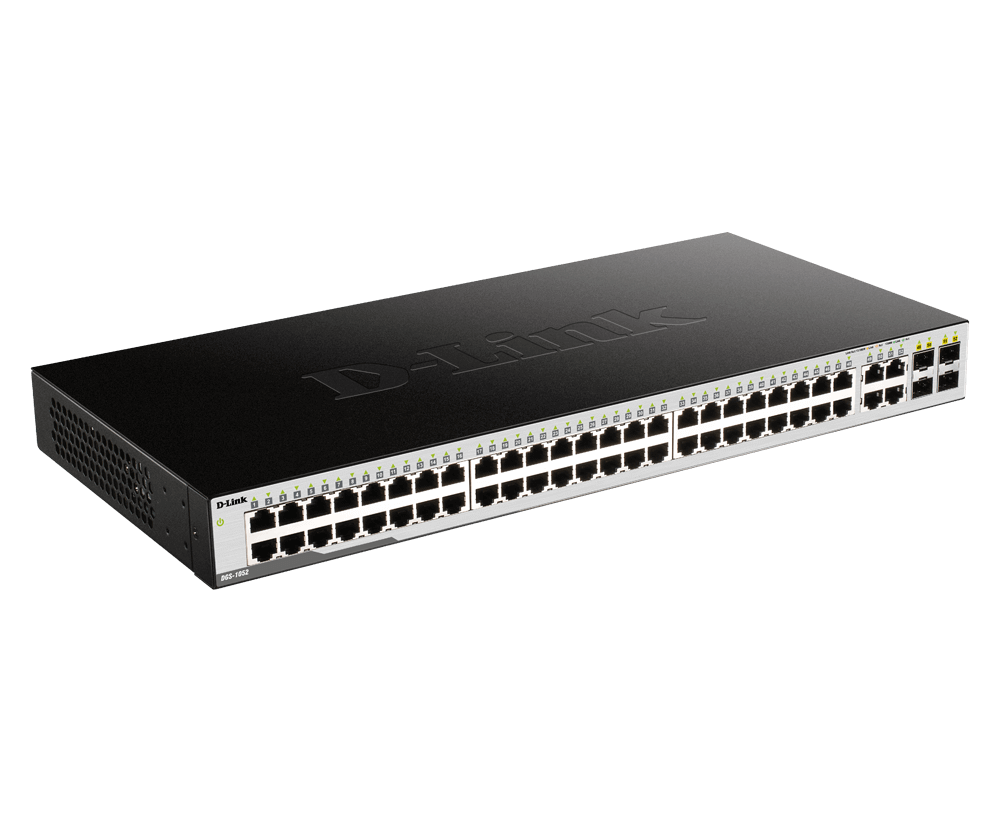

48 Port Gigabit Unmanaged Switch

DGS-1052

  • Product Status ($name): Live
  • 48 x Gigabit Ethernet ports upgrade your network to Gigabit connectivity
  • 4 x Gigabit Ethernet/SFP combo ports for more network versatility
  • No IT skills are no problem, just plug your devices in and they are ready to go
  • Fanless design for silent operation
  • IEEE 802.3x Flow Control for network reliability, even during heavy use
  • Quality of Service means no more dropped video calls or buffering
  • Packed with D-Link Green Features to reduce power waste
  • Durable metal case ensures a long product life
  • RoHS-compliant: no nasty materials or chemicals used

Download the datasheet.

Where to buy

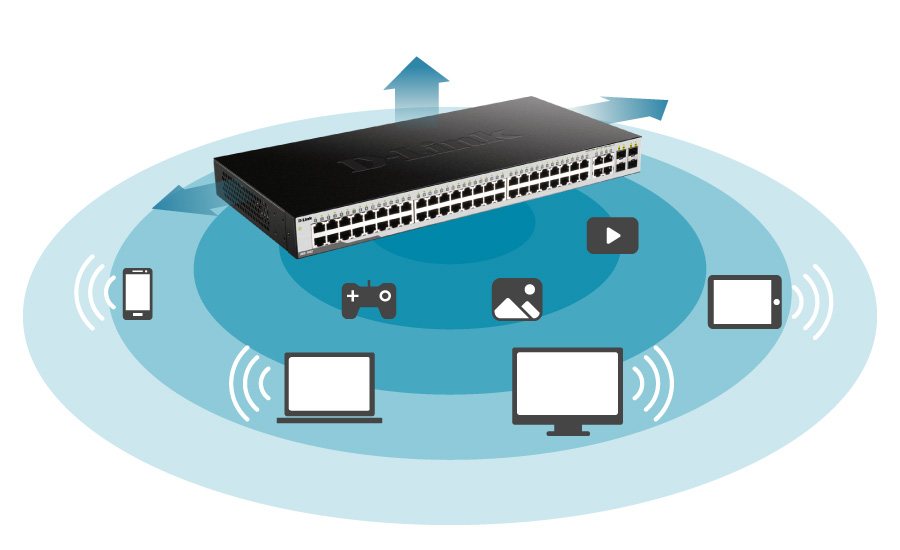

Gigabit Connectivity That Hits the Ground Running with Plug & Play

If you need Gigabit connectivity but do not necessarily have the IT skills to back you up, that’s no problem. The DGS-1052 is a switch that just gets the job done without drawing attention to itself.

  • Connect devices and you’re done, simple as that.
  • No ongoing management, it takes care of itself.

Seriously Upgrade Your SMB’s Connectivity

48 Gigabit Ports

With so many ports available, get all your devices in the fast lane with Gigabit Connectivity.

Flow Control

Data spikes are a given. Flow Control throttles connections in busy times to prevent the network being overwhelmed.

Quality of Service

Data is intelligently prioritized, getting time-sensitive data to where it needs to be in record times.

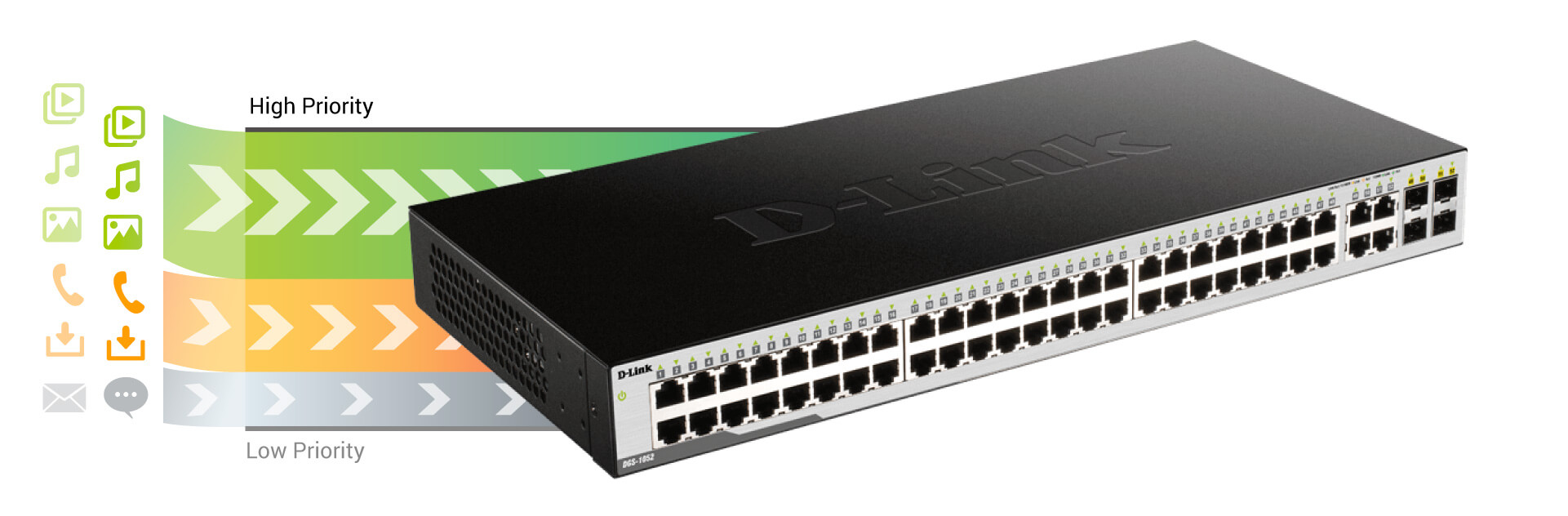

A Higher Level of Service

Your new switch is an intelligent piece of kit. The Quality of Service (QoS) feature intelligently organizes traffic based on time-sensitivity. At peak times, video conference calls or video streaming can really hit a snag. QoS knows what is important and pushes it to the front of the line. No more dropped calls or video buffering.

Good For Your Budget, Good For The Planet

Your switch is as budget and environmentally conscious as you. It is equipped with features to reduce power usage, extend product life and keep your OPEX low.

・RoHS-Compliant
No nasty materials or hazardous substances
・802.3az support
Port not in use? The switch automatically powers it down, saving electricity
・Fanless Design
With less potential points of failure, your switch can enjoy a longer product life

Specification

Download the datasheet.

Interfaces
48 x 1000Base-T
Switching Capacity
104 Gbps
Max. Packet Forwarding Rate
77.4 Mpps
Dimensions
480 x 210 x 440 mm
Weight
3.46 kg
Temperature
Storage -20 - 70°C
Operating: -5 to 50° C (23 to 122° F)
Humidity
Operating: 0% - 95% RH
Storage: 0% - 95% RH
Operating Altitude
2000 m
Max Power Consumption
34.85 Watts
Standby Power Consumption
13.7 W/100 V
13.9 W/240V
Maximum Heat Dissipation
118.92 BTU/h
MTBF
400,667 hours
Power Input
AC:100 ~ 240 V
Packet Buffer Size
12 Mbits
FAN
Fanless

Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.

Download the datasheet.

Support

Version Date Type File Size
Datasheet - PDF 0.39mb Download
