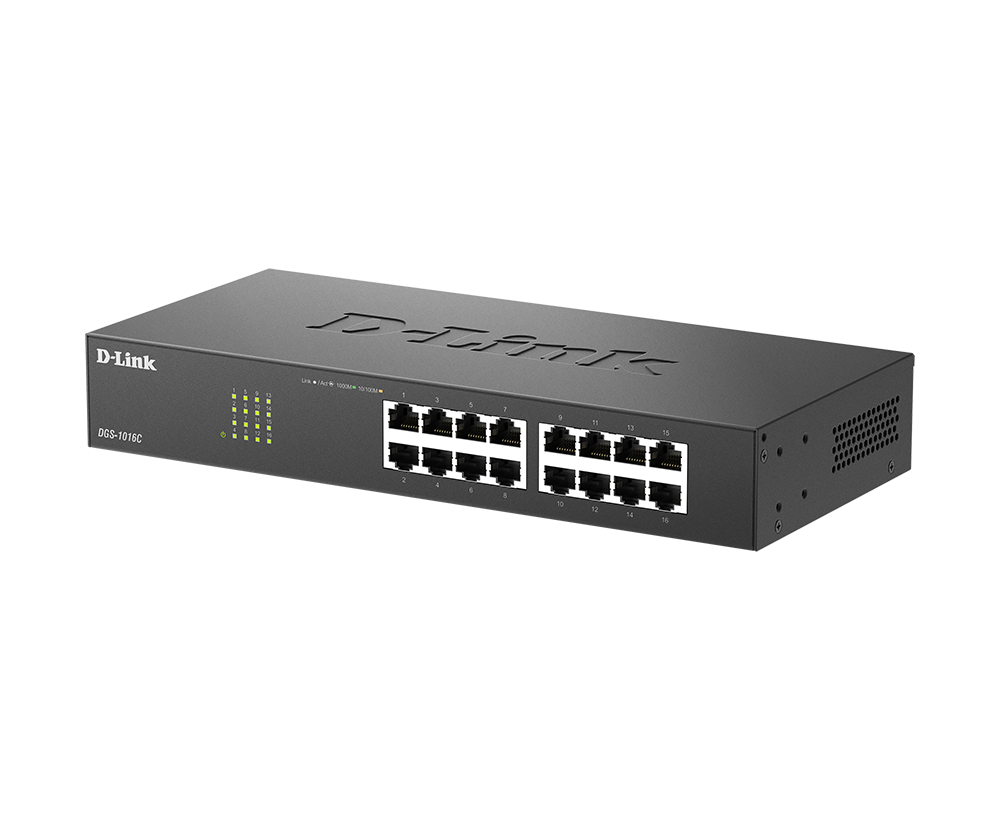

16-Port Gigabit Unmanaged Switch

DGS-1016C

  • Product Status (C1 v1.00): Live
  • 16 Gigabit LAN ports for high-speed wired connections
  • Plug-and-play installation for convenience
  • Auto-negotation on all ports
  • Half/full-duplex, auto MDI/MDIX, and store-and-forward switching
  • Full wire-speed data transmission
  • Energy-efficient design

Download the datasheet.

Where to buy

Fast Connectivity meets Energy Efficiency

The DGS-1016C lets you enjoy fast wired connectivity with 16 Gigabit LAN ports, and easy Plug-and-play installation. It even reduces power to a port when there is no traffic, and optimizes power usage for a port for the length of cable connected to it, giving you more energy efficiency in your SOHO or SMB network.

Upgrade to Gigabit Networking

With data transfer speeds of up to 2000 Mbps at full duplex, these switches are ideal for quick file transfers, online gaming and smooth streaming media. They feature easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status. Auto MDI/MDIX crossover makes connection a cinch; just plug in your cables and you’re ready to go.

Conserve Energy

The DGS-1016C implements 802.3az Energy Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. The switch can detect when a connected computer is shut down or when there is no Ethernet traffic and can automatically reduce the power used for that port, cutting power usage substantially. In addition, the switch optimizes power usage for each port for the length of cable connected to it, using only as much power as is required. Both of these features work together to help you save power automatically.

Reliable Plug and Play Installation

The DGS-1016C is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices.  All ports on the switch have up to 4 kV surge protection in order to improve network reliability.

Smooth Streaming

These switches support QoS, which prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming media and VoIP calls.

Interfaces
Auto MDI/MDIX
16 x 1000Base-T
Switching Capacity
32 Gbps
Dimensions
282.2 x 178 x 44.5 mm (11.11 in. x 7.01 in. x 1.75 in.)
Weight
1.06 kg
Temperature
Operating: 0 ~ 40 °C
Storage: - 40 ~ 70 °C
Humidity
Operating: 10% ~ 90% RH
Storage: 5% ~ 95% RH
Max Power Consumption
9.3 watts
Standby Power Consumption
4.48 watts
Maximum Heat Dissipation
33.554 BTU/h
Acoustic
0 dB
MTBF
208,124 hours
Power Input
AC:100 ~ 240 V
Packet Buffer Size
256KBytes
FAN
Fanless
Comply with RoHS 6
Yes
Energy Efficiency Ethernet (EEE)
Yes
MAC Address Table Size
8000
Control
802.3x Flow
Head-of-line (HOL) Blocking Prevention
Yes
Jumbo Frame
9,216 Bytes
Maximum Forwarding Rate
23.808 Mpps
Power Saving
By Link Status
By Cable Length

Support

Version Date Type File Size
DGS-1016C/1024C Datasheet - PDF 0.46mb Download
